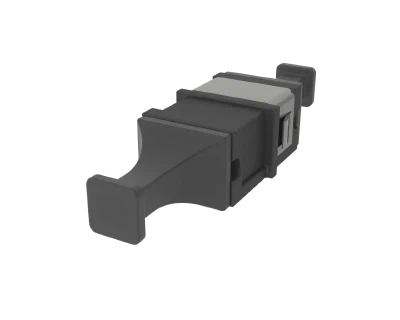

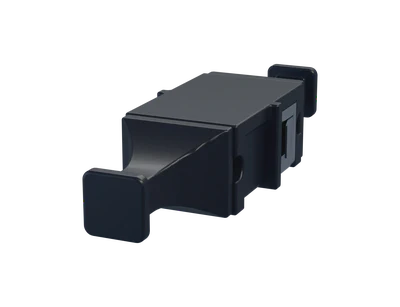

MPO Adapter
High‑density MPO fiber adapters with precision alignment for MPO‑12, MPO‑16 and MPO‑24 connectors.

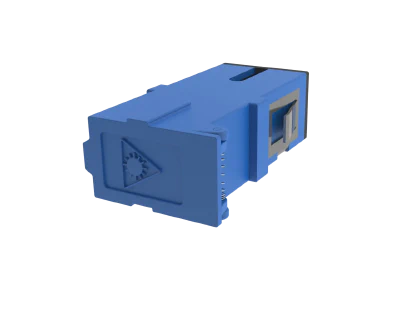

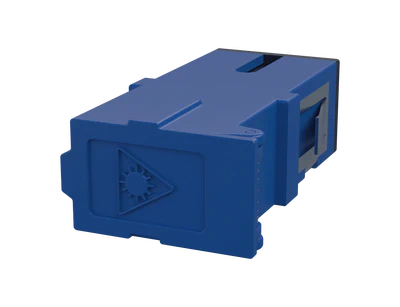

SC Adapter
Automatic-shutter SC fiber adapters with ceramic alignment sleeves for low-loss simplex or duplex connections in single-mode and multi-mode environments.

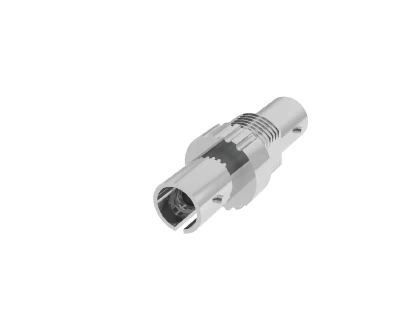

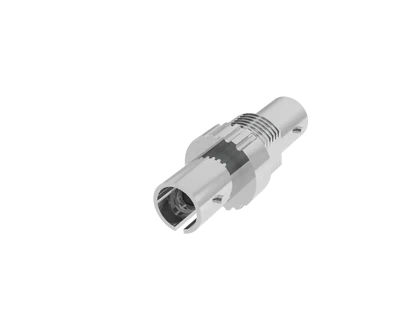

ST Adapter
Spring‑loaded, bayonet‑lock ST fiber adapters with ceramic alignment sleeves for low‑loss simplex connections in single‑mode and multi‑mode environments.Fiber Optic Adapters Frequently Asked Questions

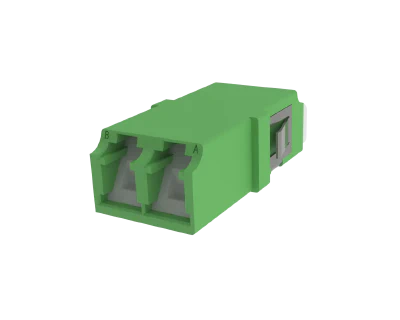

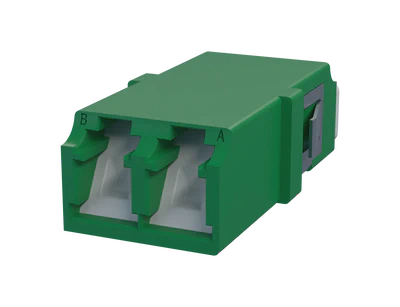

+ What are the key features of ScaleFibre shuttered LC adapters?
Our shuttered LC adapters feature an integrated internal automatic laser and dust shutter. This mechanism provides two-fold protection: it safeguards the ceramic ferrule from environmental contamination and ensures eye safety by blocking laser exposure during maintenance. These adapters utilize a high-precision zirconia ceramic alignment sleeve to achieve low insertion loss, maintaining signal integrity over 1,000+ mating cycles.
+ Why should I use flangeless adapters in high-density patch panels?
ScaleFibre offers flangeless LC and SC adapters specifically designed for high-density environments. By removing the traditional screw-mount flange, these adapters allow for tighter port spacing within 1RU or 2RU fiber cassettes and patch panels. This maximizes tray occupancy and reduces the overall footprint of your connectivity hardware, which is critical for hyperscale data centers and congested rack environments.
+ How do ScaleFibre MPO adapters support 40G and 100G network migration?
Our MPO adapters are engineered to facilitate rapid deployment in 40G/100G/400G architectures. They are available in ‘Opposed’ (Key-up to Key-down) and ‘Aligned’ (Key-up to Key-up) configurations to ensure proper polarity across trunking and fanout systems. The robust polymer housing and precise mechanical alignment ensure low-loss transmission for high-fiber-count ribbon cables, preventing signal dropouts in high-speed spine-leaf architectures.
+ What is the benefit of a zirconia ceramic alignment sleeve over phosphor bronze?
ScaleFibre standardizes on zirconia ceramic sleeves because they offer superior dimensional stability and thermal resistance compared to bronze. Ceramic sleeves provide the microscopic alignment precision (9µm core alignment) required for modern single-mode (OS2) and high-speed multi-mode (OM3/OM4) networks. Unlike bronze, ceramic does not deform over time, ensuring consistent low insertion loss and higher durability for critical infrastructure.
+ When should I choose a Quad LC adapter over a Duplex configuration?
Quad LC adapters are the gold standard for high-density fiber management. By housing four LC ports in a single SC-duplex footprint body, they effectively double the port density of a standard patch panel. This is ideal for top-of-rack (ToR) switches and core distribution frames where rack space is at a premium. ScaleFibre Quad adapters maintain independent shutter mechanisms for each port, ensuring that neighboring active links remain protected during individual patch cord changes.
+ Are ScaleFibre adapters color-coded for rapid fiber management?
Absolutely. Our adapters follow TIA/EIA-568 standards for rapid identification: Blue for Singlemode (UPC), Green for Singlemode (APC), Aqua for OM3, and Erika Violet for OM4. This color-coding reduces the risk of patching errors during field installations and simplifies maintenance in large-scale deployments where multiple fiber types coexist in the same optical distribution frame (ODF).
