- Integrated internal dust and laser shutter
- Metal clip design for secure, tool-less installation
- Ceramic alignment sleeve for precise core alignment
- Supports simplex, duplex and quadplex formats
- Colour-coded high-quality polymer housing
- Compact, flangeless form factor
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
ScaleFibre LC through-adapters are engineered for precision and reliability. Compact and flangeless by design, they align two LC connectors with low insertion loss, sustaining signal integrity across both single-mode and multi-mode systems.

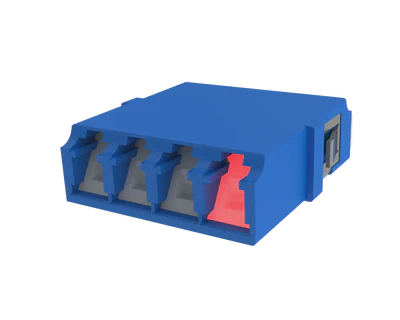

Shuttered dust and laser protection deploys automatically on unmated ports, safeguarding ferrules and preventing contamination without manual intervention. Each adapter features ceramic alignment sleeves, delivering consistent low-loss performance over more than 1,000 mating cycles.

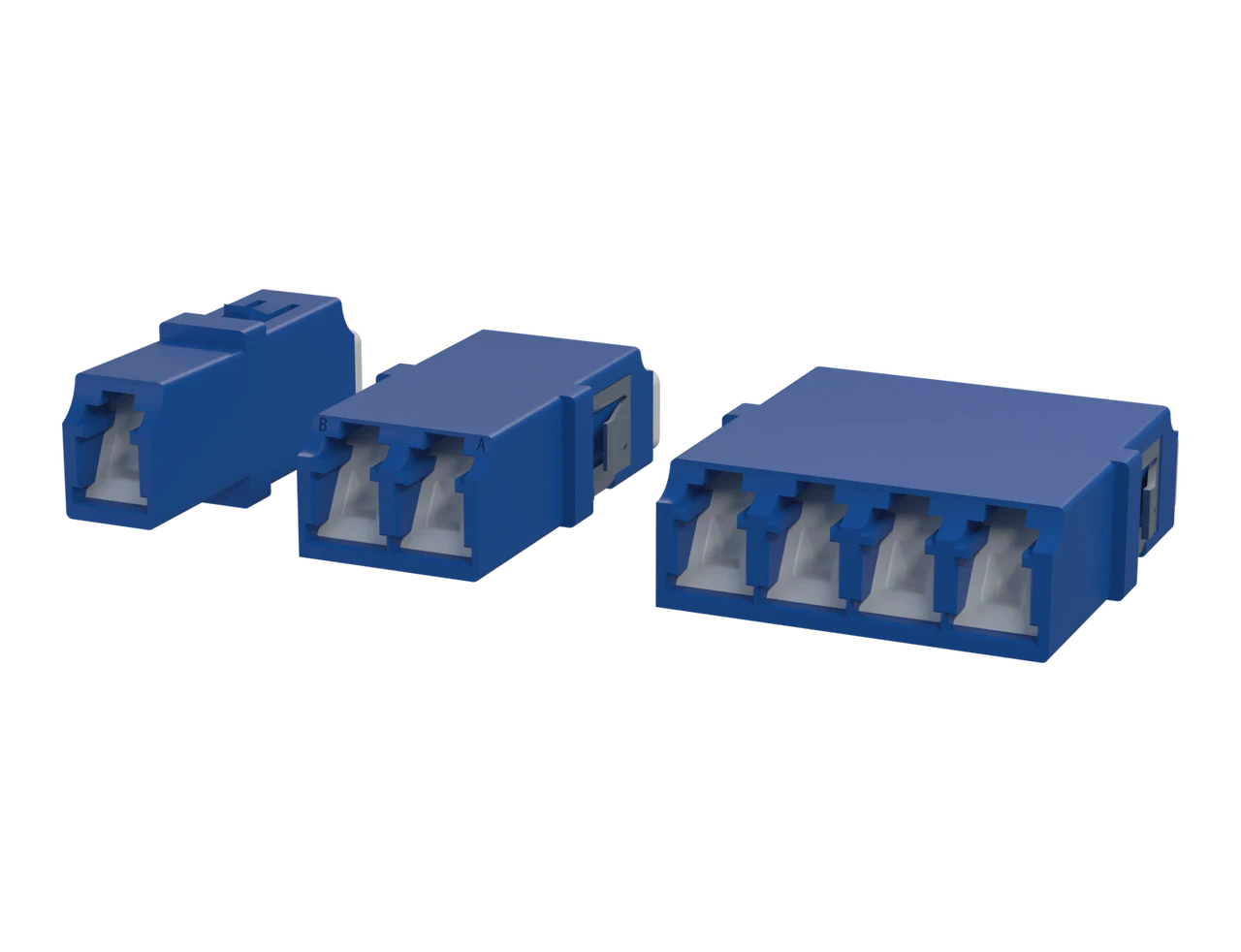

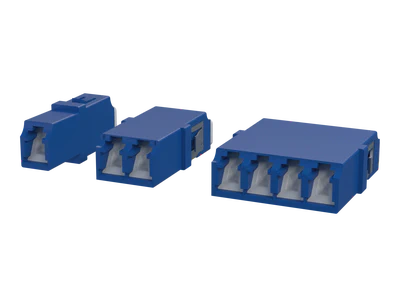

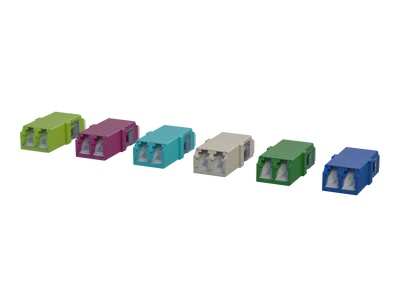

Offered in simplex, duplex and quadplex variants with engineered polymer housings, colour-coded bodies simplify port identification and streamline installation workflows.
IEC, TIA and FOCIS compliant, ScaleFibre LC adapters integrate seamlessly into high-density panels, fibre cassettes and rack-mount frames. No specialist tooling required.
| Technical Specifications | |
| Connector Type | LC/PC, LC/UPC, LC/APC |
| Mode | Single-mode or Multi-mode |
| Configuration | Simplex, Duplex or Quadplex |
| Typical Insertion Loss | ≤0.1dB |
| Alignment Sleeve | Ceramic |
| Housing Material | Engineered Polymer |
| Operating Temperature | -40°C to +75°C |
| Compliance | TIA/EIA-604, IEC 61754-20, FOCIS, IEC 60529, RoHS, REACH |

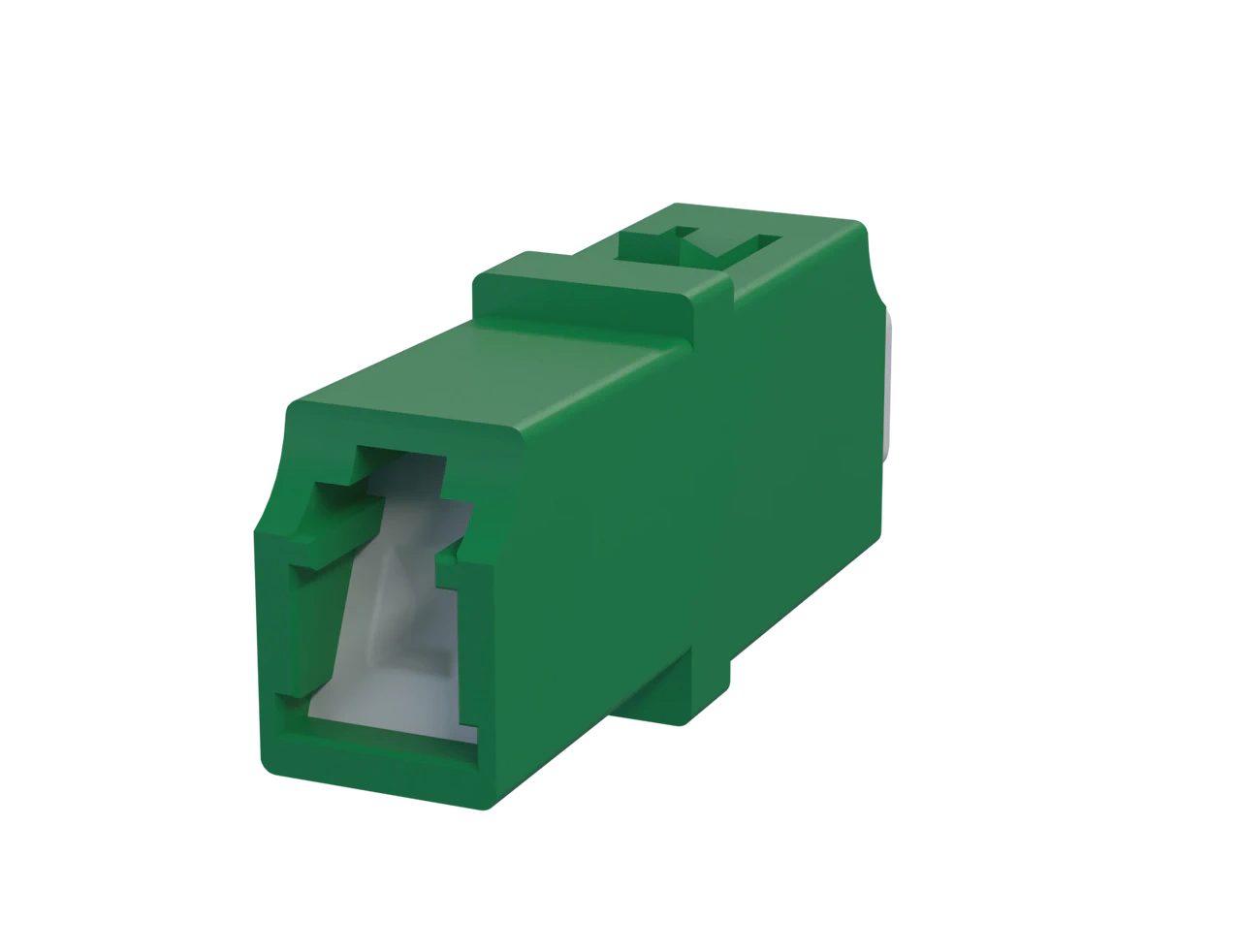

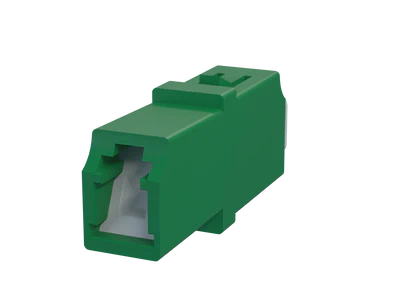

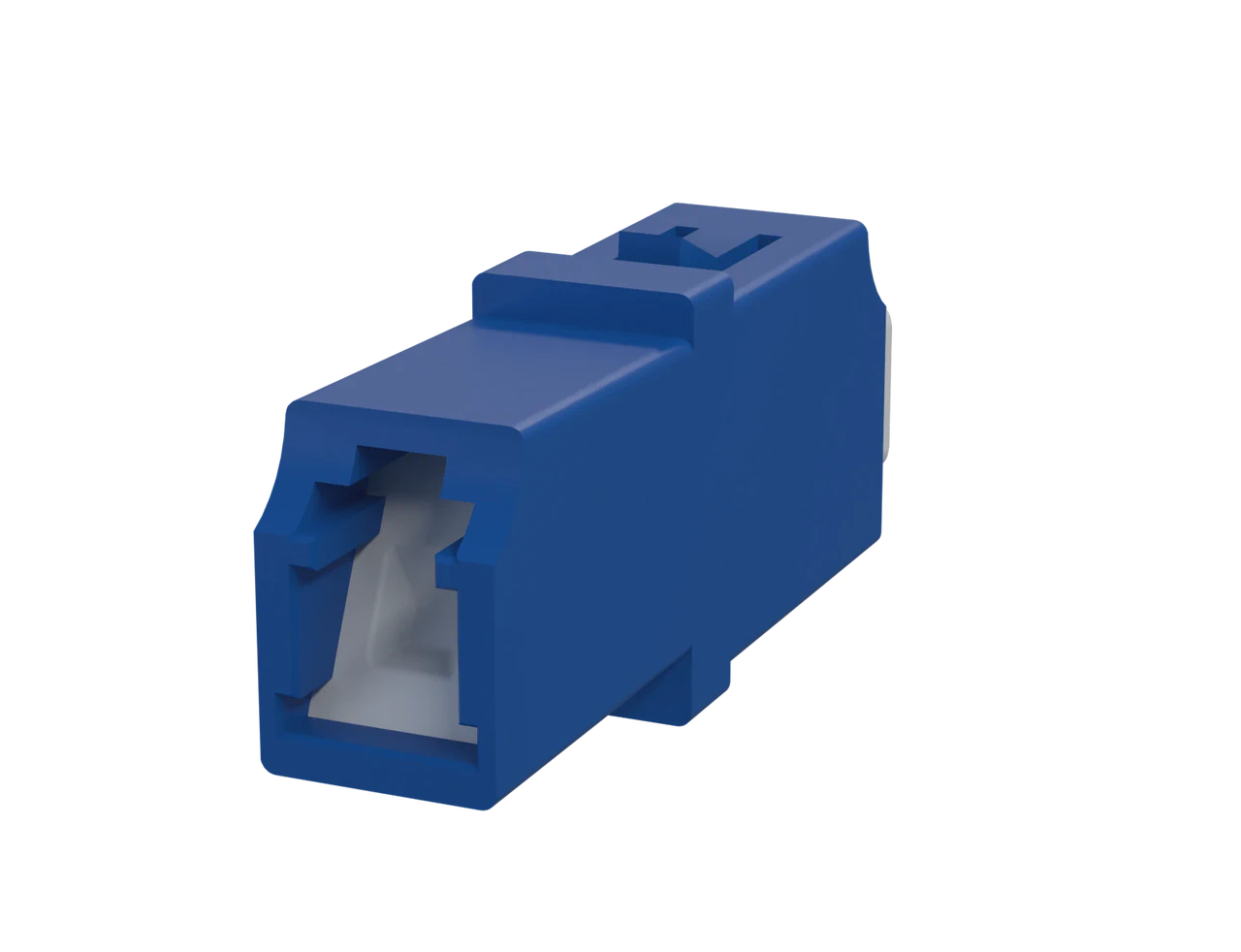

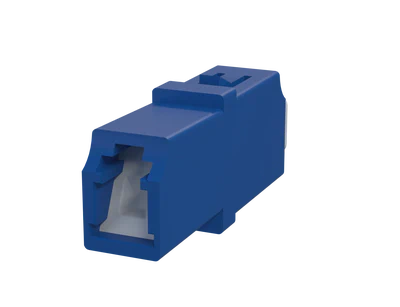

| LC Simplex Adapters | |
| ADPT-LC-SX-BU | Adapter, LC, Shuttered, Ceramic Sleeve, Simplex, Blue |
| ADPT-LC-SX-GN | Adapter, LC, Shuttered, Ceramic Sleeve, Simplex, Green |
| ADPT-LC-SX-AQ | Adapter, LC, Shuttered, Ceramic Sleeve, Simplex, Aqua |
| ADPT-LC-SX-EV | Adapter, LC, Shuttered, Ceramic Sleeve, Simplex, Erika Violet |
| ADPT-LC-SX-BE | Adapter, LC, Shuttered, Ceramic Sleeve, Simplex, Beige |

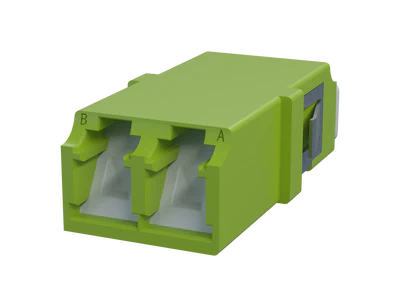

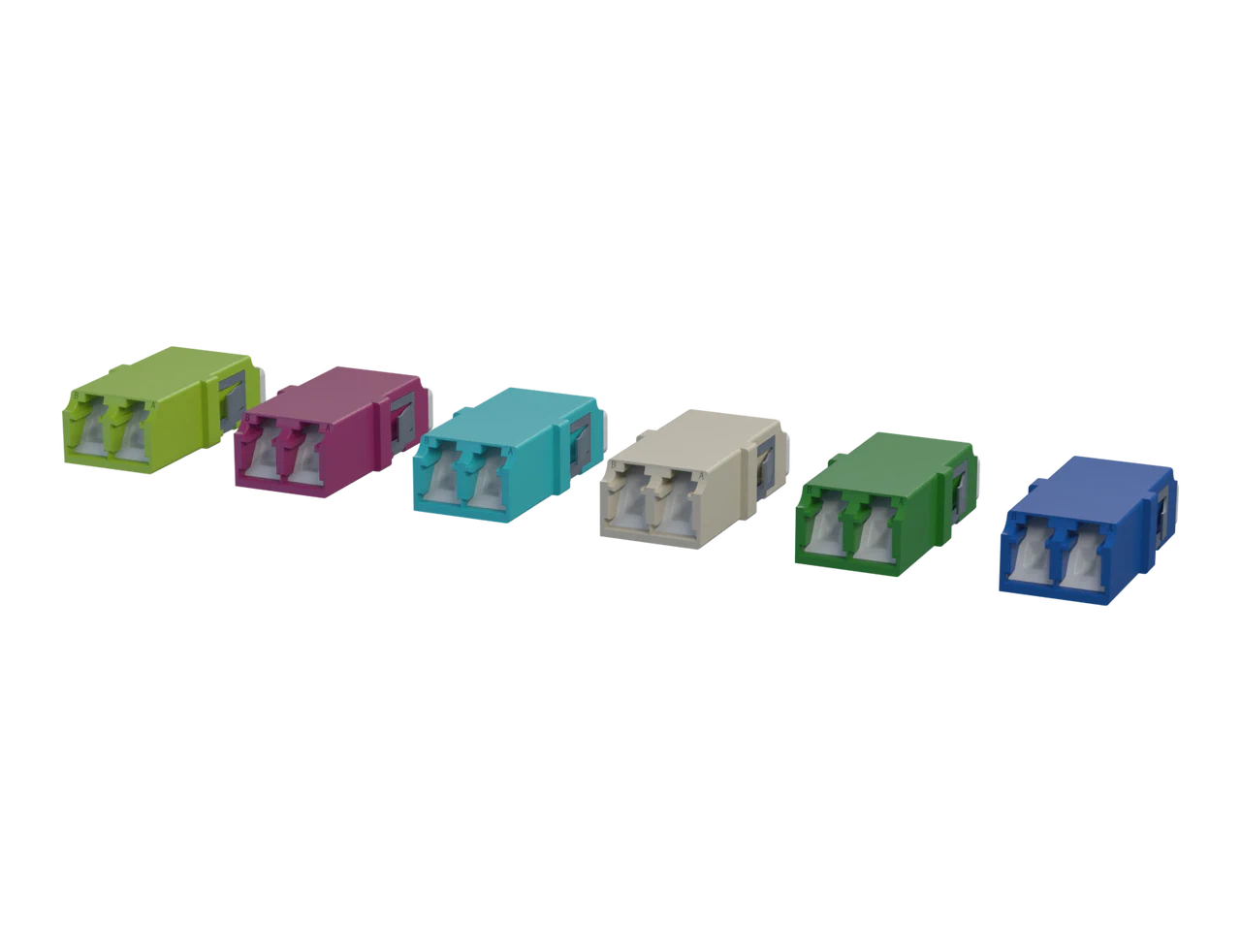

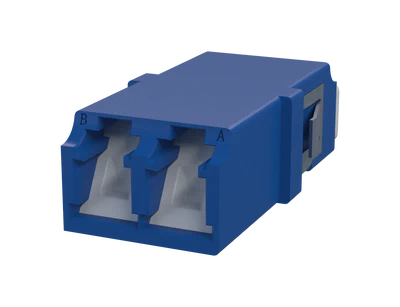

| LC Duplex Adapters | |

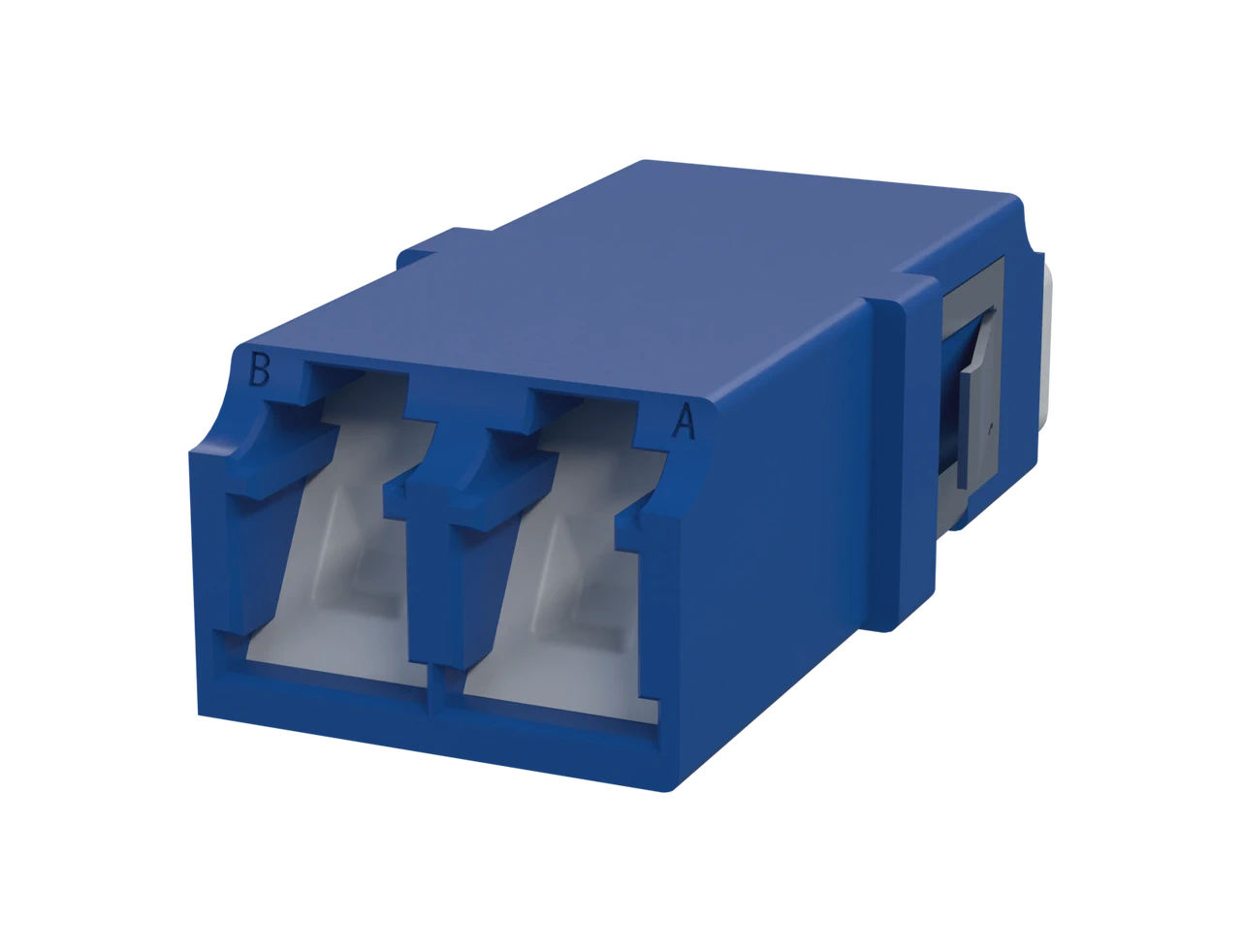

| ADPT-LC-DX-BU | Adapter, LC, Shuttered, Ceramic Sleeve, Duplex, Blue |
| ADPT-LC-DX-GN | Adapter, LC, Shuttered, Ceramic Sleeve, Duplex, Green |

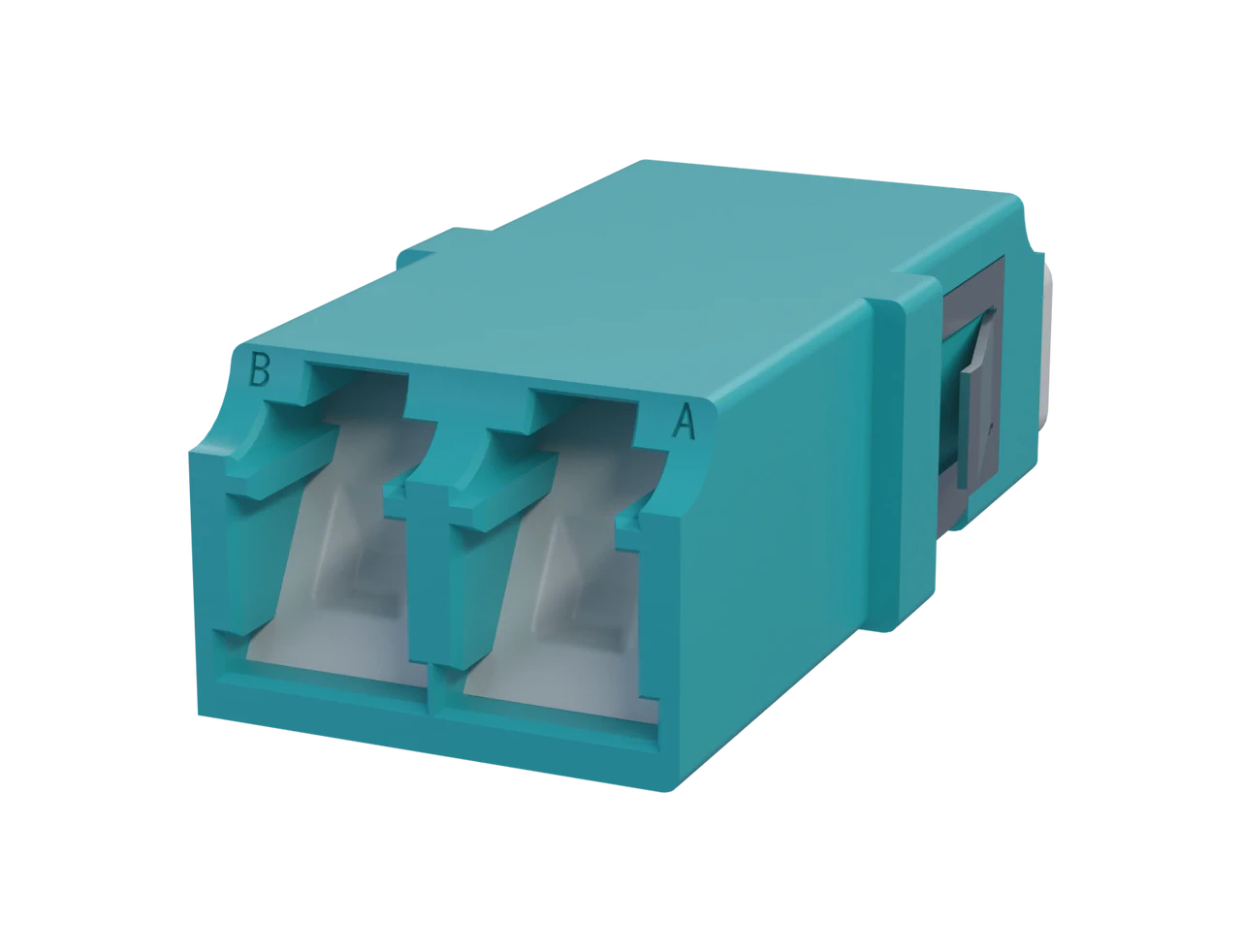

| ADPT-LC-DX-AQ | Adapter, LC, Shuttered, Ceramic Sleeve, Duplex, Aqua |

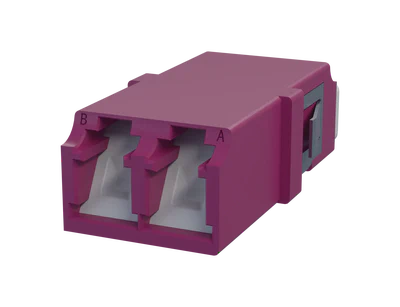

| ADPT-LC-DX-EV | Adapter, LC, Shuttered, Ceramic Sleeve, Duplex, Erika Violet |

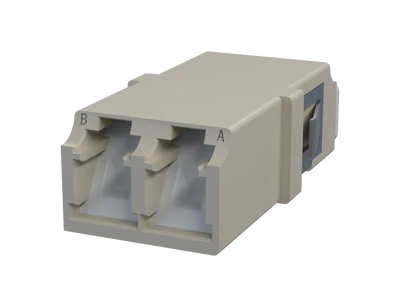

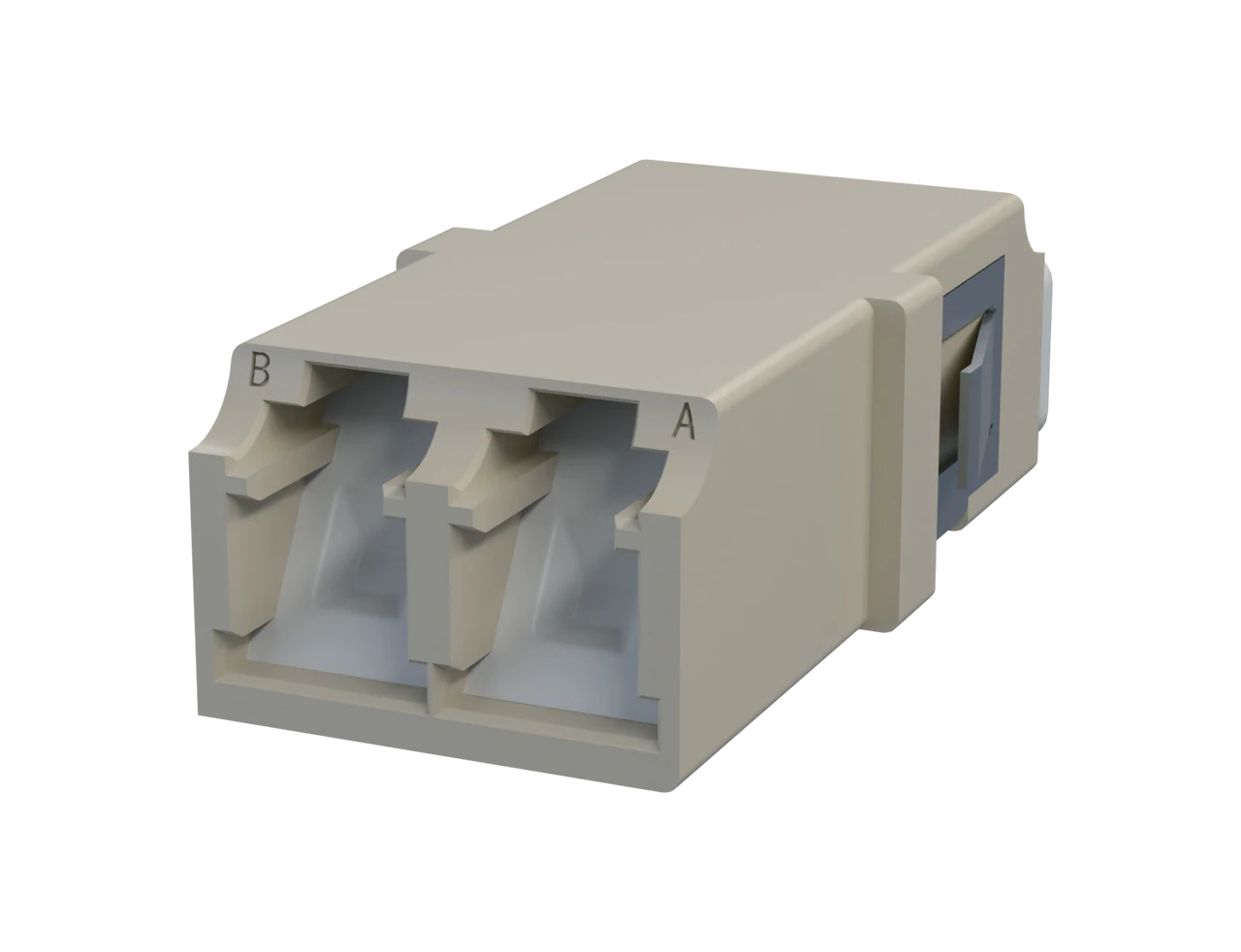

| ADPT-LC-DX-BE | Adapter, LC, Shuttered, Ceramic Sleeve, Duplex, Beige |

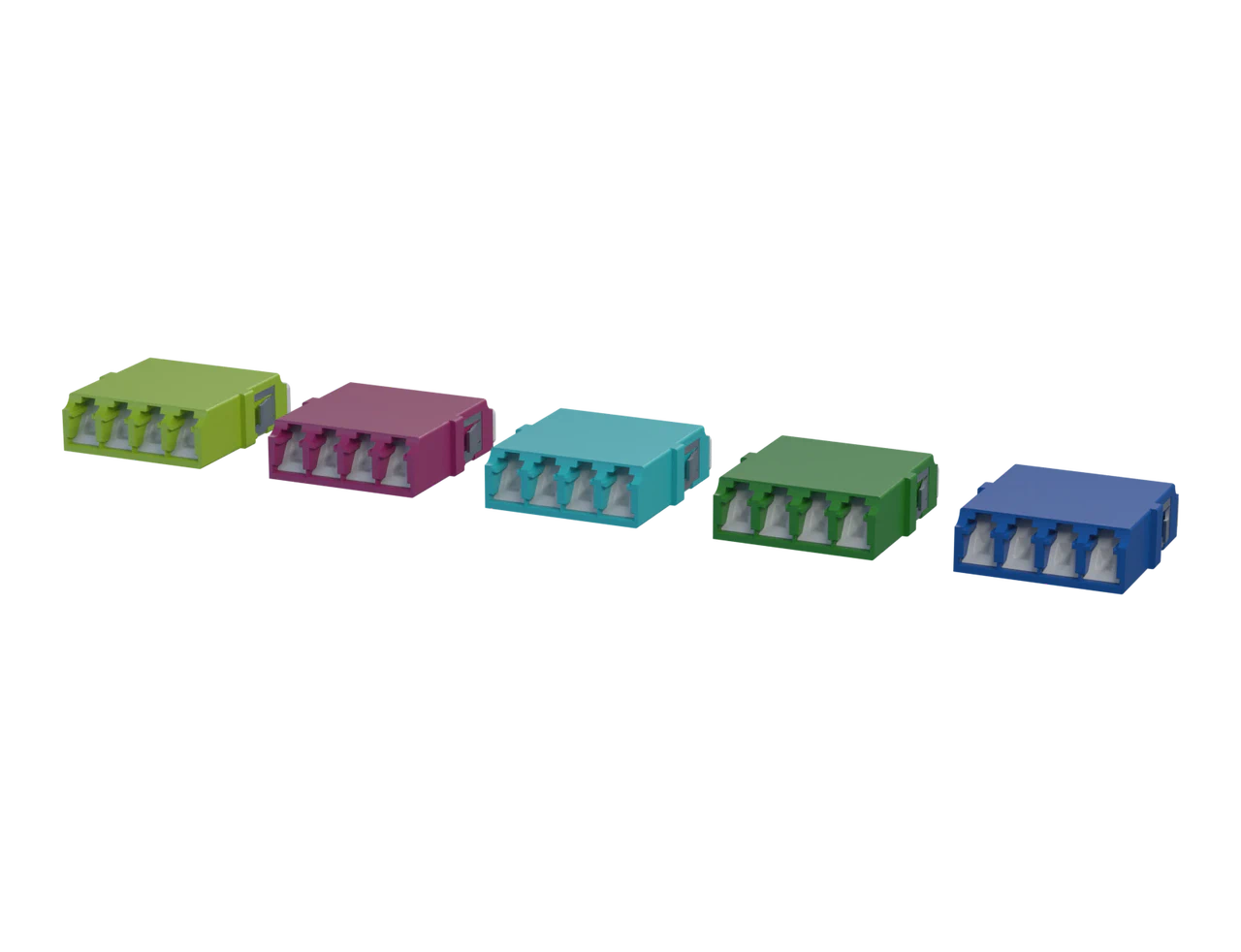

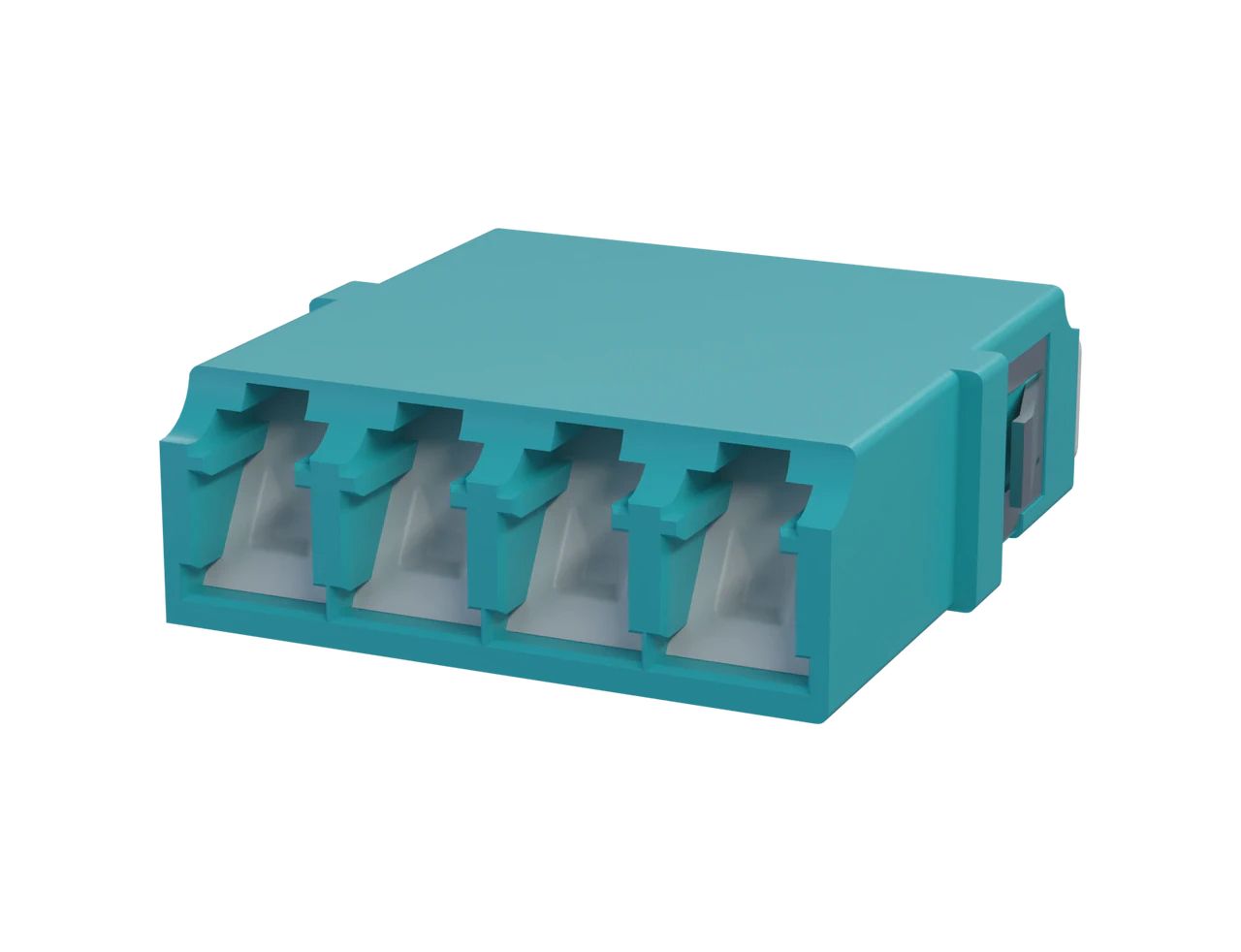

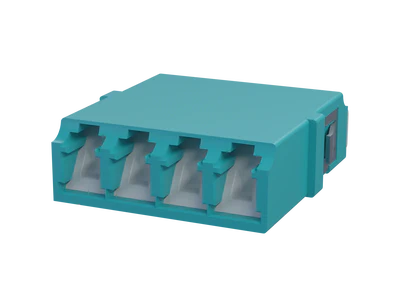

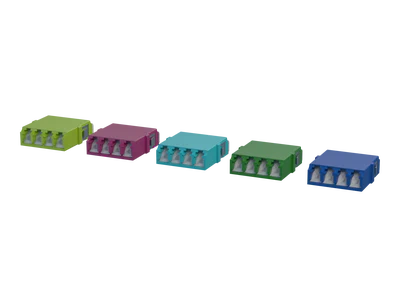

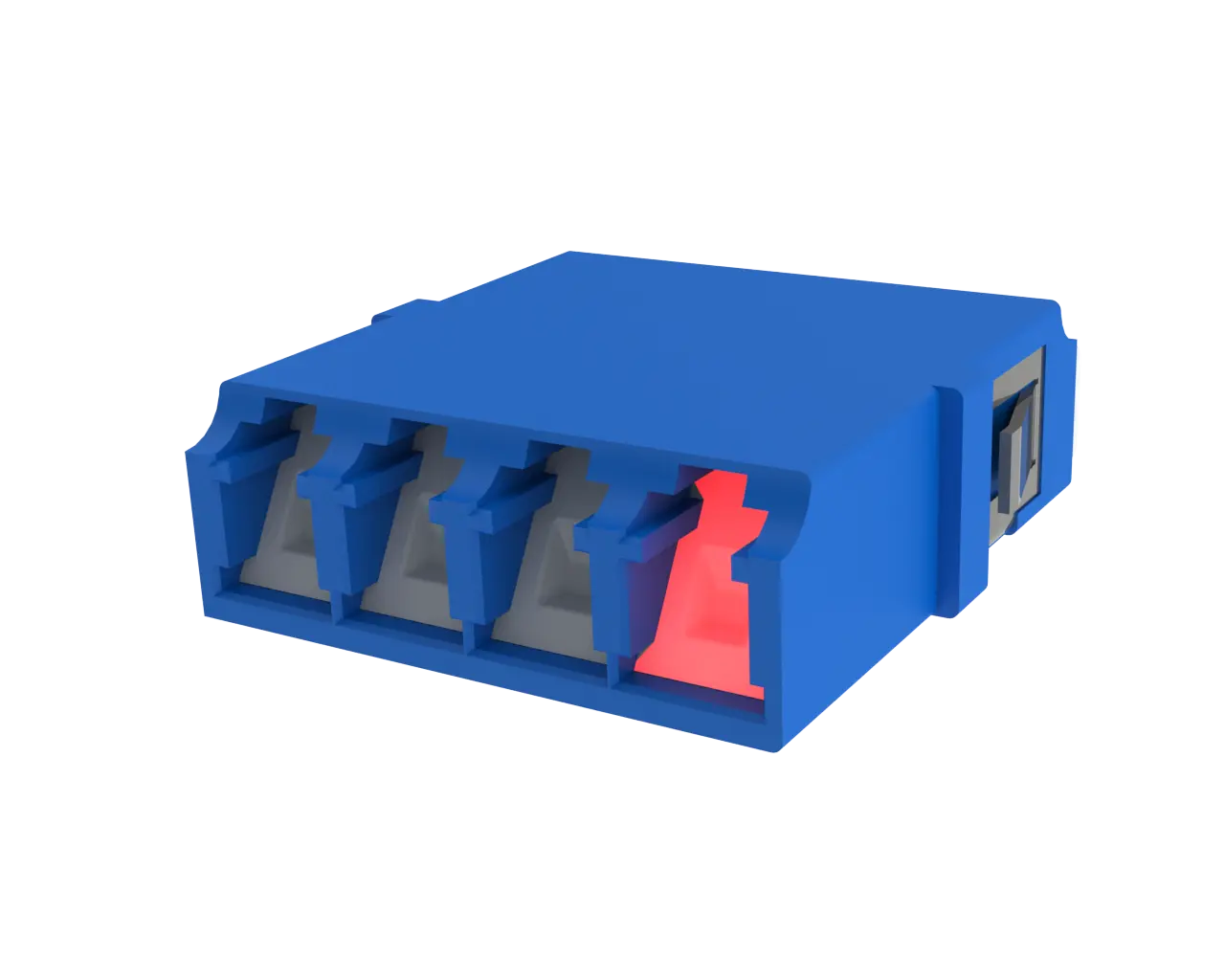

| LC Quadplex Adapters | |

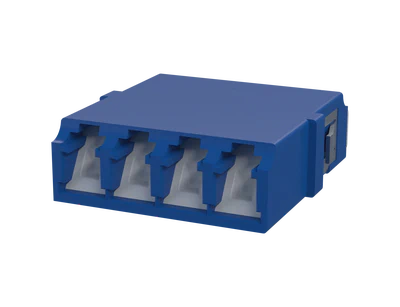

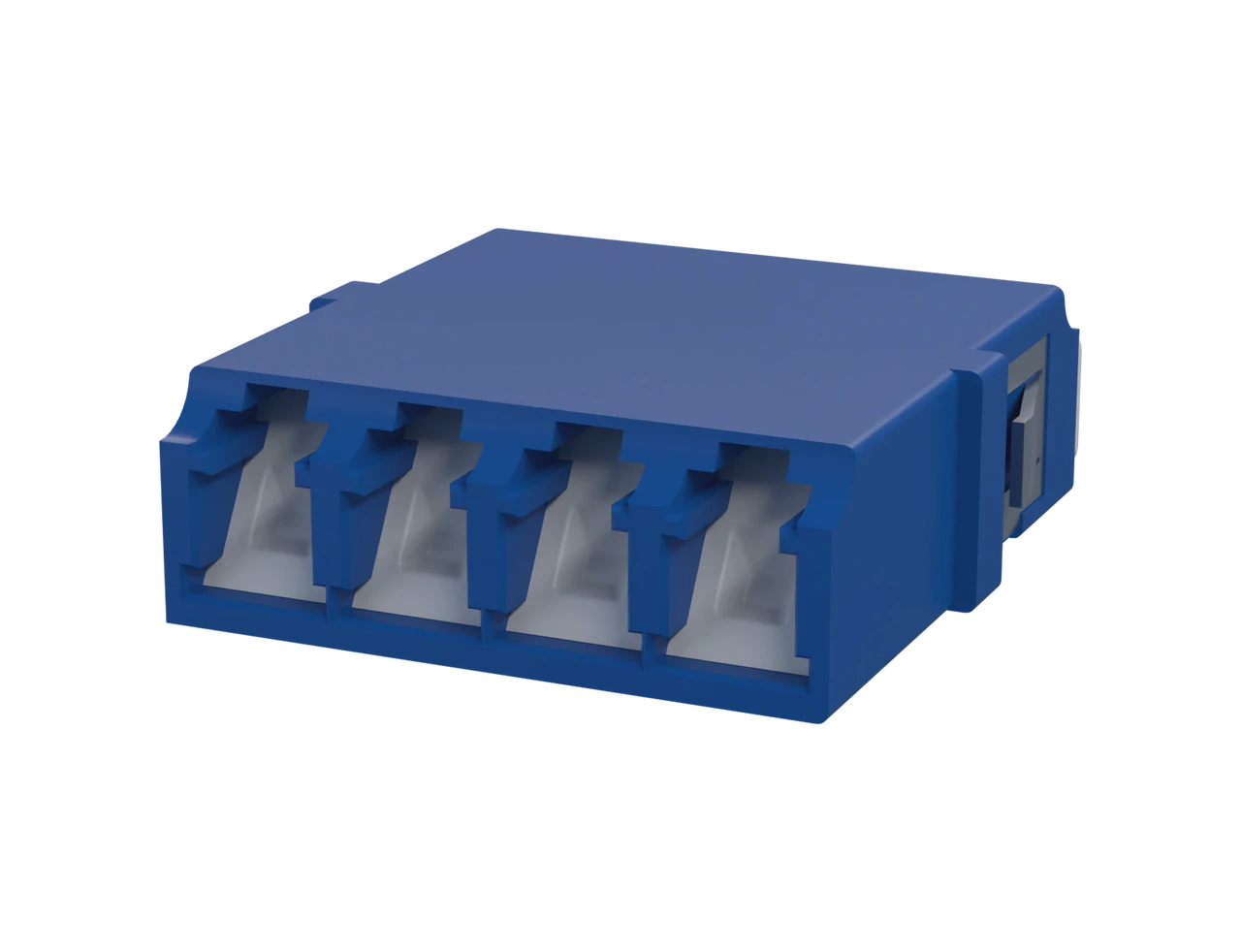

| ADPT-LC-QX-BU | Adapter, LC, Shuttered, Ceramic Sleeve, Quadplex, Blue |

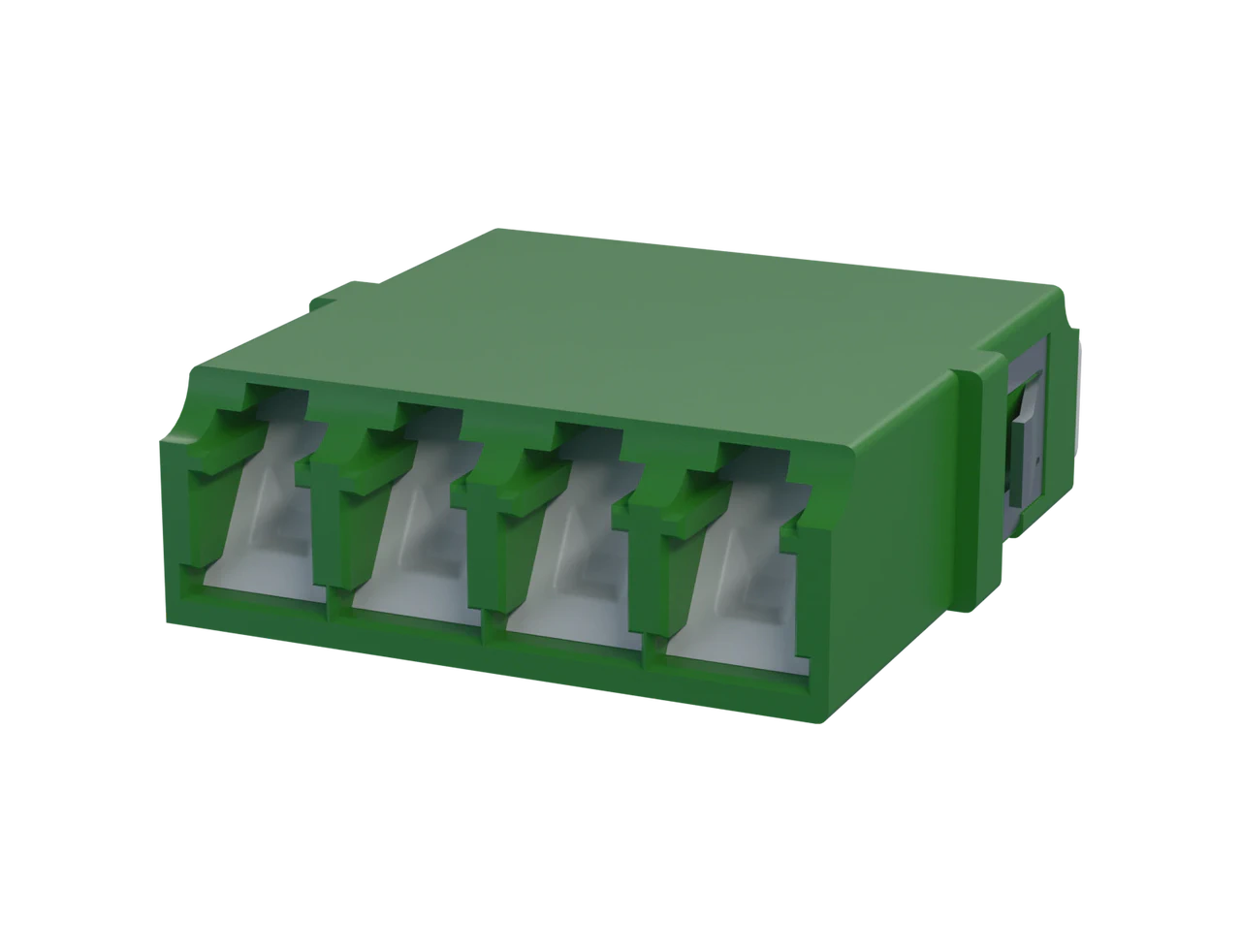

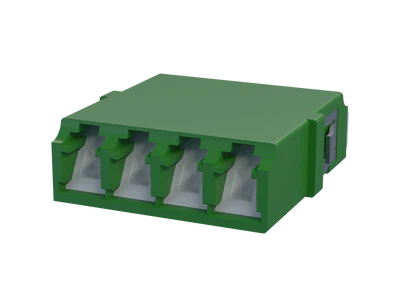

| ADPT-LC-QX-GN | Adapter, LC, Shuttered, Ceramic Sleeve, Quadplex, Green |
| ADPT-LC-QX-AQ | Adapter, LC, Shuttered, Ceramic Sleeve, Quadplex, Aqua |
| ADPT-LC-QX-EV | Adapter, LC, Shuttered, Ceramic Sleeve, Quadplex, Erika Violet |
