- High-density interface for multi-fibre MPO connectors
- Robust housing with metal clip snap-in design
- Precision polymer for consistent optical performance
- Supports MPO-12, MPO-16, and MPO-24 formats

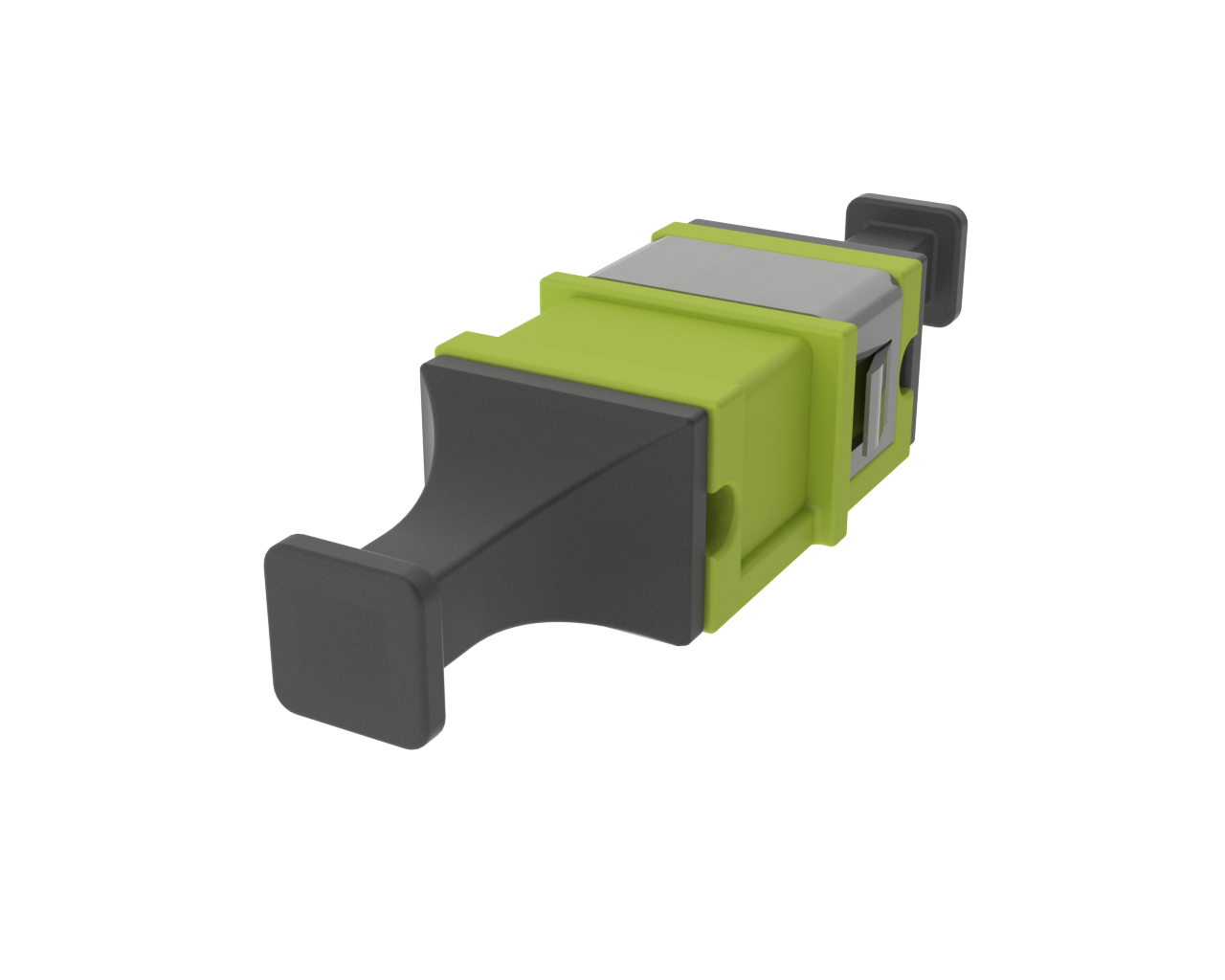

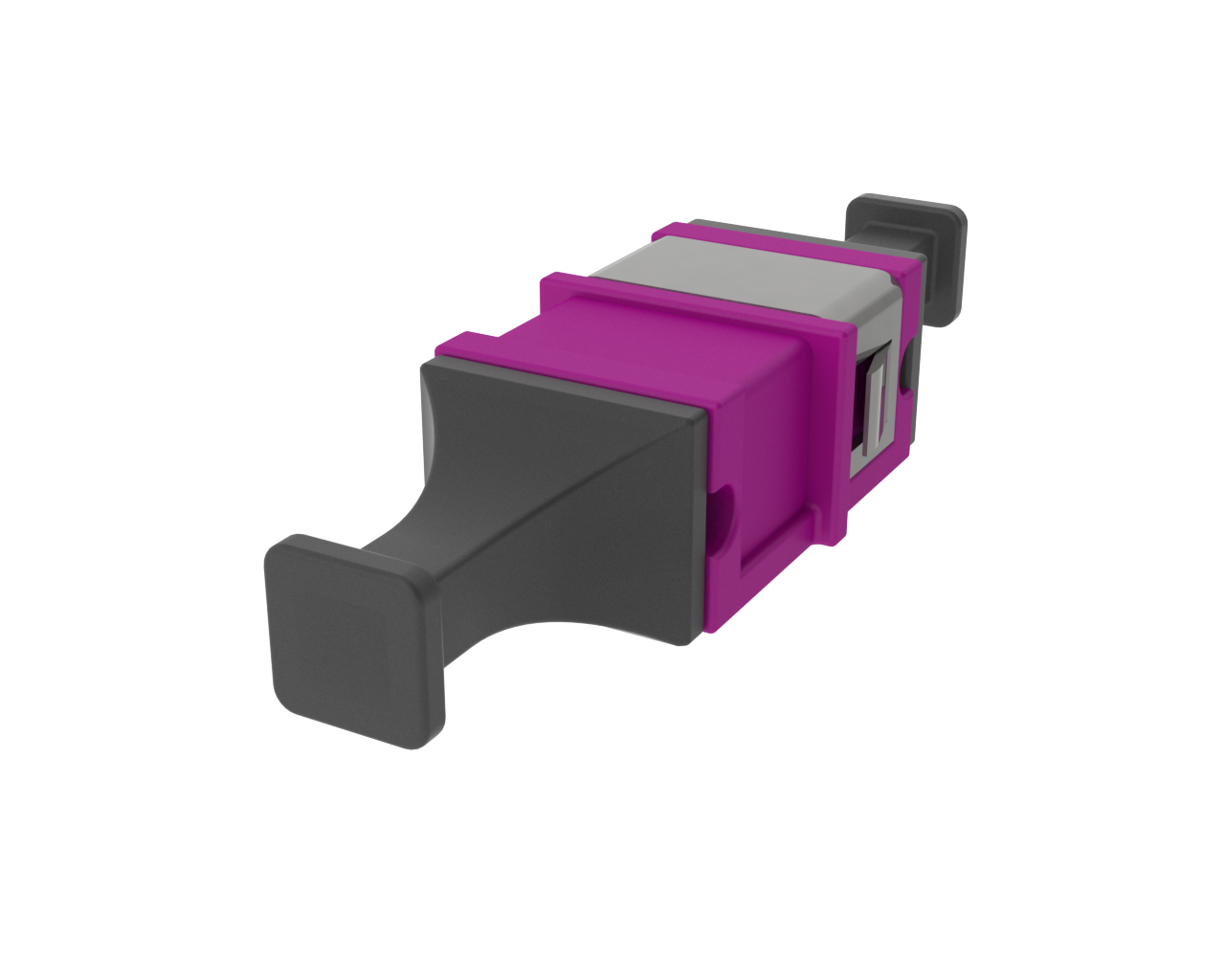

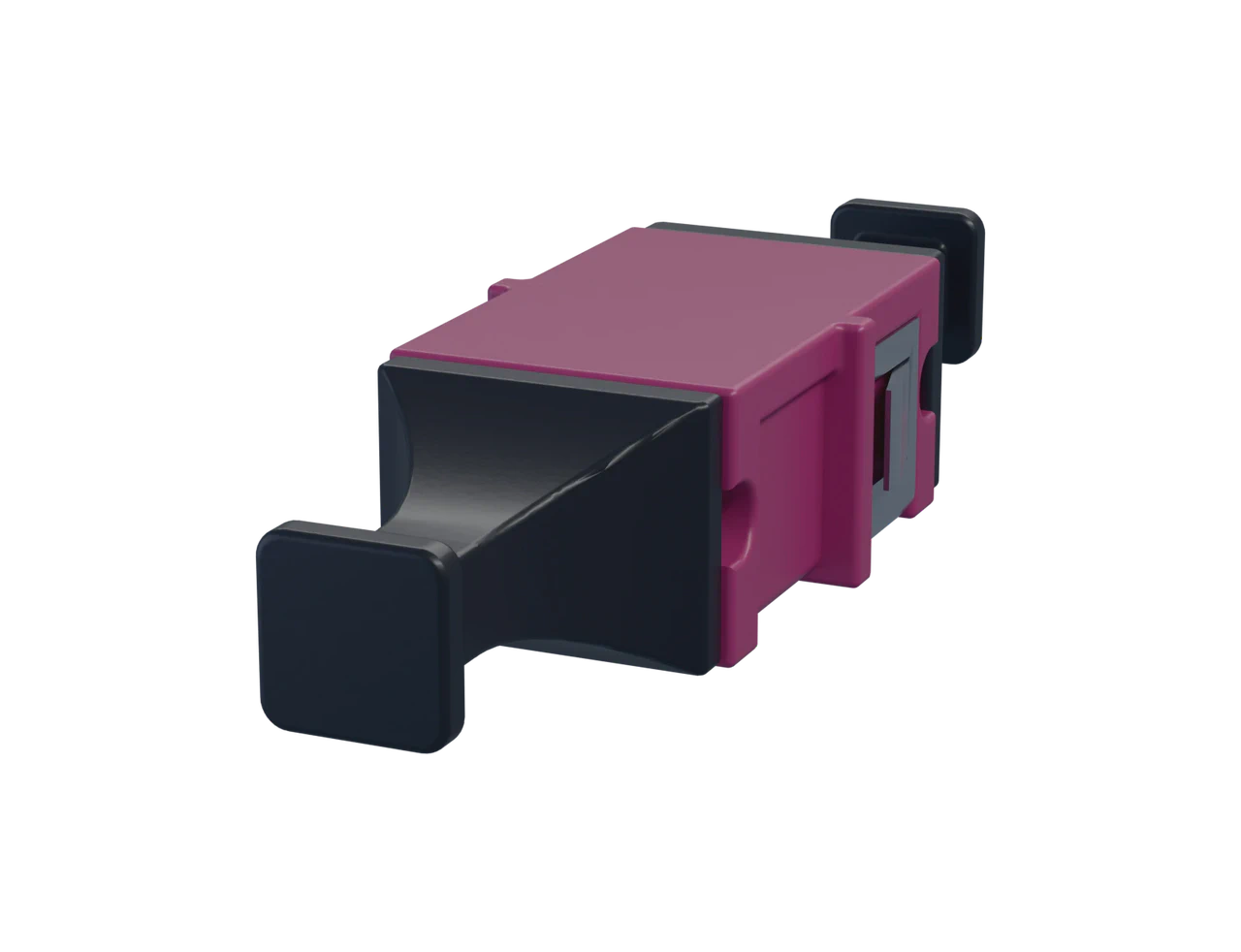

- Colour-coded housing for fibre type identification
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

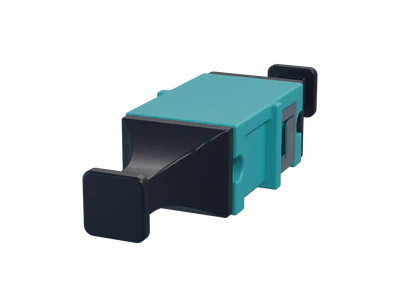

ScaleFibre MPO adapters deliver high‑density connectivity with uncompromised precision. Robust polymer housings align MPO‑12, MPO‑16 and MPO‑24 connectors with exacting tolerances, ensuring minimal insertion loss across multiple fibre counts.
Integrated spring‑loaded shutters on any unmated port protect ferrules from dust and laser exposure without manual intervention. Precision guide pins and ferrule sleeves maintain consistent signal integrity over thousands of mating cycles.

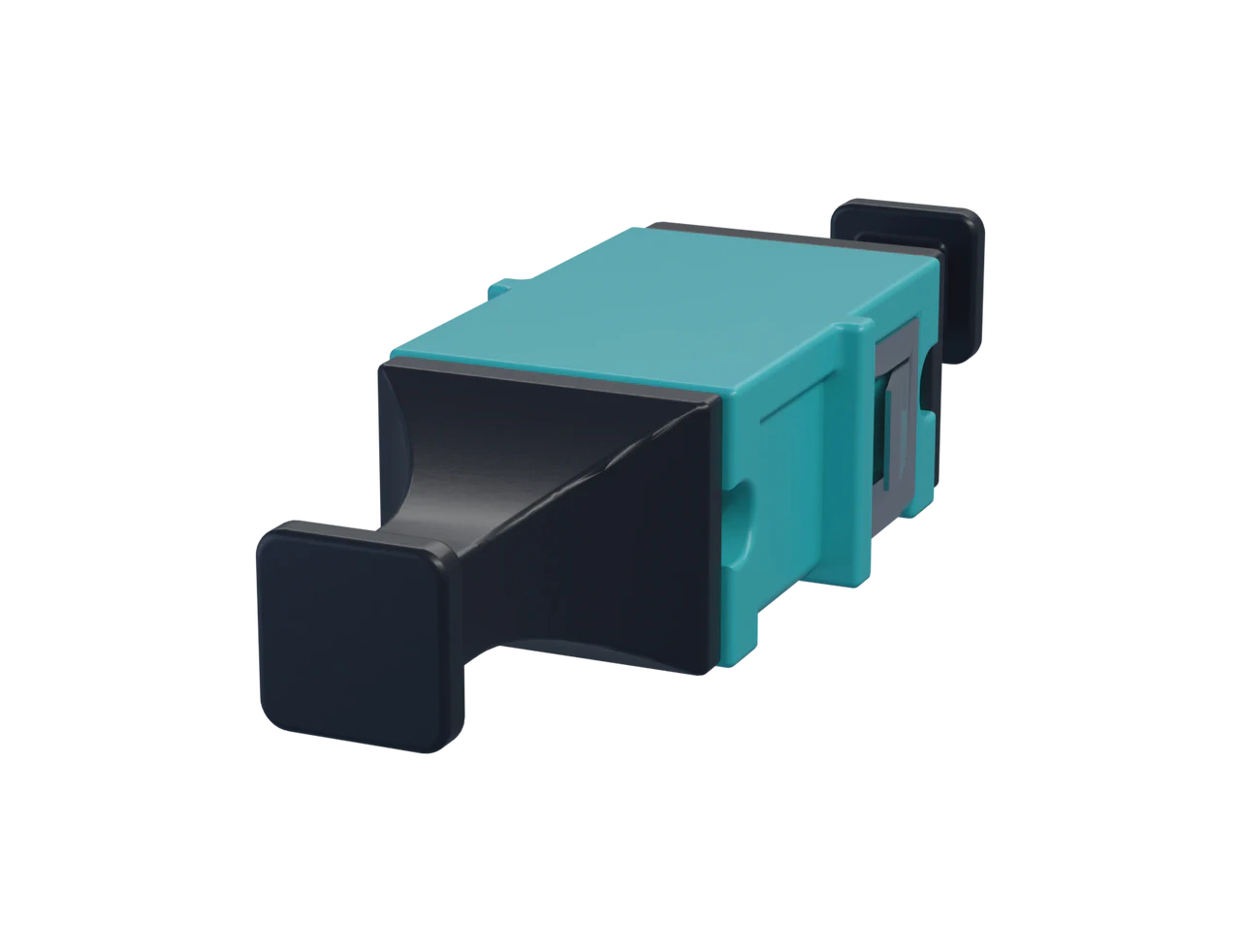

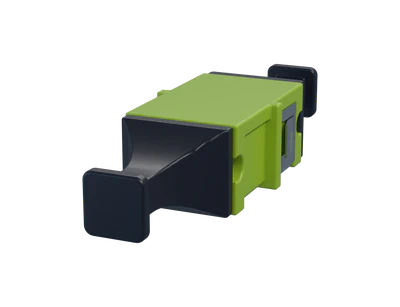

Each adapter is moulded from engineered polymer and available in multiple footprint and colour‑coded housing options to accelerate port identification and reduce installation errors in single‑mode and multi‑mode networks.
Designed for backbone, trunk and patch cabling in data centre and telecom environments, ScaleFibre MPO adapters comply with IEC, TIA and FOCIS standards. They slot seamlessly into cassettes, panels and enclosures — no specialist tooling required.
| Technical Specifications | |
| Connector Comptability | MPO or MTP® |
| Connector Format | MPO-12, MPO-16, MPO-24 |
| Mode | Single-mode or Multi-mode |
| Configuration | Key Up to Key Down (standard) Key Up to Key Up |
| Typical Insertion Loss | ≤0.30dB |
| Housing Material | Engineered polymer |
| Operating Temperature | -0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | TIA/EIA-568, IEC 61754-7, FOCIS, RoHS, REACH |
| Standard MPO Adapters | |

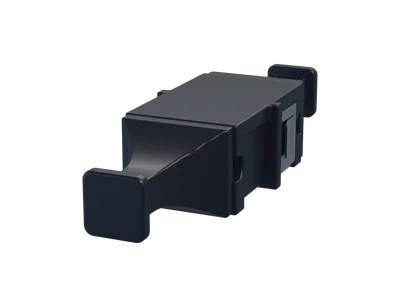

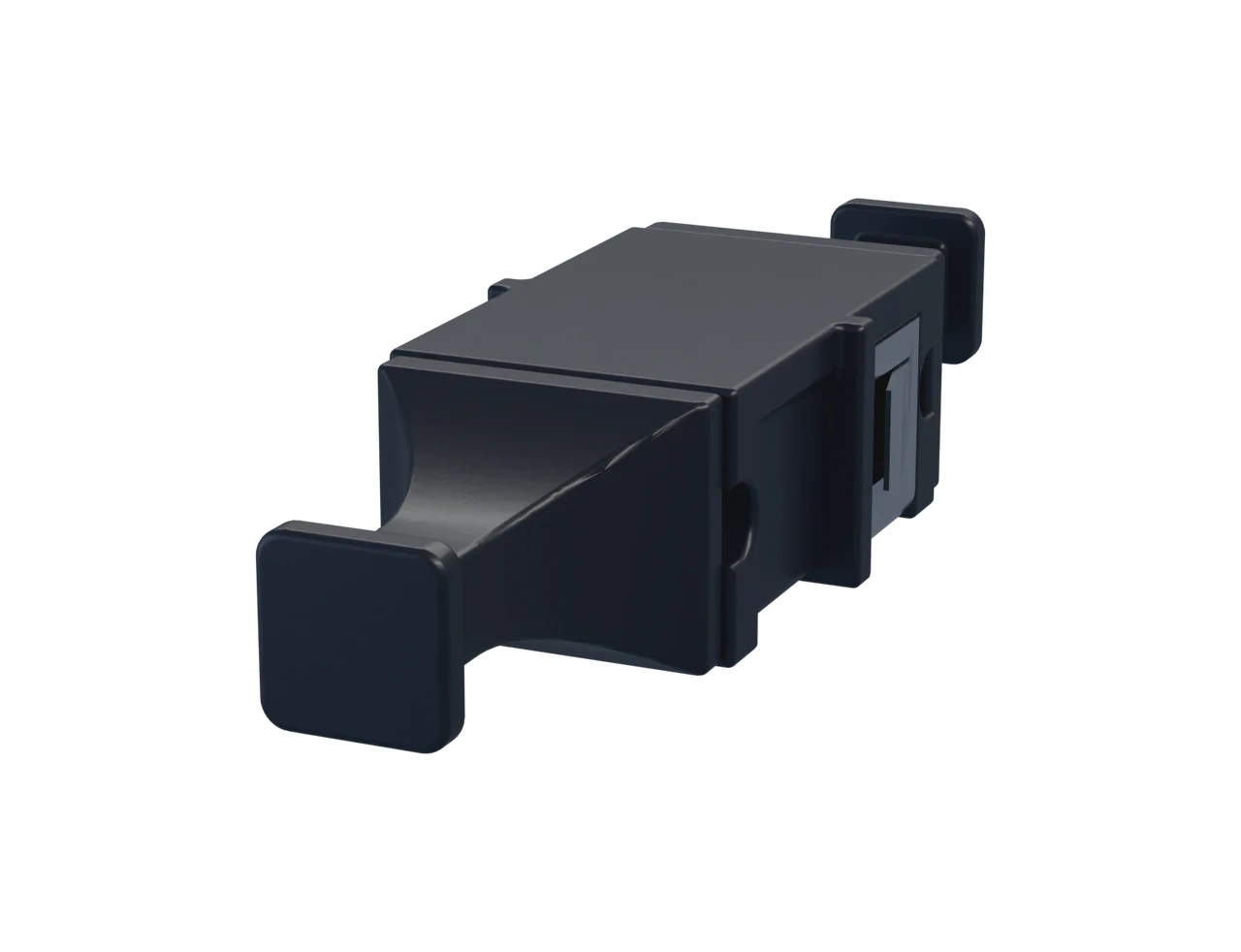

| ADPT-MPO-UD-BK | Adapter, MPO, Black, SC Footprint, Key-Up to Key-Down (standard for 8F, 12F and 24F MPO and MTP®) |
| ADPT-MPO16-UD-BK | Adapter, MPO-16, Black, SC Footprint, Key-Up to Key-Down (standard for 16F MPO and MTP®) |
| ADPT-MPO-UU-BK | Adapter, MPO, Black, SC Footprint, Key-Up to Key-Up |
