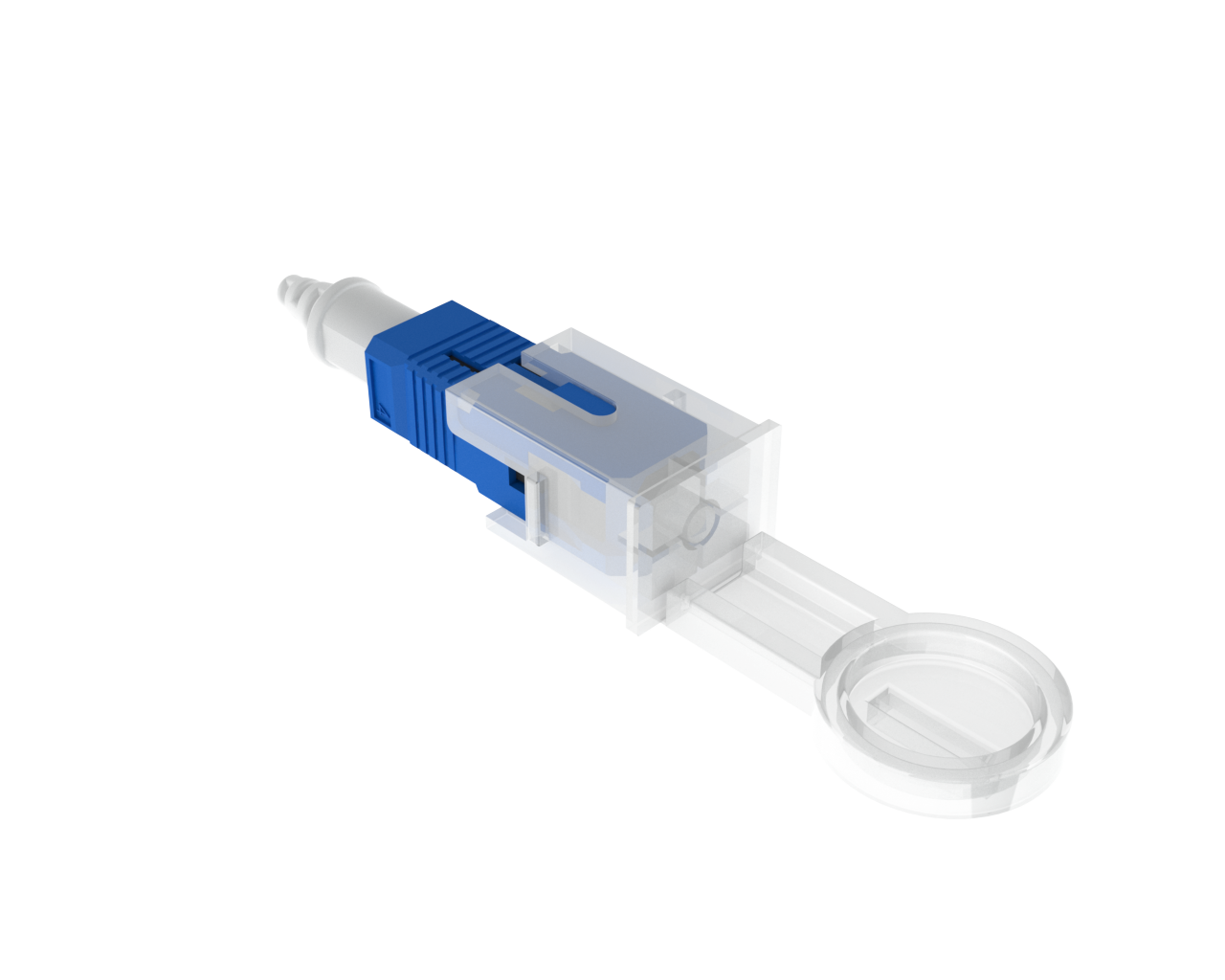

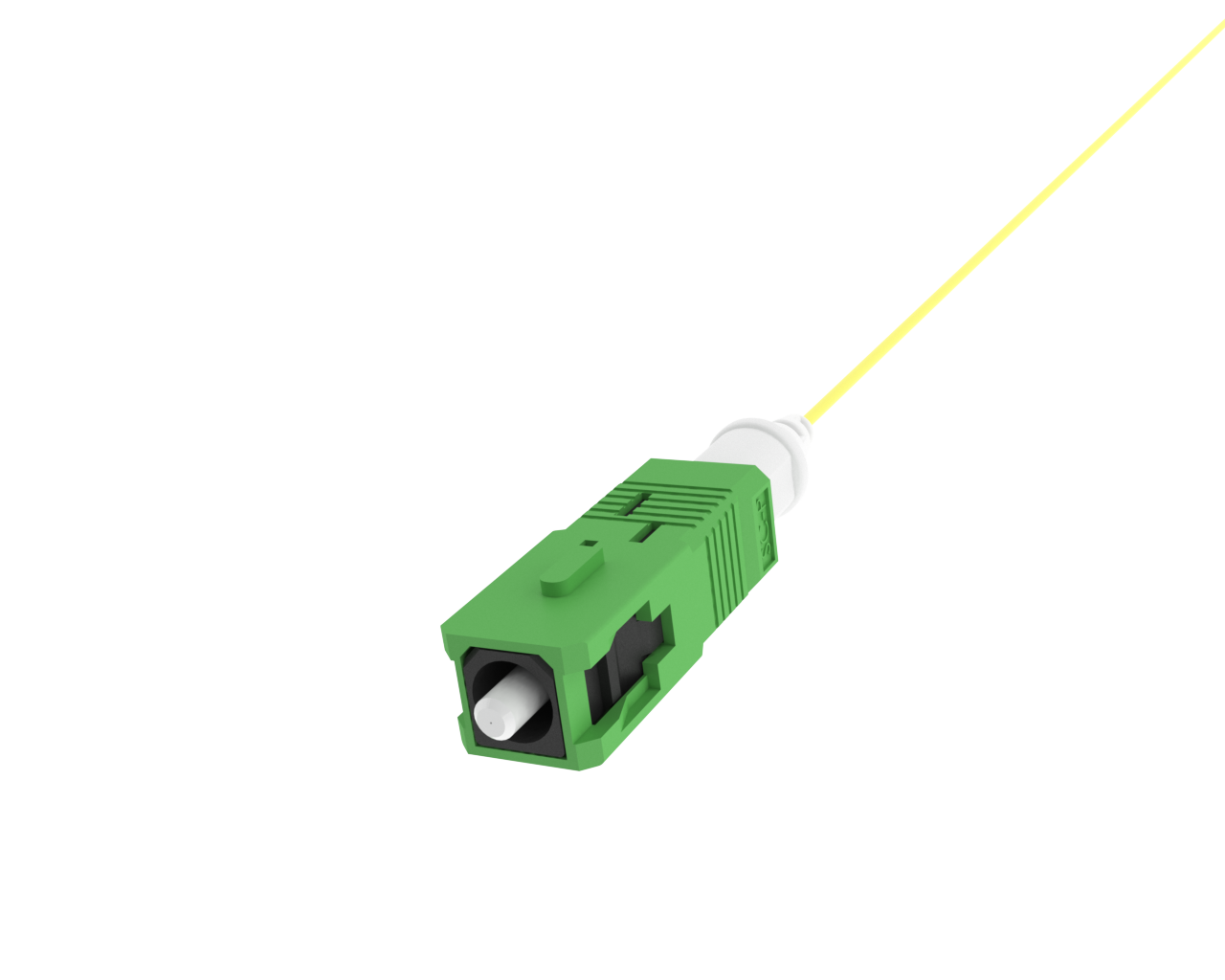

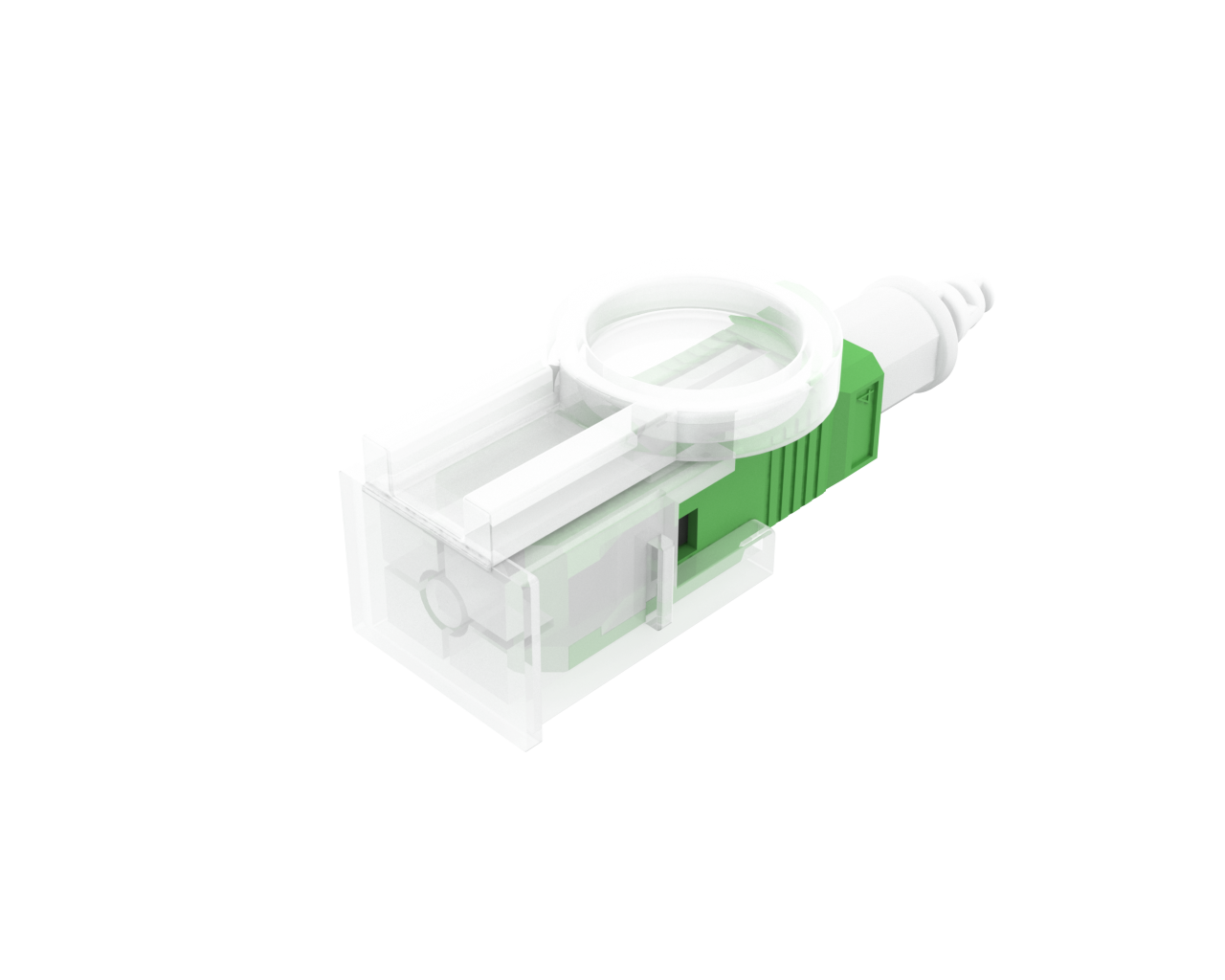

SC/APC and SC/UPC connectors for 900µm fibre. FieldFit™ enables quick, tool-free terminations with pre-polished, precision-aligned ferrules.
- Splicer-free termination with internal mechanical splice
- Pre-polished ferrule ensures stable, low-loss connection
- Supports 900µm buffered fibres
- No epoxy, polishing, or curing required
- Available in SC/APC (green) and SC/UPC (blue)
- Perfect for FTTH, patching, and restoration jobs
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
The FieldFit™ series offers field-installable SC connectors engineered for rapid, no-epoxy terminations on 900µm tight-buffered single-mode fibre. With a pre-polished ferrule and internal mechanical splice, FieldFit™ ensures consistent performance with minimal training or tools.
Ideal for FTTH, fibre drop terminations, maintenance, or emergency restorations, FieldFit™ simplifies the job without compromising performance.
Choose FieldFit™ for clean, fast, and repeatable connections — when quality matters, and time is tight.
| Technical Specifications | |
| Connector Type | SC/APC or SC/UPC |
| Fibre Compatibility | Single-mode G.657.A1, G.657.A2, or G.652.D |
| Cable Type | 900µm tight-buffered fibre |
| Insertion Loss | ≤ 0.2dB (typical) |
| Connector Length (boot to ferrule-tip) | 42mm |
| Return Loss | ≥ 50dB (APC), ≥ 45dB (UPC) |
| Operating Temperature | -40°C to +75°C |
| Installation Tools Required | Cleaver and fibre preparation only |
| Compliance | IEC 61754-4, TIA/EIA-568, RoHS |
| FieldFit™ SC Connectors – 900µm | |
| FieldFit™, SC/APC, 900µm, Green Housing | FFC-SCA-090 |
| FieldFit™, SC/UPC, 900µm, Blue Housing | FFC-SC-090 |
