SlimCORE™ is a compact OFNP (Plenum) rated indoor fiber cable designed for easy routing, direct termination, and high-safety structured cabling in environmental air spaces.
- 12 or 24 fibers in a single-unit construction
- Compact outer diameter for tight routing
- All-dielectric construction
- Flame-retardant OFNP rated jacket optimised for indoor installations
- Available in various fiber types
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

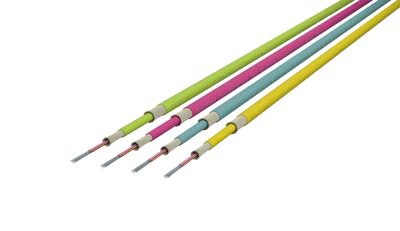

The SlimCORE™ single-unit cable offers a minimalist solution for high-density structured cabling environments. A series of 250µm primary-coated fibers are housed in a single-unit slim jacket, making it ideal for direct termination, fusion splicing, or patching without the need for fanout kits.
Built with aramid yarn strength members and a high-performance OFNP (Plenum) rated sheath, SlimCORE™ single is engineered for the most demanding indoor environments, including plenum air spaces, vertical risers, and horizontal runs. This construction ensures the highest level of fire-retardancy and low-smoke emission, making it the premier choice for modern enterprise infrastructure and data center connectivity.
| Construction Details | |
| Fiber Count | 12 or 24 fibers |
| Fiber Coating | 250µm primary coated |
| Strength Members | Aramid yarns |
| Jacket Material | OFNP Plenum rated |
| Cable Dimensions | |
| Nominal Outer Diameter | 4.5 mm |
| Nominal Weight | 17.7 kg/km ±20% (12 Fiber) 18.6 kg/km ±20% (24 Fiber) |
| Mechanical Characteristics | |
| Max Tensile Load (Short Term) | 500 N (12 Fiber) 500 N (24 Fiber) |
| Max Tensile Load (Long Term) | 160 N (12 Fiber) 160 N (24 Fiber) |
| Crush Resistance | 300 N / 10 cm (Long Term) 1000 N / 10 cm (Short Term) |
| Bend Radius (Installation) | ≥20 × OD |
| Bend Radius (Static) | ≥10 × OD |
| Environmental Characteristics | |
| Temperature – Storage | -20°C to +60°C |
| Temperature – Installation | -10°C to +60°C |
| Temperature – Operation | -20°C to +60°C |
| Compliance | |
| Flame Rating | OFNP (Plenum) / NFPA 262 (UL 910) |
| Standards | NFPA 262 UL 444 IEC 60794 ANSI/TIA-568.3-D |
| SlimCORE 12F Variants | |

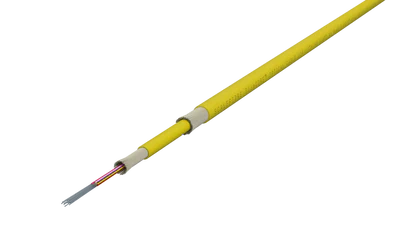

| C-SC-S7-12-OFNP | SlimCore™ Cable, Single Mode (G.657.A1), 12F, Yellow |
| C-SC-M3-12-OFNP | SlimCore™ Cable, Multi Mode (OM3), 12F, Aqua |

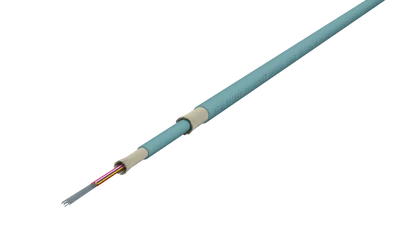

| C-SC-M4-12-OFNP | SlimCore™ Cable, Multi Mode (OM4), 12F, Aqua |

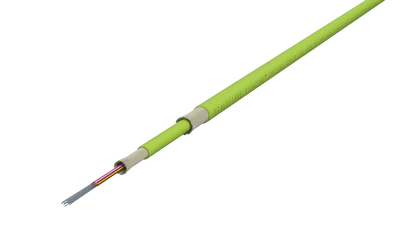

| C-SC-M5-12-OFNP | SlimCore™ Cable, Multi Mode (OM5), 12F, Lime Green |
| SlimCORE 24F Variants | |
| C-SC-S7-24-OFNP | SlimCore™ Cable, Single Mode (G.657.A1), 24F, Yellow |
| C-SC-M3-24-OFNP | SlimCore™ Cable, Multi Mode (OM3), 12F, Aqua |
| C-SC-M4-24-OFNP | SlimCore™ Cable, Multi Mode (OM4), 12F, Aqua |

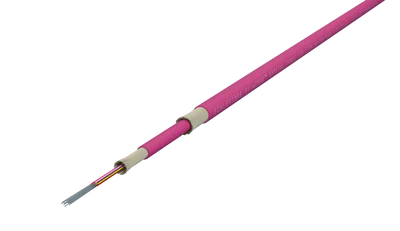

| C-SC-M4-24-OFNP-EV | SlimCore™ Cable, Multi Mode (OM4), 12F, Erika Violet |
| C-SC-M5-24-OFNP | SlimCore™ Cable, Multi Mode (OM5), 12F, Lime Green |
