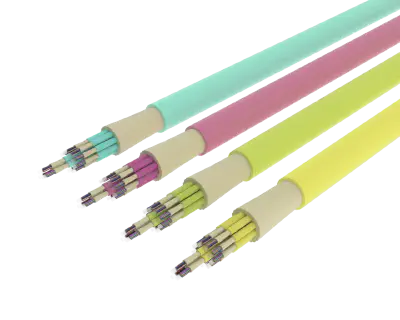

SlimCORE™ 144F Indoor Fiber Cable (OFNP Rated)

OFNPRATED
SlimCORE™ 144F is a subunitised OFNP (Plenum) rated indoor fiber cable engineered for maximum density in environmental air spaces and easy termination.
  • 144 fibers in twelve 12F subunits
  • Compact design enables tight routing without fanout kits
  • All-dielectric with aramid yarns for rugged performance
  • Flame-retardant OFNP rated jacket for indoor installations
  • Available in single-mode and multimode variants
Category: ,
ENQUIRE NOW
Share:

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

The SlimCORE™ 144F indoor cable delivers maximum fiber density in a compact footprint. Featuring twelve 12-fiber subunits with 250µm primary coated fibers, SlimCORE is engineered for fast routing and fusion splicing without fanout kits.

Its all-dielectric construction and OFNP (Plenum) rated jacket make it the definitive choice for high-density structured cabling environments, including plenum air spaces, data centers, and vertical risers. SlimCORE 144F supports both single-mode (G.657.A1) and multimode (OM3, OM4, and OM5) configurations, ensuring the highest fire safety standards with consistent handling and superior protection across all variants.

Intended for core distribution from main-distribution frames to row-end patching cabinets across the Ashburn, Atlanta, and San Jose hyperscale datacentre clusters, with twelve MPO connectors per cable supporting full-rack fanout. The plenum jacket clears NEC Article 770 plenum-space and riser-shaft fire-protection requirements for permanent installation.
Construction Details
Fiber Count144 fibers (12 × 12F subunits)
Fiber Coating250µm primary coating
Subunit Diameter2.0 mm nominal
Strength MembersAramid yarns
Jacket MaterialOFNP Plenum rated
Cable Dimensions
Nominal Outer Diameter10.4 mm
Nominal Weight93 kg/km ±10%
Mechanical Characteristics
Max Tensile Load (Short Term)660 N
Max Tensile Load (Long Term)200 N
Crush Resistance110 N / cm
Bend Radius (Installation)205mm
Bend Radius (Static)100mm
Environmental Characteristics
Temperature – Installation-10°C to +60°C
Temperature – Operation-20°C to +70°C
Temperature – Storage-40°C to +70°C
Compliance
Flame RatingOFNP (Plenum) / NFPA 262 (UL 910)
StandardsNFPA 262
UL 444
IEC 60794
ANSI/TIA-568.3-D
SlimCORE 144F Variants
C-SC-S7-144-OFNPSlimCore Sub-Unitised Cable, Single Mode (G.657.A1), 144F, Yellow
C-SC-M3-144-OFNPSlimCore Sub-Unitised Cable, OM3, 144F, Aqua
C-SC-M4-144-OFNPSlimCore Sub-Unitised Cable, OM4, 144F, Aqua
C-SC-M4-144-OFNP-EVSlimCore Sub-Unitised Cable, OM4, 144F, Erika Violet
C-SC-M5-144-OFNPSlimCore Sub-Unitised Cable, OM5, 144F, Lime Green
