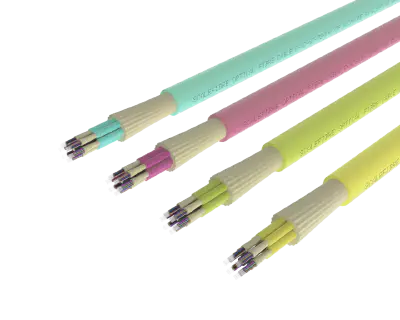

SlimCORE™ 72F Indoor Fiber Cable (OFNP Rated)

OFNPRATED
SlimCORE™ 72F is a subunitised OFNP (Plenum) rated indoor fiber cable designed for high-density environmental air spaces and streamlined direct termination.
  • 72 fibers in six 12F subunits with 250µm coated fibers
  • Subunit design allows for fast splicing and simplified routing
  • All-dielectric construction with aramid yarns for durability
  • Flame-retardant OFNP rated jacket optimised for indoor use
  • Available in single-mode and multimode variants
Category: ,
ENQUIRE NOW
Share:

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

The SlimCORE™ 72F indoor cable delivers high fiber density with a manageable footprint. Featuring six 12-fiber subunits with 250µm primary coated fibers, it enables fast routing and fusion splicing without the need for fanout kits.

Its all-dielectric build and OFNP (Plenum) rated jacket make it the premier choice for demanding indoor structured cabling environments, including plenum air spaces, data centers, and vertical risers. SlimCORE 72F supports both single-mode (G.657.A1) and multimode (OM3, OM4, and OM5) configurations, ensuring the highest level of fire safety and consistent performance across high-density installations.

Intended for mid-density row aggregation and inter-cabinet runs that traverse return-air plenum spaces above the data-hall ceiling across the Ashburn and Dallas colocation clusters. The six 12F subunits supply six MPO connectors per cable, suiting the row-end fanout patterns used in North American hyperscale build-outs.
Construction Details
Fiber Count72 fibers (6 × 12F subunits)
Fiber Coating250µm primary coating
Subunit Diameter2.0 mm nominal
Strength MembersAramid yarns
Jacket MaterialOFNP Plenum rated
Cable Dimensions
Nominal Outer DiameterApprox. 8.2 mm
Nominal Weight65 kg/km ±10%
Mechanical Characteristics
Max Tensile Load (Short Term)660 N
Max Tensile Load (Long Term)200 N
Crush Resistance110 N / cm
Bend Radius (Installation)160mm
Bend Radius (Static)80mm
Environmental Characteristics
Temperature – Installation-10°C to +60°C
Temperature – Operation-20°C to +70°C
Temperature – Storage-40°C to +70°C
Compliance
Flame RatingOFNP (Plenum) / NFPA 262 (UL 910)
StandardsNFPA 262
UL 444
IEC 60794
ANSI/TIA-568.3-D

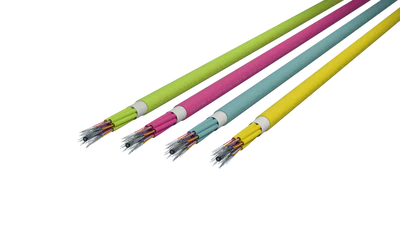

SlimCORE 72F Variants

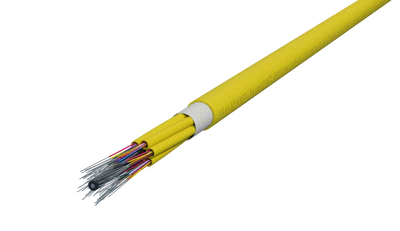

C-SC-S7-72-OFNPSlimCore Sub-Unitised Cable, Single Mode (G.657.A1), 72F, Yellow
C-SC-M3-72-OFNPSlimCore Sub-Unitised Cable, OM3, 72F, Aqua
C-SC-M4-72-OFNPSlimCore Sub-Unitised Cable, OM4, 72F, Aqua

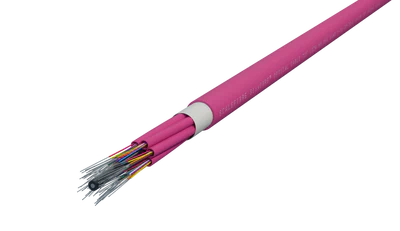

C-SC-M4-72-OFNP-EVSlimCore Sub-Unitised Cable, OM4, 72F, Erika Violet
C-SC-M5-72-OFNPSlimCore Sub-Unitised Cable, OM5, 72F, Lime Green
