SlimCORE™ 48F is a subunitised indoor fibre cable with compact construction, designed for high-density environments and streamlined termination.
- 48 fibres in four 12F subunits with 250µm coating
- Subunit design allows for fast splicing and simplified routing
- All-dielectric construction with aramid yarns for durability
- Flame-retardant LSZH jacket optimised for indoor use
- Available in single-mode and multimode variants
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
The SlimCORE™ 48F indoor cable offers a clean, compact solution for high-density structured cabling. Its four 12-fibre subunits, each with 250µm buffered fibres, allow fast access, easy splicing, and no need for fanout kits.
Engineered with an all-dielectric structure and a flame-retardant LSZH jacket, SlimCORE 48F is ideal for controlled indoor environments including data centres, building backbones, and risers. It supports single-mode (G.657.A1) and multimode (OM3, OM4 and OM5) formats to suit diverse network builds.
| Construction Details | |
| Fibre Count | 48 fibres (4 × 12F subunits) |
| Fibre Coating | 250µm primary coated |
| Subunit Diameter | 2.0 mm nominal |
| Strength Members | Aramid yarns |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Cable Dimensions | |
| Nominal Outer Diameter | 7.0 mm |
| Nominal Weight | 50 kg/km |
| Mechanical Characteristics | |
| Max Tensile Load (Short Term) | 660 N |
| Max Tensile Load (Long Term) | 200 N |
| Crush Resistance | 110 N / cm |
| Bend Radius (Installation) | 140mm |
| Bend Radius (Static) | 70mm |
| Environmental Characteristics | |
| Temperature – Installation | -10°C to +60°C |
| Temperature – Operation | -20°C to +70°C |
| Temperature – Storage | -40°C to +70°C |
| Compliance | |
| Flame Rating | IEC 60332-1, IEC 60332-3-24 |
| Standards | IEC 60794-2-20, ISO/IEC 11801, AS/CA S008 |

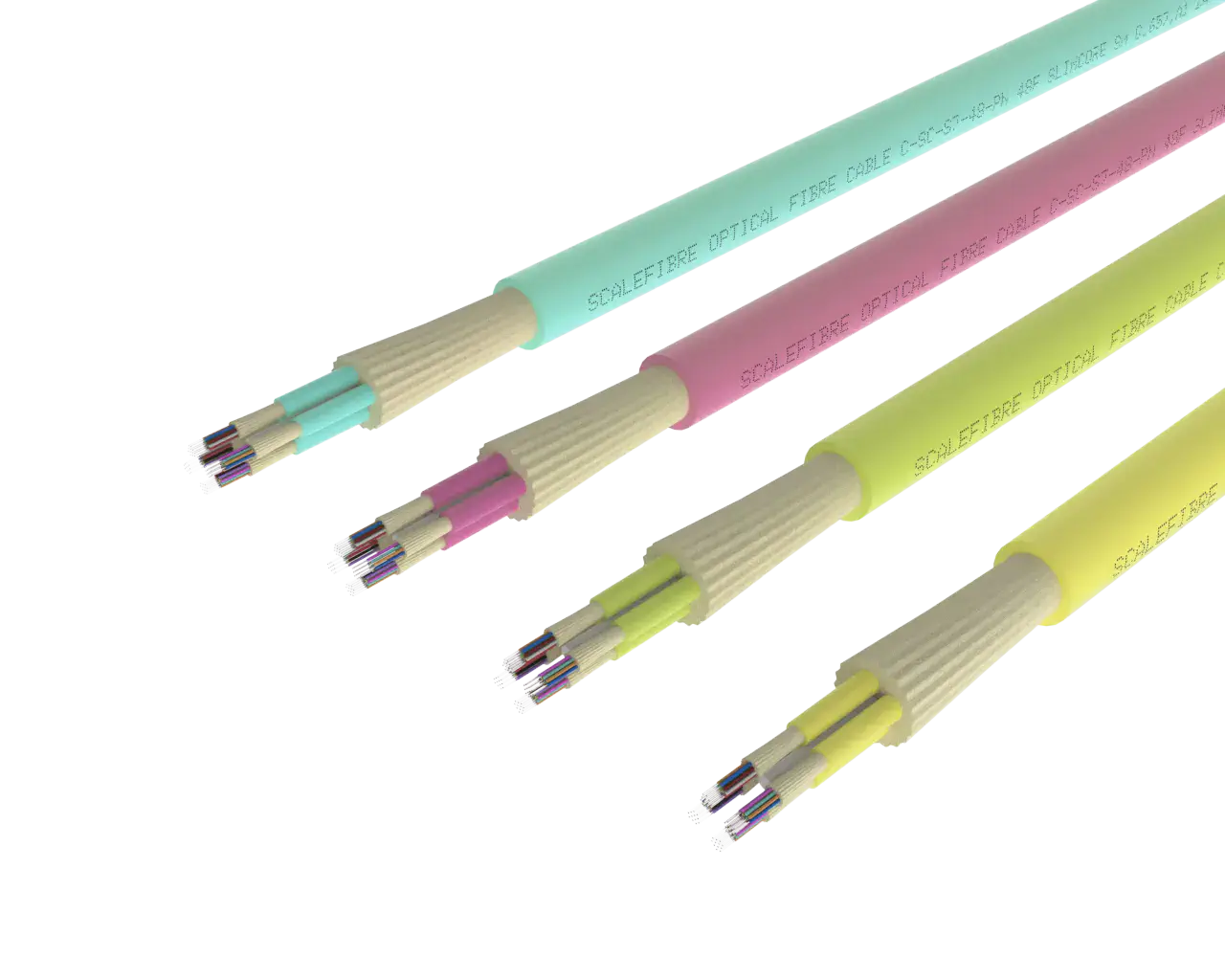

| SlimCORE 48F Variants | |
| C-SC-S7-48-L | SlimCore Sub-Unitised Cable, Single Mode (G.657.A1), 48F, Yellow |
| C-SC-M3-48-L | SlimCore Sub-Unitised Cable, OM3, 48F, Aqua |
| C-SC-M4-48-L | SlimCore Sub-Unitised Cable, OM4, 48F, Aqua |

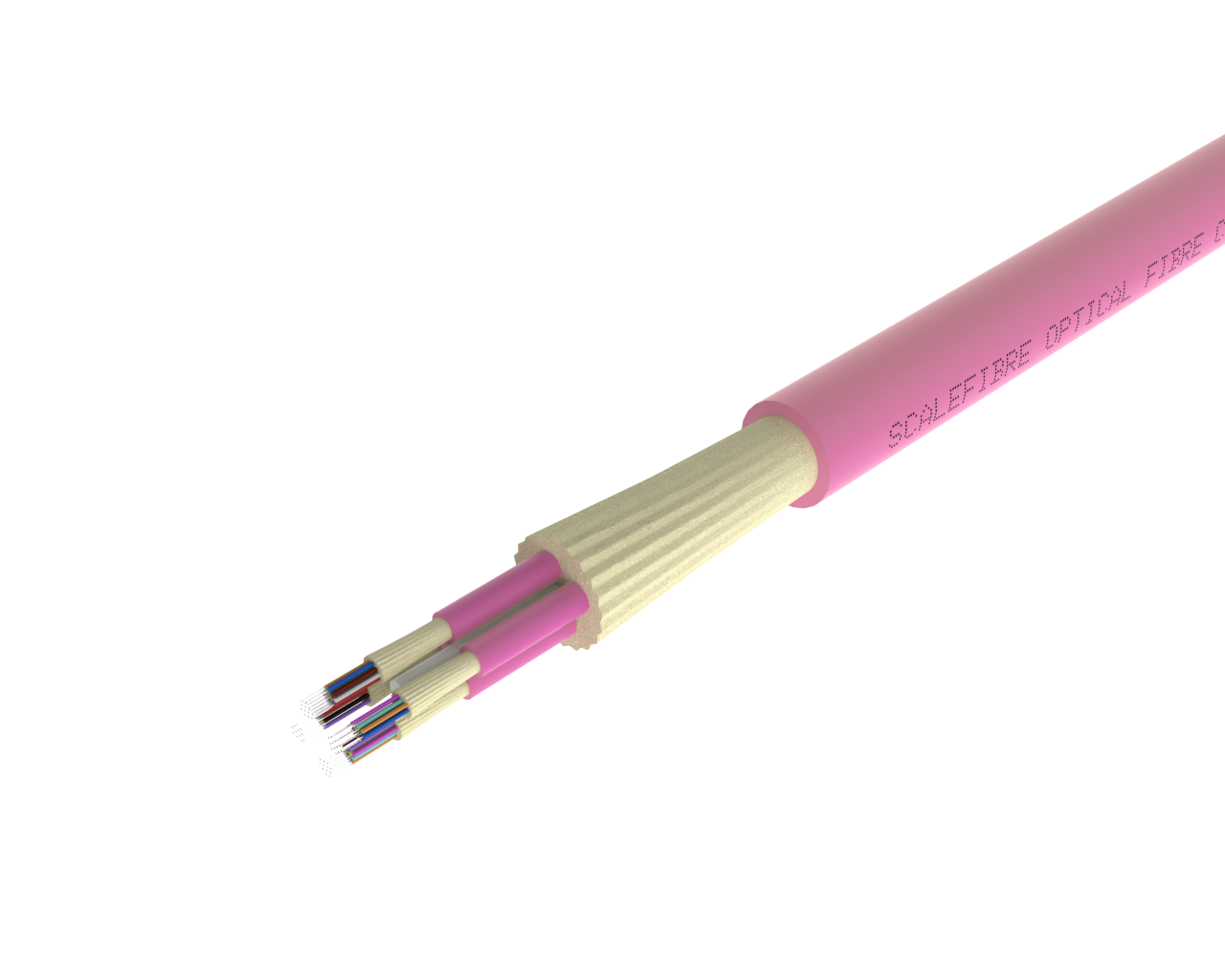

| C-SC-M4-48-L-EV | SlimCore Sub-Unitised Cable, OM4, 48F, Erika Violet |

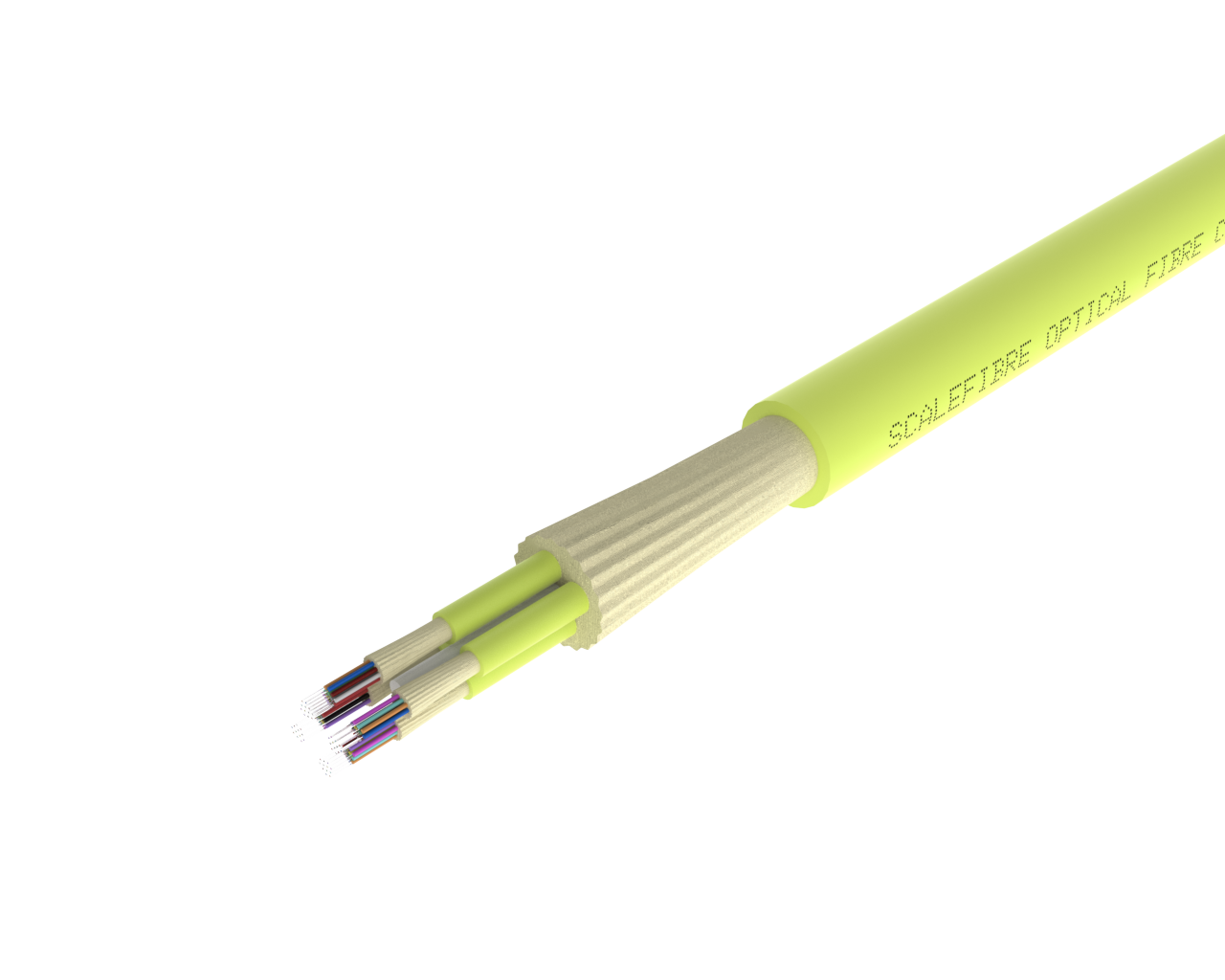

| C-SC-M5-48-L | SlimCore Sub-Unitised Cable, OM5, 48F, Lime Green |
