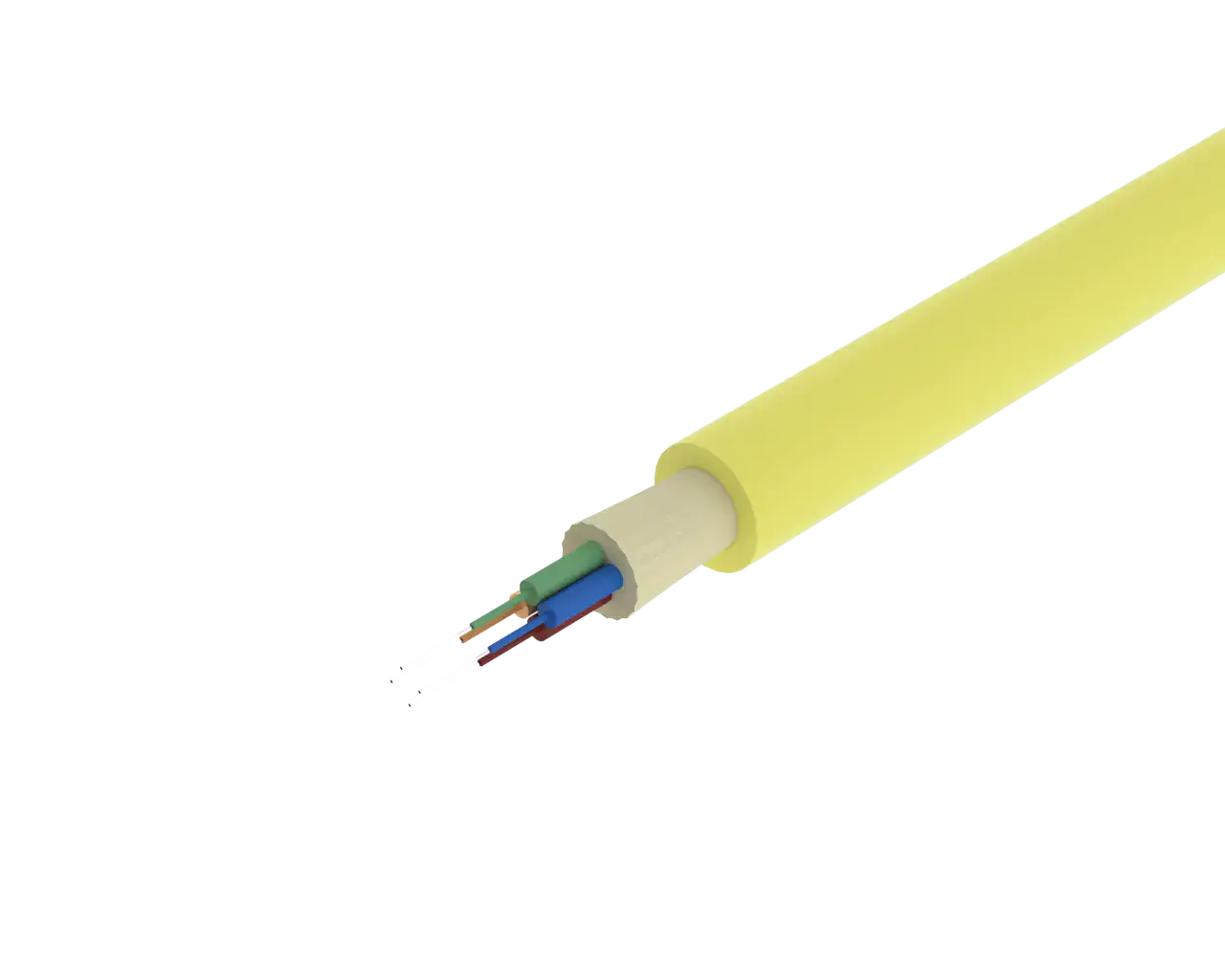

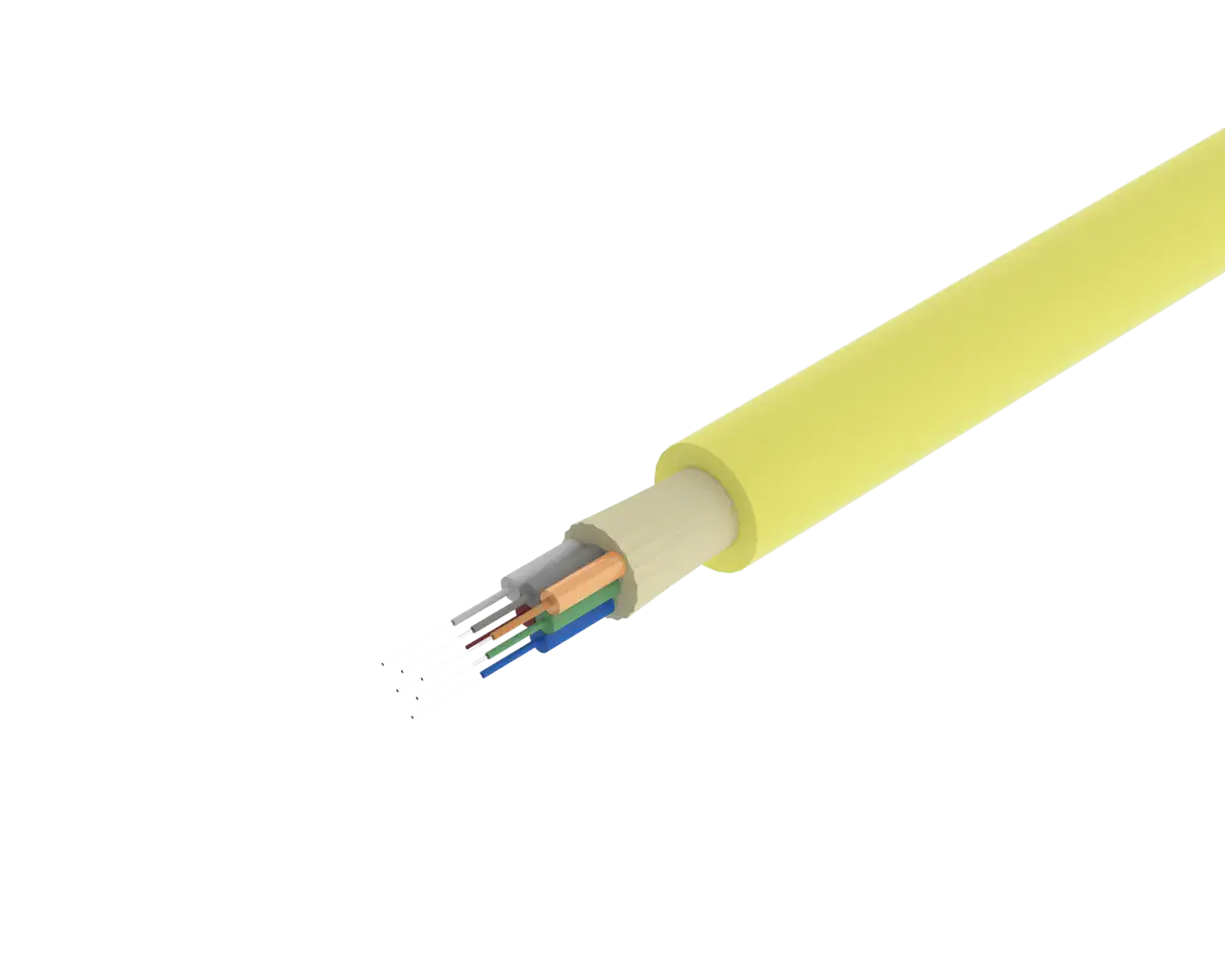

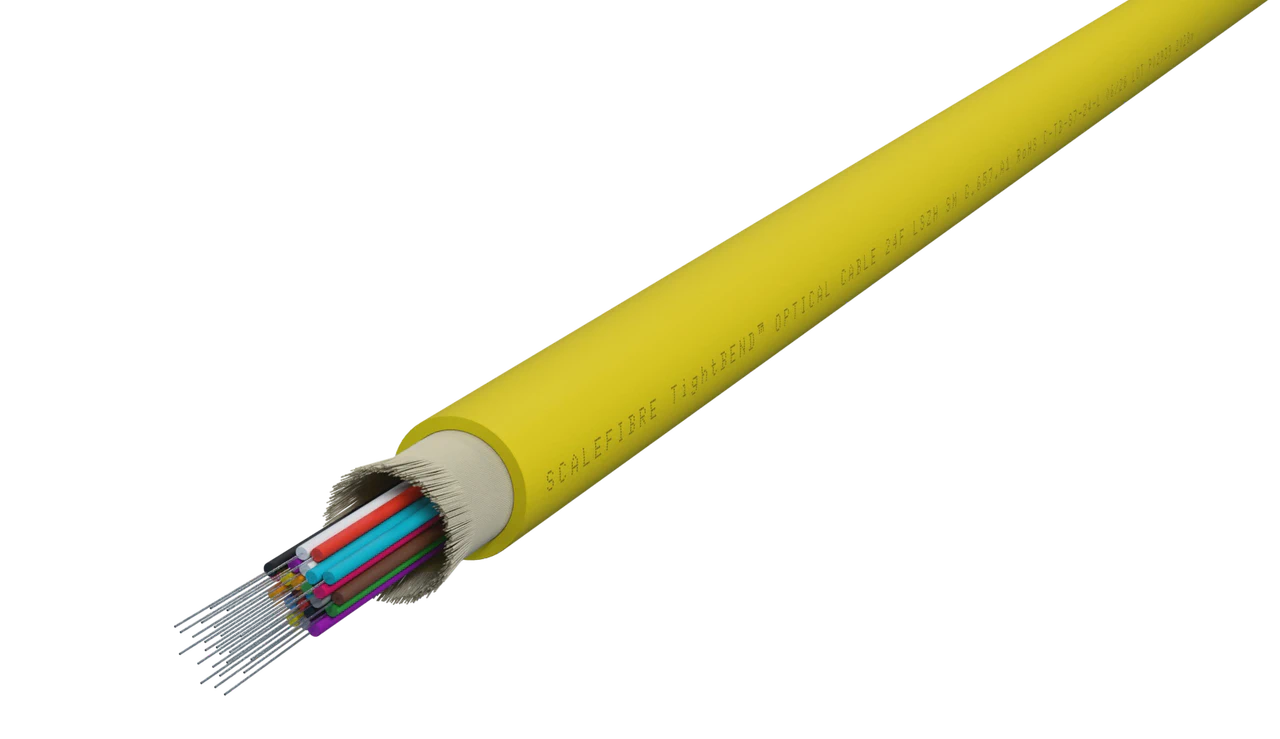

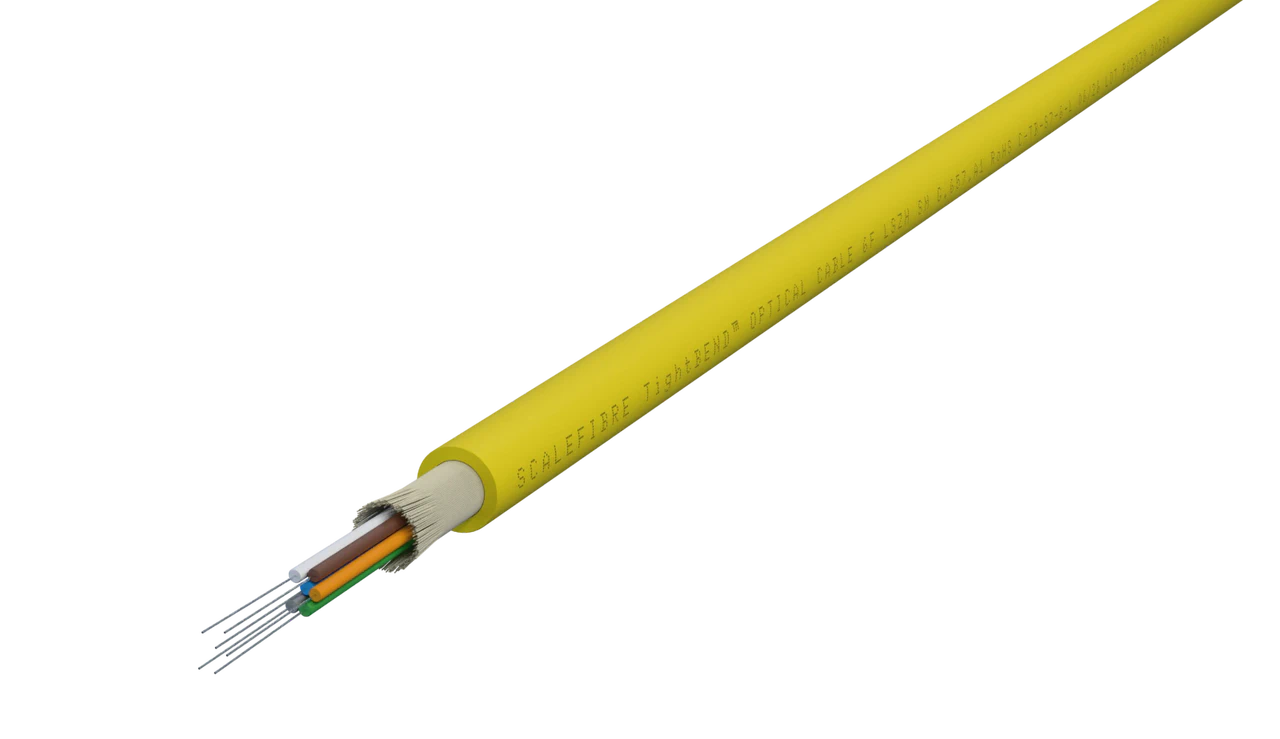

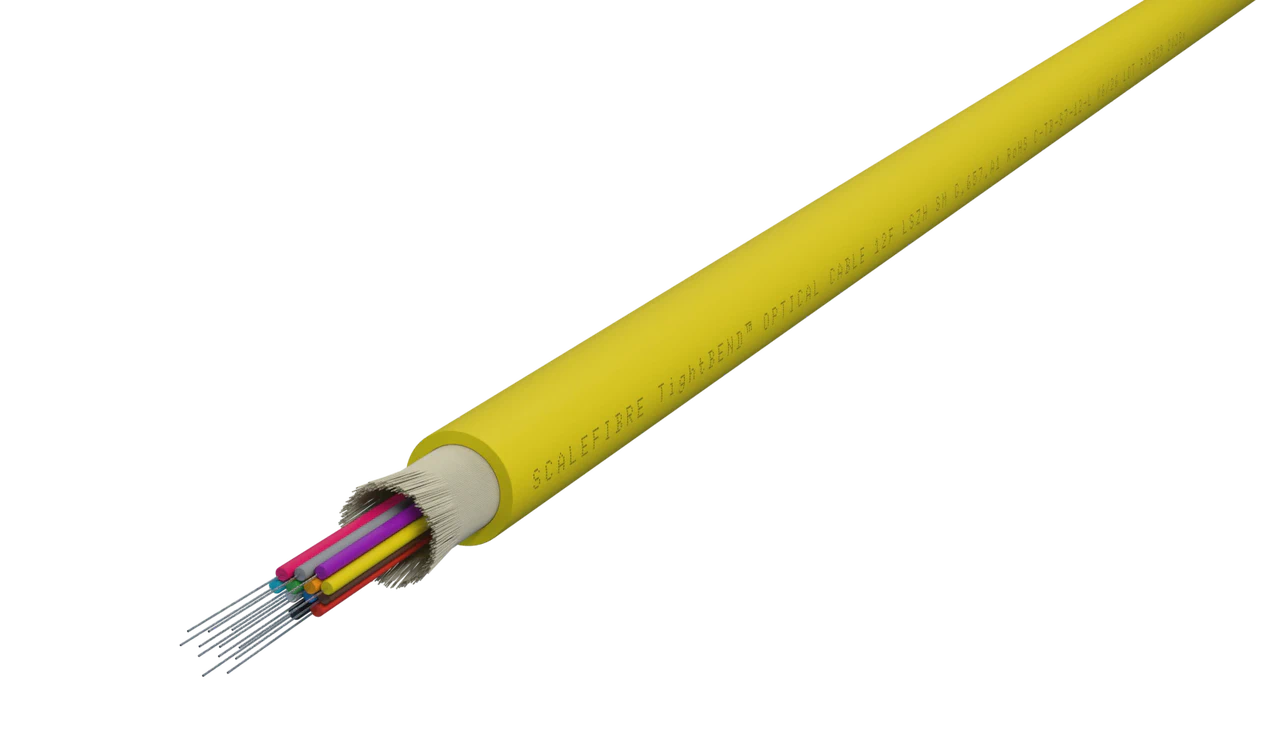

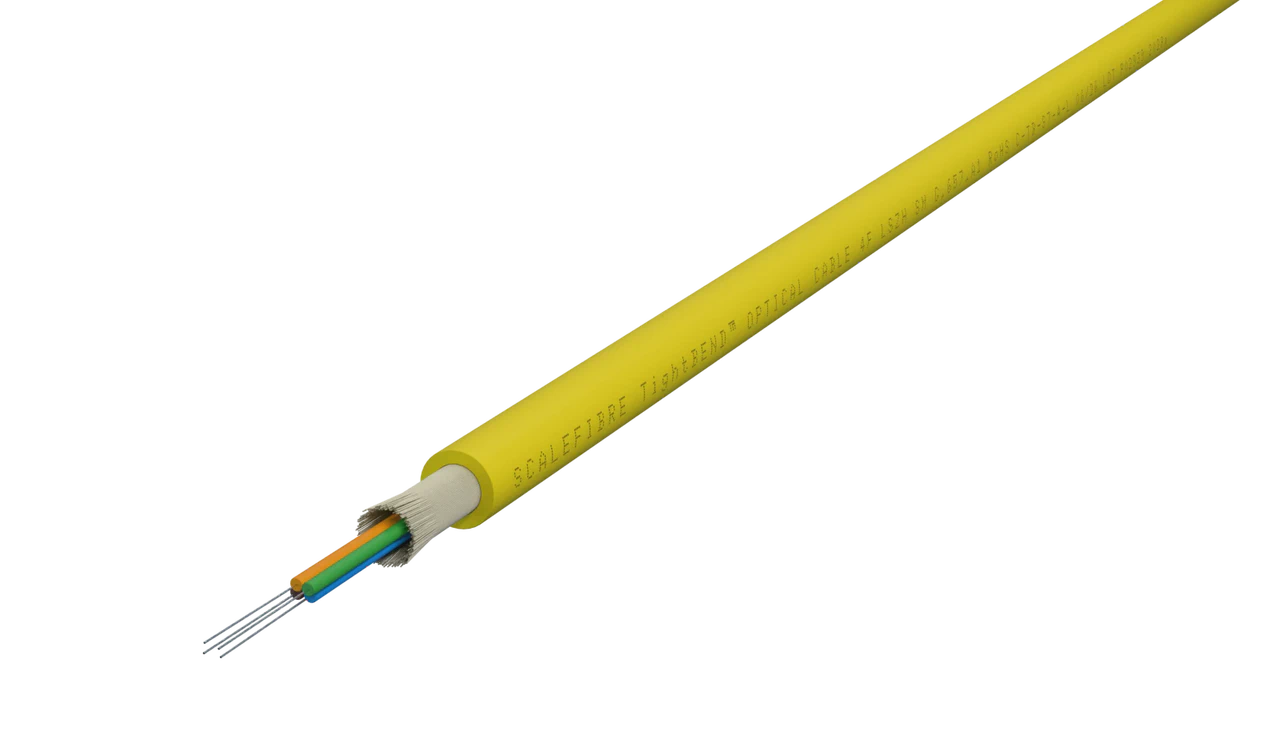

TightBEND™ is a tight-buffered indoor/outdoor riser cable offering clean routing, dry-core protection, and OFNR flame-retardant performance.

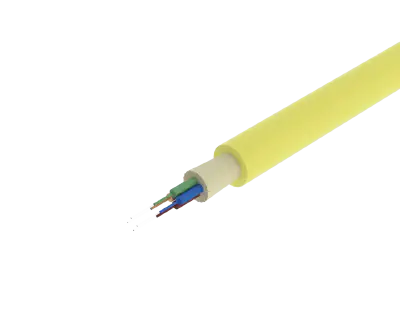

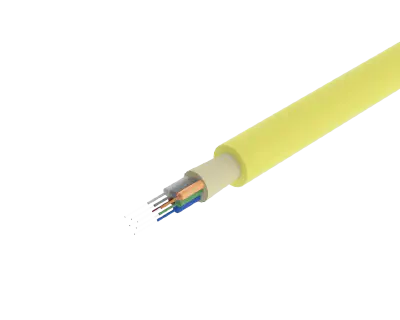

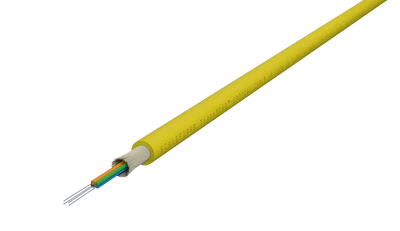

- Available in 4, 6, 8, 12, or 24 fiber counts with 900 µm tight buffer
- Dry-core water blocking with no gel clean-up
- Aramid strength members for crush and tensile resistance
- Flame-retardant, UV-stabilized OFNR jacket for indoor/outdoor use
- Supports single-mode and multimode applications with standard color coding
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
TightBEND™ delivers high-performance routing and reliable protection in indoor/outdoor environments. Its 900 µm tight-buffered construction allows for direct termination without fanout kits, and its dry design provides easy termination.
Ideal for LAN, data centers, and indoor/outdoor transitions, TightBEND™ includes high-tensile aramid yarns, an OFNR sheath, and color-coded fibers for quick identification. Available in 4 to 24-fiber configurations, it's suited to both single-mode and multimode networks.

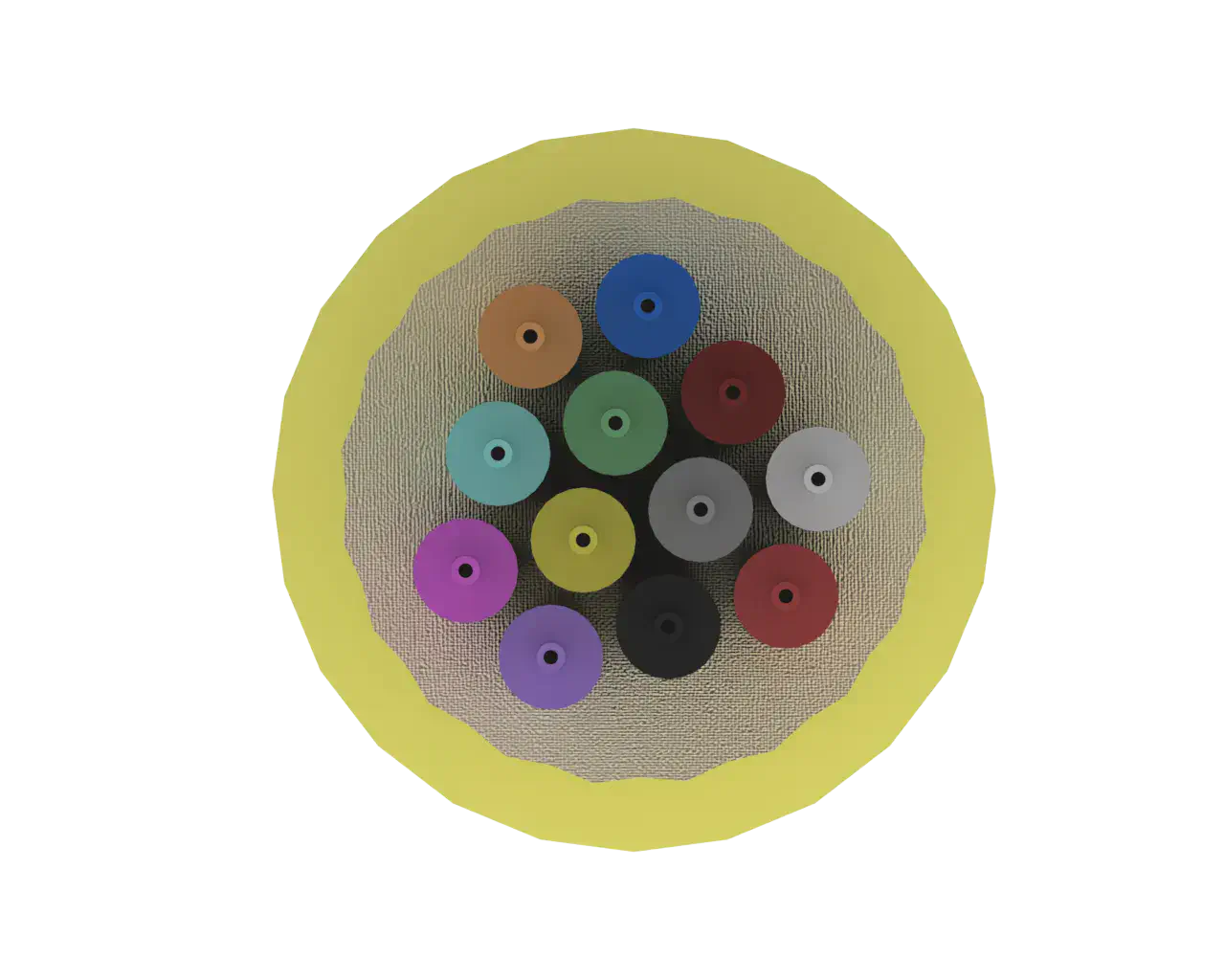

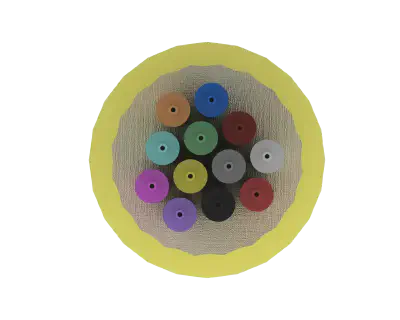

| Construction Details | |
| Fiber Count | 4–24 fibers |
| Fiber Buffer | 900 µm tight buffer |
| Strength Members | Aramid yarns |
| Water Blocking | Swellable elements (dry-core) |
| Jacket Material | Optical Fiber Nonconductive Riser (OFNR) |
| Cable Dimensions | |
| Nominal Outer Diameter | 4.8–8.8 mm (varies by fiber count) |
| Nominal Weight | 20–61 kg/km (varies by fiber count) |
| Mechanical Characteristics | |
| Max Tensile Load (Short Term) | 600–1100 N |
| Max Crush Resistance | 500 N (Short-term) / 300 N (Long-term) |
| Min. Bend Radius (Installation) | ≥20 × OD |
| Min. Bend Radius (Static) | ≥10 × OD |
| Environmental Characteristics | |
| Temperature – Installation | 0°C to +50°C |
| Temperature – Operation | -10°C to +70°C |
| Temperature – Storage | -10°C to +60°C |
| Compliance | |
| Flame Ratings | UL 1666 (OFNR) |
| Relevant Standards | TIA-568 |

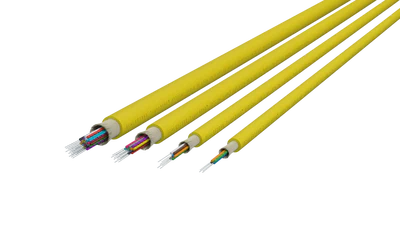

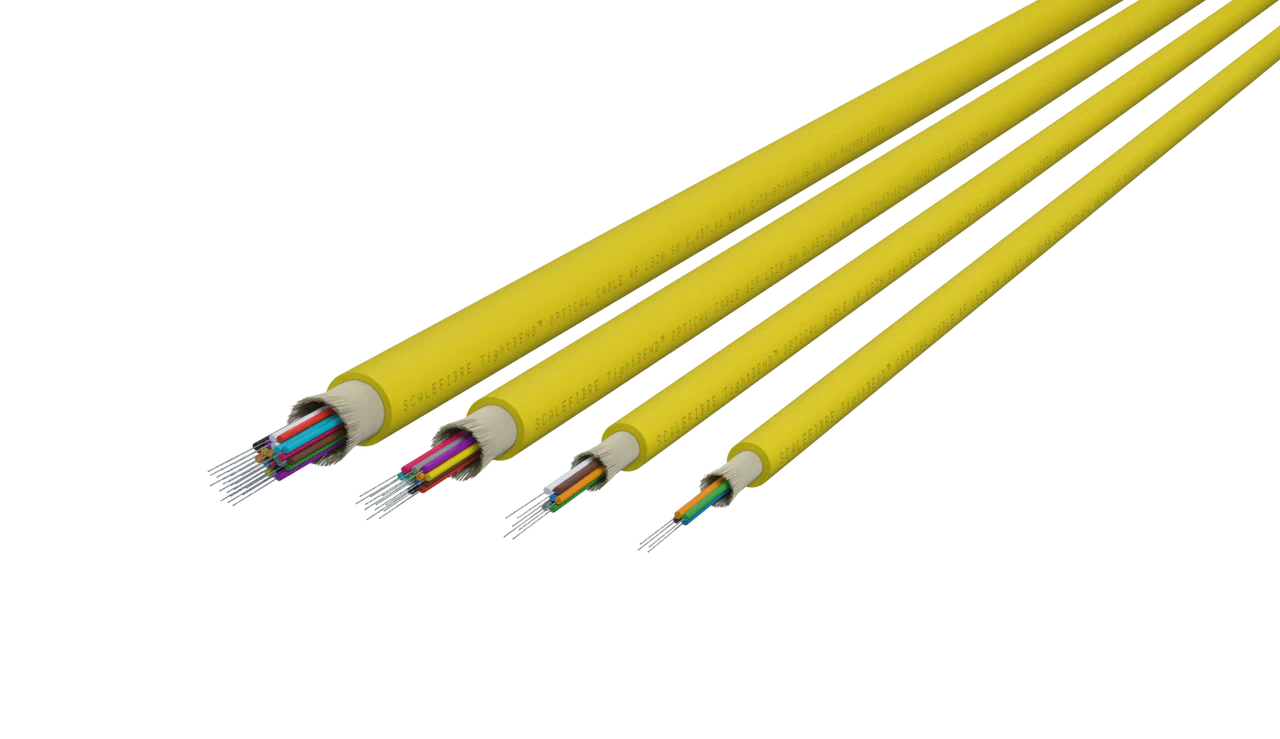

| TightBEND™ Variants | |

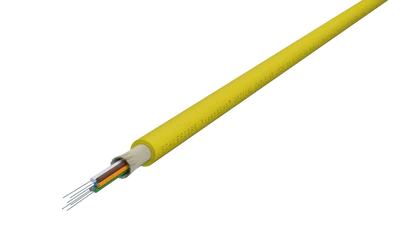

| C-TB-S7-6-OFNR | TightBEND Tight Buffered 900um Cable, Plenum, Single Mode (G.657.A1), 6F, Yellow |

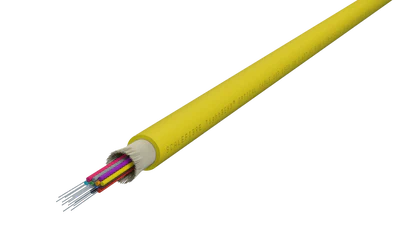

| C-TB-S7-12-OFNR | TightBEND Tight Buffered 900um Cable, Plenum, Single Mode (G.657.A1), 12F, Yellow |

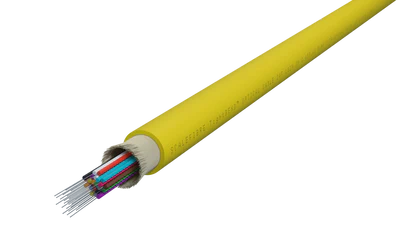

| C-TB-S7-24-OFNR | TightBEND Tight Buffered 900um Cable, Plenum, Single Mode (G.657.A1), 24F, Yellow |
| C-TB-M4-6-OFNR | TightBEND Tight Buffered 900um Cable, Plenum, Multi Mode (OM4), 6F, Aqua |
| C-TB-M4-12-OFNR | TightBEND Tight Buffered 900um Cable, Plenum, Multi Mode (OM4), 12F, Aqua |
| C-TB-M4-24-OFNR | TightBEND Tight Buffered 900um Cable, Plenum, Multi Mode (OM4), 24F, Aqua |
