- Fiber counts from 12 to 432 in stranded loose-tube construction
- Dry-core water-blocked design with fully dry (gel-free) tubes
- Black polyethylene (PE) outer jacket for outdoor durability
- Compact, lightweight construction for congested duct environments
- Suitable for underground duct, lashed aerial, and pulling or jetting installation
- Wide operating range -30 °C to +70 °C for OSP environments
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

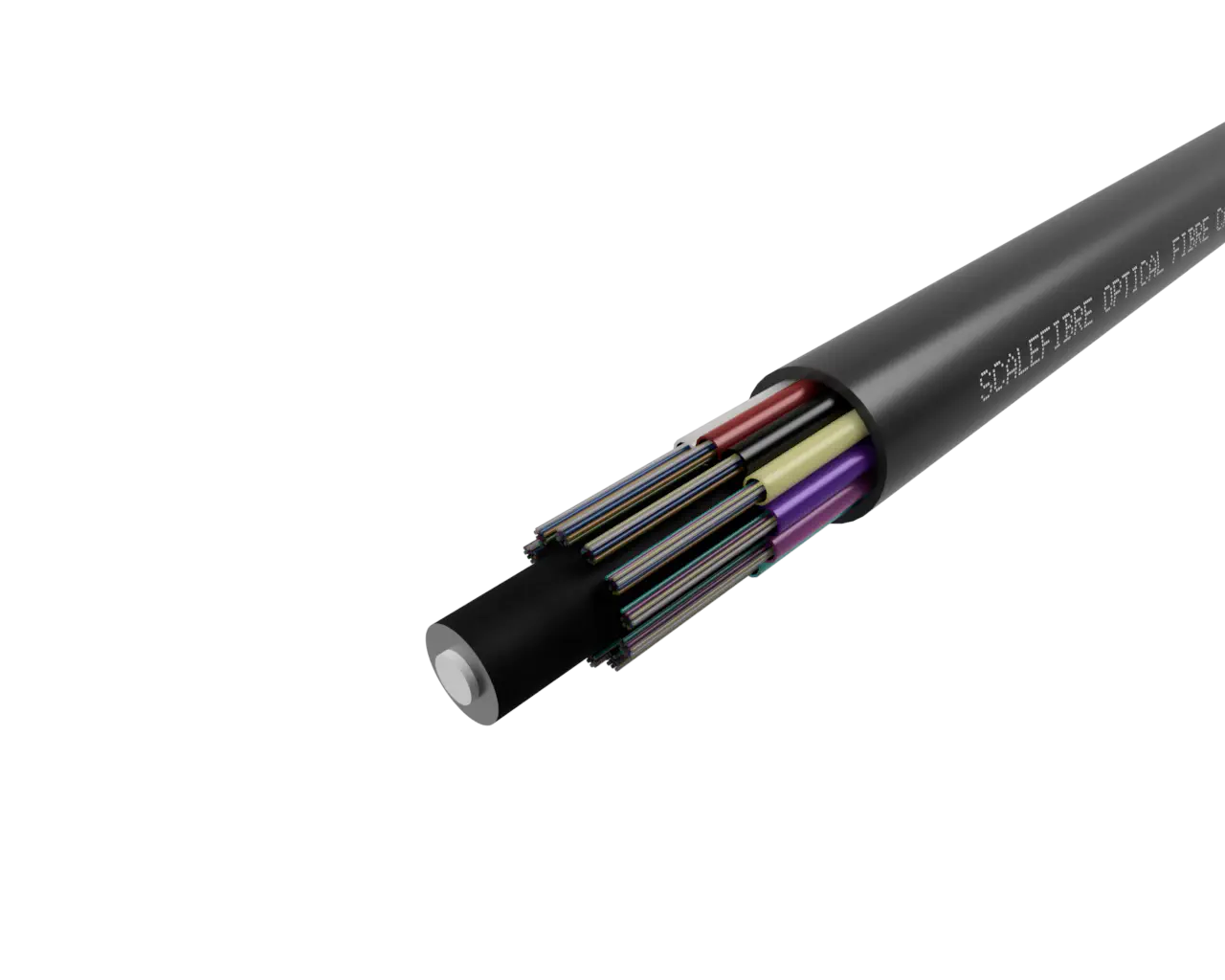

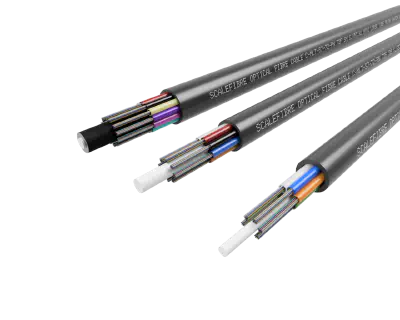

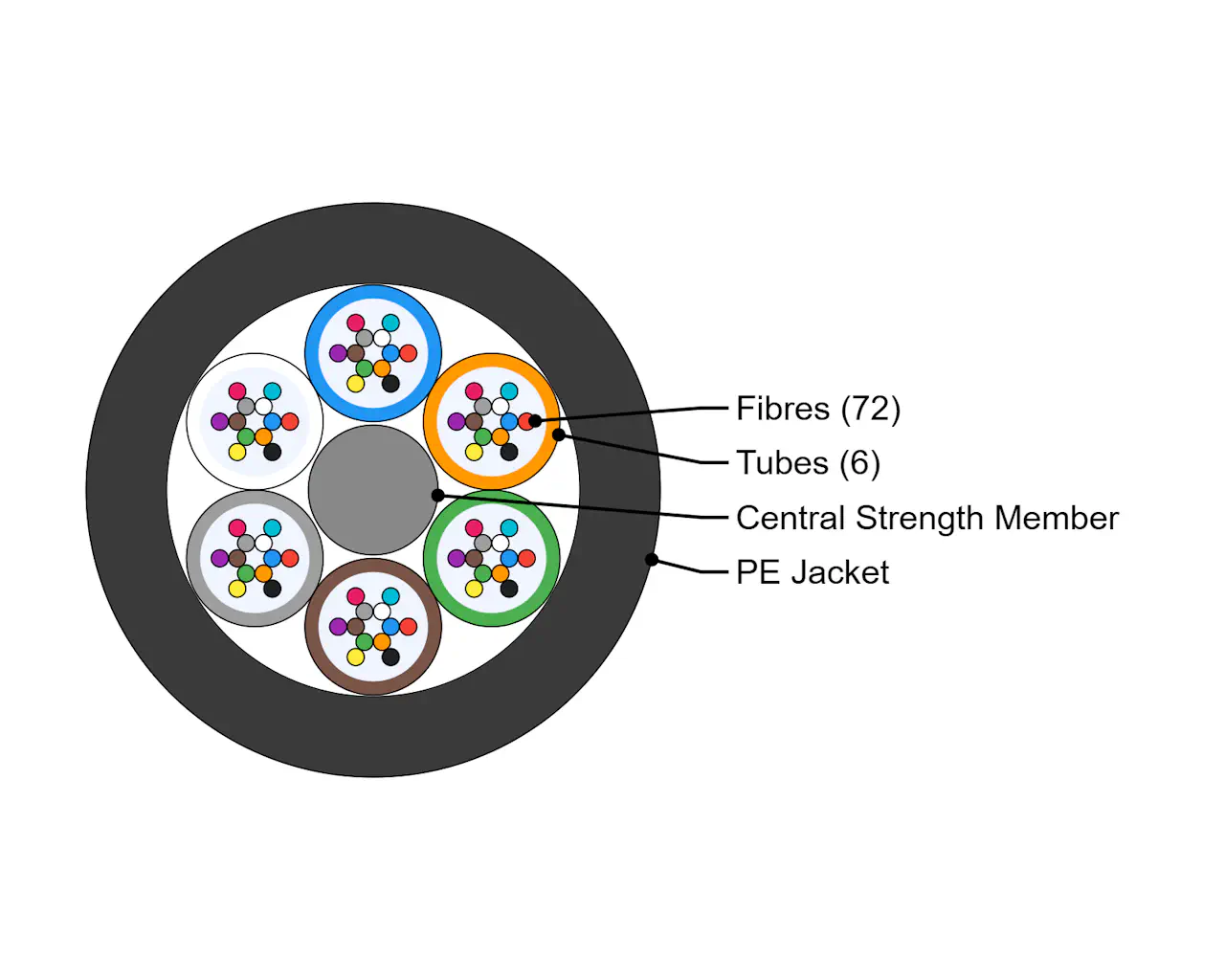

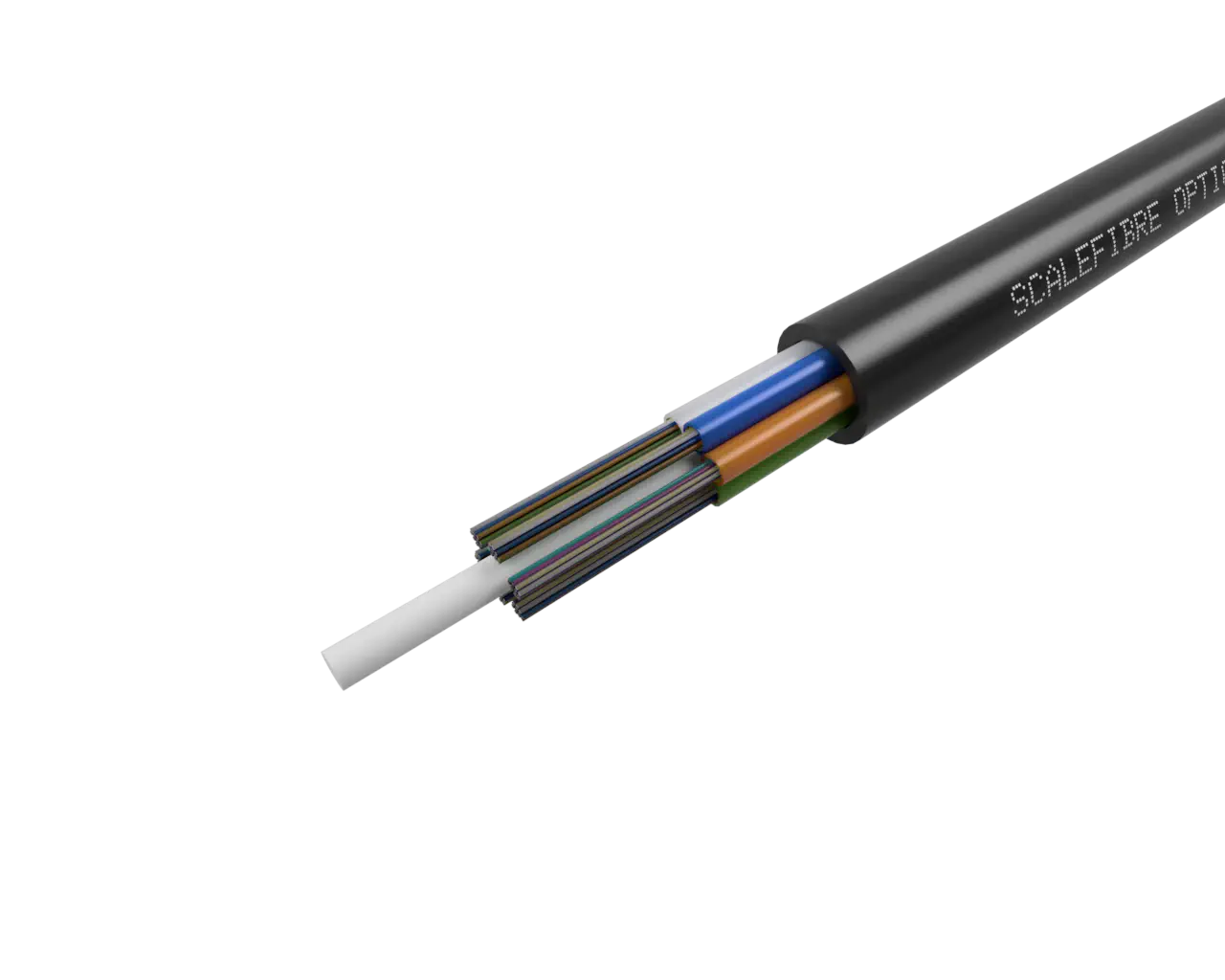

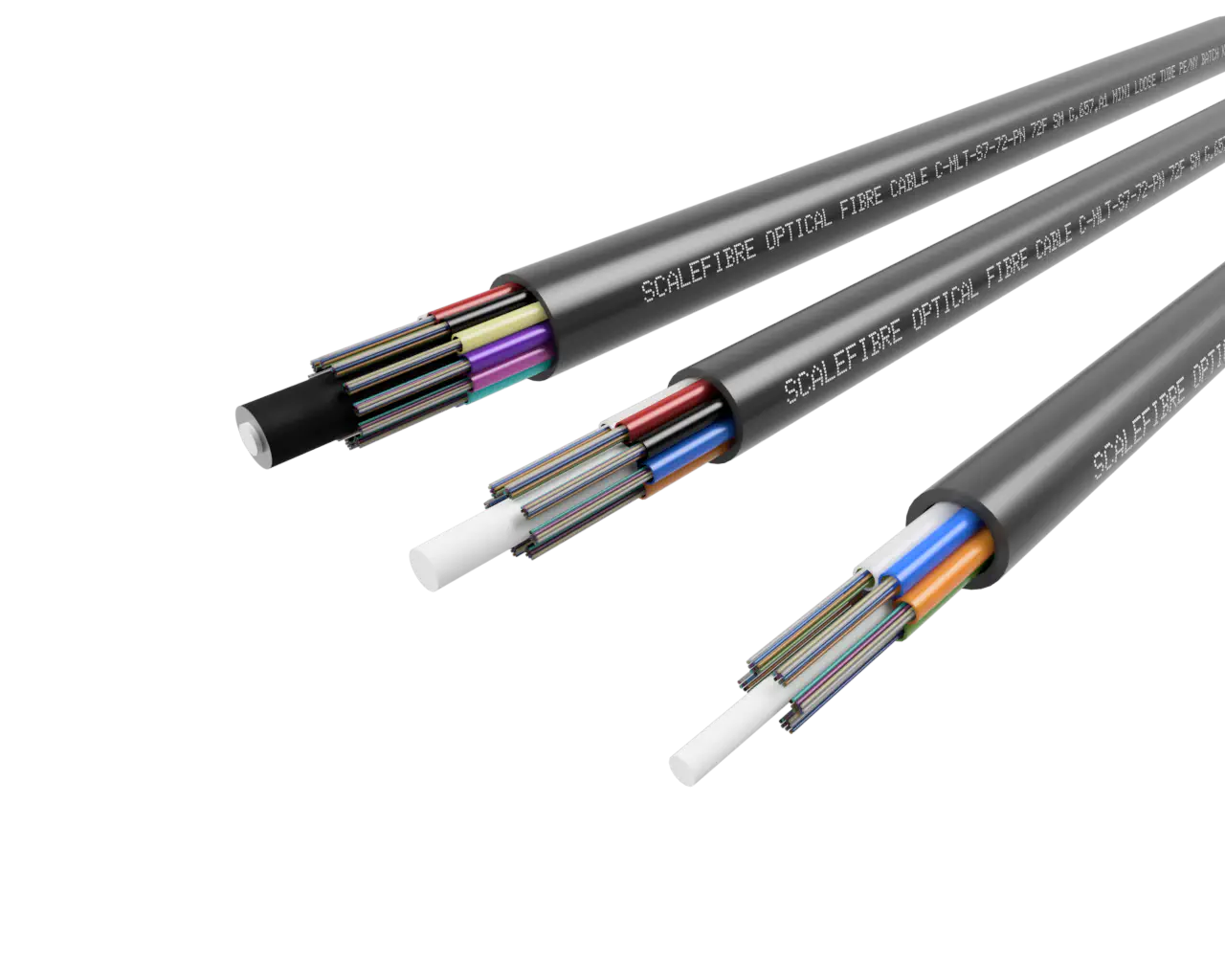

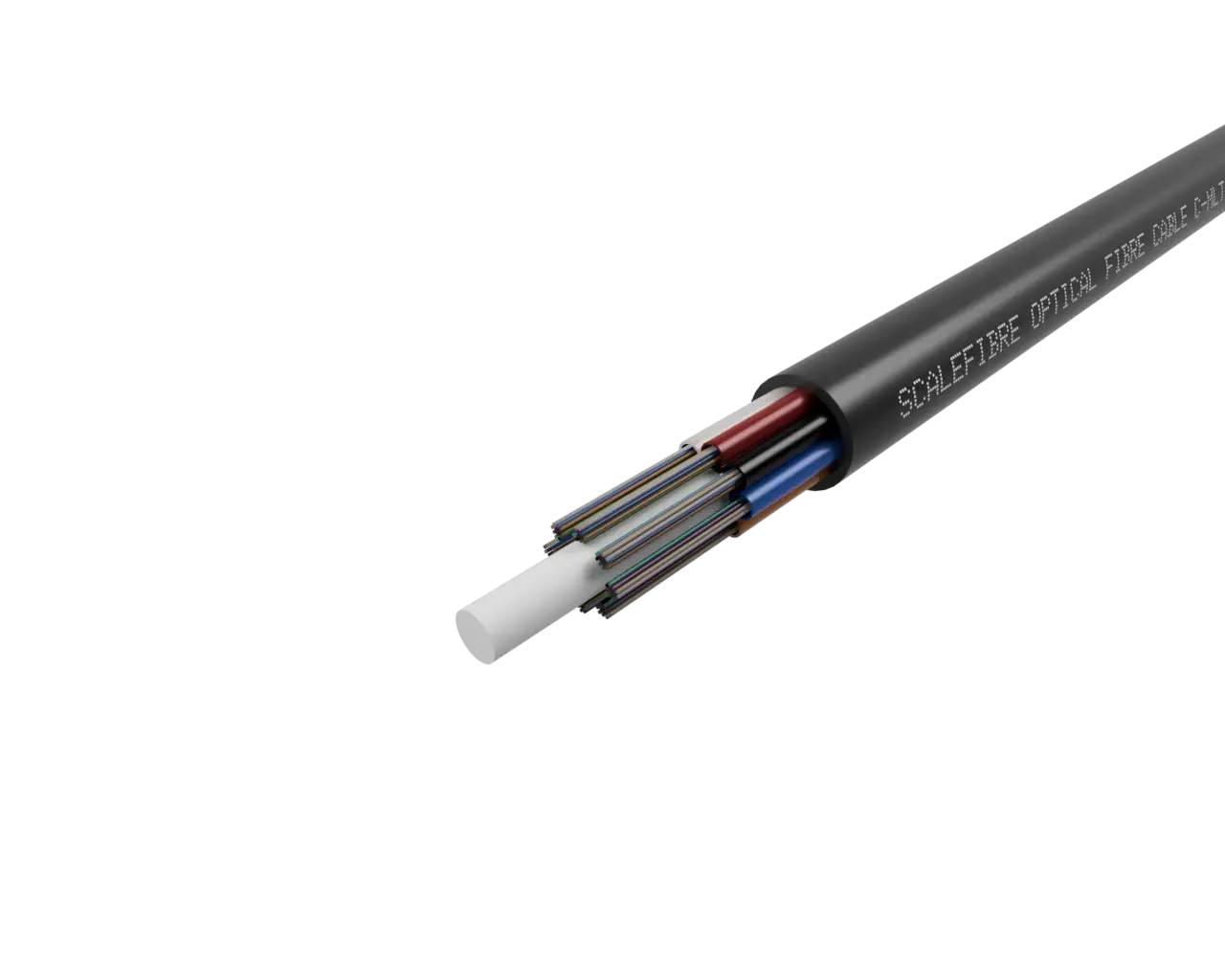

This Compact Fully Dry Tube Loose Tube Optical Fiber Cable family is optimised for Outside Plant (OSP) deployment, delivering reliable transmission performance through a durable construction and adaptability across a wide temperature range. Fibers are housed in an SZ-stranded loose tube assembly around a dielectric FRP central strength member for mechanical stability and fiber protection. Water-swellable yarns provide longitudinal water blocking, and each loose tube is gel-free (fully dry) for clean, fast handling in the field.
A black polyethylene (PE) outer jacket gives the cable the durability required for duct placement, lashed aerial runs, and jetting installation. The compact construction is lighter than conventional duct cables of the same fiber count, making it easier to handle and install across backbone, metro and access networks. Available in single-mode G.657.A1 fiber with counts from 12 to 432 fibers.
| Fiber and Tube Configuration | |
| Fiber Count | 12 to 432 fibers |
| Fiber Type | Single-mode G.657.A1 (ITU-T G.657.A1 / G.652.D compatible) |
| Fibers per Tube | 12F–288F: 12 fibers per tube 432F: 24 fibers per tube |
| Number of Tubes | 12F: 1 24F: 2 48F: 4 72F: 6 96F: 8 144F: 12 288F: 24 432F: 18 |
| Fiber Coating Diameter | 250 µm |
| Strength Member | Dielectric FRP central strength member |
| Tube Filling | Gel-free (fully dry) loose tubes |
| Core Water Blocking | Dry core with water-swellable yarns |
| Tube Material | Polymer |
| Jacket | Black polyethylene (PE) |
| Ripcords | Two |
| Cable Dimensions | |
| Cable Diameter | 12F: 8.4 ± 0.3 mm 24F: 8.4 ± 0.3 mm 48F: 8.4 ± 0.3 mm 72F: 8.4 ± 0.3 mm 96F: 9.2 ± 0.3 mm 144F: 11.6 ± 0.3 mm 288F: 13.5 ± 0.3 mm 432F: 15.9 ± 0.3 mm |
| Bend Radius | |
| Minimum Bend Radius (Installation / Under Load) | 12F–72F: 168 mm 96F: 184 mm 144F: 232 mm 288F: 270 mm 432F: 318 mm |
| Minimum Bend Radius (No Load / Static) | 12F–72F: 84 mm 96F: 92 mm 144F: 116 mm 288F: 135 mm 432F: 159 mm |
| Mechanical Characteristics | |
| Tensile Strength | 2,000 N |
| Crush Resistance | 1,100 N/10 cm |
| Environmental | |
| Operating Temperature | -30 °C to +70 °C |
| Installation Temperature | -10 °C to +60 °C |
| Storage Temperature | -30 °C to +70 °C |
| Compliance | |
| Standards | IEC 60793; IEC 60794; ITU-T G.657.A1 |
| RoHS Compliant | Yes |
| Compact Loose Tube Single-mode (G.657.A1) – Standard Fiber Counts | |
| Part Number | Description |
| C-CLT-S7-12-P | Compact Fully Dry Loose Tube Optical Cable, Single Mode (G.657.A1), 12F, Polyethylene Jacket |
| C-CLT-S7-24-P | Compact Fully Dry Loose Tube Optical Cable, Single Mode (G.657.A1), 24F, Polyethylene Jacket |
| C-CLT-S7-48-P | Compact Fully Dry Loose Tube Optical Cable, Single Mode (G.657.A1), 48F, Polyethylene Jacket |
| C-CLT-S7-72-P | Compact Fully Dry Loose Tube Optical Cable, Single Mode (G.657.A1), 72F, Polyethylene Jacket |
| C-CLT-S7-96-P | Compact Fully Dry Loose Tube Optical Cable, Single Mode (G.657.A1), 96F, Polyethylene Jacket |
| C-CLT-S7-144-P | Compact Fully Dry Loose Tube Optical Cable, Single Mode (G.657.A1), 144F, Polyethylene Jacket |
| C-CLT-S7-288-P | Compact Fully Dry Loose Tube Optical Cable, Single Mode (G.657.A1), 288F, Polyethylene Jacket |
| C-CLT-S7-432-P | Compact Fully Dry Loose Tube Optical Cable, Single Mode (G.657.A1), 432F, Polyethylene Jacket |
