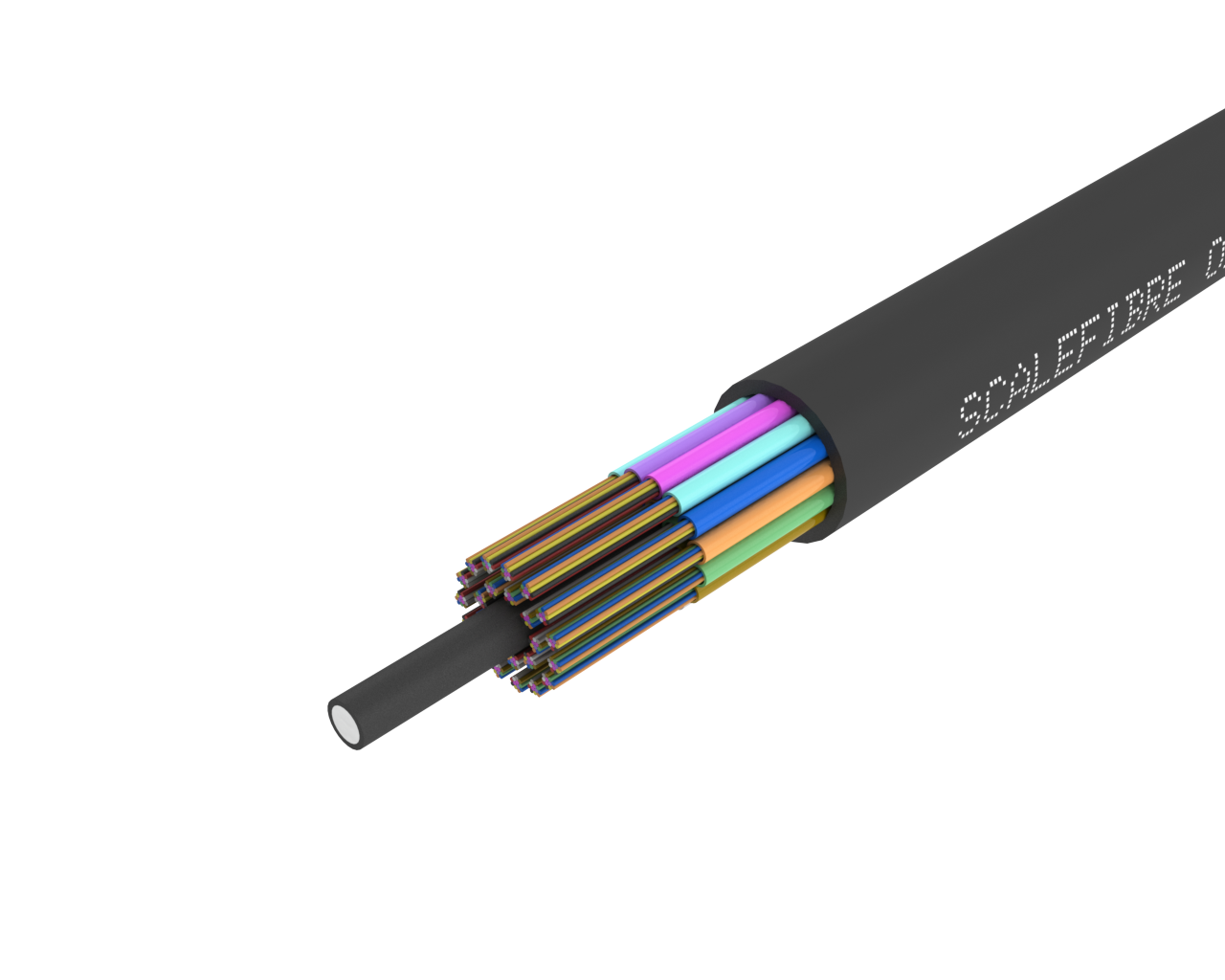

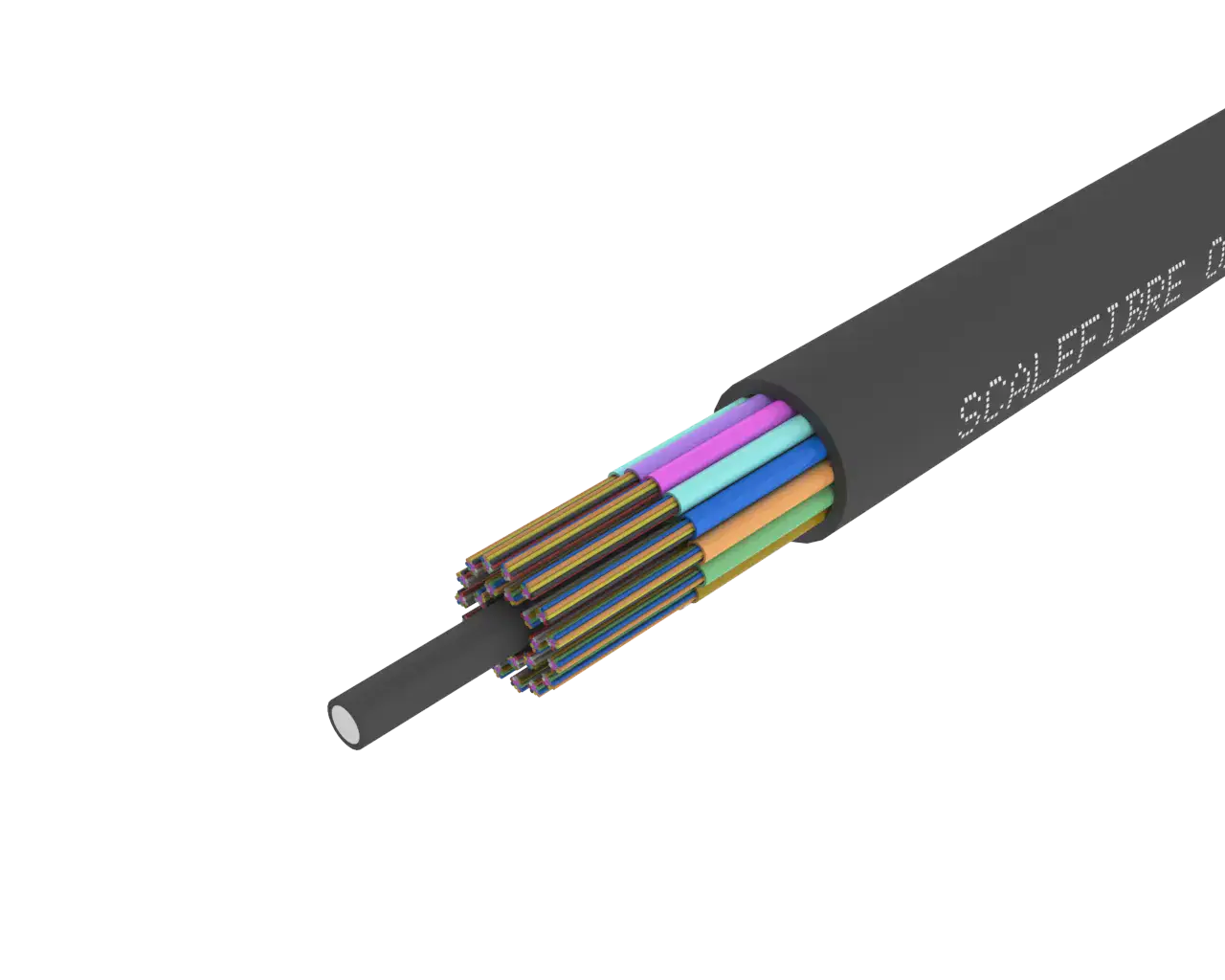

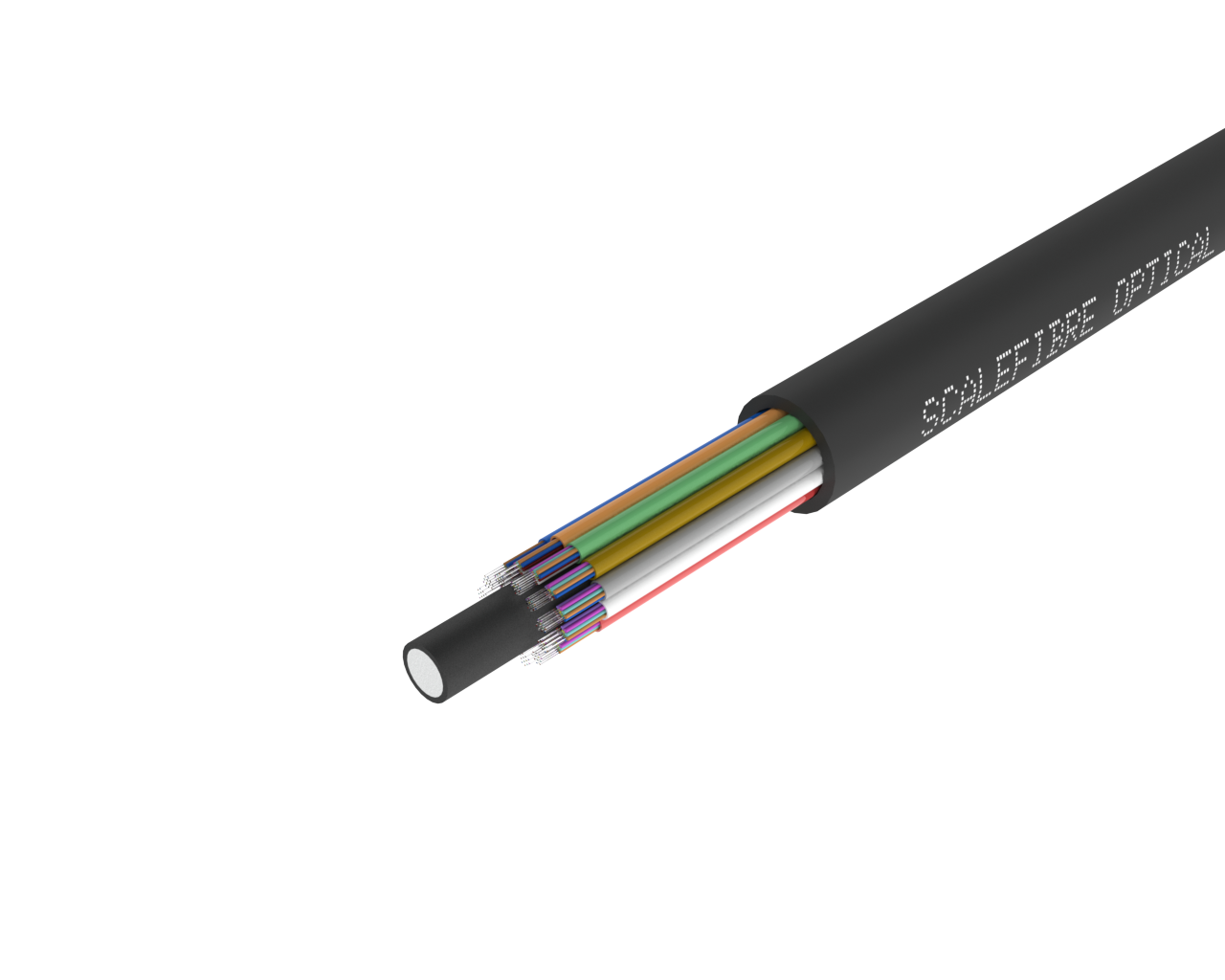

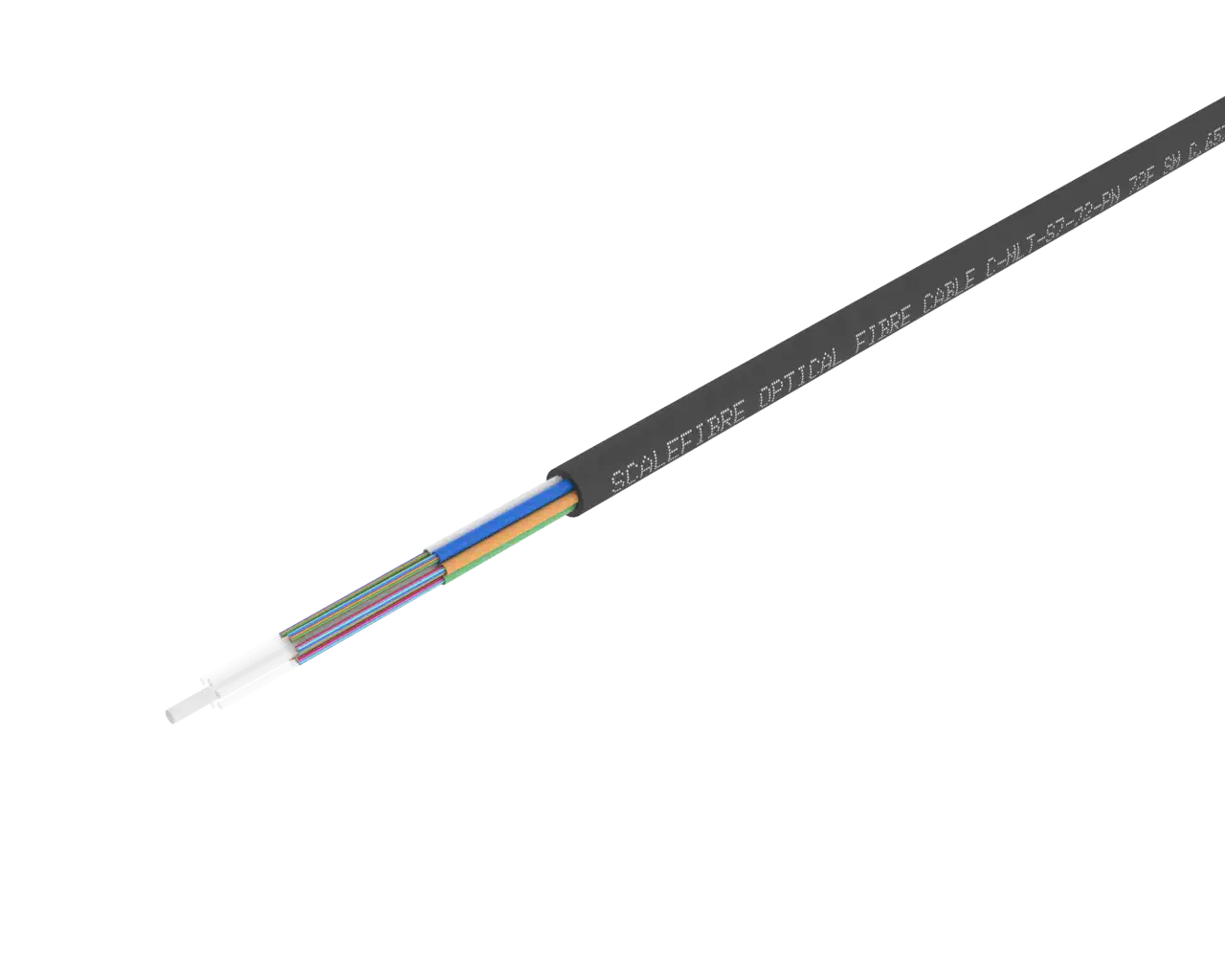

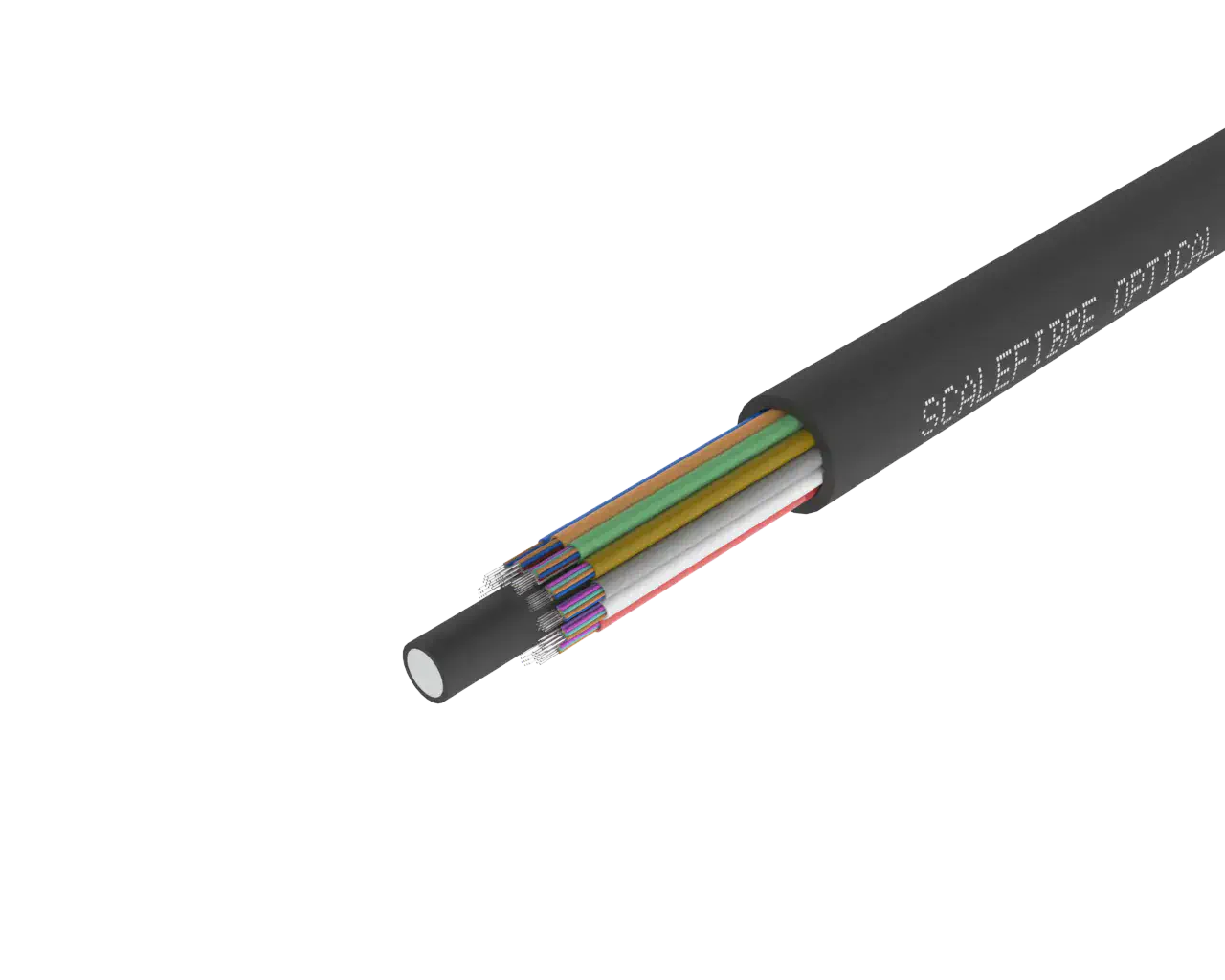

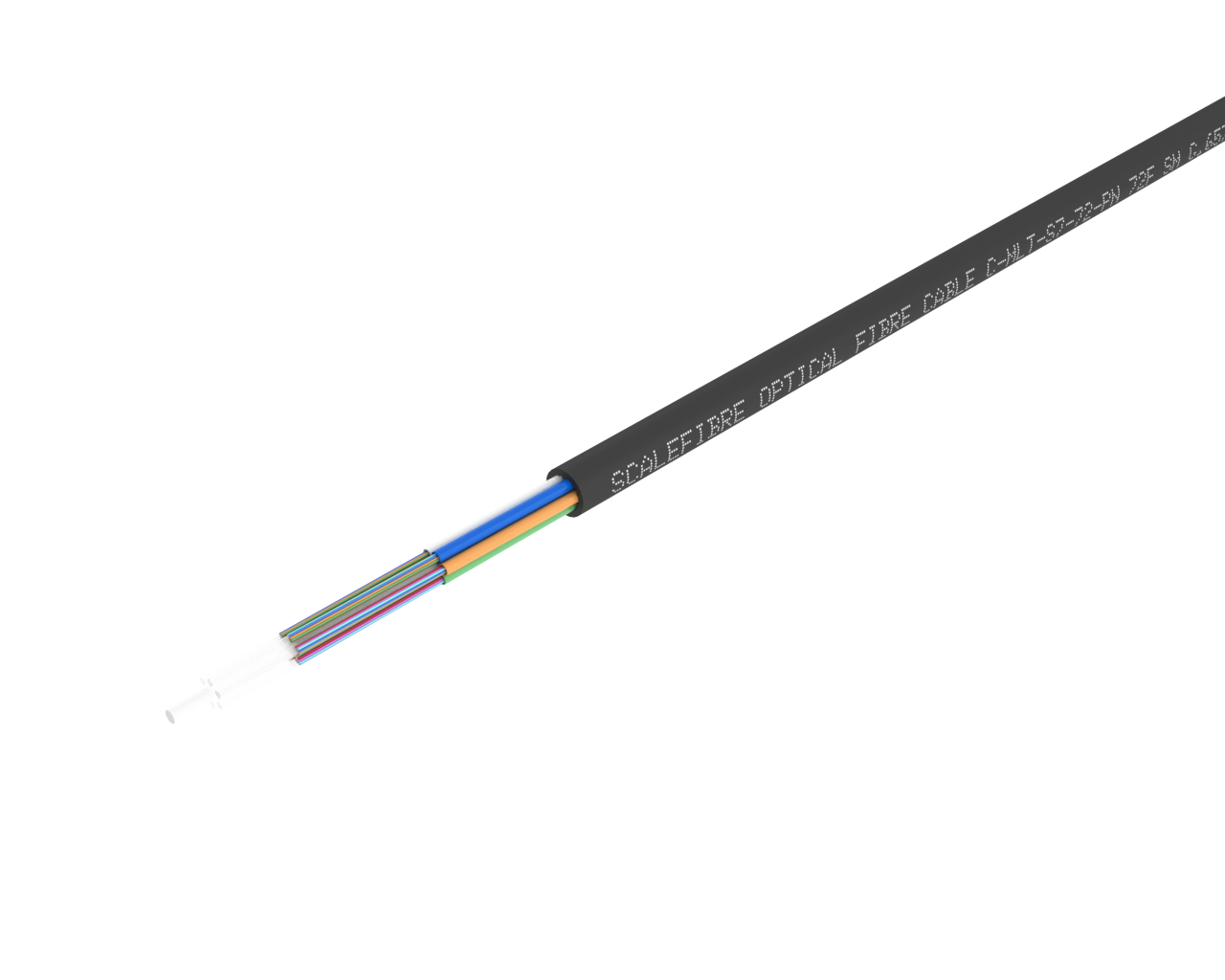

Mini loose tube cable (12–864F) with PE jacket, FRP strength member and dry core with StaticGEL™ tubes.

Fibre counts from 12 to 864
Compact diameters for maximum duct utilisation
Stranded loose-tube construction for fast, flexible installation
FRP central strength member ensures tensile robustness in long-haul pulls
Dry core with StaticGEL™ loose tubes for clean, low-mess handling

Category: Fibre Optic Cables, Outdoor Cables

ENQUIRE NOW

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

This mini loose tube optical cable family is engineered for compactness and fast installation in congested duct environments, with fibre counts from 12 up to 864. Diameters as small as 6.3 mm deliver high fibre density to maximise duct utilisation. A black polyethylene (PE) jacket ensures durability. An FRP central strength member provides tensile robustness, while the dry core with StaticGEL™ water blocking compound within the tubes ensures clean, low-mess handling.

Designed for installation by pulling, jetting, floating, or air-blown methods across hyperscale, carrier, enterprise, utility and campus networks. Available with single-mode (G.657.A1 or G.657.A2) and multimode (OM1 / OM3 / OM4 / OM5) fibre options.

Construction Details
Fibre Count	12 to 864 fibres
Fibre Type	Single-mode G.657.A1 Single-mode G.657.A2 Multimode OM1 Multimode OM3 Multimode OM4

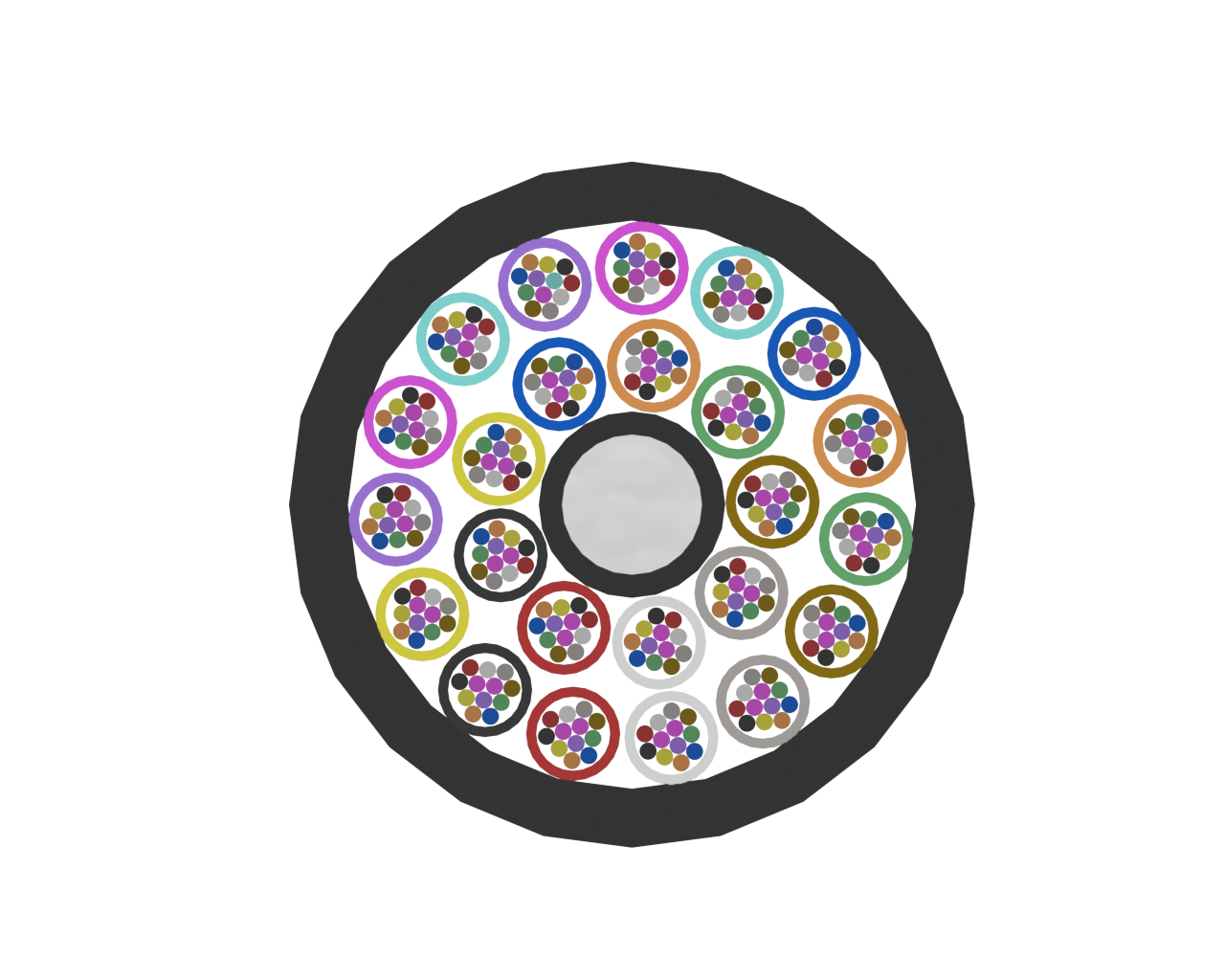

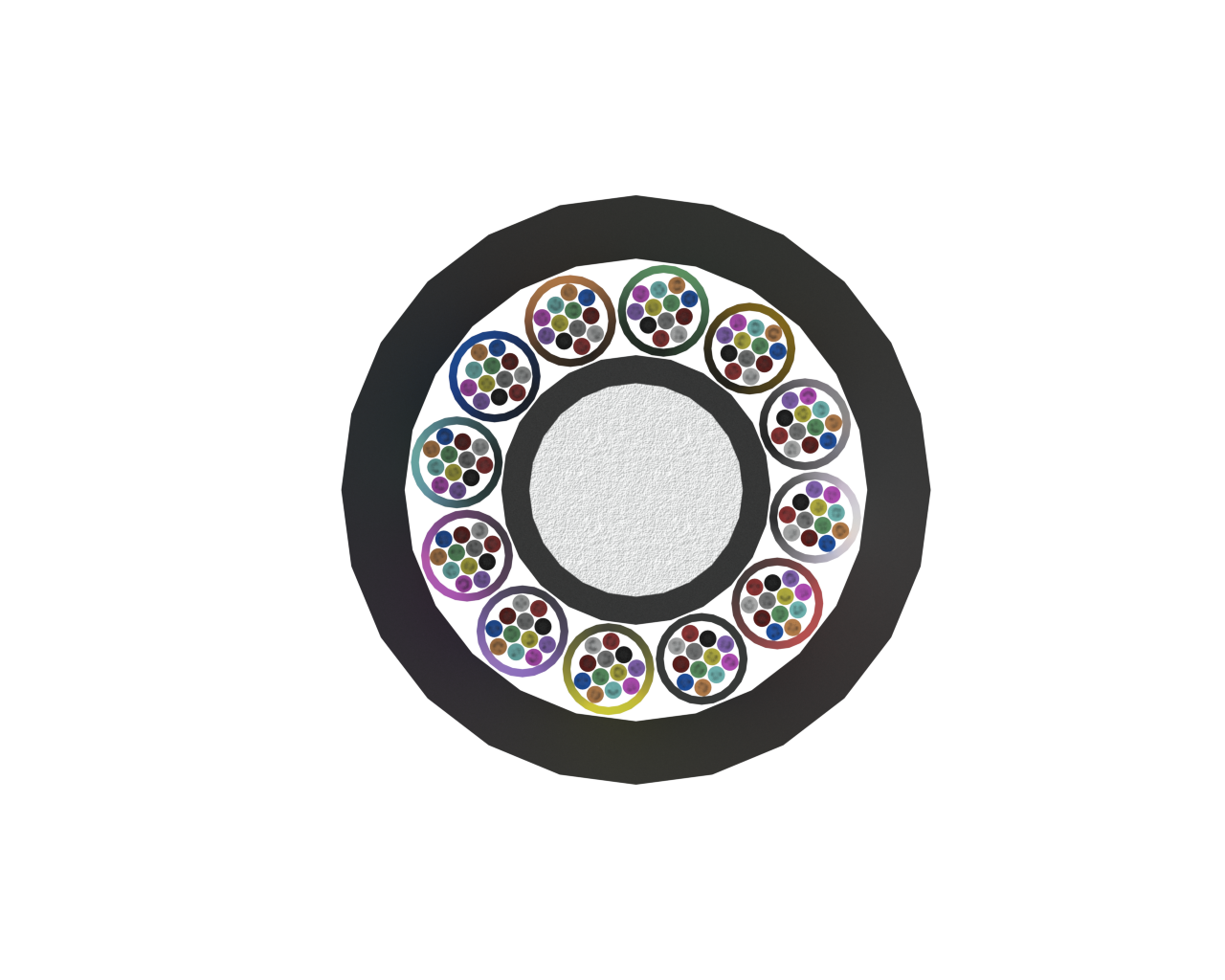

Tube Configuration	Up to 24 loose tubes (12–36 fibres per tube depending on count)
Tube Filling	StaticGEL™ technology for clean, fast handling
Core Water Blocking	Dry core with water-swellable yarns around central member
Strength Member	Central FRP rod (dielectric)
Ripcords	Two
Jacket	Polyethylene (PE)
Cable Dimensions
Outside Diameter	12F: 6.3 mm 24F: 6.3 mm 48F: 6.3 ± 0.3 mm 72F: 6.3 ± 0.3 mm 144F: 8.3 ± 0.3 mm 288F: 9.8 ± 0.3 mm 432F: 8.8 ± 0.3 mm 864F: 11.3 ± 0.3 mm
Weight	12F: 31 kg/km 24F: 31 kg/km 48F: 33 kg/km 72F: 33 kg/km 144F: 62 kg/km 288F: 82 kg/km 432F: 63 kg/km 864F: 106 kg/km
Bend Radius
Minimum Bend Radius (Installation)	130 mm to 230 mm (depending on fibre count)
Minimum Bend Radius (No-Load / Static)	65 mm to 115 mm (depending on fibre count)
Mechanical Characteristics
Tensile Strength (Short Term)	1,000 N (12–144F) / 2,000 N (288–864F)
Crush Resistance	2,000 N/10 cm
Environmental
Operating Temperature	-10 °C to +70 °C
Installation Temperature	0 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Compliance
Standards	IEC 60794; AS/CA S008; TIA-598-C; ITU-T optical fibre standards
RoHS3 Compliant	Yes

Mini Loose Tube Single-mode (G.657.A1) – Standard Fibre Counts
Part Number	Description
C-MLT-S7-12-P	Mini Loose Tube, 12 Fibre, Single-mode (G.657.A1), PE
C-MLT-S7-24-P	Mini Loose Tube, 24 Fibre, Single-mode (G.657.A1), PE
C-MLT-S7-48-P	Mini Loose Tube, 48 Fibre, Single-mode (G.657.A1), PE
C-MLT-S7-72-P	Mini Loose Tube, 72 Fibre, Single-mode (G.657.A1), PE
C-MLT-S7-96-P	Mini Loose Tube, 96 Fibre, Single-mode (G.657.A1), PE
C-MLT-S7-144-P	Mini Loose Tube, 144 Fibre, Single-mode (G.657.A1), PE
C-MLT-S7-288-P	Mini Loose Tube, 288 Fibre, Single-mode (G.657.A1), PE
C-MLT-S7-432-P	Mini Loose Tube, 432 Fibre, Single-mode (G.657.A1), PE
C-MLT-S7-864-P	Mini Loose Tube, 864 Fibre, Single-mode (G.657.A1), PE

Mini Loose Tube Single-mode (G.657.A2) – Standard Fibre Counts
Part Number	Description
C-MLT-S7A2-12-P	Mini Loose Tube, 12 Fibre, Single-mode (G.657.A2), PE
C-MLT-S7A2-24-P	Mini Loose Tube, 24 Fibre, Single-mode (G.657.A2), PE
C-MLT-S7A2-48-P	Mini Loose Tube, 48 Fibre, Single-mode (G.657.A2), PE
C-MLT-S7A2-72-P	Mini Loose Tube, 72 Fibre, Single-mode (G.657.A2), PE
C-MLT-S7A2-96-P	Mini Loose Tube, 96 Fibre, Single-mode (G.657.A2), PE
C-MLT-S7A2-144-P	Mini Loose Tube, 144 Fibre, Single-mode (G.657.A2), PE
C-MLT-S7A2-288-P	Mini Loose Tube, 288 Fibre, Single-mode (G.657.A2), PE
C-MLT-S7A2-432-P	Mini Loose Tube, 432 Fibre, Single-mode (G.657.A2), PE
C-MLT-S7A2-864-P	Mini Loose Tube, 864 Fibre, Single-mode (G.657.A2), PE

Mini Loose Tube Multimode (OM1) – Standard Fibre Counts
Part Number	Description
C-MLT-M1-12-P	Mini Loose Tube, 12 Fibre, Multimode (OM1), PE
C-MLT-M1-24-P	Mini Loose Tube, 24 Fibre, Multimode (OM1), PE
C-MLT-M1-48-P	Mini Loose Tube, 48 Fibre, Multimode (OM1), PE
C-MLT-M1-72-P	Mini Loose Tube, 72 Fibre, Multimode (OM1), PE
C-MLT-M1-96-P	Mini Loose Tube, 96 Fibre, Multimode (OM1), PE
C-MLT-M1-144-P	Mini Loose Tube, 144 Fibre, Multimode (OM1), PE
C-MLT-M1-288-P	Mini Loose Tube, 288 Fibre, Multimode (OM1), PE
C-MLT-M1-432-P	Mini Loose Tube, 432 Fibre, Multimode (OM1), PE
C-MLT-M1-864-P	Mini Loose Tube, 864 Fibre, Multimode (OM1), PE

Mini Loose Tube Multimode (OM3) – Standard Fibre Counts
Part Number	Description
C-MLT-M3-12-P	Mini Loose Tube, 12 Fibre, Multimode (OM3), PE
C-MLT-M3-24-P	Mini Loose Tube, 24 Fibre, Multimode (OM3), PE
C-MLT-M3-48-P	Mini Loose Tube, 48 Fibre, Multimode (OM3), PE
C-MLT-M3-72-P	Mini Loose Tube, 72 Fibre, Multimode (OM3), PE
C-MLT-M3-96-P	Mini Loose Tube, 96 Fibre, Multimode (OM3), PE
C-MLT-M3-144-P	Mini Loose Tube, 144 Fibre, Multimode (OM3), PE
C-MLT-M3-288-P	Mini Loose Tube, 288 Fibre, Multimode (OM3), PE
C-MLT-M3-432-P	Mini Loose Tube, 432 Fibre, Multimode (OM3), PE
C-MLT-M3-864-P	Mini Loose Tube, 864 Fibre, Multimode (OM3), PE

Mini Loose Tube Multimode (OM4) – Standard Fibre Counts
Part Number	Description
C-MLT-M4-12-P	Mini Loose Tube, 12 Fibre, Multimode (OM4), PE
C-MLT-M4-24-P	Mini Loose Tube, 24 Fibre, Multimode (OM4), PE
C-MLT-M4-48-P	Mini Loose Tube, 48 Fibre, Multimode (OM4), PE
C-MLT-M4-72-P	Mini Loose Tube, 72 Fibre, Multimode (OM4), PE
C-MLT-M4-96-P	Mini Loose Tube, 96 Fibre, Multimode (OM4), PE
C-MLT-M4-144-P	Mini Loose Tube, 144 Fibre, Multimode (OM4), PE
C-MLT-M4-288-P	Mini Loose Tube, 288 Fibre, Multimode (OM4), PE
C-MLT-M4-432-P	Mini Loose Tube, 432 Fibre, Multimode (OM4), PE
C-MLT-M4-864-P	Mini Loose Tube, 864 Fibre, Multimode (OM4), PE
