- Fixed-chassis HighSTACK™ design for maximum link stability
- AnchorLINK™ side and rear entry clips for rapid, tool-less cable fixing

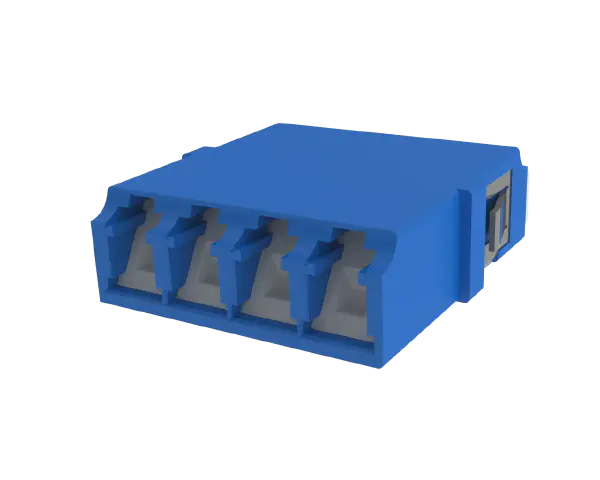

- Shuttered LC Quadplex adapters for laser safety and dust protection
- Pre-configured with ribbon splice cassettes for mass-fusion workflows
- 1.6 mm steel construction for structural integrity under full load
- High-visibility port numbering for rapid circuit identification
- Supports splicing, direct termination and pre-terminated assemblies
- Compatible with standard 19 inch carrier and data racks
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
The HighSTACK™ series is a purpose-built range of high-density fixed enclosures designed for high performance carrier and data centre networks. By utilising a rigid, non-moving chassis, the HighSTACK™ platform provides absolute stability for high-count fibre links, eliminating the risk of macro-bends or connector stress often associated with sliding trays in high-density environments.

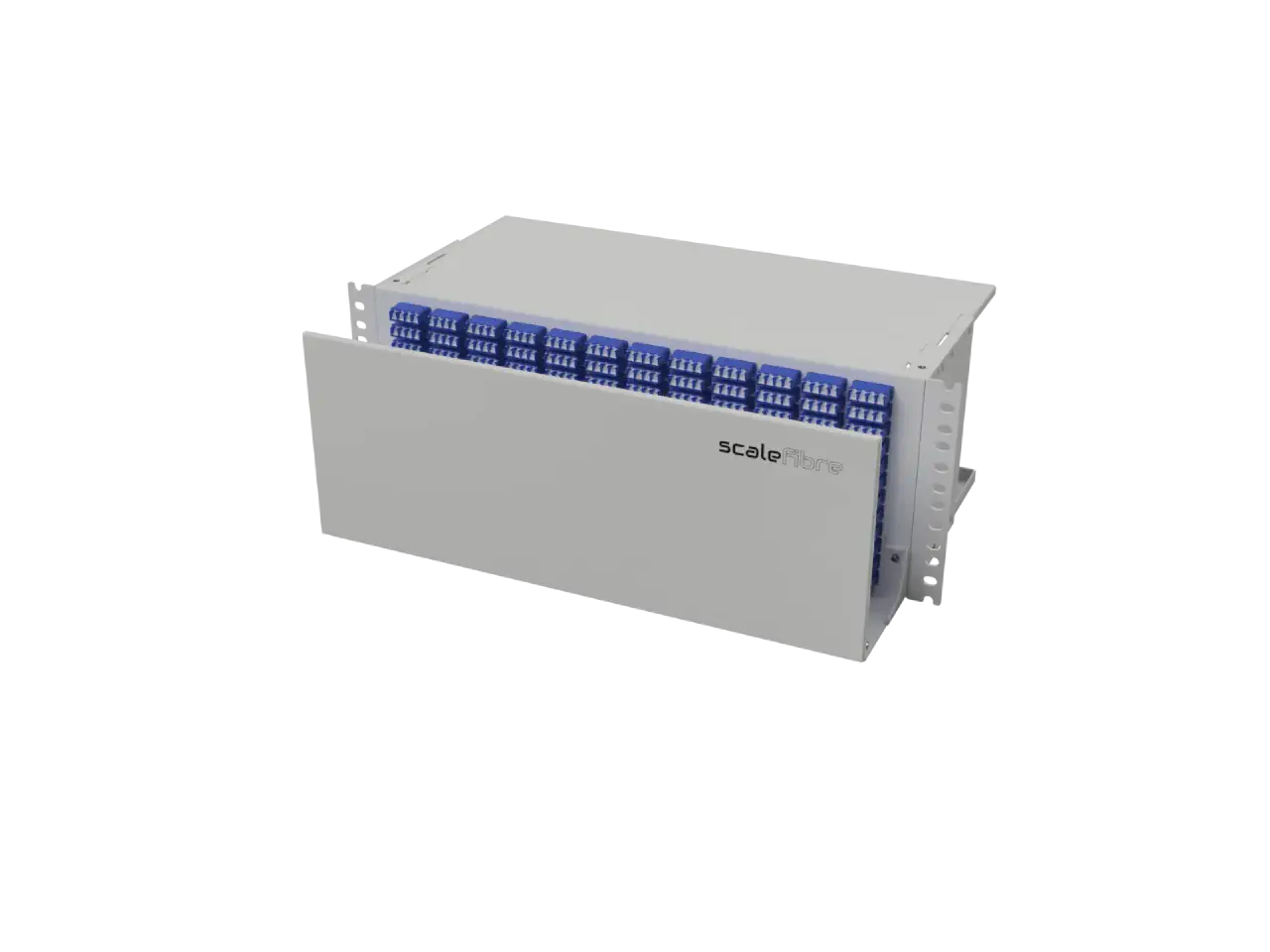

Available in 1RU, 2RU and 4RU configurations, these housings are pre-populated with shuttered LC Quadplex adapters to support up to 576 fibres in a single 4RU footprint. The internal architecture is optimized for mass-fusion splicing, featuring dedicated mounting points for ScaleFibre ribbon splice cassettes to ensure clean transitions from SmartRIBBON™ backbones to high-density patch fields.

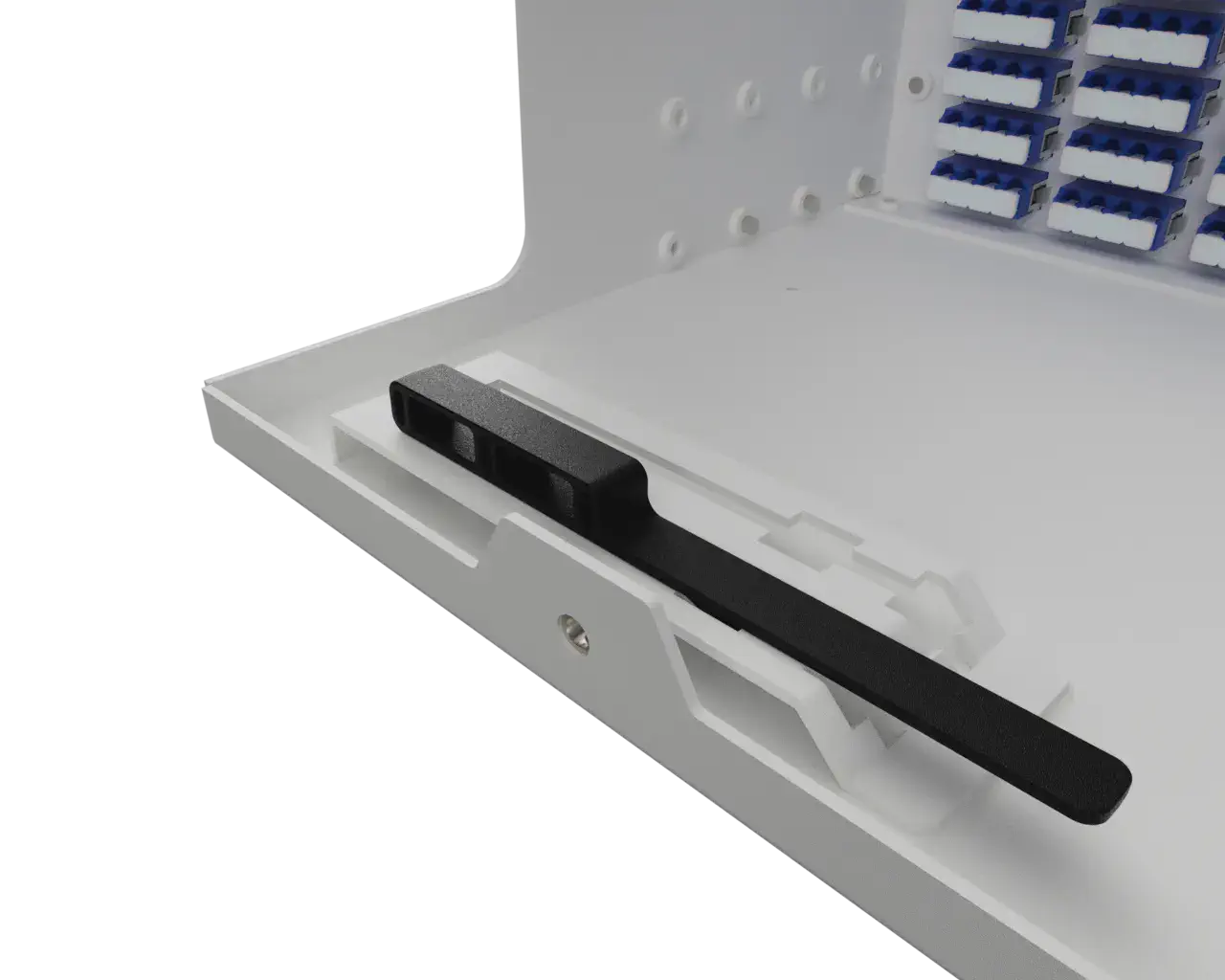

Every HighSTACK™ enclosure features the AnchorLINK™ clip system for tool-less cable securement. These clips allow incoming cables to be snapped into the rear or side entry points instantly, providing superior strain relief and bend radius control without the need for traditional glands or cable ties.
| Capacity & Density | |
| 1RU Capacity | 144 Fibres (36 x LC Quad Adapters) |
| 2RU Capacity | 288 Fibres (72 x LC Quad Adapters) |
| 4RU Capacity | 576 Fibres (144 x LC Quad Adapters) |
| Adapter Style | LC Quadplex Shuttered, Ceramic Sleeve |
| Optical Performance | |
| Pigtails | Ribbon pigtails included in splicing configurations |
| Insertion Loss | IEC 61753-1 Grade B (Mean ≤ 0.12dB; Max ≤ 0.25dB for >97%) |
| Return Loss | LC/PC ≥ 50dB; LC/APC ≥ 65dB |
| Cable Management | |
| Entry Mechanism | AnchorLINK™ Tool-less Snap-In Clips |
| Entry Positions | Dual Rear and Side Entry |
| Cable Compatibility | Loose Tube, SmartRIBBON™ and Pre-terminated Breakouts |
| Construction | |
| Width | 483 mm (19") |
| Depth | 300 mm |
| Height (1U/2U/4U) | 44mm / 88mm / 176mm |
| Compliance | |
| Rack Standard | EIA-310 19 inch compatibility |
| RoHS3 Compliant | Yes |
| HighSTACK Splicing Housings, LC/UPC | |

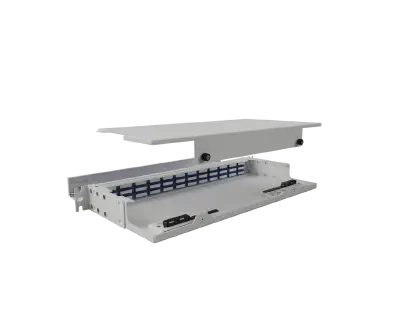

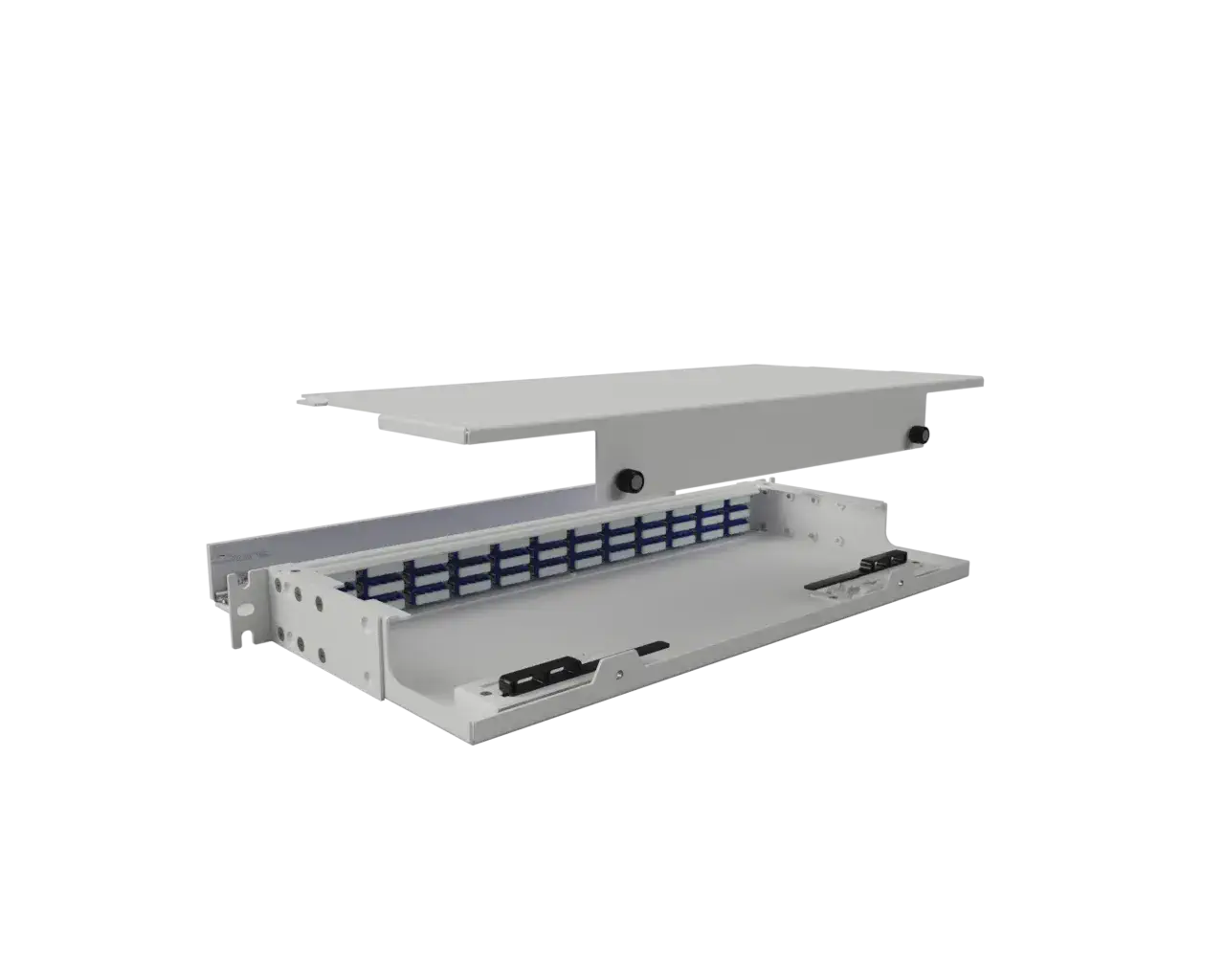

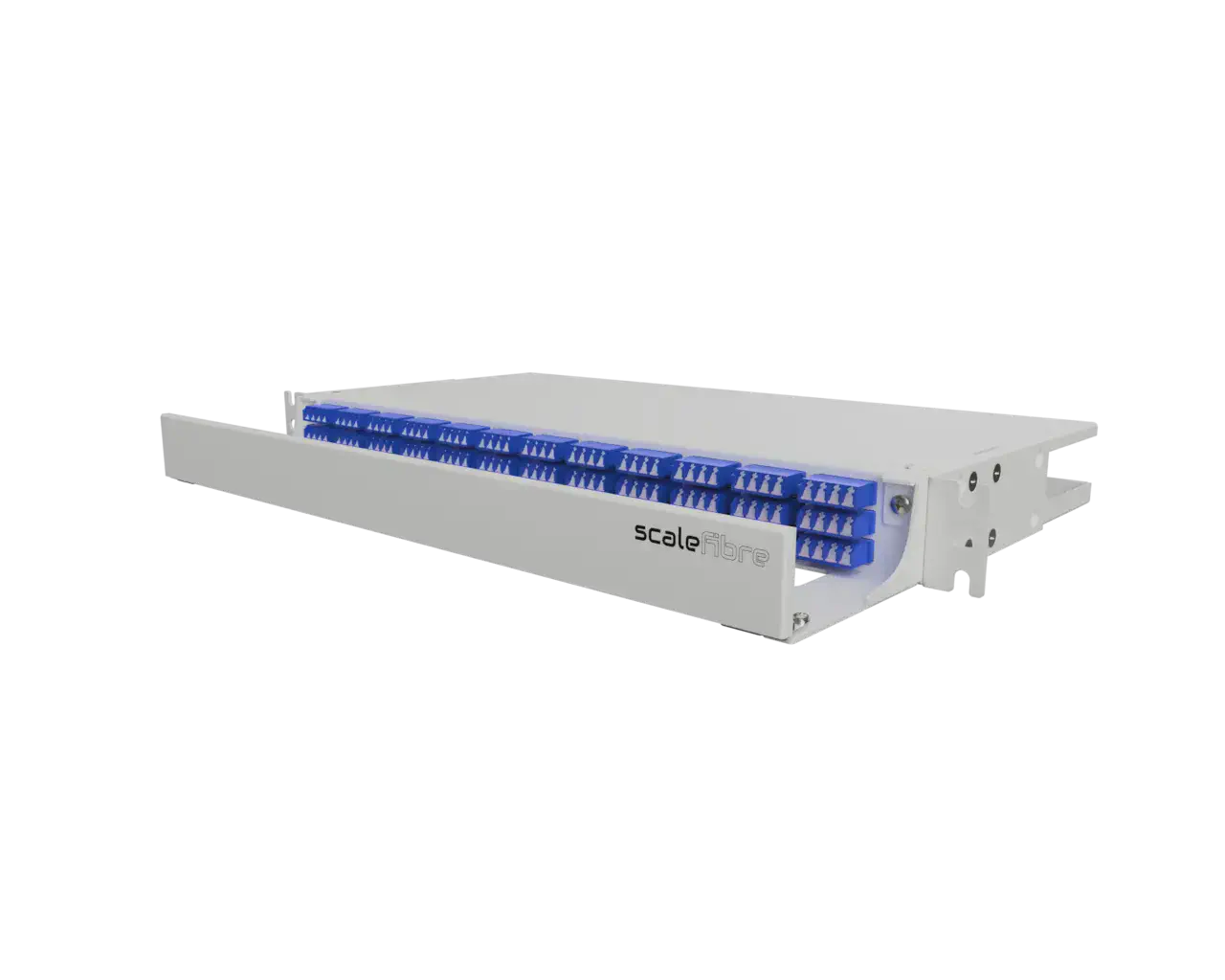

| HS-1RU-S-144F-LC | HighSTACK 1RU Enclosure, 12F Ribbon Splicing, 144F LC/UPC (36 x Quad), Shuttered |

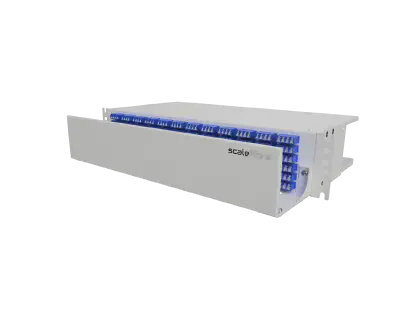

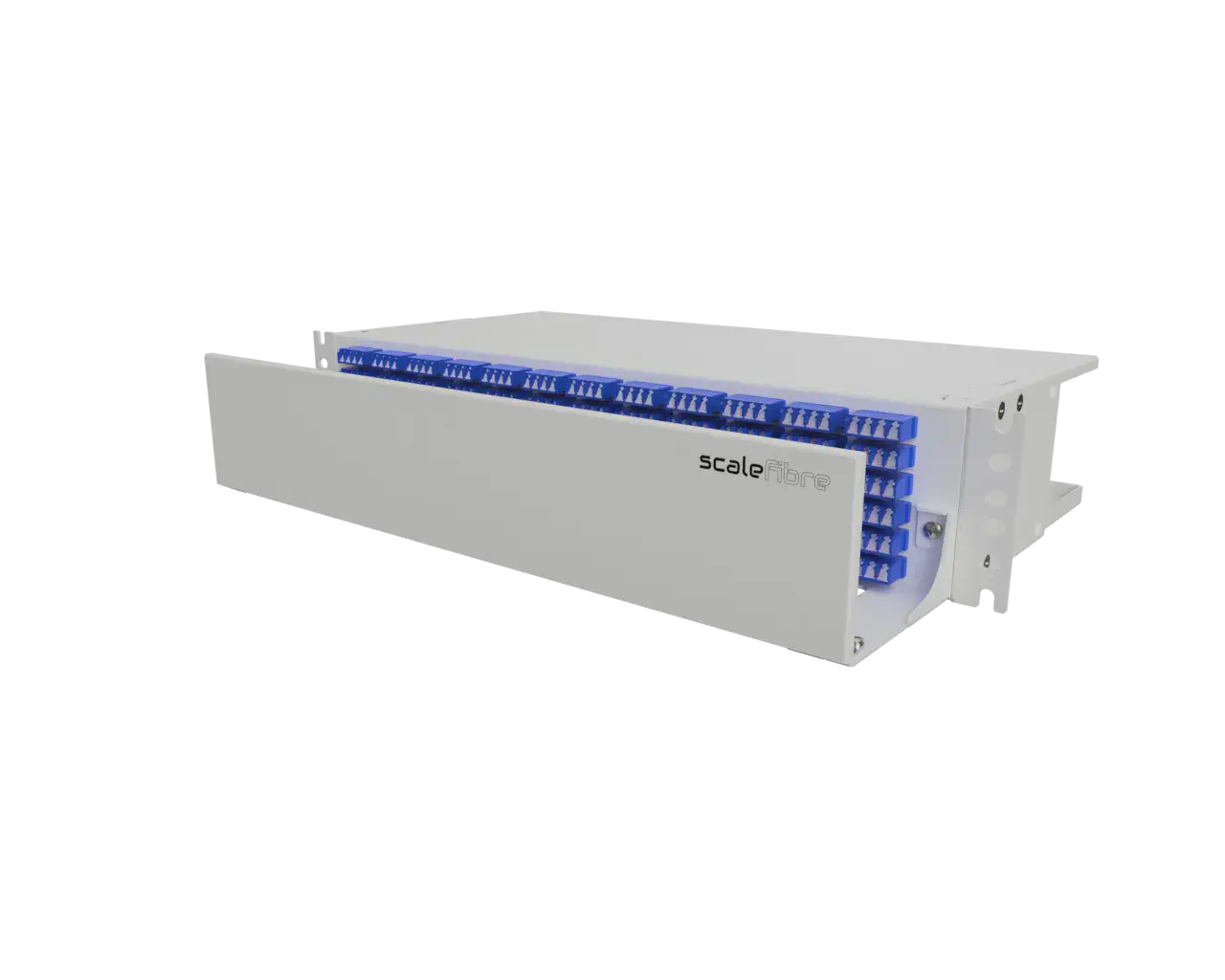

| HS-2RU-S-288F-LC | HighSTACK 2RU Enclosure, 12F Ribbon Splicing, 288F LC/UPC (72 x Quad), Shuttered |

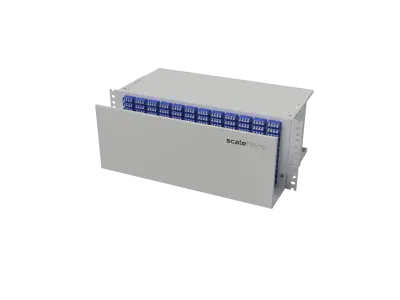

| HS-4RU-S-576F-LC | HighSTACK 4RU Enclosure, 12F Ribbon Splicing, 576F LC/UPC (144 x Quad), Shuttered |
| HighSTACK Splicing Housings, LC/APC | |
| HS-1RU-S-144F-LCA | HighSTACK 1RU Enclosure, 12F Ribbon Splicing, 144F LC/APC (36 x Quad), Shuttered |
| HS-2RU-S-288F-LCA | HighSTACK 2RU Enclosure, 12F Ribbon Splicing, 288F LC/APC (72 x Quad), Shuttered |
| HS-4RU-S-576F-LCA | HighSTACK 4RU Enclosure, 12F Ribbon Splicing, 576F LC/APC (144 x Quad), Shuttered |
| HighSTACK Patching Housings, LC/UPC | |
| HS-1RU-P-144F-LC | HighSTACK 1RU Enclosure, Patching, 144F LC/UPC (36 x Quad), Shuttered |
| HS-2RU-P-288F-LC | HighSTACK 2RU Enclosure, Patching, 288F LC/UPC (72 x Quad), Shuttered |
| HS-4RU-P-576F-LC | HighSTACK 4RU Enclosure, Patching, 576F LC/UPC (144 x Quad), Shuttered |
| HighSTACK Patching Housings, LC/APC | |
| HS-1RU-P-144F-LCA | HighSTACK 1RU Enclosure, Patching, 144F LC/APC (36 x Quad), Shuttered |
| HS-2RU-P-288F-LCA | HighSTACK 2RU Enclosure, Patching, 288F LC/APC (72 x Quad), Shuttered |
| HS-4RU-P-576F-LCA | HighSTACK 4RU Enclosure, Patching, 576F LC/APC (144 x Quad), Shuttered |
