Internal drop fibre cables with white LSZH jackets, designed for indoor FTTH, MDU, and building backbone applications. Available in 3mm and 4.8mm diameters.
- Available in 3mm and 4.8mm outer diameters
- White LSZH sheath for low-visibility internal deployment
- Bend-insensitive fibre (G.657.A1 or A2) for tight installations
- Ideal for indoor FTTH, MDU, and in-building fibre runs
- Supports connectorised or spliced termination
- Compliant with IEC, TIA, and fire safety standards
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
ScaleFibre’s indoor drop cables are purpose-built for in-building fibre deployments, including fibre-to-the-home (FTTH), multi-dwelling units (MDUs), and business premises. These cables provide robust, flexible internal routing from entry point to termination with minimal bend loss.
Available in 3mm or 4.8mm diameters with a white LSZH outer sheath, these cables offer low visual impact and are compliant with fire safety and building code requirements for internal use.
Constructed with bend-insensitive fibre (G.657.A1, G.657.A2 or other fibres by request), they are suited to tight routing environments, wall-mounted raceways, and surface run installations.
| Technical Specifications | |
| Fibre Type | Single-mode G.657.A1 or G.657.A2 |
| Application | Indoor FTTH drop, MDU, internal building runs |
| Outer Diameter | 3.0mm or 4.8mm |
| Sheath Colour | White |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Bend Radius | ≤10mm (minimum dynamic), ≤5mm (minimum static) |
| Crush Resistance | ≥1000N/100mm (typical) |
| Operating Temperature | -20°C to +70°C |
| Installation Temperature | -10°C to +50°C |
| Compliance | IEC 60794, TIA/EIA-568, RoHS, REACH |

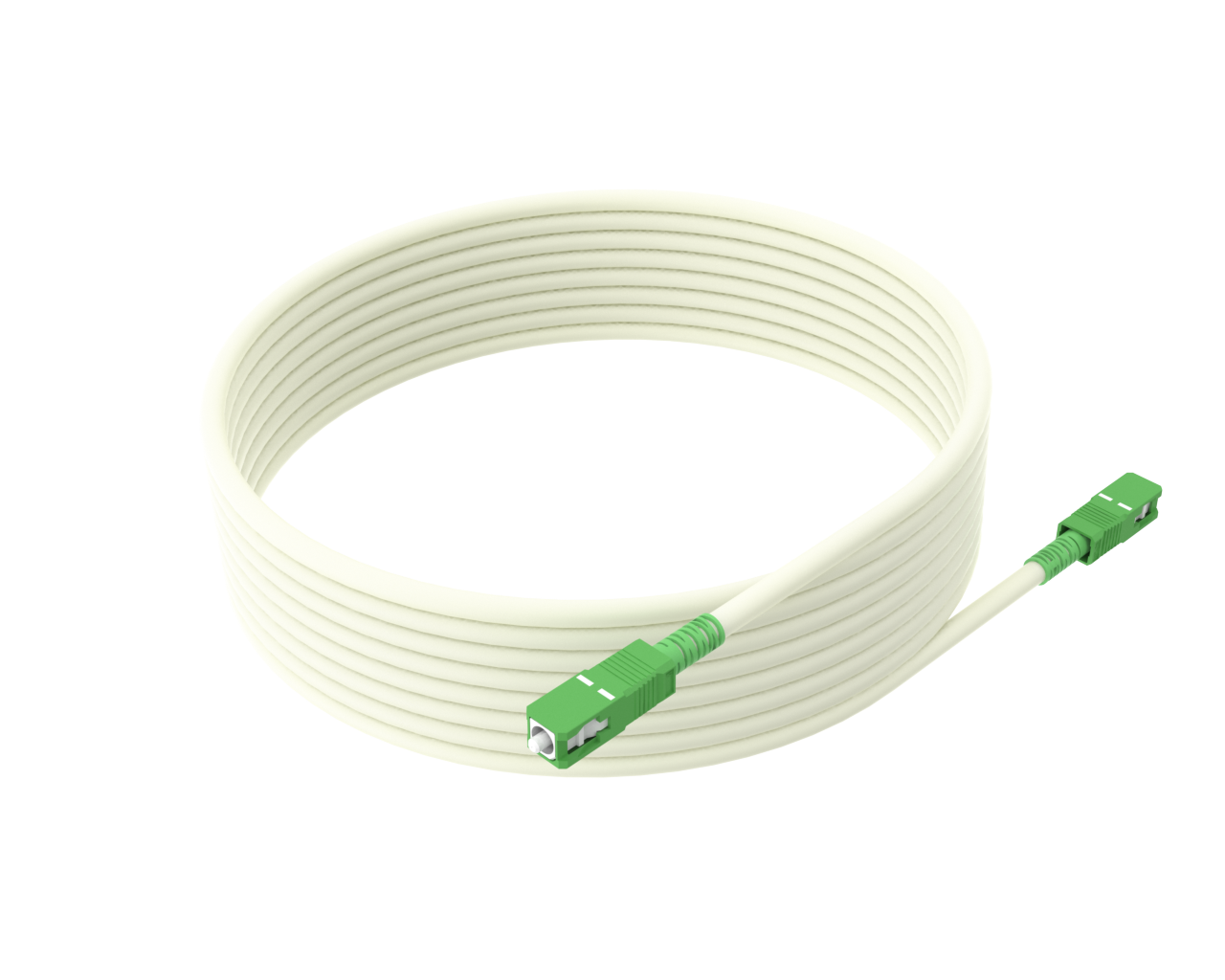

| Indoor Premise Drop Cable – Pre-Terminated | |
| Premise Drop Cable, SC/APC to SC/APC, 1F, 10m, 3mm LSZH | PD-S7-R3-1-SCA-SCA-10M |
| Premise Drop Cable, SC/APC to SC/APC, 1F, 20m, 3mm LSZH | PD-S7-R3-1-SCA-SCA-20M |
| Premise Drop Cable, SC/APC to SC/APC, 1F, 30m, 3mm LSZH | PD-S7-R3-1-SCA-SCA-30M |
| Premise Drop Cable, SC/APC to SC/APC, 1F, 40m, 3mm LSZH | PD-S7-R3-1-SCA-SCA-40M |
| Premise Drop Cable, SC/APC to SC/APC, 1F, 50m, 3mm LSZH | PD-S7-R3-1-SCA-SCA-50M |
