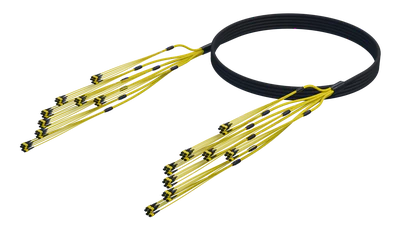

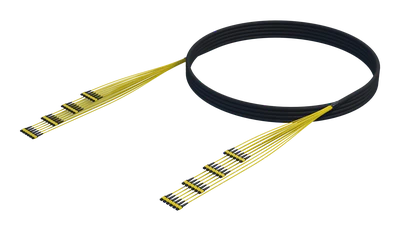

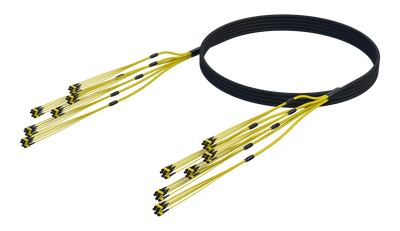

High Fiber Count Indoor/Outdoor MPO Trunk Assemblies

SmartRIBBON™ indoor/outdoor MPO trunk assemblies with 144 to 576 fibers, available with LSZH or OFNR jackets.

144 to 576 fibers per trunk
Indoor/outdoor SmartRIBBON™ cable with no transition splice at the building entrance
LSZH jacket, or OFNR (Riser) jacket that also meets FT4
MPO-12 connectors with Type A, B or C polarity
Factory terminated and 100% IL/RL tested
Gel-free, dielectric construction with water-blocking yarns

Category: Optical Cable Assemblies, MPO Trunks and Fanouts

ENQUIRE NOW

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

High Fiber Count Indoor/Outdoor MPO trunk assemblies carry 144 to 576 fibers between buildings, halls and data center campuses in a single pre-terminated run. Built on SmartRIBBON™ indoor/outdoor cable, one assembly can be routed through outdoor duct and continue into the building without a transition splice at the entrance.

SmartRIBBON™ uses intermittently bonded 12-fiber ribbons in flexible, gel-free buffer tubes, with non-metallic FRP strength members and water-blocking yarns for full core protection. Assemblies are available with a Low Smoke Zero Halogen (LSZH) jacket, or an OFNR (Riser) rated jacket that also meets the FT4 vertical tray flame test.

Each trunk is factory terminated with MPO-12 connectors in polarity Type A, B or C and 100% tested for insertion loss and return loss, reducing on-site splicing and speeding up campus and data center interconnect builds.

Intended for campus and building-to-building interconnect across the North American hyperscale datacentre clusters (Ashburn, Dallas-Fort Worth, Phoenix). The OFNR jacket carries the run from outside plant duct into the riser without a transition splice, suiting multi-hall campus builds.

General
Connector Types	MPO-12 (female to female)
Fiber Count Range	144 to 576 fibers per trunk
Polarity Options	Type A, B, C
Fiber Type	Single-mode G.657.A1
Cable Specification
Cable	SmartRIBBON™ indoor/outdoor ribbon cable
Ribbon Construction	12F intermittently bonded ribbon
Jacket Options	Low Smoke Zero Halogen (LSZH), or OFNR (Riser) with FT4
Strength Member	Fiber Reinforced Plastic (FRP)
Water Blocking	Water-blocking yarns
Insertion Loss	≤0.35 dB per connector
Return Loss	≥60 dB
Operating Temperature	-20°C to +70°C

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 144 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx metres
Part Number	Length (m)
MH-S7-SRL-144-MPOF-MPOF-A-0010M	10
MH-S7-SRL-144-MPOF-MPOF-A-0015M	15
MH-S7-SRL-144-MPOF-MPOF-A-0020M	20
MH-S7-SRL-144-MPOF-MPOF-A-0025M	25
MH-S7-SRL-144-MPOF-MPOF-A-0030M	30
MH-S7-SRL-144-MPOF-MPOF-A-0040M	40
MH-S7-SRL-144-MPOF-MPOF-A-0050M	50
MH-S7-SRL-144-MPOF-MPOF-A-0060M	60
MH-S7-SRL-144-MPOF-MPOF-A-0070M	70
MH-S7-SRL-144-MPOF-MPOF-A-0080M	80
MH-S7-SRL-144-MPOF-MPOF-A-0090M	90
MH-S7-SRL-144-MPOF-MPOF-A-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 144 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx metres
Part Number	Length (m)
MH-S7-SRL-144-MPOF-MPOF-B-0010M	10
MH-S7-SRL-144-MPOF-MPOF-B-0015M	15
MH-S7-SRL-144-MPOF-MPOF-B-0020M	20
MH-S7-SRL-144-MPOF-MPOF-B-0025M	25
MH-S7-SRL-144-MPOF-MPOF-B-0030M	30
MH-S7-SRL-144-MPOF-MPOF-B-0040M	40
MH-S7-SRL-144-MPOF-MPOF-B-0050M	50
MH-S7-SRL-144-MPOF-MPOF-B-0060M	60
MH-S7-SRL-144-MPOF-MPOF-B-0070M	70
MH-S7-SRL-144-MPOF-MPOF-B-0080M	80
MH-S7-SRL-144-MPOF-MPOF-B-0090M	90
MH-S7-SRL-144-MPOF-MPOF-B-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 144 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx metres
Part Number	Length (m)
MH-S7-SRL-144-MPOF-MPOF-C-0010M	10
MH-S7-SRL-144-MPOF-MPOF-C-0015M	15
MH-S7-SRL-144-MPOF-MPOF-C-0020M	20
MH-S7-SRL-144-MPOF-MPOF-C-0025M	25
MH-S7-SRL-144-MPOF-MPOF-C-0030M	30
MH-S7-SRL-144-MPOF-MPOF-C-0040M	40
MH-S7-SRL-144-MPOF-MPOF-C-0050M	50
MH-S7-SRL-144-MPOF-MPOF-C-0060M	60
MH-S7-SRL-144-MPOF-MPOF-C-0070M	70
MH-S7-SRL-144-MPOF-MPOF-C-0080M	80
MH-S7-SRL-144-MPOF-MPOF-C-0090M	90
MH-S7-SRL-144-MPOF-MPOF-C-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 288 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx metres
Part Number	Length (m)
MH-S7-SRL-288-MPOF-MPOF-A-0010M	10
MH-S7-SRL-288-MPOF-MPOF-A-0015M	15
MH-S7-SRL-288-MPOF-MPOF-A-0020M	20
MH-S7-SRL-288-MPOF-MPOF-A-0025M	25
MH-S7-SRL-288-MPOF-MPOF-A-0030M	30
MH-S7-SRL-288-MPOF-MPOF-A-0040M	40
MH-S7-SRL-288-MPOF-MPOF-A-0050M	50
MH-S7-SRL-288-MPOF-MPOF-A-0060M	60
MH-S7-SRL-288-MPOF-MPOF-A-0070M	70
MH-S7-SRL-288-MPOF-MPOF-A-0080M	80
MH-S7-SRL-288-MPOF-MPOF-A-0090M	90
MH-S7-SRL-288-MPOF-MPOF-A-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 288 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx metres
Part Number	Length (m)
MH-S7-SRL-288-MPOF-MPOF-B-0010M	10
MH-S7-SRL-288-MPOF-MPOF-B-0015M	15
MH-S7-SRL-288-MPOF-MPOF-B-0020M	20
MH-S7-SRL-288-MPOF-MPOF-B-0025M	25
MH-S7-SRL-288-MPOF-MPOF-B-0030M	30
MH-S7-SRL-288-MPOF-MPOF-B-0040M	40
MH-S7-SRL-288-MPOF-MPOF-B-0050M	50
MH-S7-SRL-288-MPOF-MPOF-B-0060M	60
MH-S7-SRL-288-MPOF-MPOF-B-0070M	70
MH-S7-SRL-288-MPOF-MPOF-B-0080M	80
MH-S7-SRL-288-MPOF-MPOF-B-0090M	90
MH-S7-SRL-288-MPOF-MPOF-B-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 288 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx metres
Part Number	Length (m)
MH-S7-SRL-288-MPOF-MPOF-C-0010M	10
MH-S7-SRL-288-MPOF-MPOF-C-0015M	15
MH-S7-SRL-288-MPOF-MPOF-C-0020M	20
MH-S7-SRL-288-MPOF-MPOF-C-0025M	25
MH-S7-SRL-288-MPOF-MPOF-C-0030M	30
MH-S7-SRL-288-MPOF-MPOF-C-0040M	40
MH-S7-SRL-288-MPOF-MPOF-C-0050M	50
MH-S7-SRL-288-MPOF-MPOF-C-0060M	60
MH-S7-SRL-288-MPOF-MPOF-C-0070M	70
MH-S7-SRL-288-MPOF-MPOF-C-0080M	80
MH-S7-SRL-288-MPOF-MPOF-C-0090M	90
MH-S7-SRL-288-MPOF-MPOF-C-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 432 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx metres
Part Number	Length (m)
MH-S7-SRL-432-MPOF-MPOF-A-0010M	10
MH-S7-SRL-432-MPOF-MPOF-A-0015M	15
MH-S7-SRL-432-MPOF-MPOF-A-0020M	20
MH-S7-SRL-432-MPOF-MPOF-A-0025M	25
MH-S7-SRL-432-MPOF-MPOF-A-0030M	30
MH-S7-SRL-432-MPOF-MPOF-A-0040M	40
MH-S7-SRL-432-MPOF-MPOF-A-0050M	50
MH-S7-SRL-432-MPOF-MPOF-A-0060M	60
MH-S7-SRL-432-MPOF-MPOF-A-0070M	70
MH-S7-SRL-432-MPOF-MPOF-A-0080M	80
MH-S7-SRL-432-MPOF-MPOF-A-0090M	90
MH-S7-SRL-432-MPOF-MPOF-A-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 432 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx metres
Part Number	Length (m)
MH-S7-SRL-432-MPOF-MPOF-B-0010M	10
MH-S7-SRL-432-MPOF-MPOF-B-0015M	15
MH-S7-SRL-432-MPOF-MPOF-B-0020M	20
MH-S7-SRL-432-MPOF-MPOF-B-0025M	25
MH-S7-SRL-432-MPOF-MPOF-B-0030M	30
MH-S7-SRL-432-MPOF-MPOF-B-0040M	40
MH-S7-SRL-432-MPOF-MPOF-B-0050M	50
MH-S7-SRL-432-MPOF-MPOF-B-0060M	60
MH-S7-SRL-432-MPOF-MPOF-B-0070M	70
MH-S7-SRL-432-MPOF-MPOF-B-0080M	80
MH-S7-SRL-432-MPOF-MPOF-B-0090M	90
MH-S7-SRL-432-MPOF-MPOF-B-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 432 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx metres
Part Number	Length (m)
MH-S7-SRL-432-MPOF-MPOF-C-0010M	10
MH-S7-SRL-432-MPOF-MPOF-C-0015M	15
MH-S7-SRL-432-MPOF-MPOF-C-0020M	20
MH-S7-SRL-432-MPOF-MPOF-C-0025M	25
MH-S7-SRL-432-MPOF-MPOF-C-0030M	30
MH-S7-SRL-432-MPOF-MPOF-C-0040M	40
MH-S7-SRL-432-MPOF-MPOF-C-0050M	50
MH-S7-SRL-432-MPOF-MPOF-C-0060M	60
MH-S7-SRL-432-MPOF-MPOF-C-0070M	70
MH-S7-SRL-432-MPOF-MPOF-C-0080M	80
MH-S7-SRL-432-MPOF-MPOF-C-0090M	90
MH-S7-SRL-432-MPOF-MPOF-C-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 576 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx metres
Part Number	Length (m)
MH-S7-SRL-576-MPOF-MPOF-A-0010M	10
MH-S7-SRL-576-MPOF-MPOF-A-0015M	15
MH-S7-SRL-576-MPOF-MPOF-A-0020M	20
MH-S7-SRL-576-MPOF-MPOF-A-0025M	25
MH-S7-SRL-576-MPOF-MPOF-A-0030M	30
MH-S7-SRL-576-MPOF-MPOF-A-0040M	40
MH-S7-SRL-576-MPOF-MPOF-A-0050M	50
MH-S7-SRL-576-MPOF-MPOF-A-0060M	60
MH-S7-SRL-576-MPOF-MPOF-A-0070M	70
MH-S7-SRL-576-MPOF-MPOF-A-0080M	80
MH-S7-SRL-576-MPOF-MPOF-A-0090M	90
MH-S7-SRL-576-MPOF-MPOF-A-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 576 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx metres
Part Number	Length (m)
MH-S7-SRL-576-MPOF-MPOF-B-0010M	10
MH-S7-SRL-576-MPOF-MPOF-B-0015M	15
MH-S7-SRL-576-MPOF-MPOF-B-0020M	20
MH-S7-SRL-576-MPOF-MPOF-B-0025M	25
MH-S7-SRL-576-MPOF-MPOF-B-0030M	30
MH-S7-SRL-576-MPOF-MPOF-B-0040M	40
MH-S7-SRL-576-MPOF-MPOF-B-0050M	50
MH-S7-SRL-576-MPOF-MPOF-B-0060M	60
MH-S7-SRL-576-MPOF-MPOF-B-0070M	70
MH-S7-SRL-576-MPOF-MPOF-B-0080M	80
MH-S7-SRL-576-MPOF-MPOF-B-0090M	90
MH-S7-SRL-576-MPOF-MPOF-B-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 576 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx metres
Part Number	Length (m)
MH-S7-SRL-576-MPOF-MPOF-C-0010M	10
MH-S7-SRL-576-MPOF-MPOF-C-0015M	15
MH-S7-SRL-576-MPOF-MPOF-C-0020M	20
MH-S7-SRL-576-MPOF-MPOF-C-0025M	25
MH-S7-SRL-576-MPOF-MPOF-C-0030M	30
MH-S7-SRL-576-MPOF-MPOF-C-0040M	40
MH-S7-SRL-576-MPOF-MPOF-C-0050M	50
MH-S7-SRL-576-MPOF-MPOF-C-0060M	60
MH-S7-SRL-576-MPOF-MPOF-C-0070M	70
MH-S7-SRL-576-MPOF-MPOF-C-0080M	80
MH-S7-SRL-576-MPOF-MPOF-C-0090M	90
MH-S7-SRL-576-MPOF-MPOF-C-0100M	100

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 144 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-144-MPOF-MPOF-A-0030F	30
MH-S7-SRR-144-MPOF-MPOF-A-0050F	50
MH-S7-SRR-144-MPOF-MPOF-A-0065F	65
MH-S7-SRR-144-MPOF-MPOF-A-0080F	80
MH-S7-SRR-144-MPOF-MPOF-A-0100F	100
MH-S7-SRR-144-MPOF-MPOF-A-0130F	130
MH-S7-SRR-144-MPOF-MPOF-A-0150F	150
MH-S7-SRR-144-MPOF-MPOF-A-0165F	165
MH-S7-SRR-144-MPOF-MPOF-A-0200F	200
MH-S7-SRR-144-MPOF-MPOF-A-0230F	230
MH-S7-SRR-144-MPOF-MPOF-A-0250F	250
MH-S7-SRR-144-MPOF-MPOF-A-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 144 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-144-MPOF-MPOF-B-0030F	30
MH-S7-SRR-144-MPOF-MPOF-B-0050F	50
MH-S7-SRR-144-MPOF-MPOF-B-0065F	65
MH-S7-SRR-144-MPOF-MPOF-B-0080F	80
MH-S7-SRR-144-MPOF-MPOF-B-0100F	100
MH-S7-SRR-144-MPOF-MPOF-B-0130F	130
MH-S7-SRR-144-MPOF-MPOF-B-0150F	150
MH-S7-SRR-144-MPOF-MPOF-B-0165F	165
MH-S7-SRR-144-MPOF-MPOF-B-0200F	200
MH-S7-SRR-144-MPOF-MPOF-B-0230F	230
MH-S7-SRR-144-MPOF-MPOF-B-0250F	250
MH-S7-SRR-144-MPOF-MPOF-B-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 144 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-144-MPOF-MPOF-C-0030F	30
MH-S7-SRR-144-MPOF-MPOF-C-0050F	50
MH-S7-SRR-144-MPOF-MPOF-C-0065F	65
MH-S7-SRR-144-MPOF-MPOF-C-0080F	80
MH-S7-SRR-144-MPOF-MPOF-C-0100F	100
MH-S7-SRR-144-MPOF-MPOF-C-0130F	130
MH-S7-SRR-144-MPOF-MPOF-C-0150F	150
MH-S7-SRR-144-MPOF-MPOF-C-0165F	165
MH-S7-SRR-144-MPOF-MPOF-C-0200F	200
MH-S7-SRR-144-MPOF-MPOF-C-0230F	230
MH-S7-SRR-144-MPOF-MPOF-C-0250F	250
MH-S7-SRR-144-MPOF-MPOF-C-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 288 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-288-MPOF-MPOF-A-0030F	30
MH-S7-SRR-288-MPOF-MPOF-A-0050F	50
MH-S7-SRR-288-MPOF-MPOF-A-0065F	65
MH-S7-SRR-288-MPOF-MPOF-A-0080F	80
MH-S7-SRR-288-MPOF-MPOF-A-0100F	100
MH-S7-SRR-288-MPOF-MPOF-A-0130F	130
MH-S7-SRR-288-MPOF-MPOF-A-0150F	150
MH-S7-SRR-288-MPOF-MPOF-A-0165F	165
MH-S7-SRR-288-MPOF-MPOF-A-0200F	200
MH-S7-SRR-288-MPOF-MPOF-A-0230F	230
MH-S7-SRR-288-MPOF-MPOF-A-0250F	250
MH-S7-SRR-288-MPOF-MPOF-A-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 288 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-288-MPOF-MPOF-B-0030F	30
MH-S7-SRR-288-MPOF-MPOF-B-0050F	50
MH-S7-SRR-288-MPOF-MPOF-B-0065F	65
MH-S7-SRR-288-MPOF-MPOF-B-0080F	80
MH-S7-SRR-288-MPOF-MPOF-B-0100F	100
MH-S7-SRR-288-MPOF-MPOF-B-0130F	130
MH-S7-SRR-288-MPOF-MPOF-B-0150F	150
MH-S7-SRR-288-MPOF-MPOF-B-0165F	165
MH-S7-SRR-288-MPOF-MPOF-B-0200F	200
MH-S7-SRR-288-MPOF-MPOF-B-0230F	230
MH-S7-SRR-288-MPOF-MPOF-B-0250F	250
MH-S7-SRR-288-MPOF-MPOF-B-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 288 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-288-MPOF-MPOF-C-0030F	30
MH-S7-SRR-288-MPOF-MPOF-C-0050F	50
MH-S7-SRR-288-MPOF-MPOF-C-0065F	65
MH-S7-SRR-288-MPOF-MPOF-C-0080F	80
MH-S7-SRR-288-MPOF-MPOF-C-0100F	100
MH-S7-SRR-288-MPOF-MPOF-C-0130F	130
MH-S7-SRR-288-MPOF-MPOF-C-0150F	150
MH-S7-SRR-288-MPOF-MPOF-C-0165F	165
MH-S7-SRR-288-MPOF-MPOF-C-0200F	200
MH-S7-SRR-288-MPOF-MPOF-C-0230F	230
MH-S7-SRR-288-MPOF-MPOF-C-0250F	250
MH-S7-SRR-288-MPOF-MPOF-C-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 432 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-432-MPOF-MPOF-A-0030F	30
MH-S7-SRR-432-MPOF-MPOF-A-0050F	50
MH-S7-SRR-432-MPOF-MPOF-A-0065F	65
MH-S7-SRR-432-MPOF-MPOF-A-0080F	80
MH-S7-SRR-432-MPOF-MPOF-A-0100F	100
MH-S7-SRR-432-MPOF-MPOF-A-0130F	130
MH-S7-SRR-432-MPOF-MPOF-A-0150F	150
MH-S7-SRR-432-MPOF-MPOF-A-0165F	165
MH-S7-SRR-432-MPOF-MPOF-A-0200F	200
MH-S7-SRR-432-MPOF-MPOF-A-0230F	230
MH-S7-SRR-432-MPOF-MPOF-A-0250F	250
MH-S7-SRR-432-MPOF-MPOF-A-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 432 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-432-MPOF-MPOF-B-0030F	30
MH-S7-SRR-432-MPOF-MPOF-B-0050F	50
MH-S7-SRR-432-MPOF-MPOF-B-0065F	65
MH-S7-SRR-432-MPOF-MPOF-B-0080F	80
MH-S7-SRR-432-MPOF-MPOF-B-0100F	100
MH-S7-SRR-432-MPOF-MPOF-B-0130F	130
MH-S7-SRR-432-MPOF-MPOF-B-0150F	150
MH-S7-SRR-432-MPOF-MPOF-B-0165F	165
MH-S7-SRR-432-MPOF-MPOF-B-0200F	200
MH-S7-SRR-432-MPOF-MPOF-B-0230F	230
MH-S7-SRR-432-MPOF-MPOF-B-0250F	250
MH-S7-SRR-432-MPOF-MPOF-B-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 432 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-432-MPOF-MPOF-C-0030F	30
MH-S7-SRR-432-MPOF-MPOF-C-0050F	50
MH-S7-SRR-432-MPOF-MPOF-C-0065F	65
MH-S7-SRR-432-MPOF-MPOF-C-0080F	80
MH-S7-SRR-432-MPOF-MPOF-C-0100F	100
MH-S7-SRR-432-MPOF-MPOF-C-0130F	130
MH-S7-SRR-432-MPOF-MPOF-C-0150F	150
MH-S7-SRR-432-MPOF-MPOF-C-0165F	165
MH-S7-SRR-432-MPOF-MPOF-C-0200F	200
MH-S7-SRR-432-MPOF-MPOF-C-0230F	230
MH-S7-SRR-432-MPOF-MPOF-C-0250F	250
MH-S7-SRR-432-MPOF-MPOF-C-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 576 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-576-MPOF-MPOF-A-0030F	30
MH-S7-SRR-576-MPOF-MPOF-A-0050F	50
MH-S7-SRR-576-MPOF-MPOF-A-0065F	65
MH-S7-SRR-576-MPOF-MPOF-A-0080F	80
MH-S7-SRR-576-MPOF-MPOF-A-0100F	100
MH-S7-SRR-576-MPOF-MPOF-A-0130F	130
MH-S7-SRR-576-MPOF-MPOF-A-0150F	150
MH-S7-SRR-576-MPOF-MPOF-A-0165F	165
MH-S7-SRR-576-MPOF-MPOF-A-0200F	200
MH-S7-SRR-576-MPOF-MPOF-A-0230F	230
MH-S7-SRR-576-MPOF-MPOF-A-0250F	250
MH-S7-SRR-576-MPOF-MPOF-A-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 576 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-576-MPOF-MPOF-B-0030F	30
MH-S7-SRR-576-MPOF-MPOF-B-0050F	50
MH-S7-SRR-576-MPOF-MPOF-B-0065F	65
MH-S7-SRR-576-MPOF-MPOF-B-0080F	80
MH-S7-SRR-576-MPOF-MPOF-B-0100F	100
MH-S7-SRR-576-MPOF-MPOF-B-0130F	130
MH-S7-SRR-576-MPOF-MPOF-B-0150F	150
MH-S7-SRR-576-MPOF-MPOF-B-0165F	165
MH-S7-SRR-576-MPOF-MPOF-B-0200F	200
MH-S7-SRR-576-MPOF-MPOF-B-0230F	230
MH-S7-SRR-576-MPOF-MPOF-B-0250F	250
MH-S7-SRR-576-MPOF-MPOF-B-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 576 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx feet
Part Number	Length (ft)
MH-S7-SRR-576-MPOF-MPOF-C-0030F	30
MH-S7-SRR-576-MPOF-MPOF-C-0050F	50
MH-S7-SRR-576-MPOF-MPOF-C-0065F	65
MH-S7-SRR-576-MPOF-MPOF-C-0080F	80
MH-S7-SRR-576-MPOF-MPOF-C-0100F	100
MH-S7-SRR-576-MPOF-MPOF-C-0130F	130
MH-S7-SRR-576-MPOF-MPOF-C-0150F	150
MH-S7-SRR-576-MPOF-MPOF-C-0165F	165
MH-S7-SRR-576-MPOF-MPOF-C-0200F	200
MH-S7-SRR-576-MPOF-MPOF-C-0230F	230
MH-S7-SRR-576-MPOF-MPOF-C-0250F	250
MH-S7-SRR-576-MPOF-MPOF-C-0300F	300
