- Supports 192 to 864 fibres per trunk
- Available with MPO-12, MPO-16, or MPO-24 connectors
- 100% factory tested for insertion and return loss
- CPR, LSZH, OSP, Riser, and Plenum cable options
- Ideal for enterprise, campus, and co-lo backbones
- Reduces field termination time and improves consistency
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

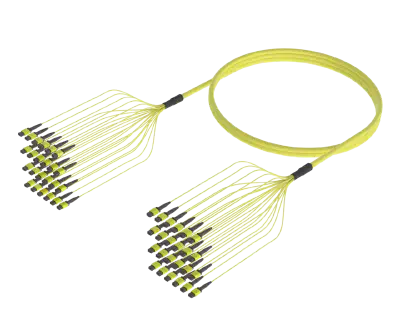

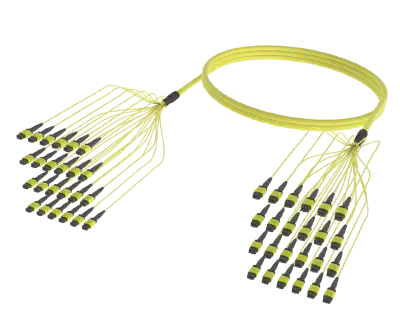

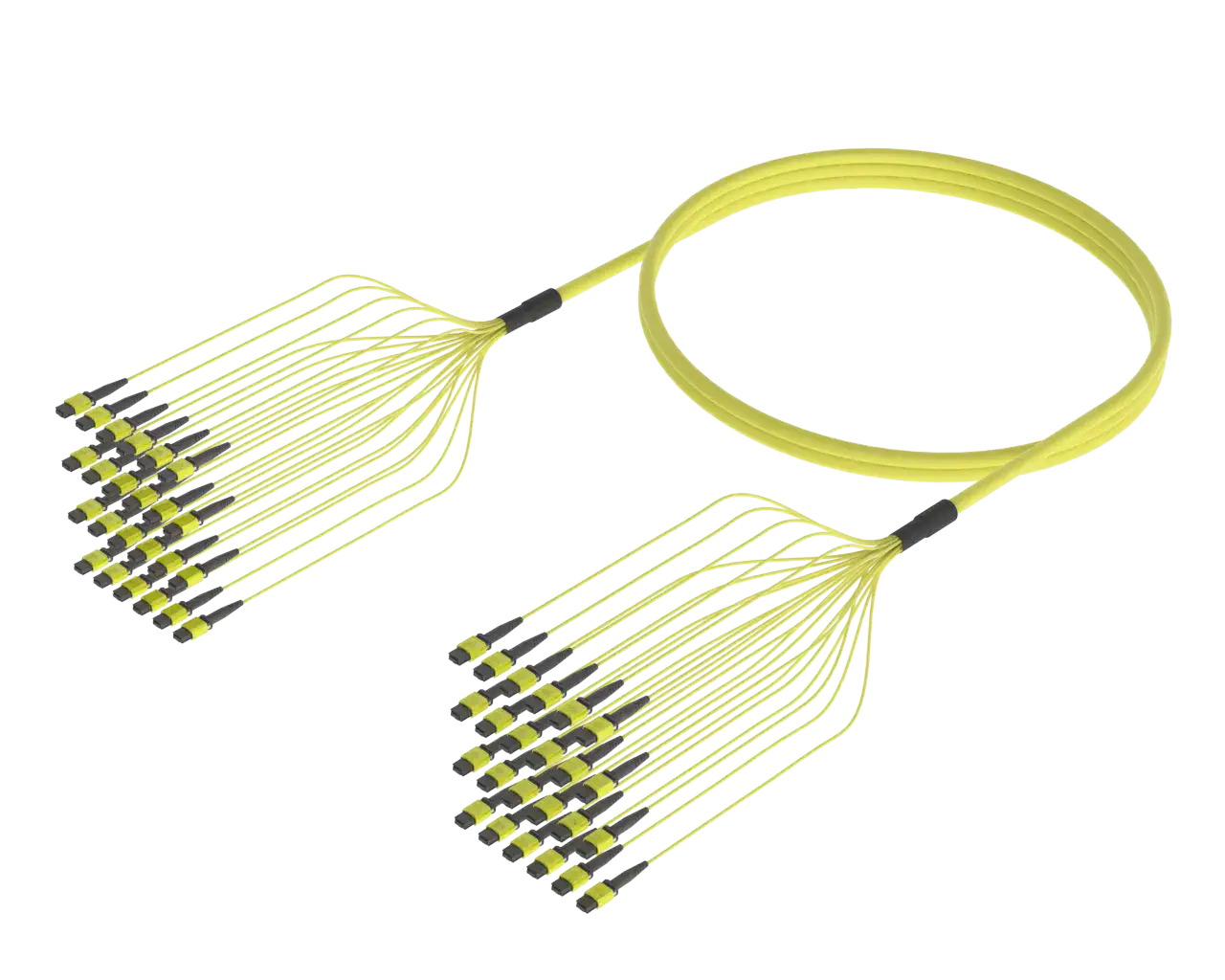

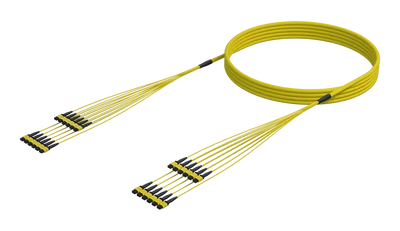

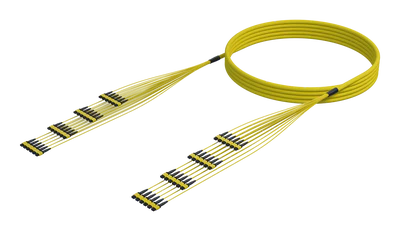

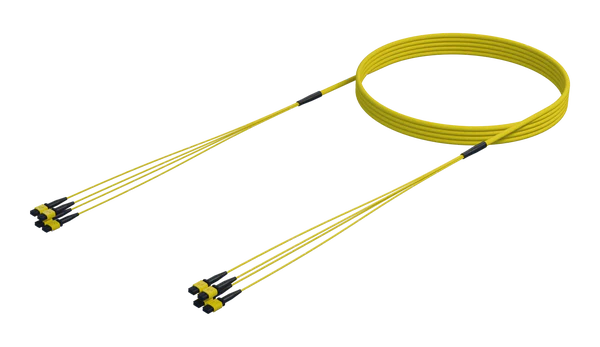

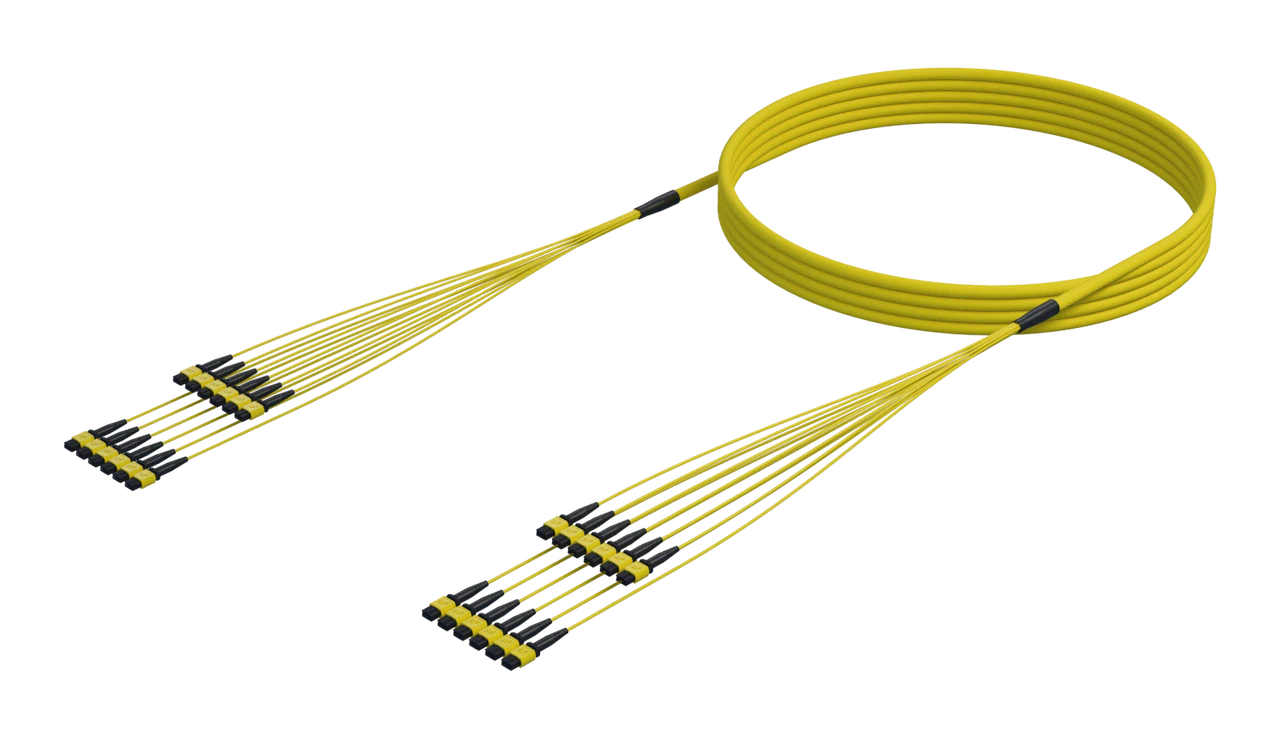

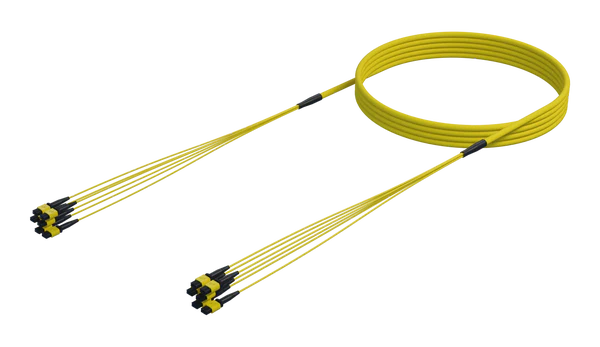

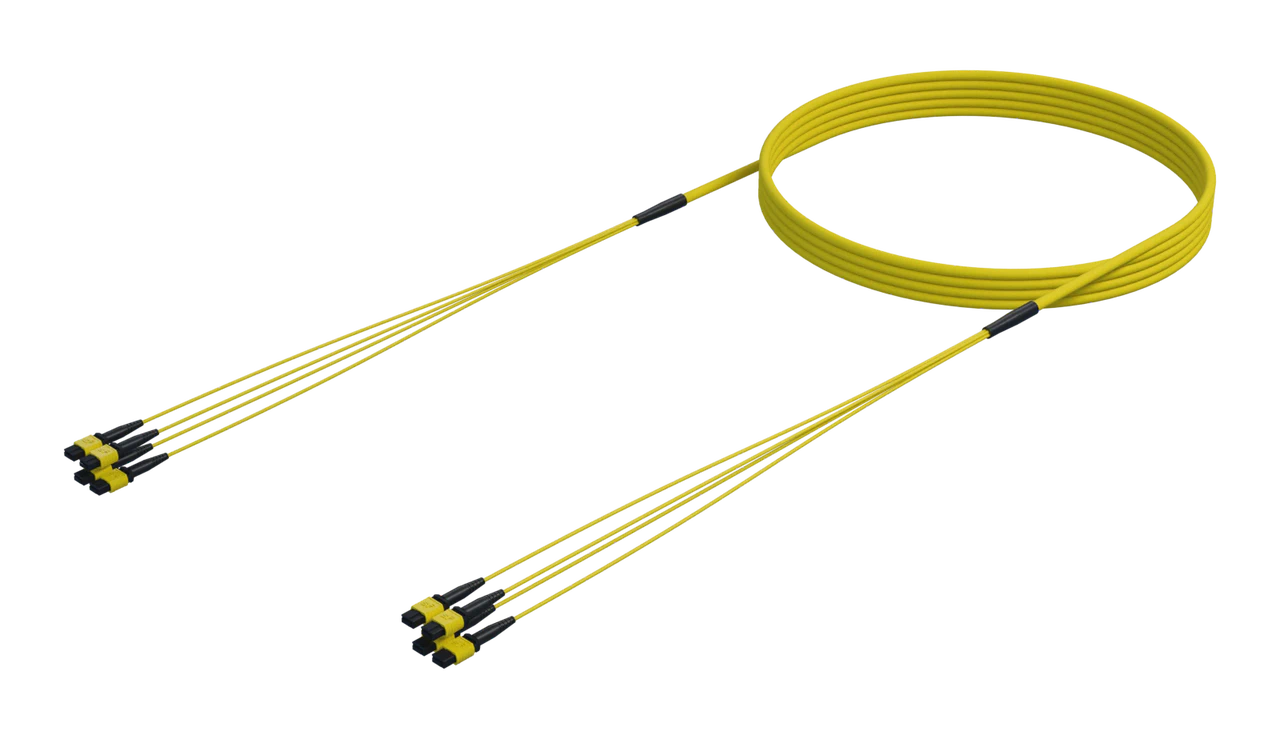

High Fibre Count MPO trunk cables deliver the perfect balance of capacity and manageability for growing network infrastructure. Supporting 192 to 864 fibres per trunk, they provide scalable backbone connectivity for enterprise, campus, and colocation facilities.

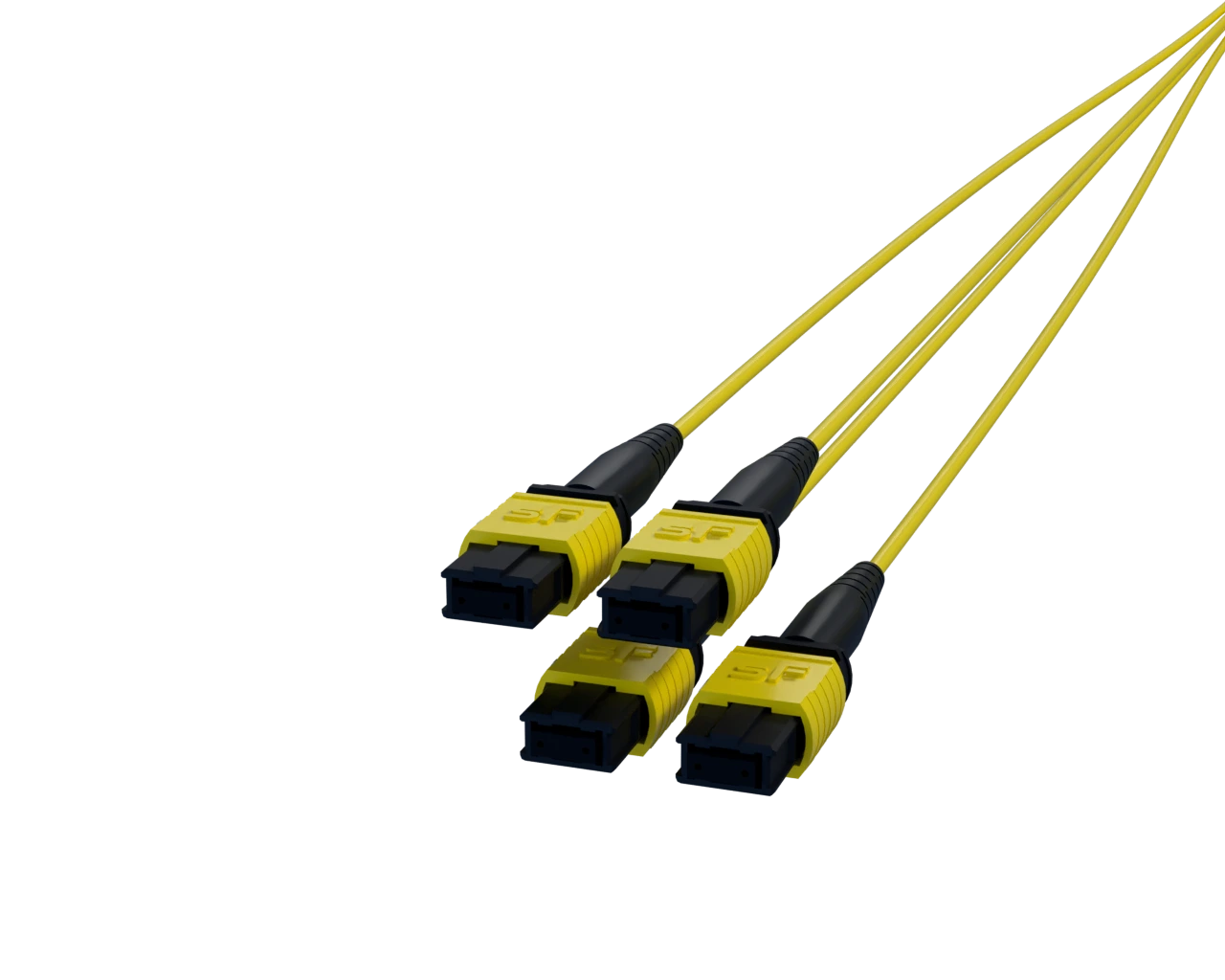

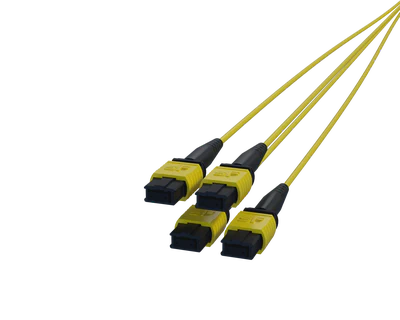

Factory-terminated with MPO-12, MPO-16, or MPO-24 connectors, these assemblies ensure precise performance, low insertion loss, and easy polarity control. Mixed connector types and staggered fanouts are also available upon request.
Cable jacket options include LSZH, CPR-rated, Riser, Plenum, and OSP for deployment in tray, riser shaft, underground duct, or ceiling spaces. Designed for rapid roll-out, these trunks reduce on-site splicing and improve consistency across infrastructure builds.
| General | |
| Connector Types | MPO-12, MPO-16, MPO-24 (male or female, pinned or unpinned) |
| Fibre Count Range | 192 to 864 fibres per trunk |
| Polarity Options | Type A, B, C (customisable) |
| Cable Construction | LSZH, CPR-rated, OSP, Riser, or Plenum |
| Fibre Type | Single-mode OS2, Multimode OM3/OM4/OM5 |
| Insertion Loss | ≤0.35 dB per connector, plus cable losses |
| Return Loss | ≥60 dB (SM); ≥30 dB (MM) |
| Operating Temperature | -20°C to +70°C |
| Compliance | TIA/EIA-568, IEC 61754-7 & 61754-7-3, FOCIS-5 & FOCIS-18, RoHS, REACH |
| Indoor Cable Assemblies, LSZH | |
| High Fibre Count MPO Trunk Assembly, Single Mode (G.657.A1), 192F, MPOF-MPOF (Pol. B), xx metres, Yellow, LSZH | MH-S7-192-MPOF-MPOF-B-xxM |
| High Fibre Count MPO Trunk Assembly, Single Mode (G.657.A1), 384F, MPOF-MPOF (Pol. B), xx metres, Yellow, LSZH | MH-S7-384-MPOF-MPOF-B-xxM |
| High Fibre Count MPO Trunk Assembly, Single Mode (G.657.A1), 768F, MPOF-MPOF (Pol. B), xx metres, Yellow, LSZH | MH-S7-768-MPOF-MPOF-B-xxM |
| High Fibre Count MPO Trunk Assembly, Single Mode (G.657.A1), 864F, MPOF-MPOF (Pol. B), xx metres, Yellow, LSZH | MH-S7-864-MPOF-MPOF-B-xxM |
| Indoor Cable Assemblies, CPR CCa Rated | |
| High Fibre Count MPO Trunk Assembly, Single Mode (G.657.A1), 192F, MPOF-MPOF (Pol. B), xx metres, Yellow, CPR CCa | MH-S7-192-MPOF-MPOF-B-xxM-C000 |
| High Fibre Count MPO Trunk Assembly, Single Mode (G.657.A1), 384F, MPOF-MPOF (Pol. B), xx metres, Yellow, CPR CCa | MH-S7-384-MPOF-MPOF-B-xxM-C000 |
| High Fibre Count MPO Trunk Assembly, Single Mode (G.657.A1), 768F, MPOF-MPOF (Pol. B), xx metres, Yellow, CPR CCa | MH-S7-768-MPOF-MPOF-B-xxM-C000 |
| High Fibre Count MPO Trunk Assembly, Single Mode (G.657.A1), 864F, MPOF-MPOF (Pol. B), xx metres, Yellow, CPR CCa | MH-S7-864-MPOF-MPOF-B-xxM-C000 |
