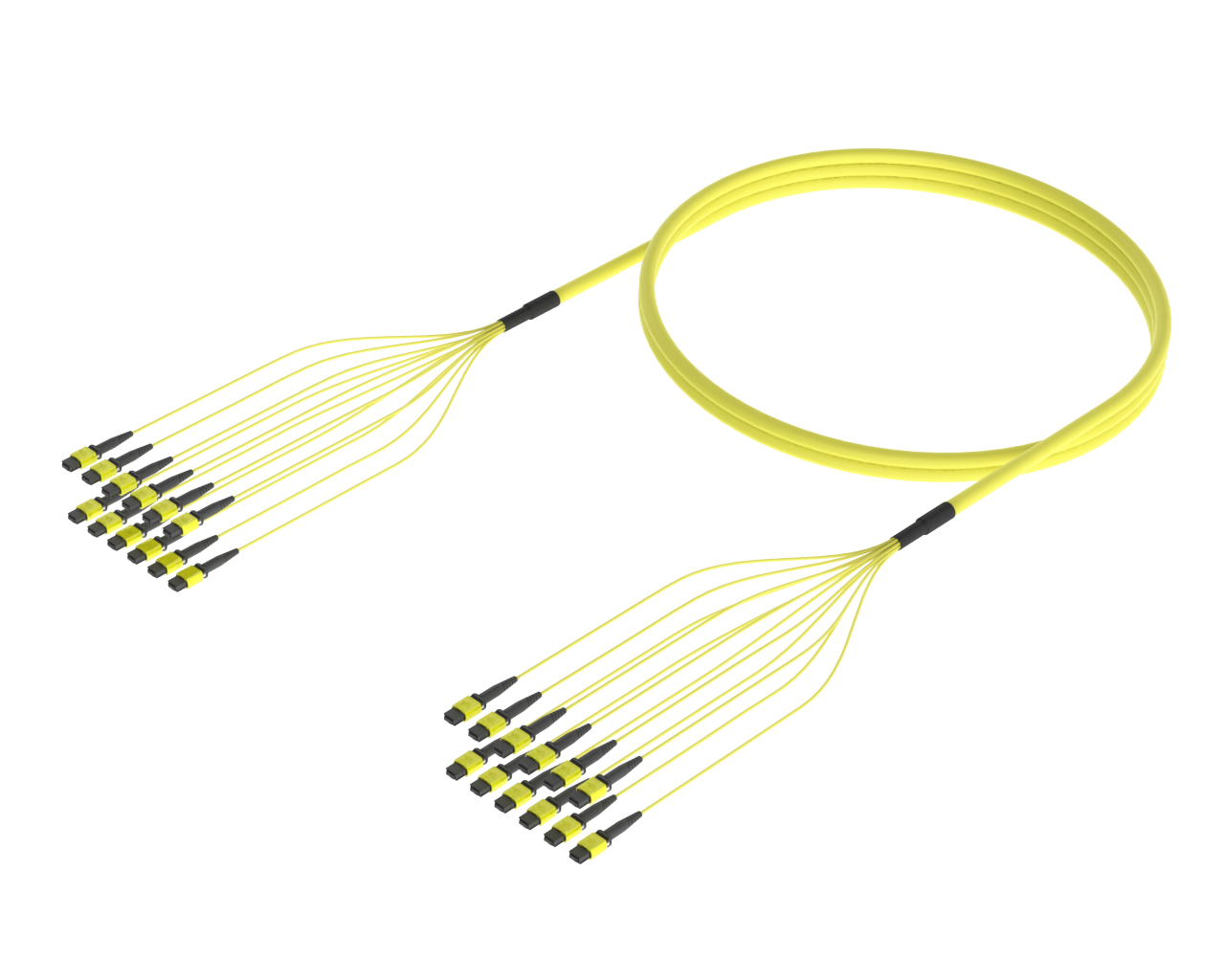

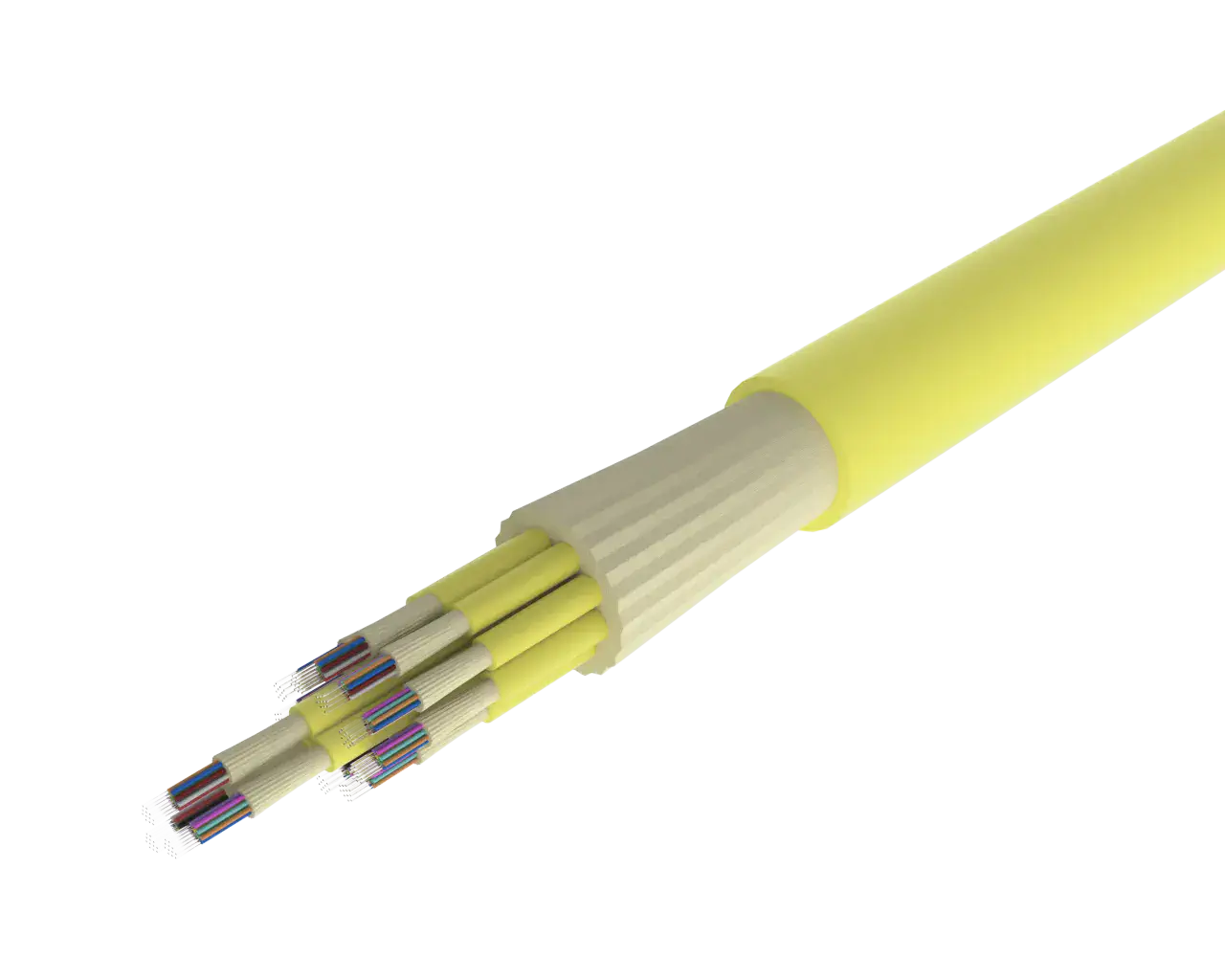

Medium fiber-count MPO trunk assemblies with 36 to 144 fibers. Enables fast, large-scale deployment with reduced labour and minimal installation overhead.
Supports 36 to 144 fibers per trunk

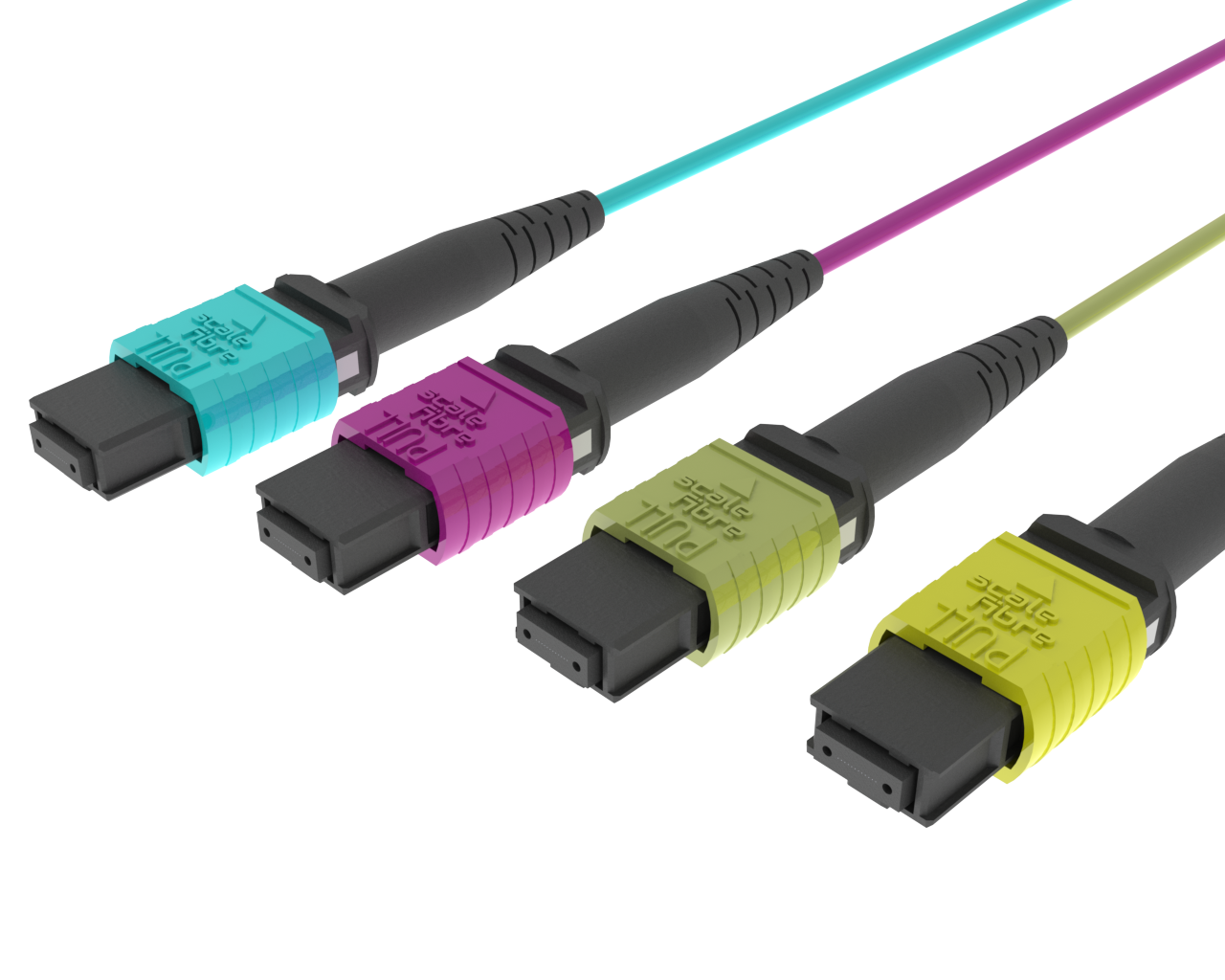

Available with MPO-8, MPO-12 or MPO-24 connectors
Factory terminated and 100% IL/RL tested
LSZH outer jacket with CPR options
Ideal for zone distribution, and backbone extensions
Medium Fiber Count MPO trunk cables are engineered for high‑density backbone, cross‑connect, and patching deployments. Available from 36 to 144 fibers, they deliver a scalable, space-efficient solution across enterprise data centers, edge environments, and access-layer switching.
Pre‑terminated with MPO-8, MPO‑12 or MPO‑24 connectors, these assemblies are designed to maximise port utilisation and reduce installation time in structured cabling systems. Each unit is factory tested for low insertion loss and high return loss, ensuring reliable optical performance in demanding applications.
Sheath options include LSZH and CPR ratings to meet diverse compliance and installation requirements. These medium fiber‑count trunks enable rapid deployment of large core capacities in a single pull—streamlining installation and reducing on‑site labour in core, horizontal, and distribution layers.
Intended for high-density backbone distribution and pre-terminated MAC
operations across the North American hyperscale datacentre clusters
(Ashburn, Dallas-Fort Worth, Atlanta), with applications spanning
enterprise colocation hall row-to-row aggregation. The 36-144 fiber count
suits structured-cabling distribution layers in commercial-tower MDFs.
General
Connector Types
MPO-8, MPO-12, MPO-24 (male or female, pinned or unpinned)
Fiber Count Range
36 to 144 fibers per trunk
Polarity Options
Type A, B, C
Cable Specification
Jacket Material
Low Smoke Zero Halogen (LSZH)
Cable Diameter
3mm
Fiber Type
Single-mode OS2 Multimode OM3/OM4/OM5
Insertion Loss
≤0.35 dB per connector
Return Loss
≥60 dB (SM); ≥30 dB (MM)
Operating Temperature
-20°C to +70°C
Compliance
TIA/EIA-568, IEC 61754-7, FOCIS-5, RoHS, REACH

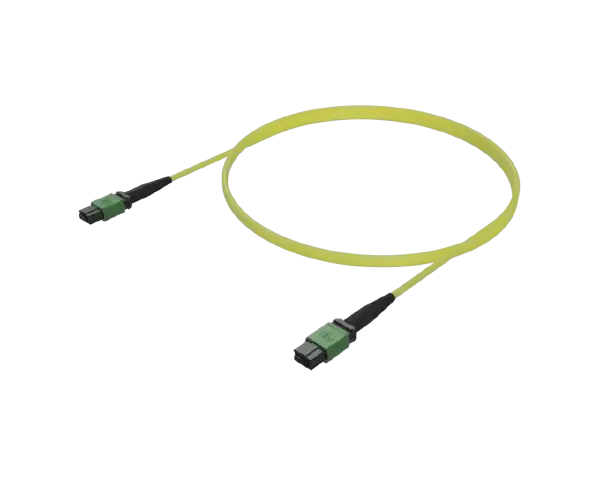

Fiber Optic Assembly, Single-mode (G.657.A1), 48F, MPO-12 to MPO-12, Polarity A, LSZH
