MPO 1:2 Splitter Cables for NVIDIA DGX Clusters

1:2 MPO-to-2xMPO Splitter Cables (Y-Cables). Splits each 400G port of an 800G Twin-Port OSFP into 2x 200G (NDR200), as used in NVIDIA AI clusters.

1:2 Splitter (8-fiber to 2x4-fiber) wiring architecture
Designed for NVIDIA DGX H100, H200, GH200 and Quantum-2 (NDR) InfiniBand
Splits each 400G MPO port of an 800G Twin-Port OSFP into 2x 200G (NDR200)
MPO/APC (Angled) connectors on ALL ends (including Multimode)
Equivalent to NVIDIA MFP7E20-Nxxx (OM4) and MFP7E40-Nxxx (OS2)
Optimised for PAM4 modulation and high-speed signal integrity

Category: Optical Cable Assemblies, MPO Trunks and Fanouts

ENQUIRE NOW

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

ScaleFibre 1:2 MPO Splitter Cables are precision-engineered Y-cables designed for next-generation AI and high-performance computing clusters. They provide the critical optical link between NVIDIA DGX H100, H200, GH200, and Quantum-2 InfiniBand switches.

These assemblies are optically equivalent to the MFP7E20-Nxxx (Multimode OM4) and MFP7E40-Nxxx (Single-mode) series. They connect to a single MPO port on an 800G Twin-Port OSFP transceiver, splitting the 400G signal into two discrete 200G (NDR200) links. This allows a standard 800G switch port to support up to four 200G ConnectX-7 adapters.

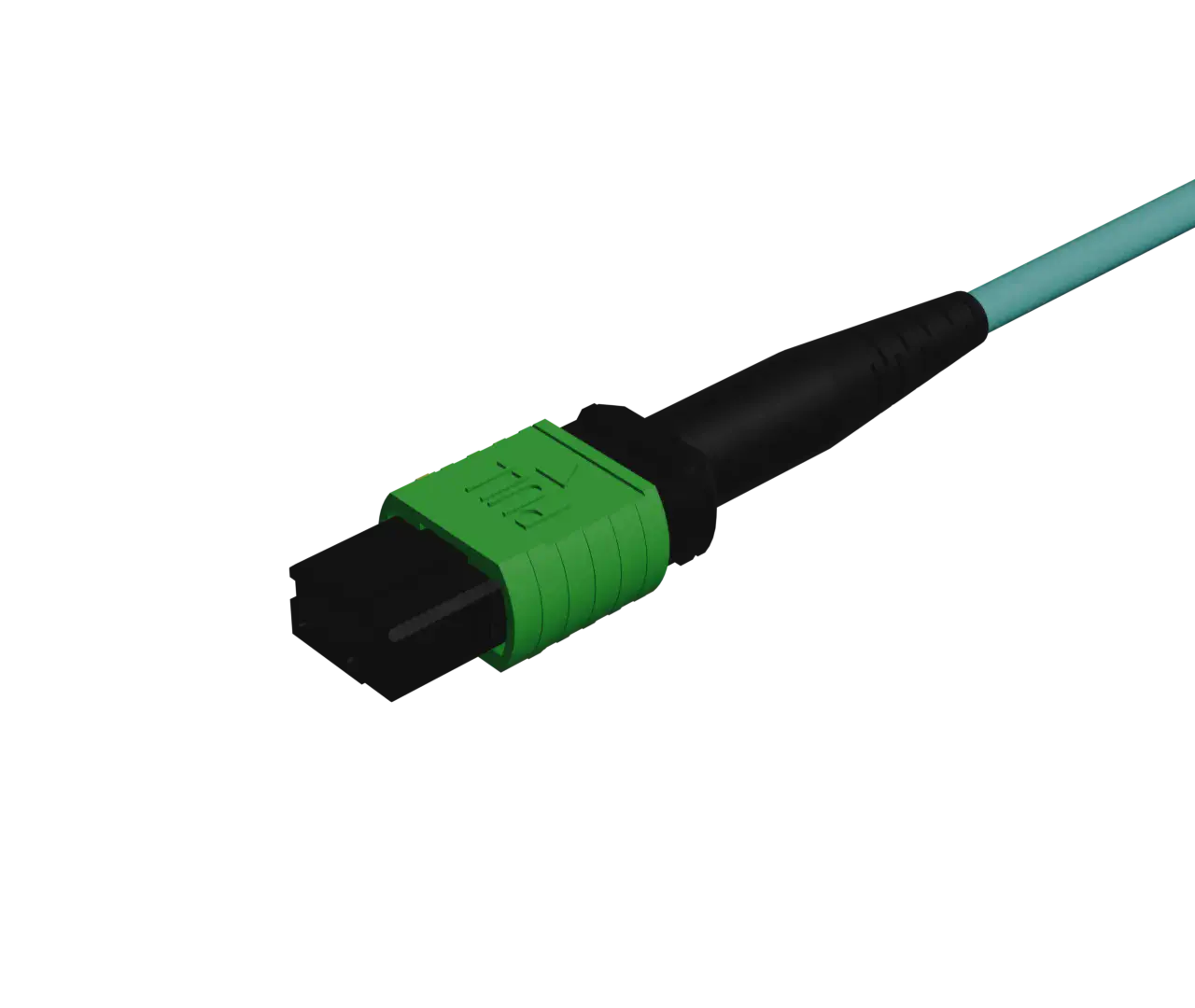

These cables feature MPO/APC (Angled Physical Contact) connectors on both Multimode and Single-mode versions to minimise signal reflection. They utilise a specific Type-B crossover pinout to ensure correct lane mapping between the switch and adapter.

Intended for NVIDIA DGX H100, H200, GH200, and Quantum-2 InfiniBand 1:2 breakout across the North American hyperscale AI compute clusters (Ashburn Northern Virginia, Dallas-Fort Worth, Quincy Washington). Splits each 400G port of an 800G OSFP into two NDR200 links for ConnectX-7 adapters in AI training fabrics.

General
Connector A (Source)	1x MPO-12 (Female) APC Polish
Connector B (Split)	2x MPO-12 (Female) APC Polish
Polarity	Type-B Crossover (NVIDIA Standard)
Fiber Count	8 Fibers Total (Splits into 4+4 active lanes)
Application Matrix
800G Application	1x 800G Twin-Port OSFP (one splitter per 400G MPO port) → 4x 200G (NDR200)
400G Application	1x 400G (QSFP-DD/OSFP) → 2x 200G (QSFP56/QSFP112)
Technical Specs
Connector Polish Angle	8° APC (Angled Physical Contact)
Insertion Loss	≤ 0.35 dB (Low Loss)
Return Loss	≥ 60 dB (SM), ≥ 30 dB (MM APC)
Cable Diameter	3.0 mm
Operating Temp	-20°C to +70°C

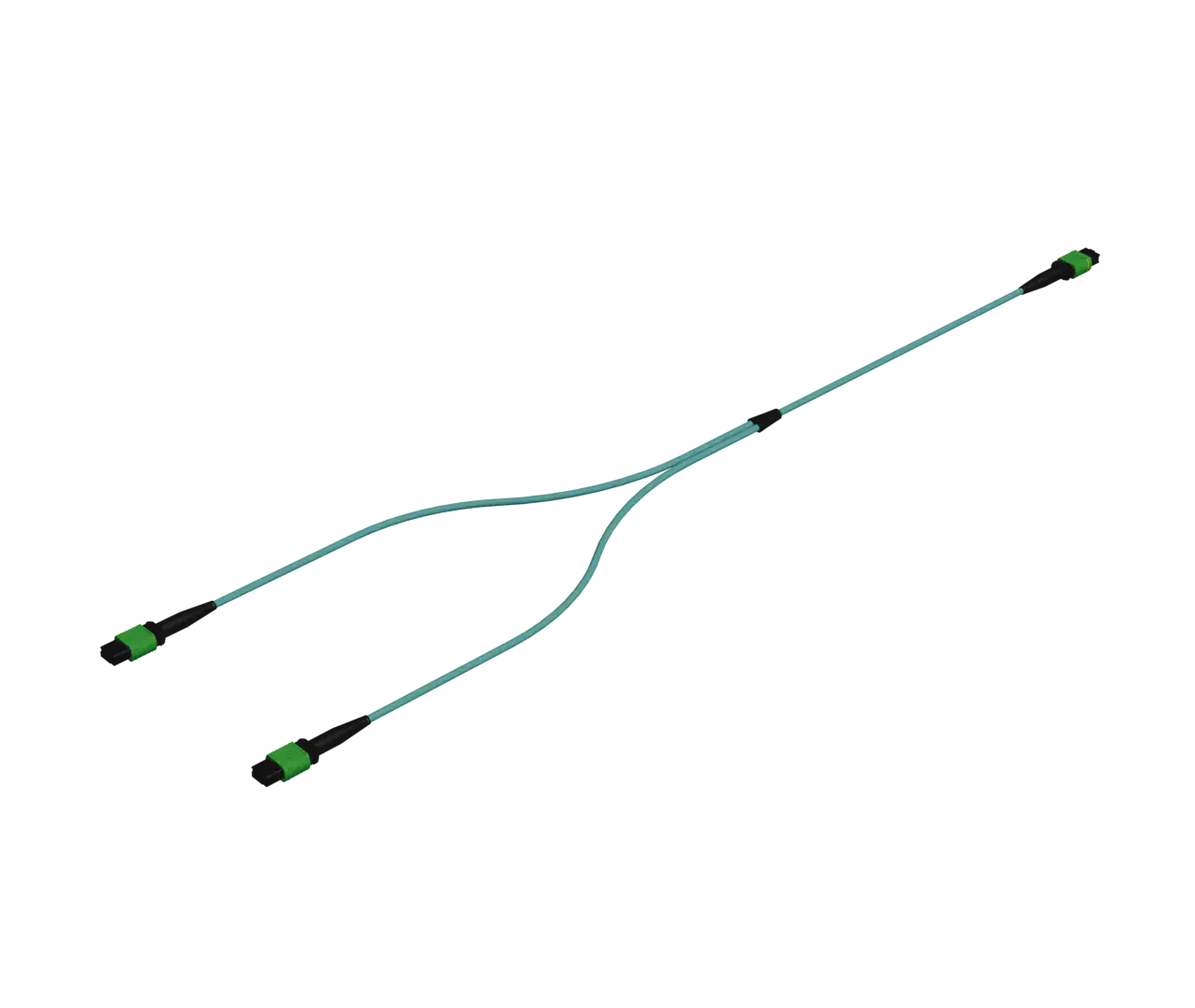

NVIDIA Compatible 1:2 Splitter, OM4 Multimode, APC Polish. (Equivalent to NVIDIA MFP7E20-Nxxx). Aqua Jacket.
Part Number	Length (m)
MT-M4-R3-8-MPOFA-2MPOFA-B-0003M	3
MT-M4-R3-8-MPOFA-2MPOFA-B-0005M	5
MT-M4-R3-8-MPOFA-2MPOFA-B-0007M	7
MT-M4-R3-8-MPOFA-2MPOFA-B-0010M	10
MT-M4-R3-8-MPOFA-2MPOFA-B-0015M	15
MT-M4-R3-8-MPOFA-2MPOFA-B-0020M	20
MT-M4-R3-8-MPOFA-2MPOFA-B-0030M	30
MT-M4-R3-8-MPOFA-2MPOFA-B-0050M	50

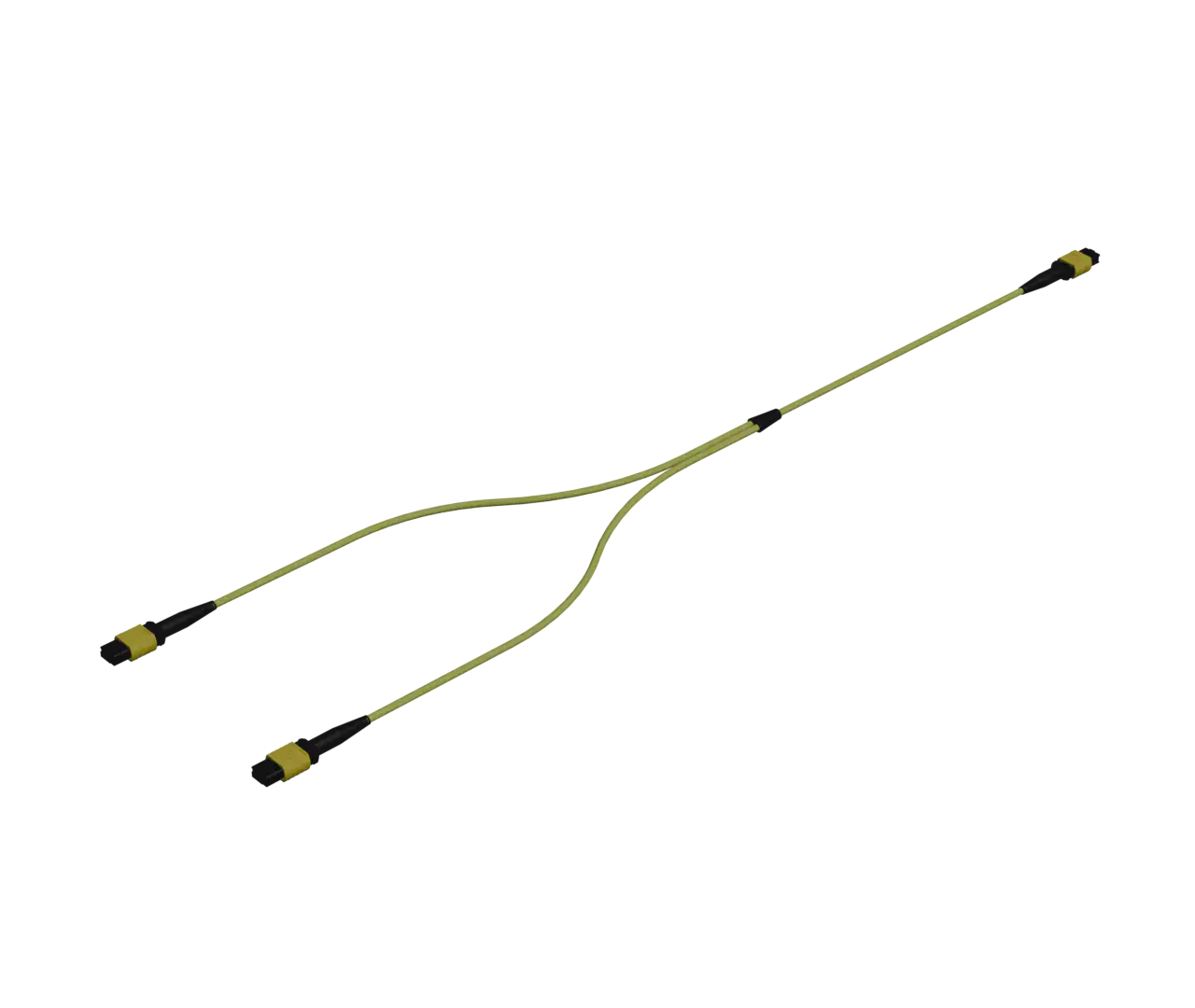

NVIDIA Compatible 1:2 Splitter, OS2 Single-mode (G.657.A1), APC Polish. (Equivalent to NVIDIA MFP7E40-Nxxx). Yellow Jacket.
Part Number	Length (m)
MT-S7-R3-8-MPOF-2MPOF-B-0003M	3
MT-S7-R3-8-MPOF-2MPOF-B-0005M	5
MT-S7-R3-8-MPOF-2MPOF-B-0007M	7
MT-S7-R3-8-MPOF-2MPOF-B-0010M	10
MT-S7-R3-8-MPOF-2MPOF-B-0015M	15
MT-S7-R3-8-MPOF-2MPOF-B-0020M	20
MT-S7-R3-8-MPOF-2MPOF-B-0030M	30
MT-S7-R3-8-MPOF-2MPOF-B-0050M	50
