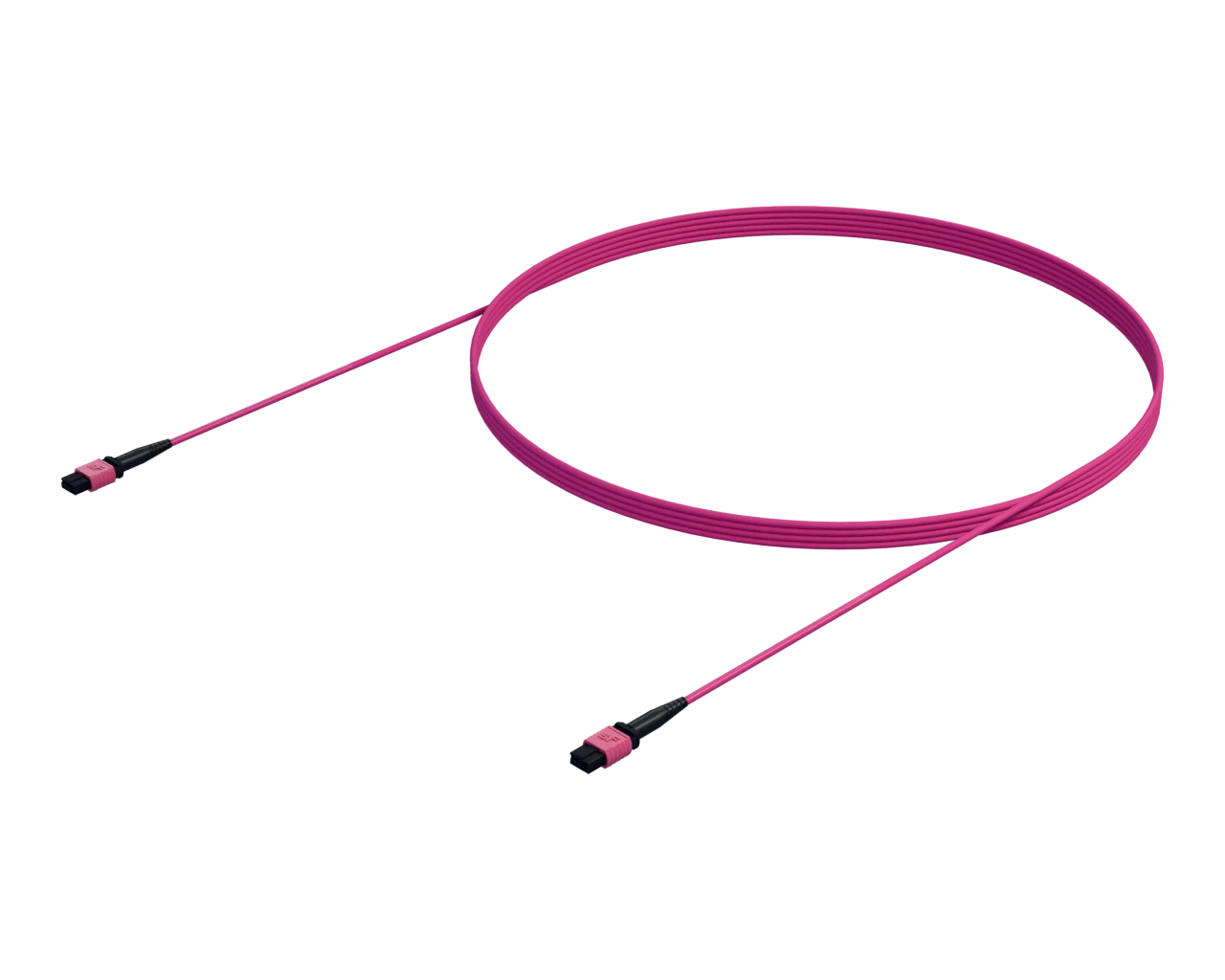

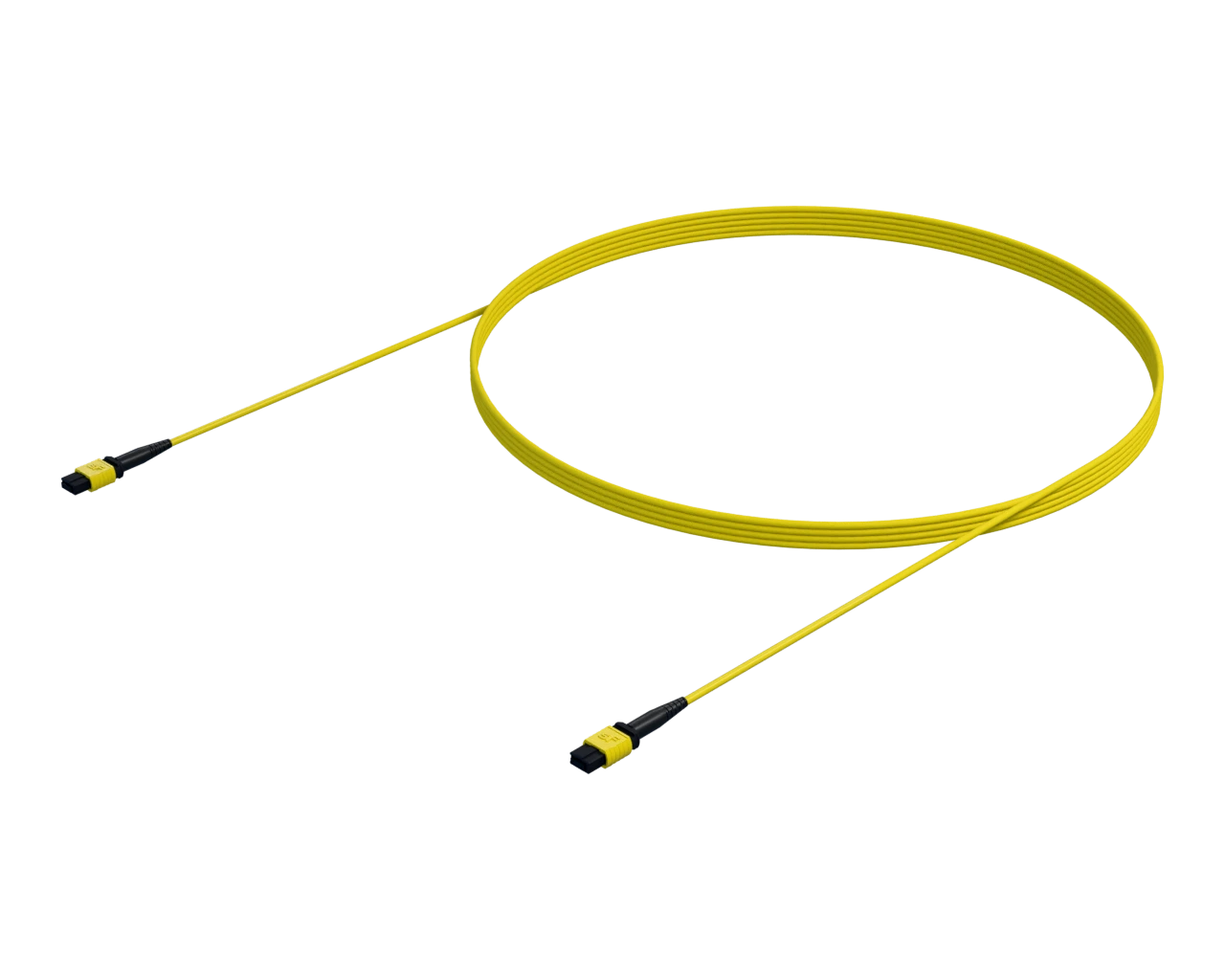

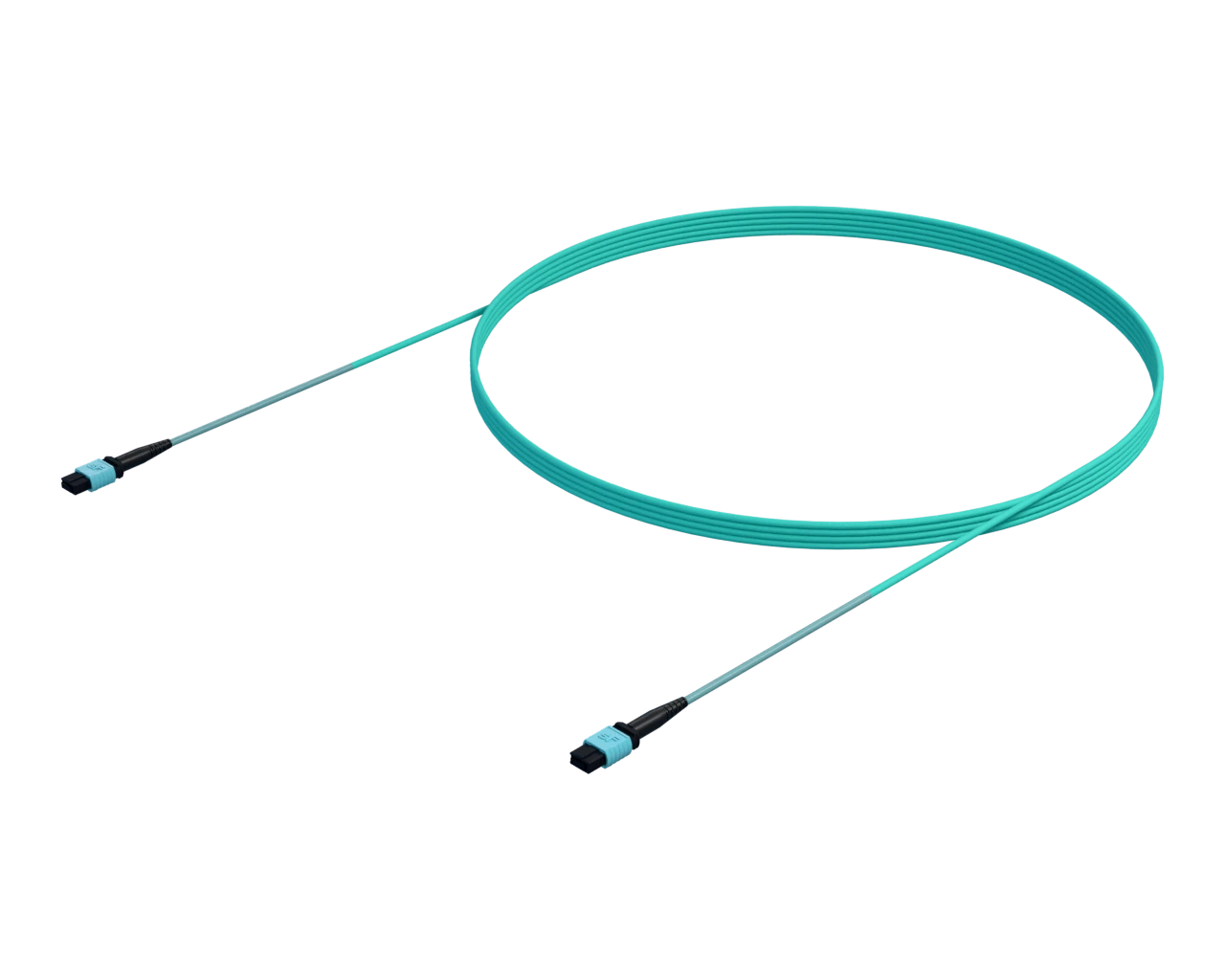

Small Fiber Count MPO Trunk Cables, Riser Rated

Riser-rated (OFNR) MPO trunk cable with 8 to 24 fibers. Compact, factory-tested, and ideal for short-run backbone and patching in enterprise, edge and data center riser runs.

Supports 8 to 24 fibers per trunk
Available with MPO-8, MPO-12, MPO-16 or MPO-24 connectors
Factory terminated and 100% IL/RL tested
OFNR (riser rated) outer jacket
Ideal for patching, zone distribution, and backbone extensions
Simplifies installation and reduces rackspace usage

Category: Optical Cable Assemblies, MPO Trunks and Fanouts

ENQUIRE NOW

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

Small Fiber Count MPO trunk cables are optimised for short-range backbone, cross-connect, and patching applications. Available from 8 to 24 fibers, these assemblies offer a compact and reliable solution for enterprise networks, edge cabinets, and access-layer switching.

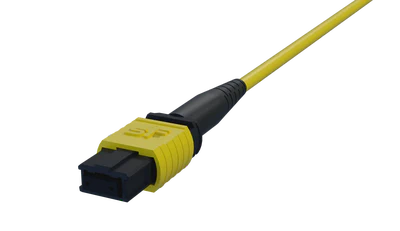

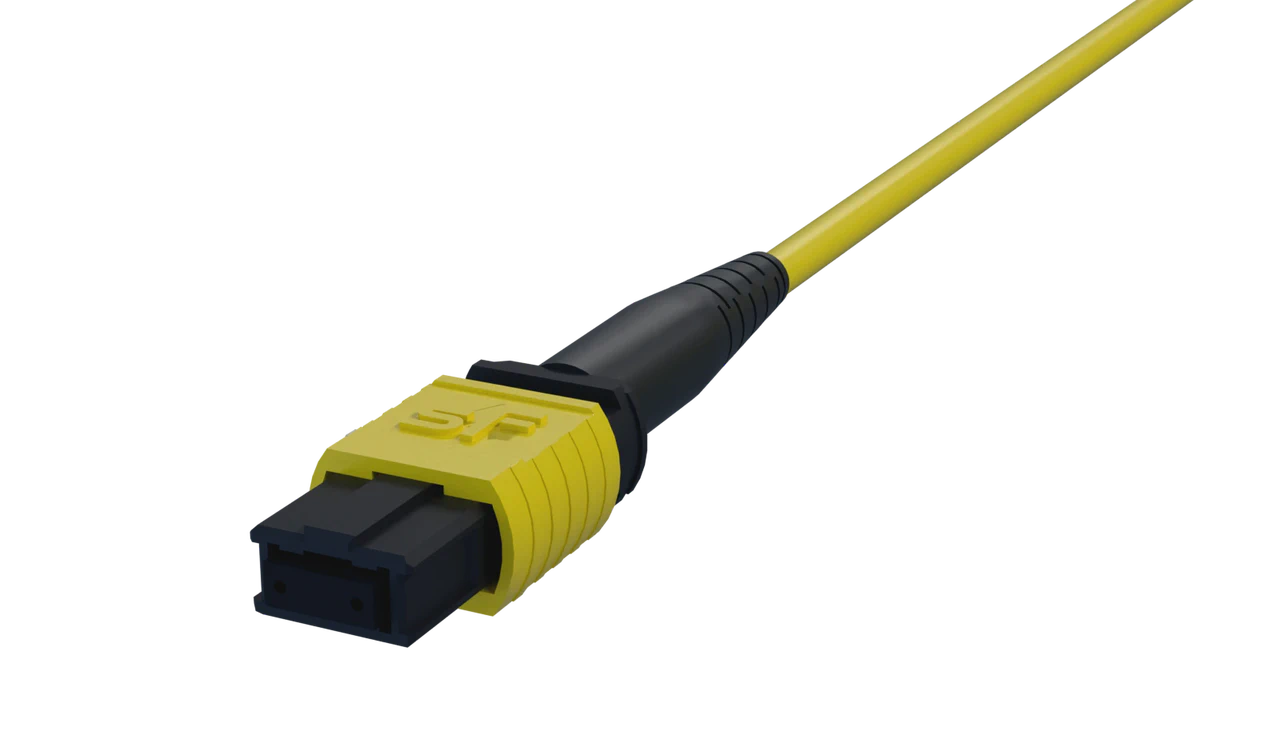

Terminated with ScaleFibre MPO-8, MPO-12, MPO-16 or MPO-24 connectors, they are designed for structured cabling systems where density, ease of installation, and repeatable performance are critical. All assemblies are factory tested to ensure low insertion loss and high return loss.

The riser-rated (OFNR) sheath is listed for vertical riser runs between floors and supports diverse installation environments. These cables enable efficient moves, adds, and changes in core, horizontal, and distribution layers.

Intended for short-range backbone patching, cross-connect work, and MAC operations in edge cabinets and access-layer switching across the North American hyperscale data center clusters (Ashburn, Dallas, Phoenix, Reno). The 8-24 fiber count suits the rack-to-rack and row-end patching patterns common to colocation hall MAC programmes.

General
Connector Types	MPO-8, MPO-12, MPO-16, MPO-24 (male or female, pinned or unpinned) MTP® available upon request
Fiber Count Range	8 to 24 fibers per trunk
Polarity Options	Type A, B or C
Cable Specification
Jacket Material	OFNR-LS
Flame Rating	OFNR (UL 1666, riser)

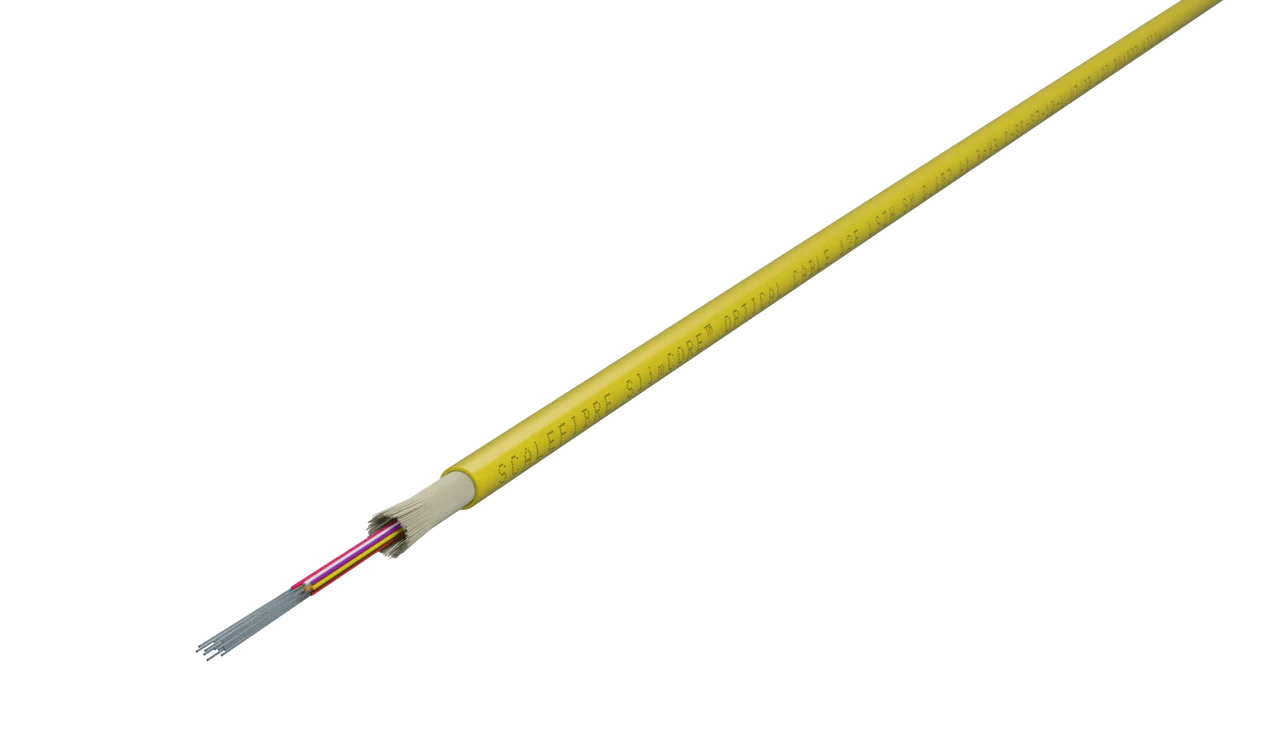

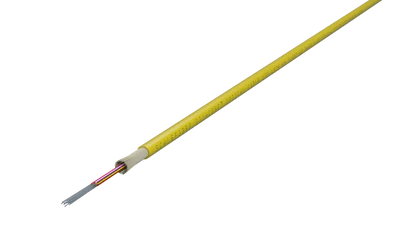

Cable Diameter	3mm

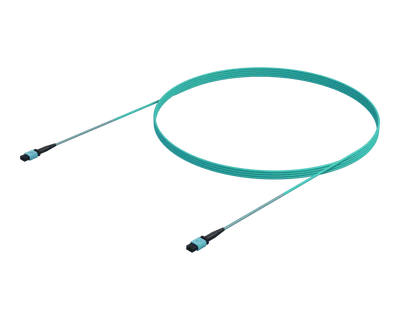

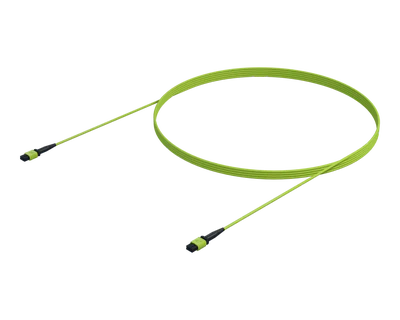

Fiber Type	Single-mode OS2 Multimode OM3/OM4/OM5
Insertion Loss	≤0.35 dB per connector
Return Loss	≥60 dB (SM); ≥30 dB (MM)
Operating Temperature	-20°C to +70°C
Compliance	TIA/EIA-568, IEC 61754-7, FOCIS, RoHS, REACH

Fiber Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity A, OFNR
Part Number	Length (m)
MT-S7-R3R-8-MP8F-MP8F-A-0003M	3
MT-S7-R3R-8-MP8F-MP8F-A-0005M	5
MT-S7-R3R-8-MP8F-MP8F-A-0010M	10
MT-S7-R3R-8-MP8F-MP8F-A-0015M	15
MT-S7-R3R-8-MP8F-MP8F-A-0020M	20
MT-S7-R3R-8-MP8F-MP8F-A-0025M	25
MT-S7-R3R-8-MP8F-MP8F-A-0030M	30
MT-S7-R3R-8-MP8F-MP8F-A-0035M	35
MT-S7-R3R-8-MP8F-MP8F-A-0040M	40
MT-S7-R3R-8-MP8F-MP8F-A-0045M	45
MT-S7-R3R-8-MP8F-MP8F-A-0050M	50
Part Number	Length (ft)
MT-S7-R3R-8-MP8F-MP8F-A-0010F	10
MT-S7-R3R-8-MP8F-MP8F-A-0015F	15
MT-S7-R3R-8-MP8F-MP8F-A-0030F	30
MT-S7-R3R-8-MP8F-MP8F-A-0045F	45
MT-S7-R3R-8-MP8F-MP8F-A-0060F	60
MT-S7-R3R-8-MP8F-MP8F-A-0075F	75
MT-S7-R3R-8-MP8F-MP8F-A-0090F	90
MT-S7-R3R-8-MP8F-MP8F-A-0105F	105
MT-S7-R3R-8-MP8F-MP8F-A-0120F	120
MT-S7-R3R-8-MP8F-MP8F-A-0135F	135
MT-S7-R3R-8-MP8F-MP8F-A-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity B, OFNR
Part Number	Length (m)
MT-S7-R3R-8-MP8F-MP8F-B-0003M	3
MT-S7-R3R-8-MP8F-MP8F-B-0005M	5
MT-S7-R3R-8-MP8F-MP8F-B-0010M	10
MT-S7-R3R-8-MP8F-MP8F-B-0015M	15
MT-S7-R3R-8-MP8F-MP8F-B-0020M	20
MT-S7-R3R-8-MP8F-MP8F-B-0025M	25
MT-S7-R3R-8-MP8F-MP8F-B-0030M	30
MT-S7-R3R-8-MP8F-MP8F-B-0035M	35
MT-S7-R3R-8-MP8F-MP8F-B-0040M	40
MT-S7-R3R-8-MP8F-MP8F-B-0045M	45
MT-S7-R3R-8-MP8F-MP8F-B-0050M	50
Part Number	Length (ft)
MT-S7-R3R-8-MP8F-MP8F-B-0010F	10
MT-S7-R3R-8-MP8F-MP8F-B-0015F	15
MT-S7-R3R-8-MP8F-MP8F-B-0030F	30
MT-S7-R3R-8-MP8F-MP8F-B-0045F	45
MT-S7-R3R-8-MP8F-MP8F-B-0060F	60
MT-S7-R3R-8-MP8F-MP8F-B-0075F	75
MT-S7-R3R-8-MP8F-MP8F-B-0090F	90
MT-S7-R3R-8-MP8F-MP8F-B-0105F	105
MT-S7-R3R-8-MP8F-MP8F-B-0120F	120
MT-S7-R3R-8-MP8F-MP8F-B-0135F	135
MT-S7-R3R-8-MP8F-MP8F-B-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 8F, MPO-8 to MPO-8, Polarity C, OFNR
Part Number	Length (m)
MT-S7-R3R-8-MP8F-MP8F-C-0003M	3
MT-S7-R3R-8-MP8F-MP8F-C-0005M	5
MT-S7-R3R-8-MP8F-MP8F-C-0010M	10
MT-S7-R3R-8-MP8F-MP8F-C-0015M	15
MT-S7-R3R-8-MP8F-MP8F-C-0020M	20
MT-S7-R3R-8-MP8F-MP8F-C-0025M	25
MT-S7-R3R-8-MP8F-MP8F-C-0030M	30
MT-S7-R3R-8-MP8F-MP8F-C-0035M	35
MT-S7-R3R-8-MP8F-MP8F-C-0040M	40
MT-S7-R3R-8-MP8F-MP8F-C-0045M	45
MT-S7-R3R-8-MP8F-MP8F-C-0050M	50
Part Number	Length (ft)
MT-S7-R3R-8-MP8F-MP8F-C-0010F	10
MT-S7-R3R-8-MP8F-MP8F-C-0015F	15
MT-S7-R3R-8-MP8F-MP8F-C-0030F	30
MT-S7-R3R-8-MP8F-MP8F-C-0045F	45
MT-S7-R3R-8-MP8F-MP8F-C-0060F	60
MT-S7-R3R-8-MP8F-MP8F-C-0075F	75
MT-S7-R3R-8-MP8F-MP8F-C-0090F	90
MT-S7-R3R-8-MP8F-MP8F-C-0105F	105
MT-S7-R3R-8-MP8F-MP8F-C-0120F	120
MT-S7-R3R-8-MP8F-MP8F-C-0135F	135
MT-S7-R3R-8-MP8F-MP8F-C-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity A, OFNR
Part Number	Length (m)
MT-S7-R3R-12-MPOF-MPOF-A-0003M	3
MT-S7-R3R-12-MPOF-MPOF-A-0005M	5
MT-S7-R3R-12-MPOF-MPOF-A-0010M	10
MT-S7-R3R-12-MPOF-MPOF-A-0015M	15
MT-S7-R3R-12-MPOF-MPOF-A-0020M	20
MT-S7-R3R-12-MPOF-MPOF-A-0025M	25
MT-S7-R3R-12-MPOF-MPOF-A-0030M	30
MT-S7-R3R-12-MPOF-MPOF-A-0035M	35
MT-S7-R3R-12-MPOF-MPOF-A-0040M	40
MT-S7-R3R-12-MPOF-MPOF-A-0045M	45
MT-S7-R3R-12-MPOF-MPOF-A-0050M	50
Part Number	Length (ft)
MT-S7-R3R-12-MPOF-MPOF-A-0010F	10
MT-S7-R3R-12-MPOF-MPOF-A-0015F	15
MT-S7-R3R-12-MPOF-MPOF-A-0030F	30
MT-S7-R3R-12-MPOF-MPOF-A-0045F	45
MT-S7-R3R-12-MPOF-MPOF-A-0060F	60
MT-S7-R3R-12-MPOF-MPOF-A-0075F	75
MT-S7-R3R-12-MPOF-MPOF-A-0090F	90
MT-S7-R3R-12-MPOF-MPOF-A-0105F	105
MT-S7-R3R-12-MPOF-MPOF-A-0120F	120
MT-S7-R3R-12-MPOF-MPOF-A-0135F	135
MT-S7-R3R-12-MPOF-MPOF-A-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity B, OFNR
Part Number	Length (m)
MT-S7-R3R-12-MPOF-MPOF-B-0003M	3
MT-S7-R3R-12-MPOF-MPOF-B-0005M	5
MT-S7-R3R-12-MPOF-MPOF-B-0010M	10
MT-S7-R3R-12-MPOF-MPOF-B-0015M	15
MT-S7-R3R-12-MPOF-MPOF-B-0020M	20
MT-S7-R3R-12-MPOF-MPOF-B-0025M	25
MT-S7-R3R-12-MPOF-MPOF-B-0030M	30
MT-S7-R3R-12-MPOF-MPOF-B-0035M	35
MT-S7-R3R-12-MPOF-MPOF-B-0040M	40
MT-S7-R3R-12-MPOF-MPOF-B-0045M	45
MT-S7-R3R-12-MPOF-MPOF-B-0050M	50
Part Number	Length (ft)
MT-S7-R3R-12-MPOF-MPOF-B-0010F	10
MT-S7-R3R-12-MPOF-MPOF-B-0015F	15
MT-S7-R3R-12-MPOF-MPOF-B-0030F	30
MT-S7-R3R-12-MPOF-MPOF-B-0045F	45
MT-S7-R3R-12-MPOF-MPOF-B-0060F	60
MT-S7-R3R-12-MPOF-MPOF-B-0075F	75
MT-S7-R3R-12-MPOF-MPOF-B-0090F	90
MT-S7-R3R-12-MPOF-MPOF-B-0105F	105
MT-S7-R3R-12-MPOF-MPOF-B-0120F	120
MT-S7-R3R-12-MPOF-MPOF-B-0135F	135
MT-S7-R3R-12-MPOF-MPOF-B-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 12F, MPO-12 to MPO-12, Polarity C, OFNR
Part Number	Length (m)
MT-S7-R3R-12-MPOF-MPOF-C-0003M	3
MT-S7-R3R-12-MPOF-MPOF-C-0005M	5
MT-S7-R3R-12-MPOF-MPOF-C-0010M	10
MT-S7-R3R-12-MPOF-MPOF-C-0015M	15
MT-S7-R3R-12-MPOF-MPOF-C-0020M	20
MT-S7-R3R-12-MPOF-MPOF-C-0025M	25
MT-S7-R3R-12-MPOF-MPOF-C-0030M	30
MT-S7-R3R-12-MPOF-MPOF-C-0035M	35
MT-S7-R3R-12-MPOF-MPOF-C-0040M	40
MT-S7-R3R-12-MPOF-MPOF-C-0045M	45
MT-S7-R3R-12-MPOF-MPOF-C-0050M	50
Part Number	Length (ft)
MT-S7-R3R-12-MPOF-MPOF-C-0010F	10
MT-S7-R3R-12-MPOF-MPOF-C-0015F	15
MT-S7-R3R-12-MPOF-MPOF-C-0030F	30
MT-S7-R3R-12-MPOF-MPOF-C-0045F	45
MT-S7-R3R-12-MPOF-MPOF-C-0060F	60
MT-S7-R3R-12-MPOF-MPOF-C-0075F	75
MT-S7-R3R-12-MPOF-MPOF-C-0090F	90
MT-S7-R3R-12-MPOF-MPOF-C-0105F	105
MT-S7-R3R-12-MPOF-MPOF-C-0120F	120
MT-S7-R3R-12-MPOF-MPOF-C-0135F	135
MT-S7-R3R-12-MPOF-MPOF-C-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 16F, MPO-16 to MPO-16, Polarity A, OFNR
Part Number	Length (m)
MT-S7-R3R-16-MP16F-MP16F-A-0003M	3
MT-S7-R3R-16-MP16F-MP16F-A-0005M	5
MT-S7-R3R-16-MP16F-MP16F-A-0010M	10
MT-S7-R3R-16-MP16F-MP16F-A-0015M	15
MT-S7-R3R-16-MP16F-MP16F-A-0020M	20
MT-S7-R3R-16-MP16F-MP16F-A-0025M	25
MT-S7-R3R-16-MP16F-MP16F-A-0030M	30
MT-S7-R3R-16-MP16F-MP16F-A-0035M	35
MT-S7-R3R-16-MP16F-MP16F-A-0040M	40
MT-S7-R3R-16-MP16F-MP16F-A-0045M	45
MT-S7-R3R-16-MP16F-MP16F-A-0050M	50
Part Number	Length (ft)
MT-S7-R3R-16-MP16F-MP16F-A-0010F	10
MT-S7-R3R-16-MP16F-MP16F-A-0015F	15
MT-S7-R3R-16-MP16F-MP16F-A-0030F	30
MT-S7-R3R-16-MP16F-MP16F-A-0045F	45
MT-S7-R3R-16-MP16F-MP16F-A-0060F	60
MT-S7-R3R-16-MP16F-MP16F-A-0075F	75
MT-S7-R3R-16-MP16F-MP16F-A-0090F	90
MT-S7-R3R-16-MP16F-MP16F-A-0105F	105
MT-S7-R3R-16-MP16F-MP16F-A-0120F	120
MT-S7-R3R-16-MP16F-MP16F-A-0135F	135
MT-S7-R3R-16-MP16F-MP16F-A-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 16F, MPO-16 to MPO-16, Polarity B, OFNR
Part Number	Length (m)
MT-S7-R3R-16-MP16F-MP16F-B-0003M	3
MT-S7-R3R-16-MP16F-MP16F-B-0005M	5
MT-S7-R3R-16-MP16F-MP16F-B-0010M	10
MT-S7-R3R-16-MP16F-MP16F-B-0015M	15
MT-S7-R3R-16-MP16F-MP16F-B-0020M	20
MT-S7-R3R-16-MP16F-MP16F-B-0025M	25
MT-S7-R3R-16-MP16F-MP16F-B-0030M	30
MT-S7-R3R-16-MP16F-MP16F-B-0035M	35
MT-S7-R3R-16-MP16F-MP16F-B-0040M	40
MT-S7-R3R-16-MP16F-MP16F-B-0045M	45
MT-S7-R3R-16-MP16F-MP16F-B-0050M	50
Part Number	Length (ft)
MT-S7-R3R-16-MP16F-MP16F-B-0010F	10
MT-S7-R3R-16-MP16F-MP16F-B-0015F	15
MT-S7-R3R-16-MP16F-MP16F-B-0030F	30
MT-S7-R3R-16-MP16F-MP16F-B-0045F	45
MT-S7-R3R-16-MP16F-MP16F-B-0060F	60
MT-S7-R3R-16-MP16F-MP16F-B-0075F	75
MT-S7-R3R-16-MP16F-MP16F-B-0090F	90
MT-S7-R3R-16-MP16F-MP16F-B-0105F	105
MT-S7-R3R-16-MP16F-MP16F-B-0120F	120
MT-S7-R3R-16-MP16F-MP16F-B-0135F	135
MT-S7-R3R-16-MP16F-MP16F-B-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 16F, MPO-16 to MPO-16, Polarity C, OFNR
Part Number	Length (m)
MT-S7-R3R-16-MP16F-MP16F-C-0003M	3
MT-S7-R3R-16-MP16F-MP16F-C-0005M	5
MT-S7-R3R-16-MP16F-MP16F-C-0010M	10
MT-S7-R3R-16-MP16F-MP16F-C-0015M	15
MT-S7-R3R-16-MP16F-MP16F-C-0020M	20
MT-S7-R3R-16-MP16F-MP16F-C-0025M	25
MT-S7-R3R-16-MP16F-MP16F-C-0030M	30
MT-S7-R3R-16-MP16F-MP16F-C-0035M	35
MT-S7-R3R-16-MP16F-MP16F-C-0040M	40
MT-S7-R3R-16-MP16F-MP16F-C-0045M	45
MT-S7-R3R-16-MP16F-MP16F-C-0050M	50
Part Number	Length (ft)
MT-S7-R3R-16-MP16F-MP16F-C-0010F	10
MT-S7-R3R-16-MP16F-MP16F-C-0015F	15
MT-S7-R3R-16-MP16F-MP16F-C-0030F	30
MT-S7-R3R-16-MP16F-MP16F-C-0045F	45
MT-S7-R3R-16-MP16F-MP16F-C-0060F	60
MT-S7-R3R-16-MP16F-MP16F-C-0075F	75
MT-S7-R3R-16-MP16F-MP16F-C-0090F	90
MT-S7-R3R-16-MP16F-MP16F-C-0105F	105
MT-S7-R3R-16-MP16F-MP16F-C-0120F	120
MT-S7-R3R-16-MP16F-MP16F-C-0135F	135
MT-S7-R3R-16-MP16F-MP16F-C-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity A, OFNR
Part Number	Length (m)
MT-S7-R3R-24-MP24F-MP24F-A-0003M	3
MT-S7-R3R-24-MP24F-MP24F-A-0005M	5
MT-S7-R3R-24-MP24F-MP24F-A-0010M	10
MT-S7-R3R-24-MP24F-MP24F-A-0015M	15
MT-S7-R3R-24-MP24F-MP24F-A-0020M	20
MT-S7-R3R-24-MP24F-MP24F-A-0025M	25
MT-S7-R3R-24-MP24F-MP24F-A-0030M	30
MT-S7-R3R-24-MP24F-MP24F-A-0035M	35
MT-S7-R3R-24-MP24F-MP24F-A-0040M	40
MT-S7-R3R-24-MP24F-MP24F-A-0045M	45
MT-S7-R3R-24-MP24F-MP24F-A-0050M	50
Part Number	Length (ft)
MT-S7-R3R-24-MP24F-MP24F-A-0010F	10
MT-S7-R3R-24-MP24F-MP24F-A-0015F	15
MT-S7-R3R-24-MP24F-MP24F-A-0030F	30
MT-S7-R3R-24-MP24F-MP24F-A-0045F	45
MT-S7-R3R-24-MP24F-MP24F-A-0060F	60
MT-S7-R3R-24-MP24F-MP24F-A-0075F	75
MT-S7-R3R-24-MP24F-MP24F-A-0090F	90
MT-S7-R3R-24-MP24F-MP24F-A-0105F	105
MT-S7-R3R-24-MP24F-MP24F-A-0120F	120
MT-S7-R3R-24-MP24F-MP24F-A-0135F	135
MT-S7-R3R-24-MP24F-MP24F-A-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity B, OFNR
Part Number	Length (m)
MT-S7-R3R-24-MP24F-MP24F-B-0003M	3
MT-S7-R3R-24-MP24F-MP24F-B-0005M	5
MT-S7-R3R-24-MP24F-MP24F-B-0010M	10
MT-S7-R3R-24-MP24F-MP24F-B-0015M	15
MT-S7-R3R-24-MP24F-MP24F-B-0020M	20
MT-S7-R3R-24-MP24F-MP24F-B-0025M	25
MT-S7-R3R-24-MP24F-MP24F-B-0030M	30
MT-S7-R3R-24-MP24F-MP24F-B-0035M	35
MT-S7-R3R-24-MP24F-MP24F-B-0040M	40
MT-S7-R3R-24-MP24F-MP24F-B-0045M	45
MT-S7-R3R-24-MP24F-MP24F-B-0050M	50
Part Number	Length (ft)
MT-S7-R3R-24-MP24F-MP24F-B-0010F	10
MT-S7-R3R-24-MP24F-MP24F-B-0015F	15
MT-S7-R3R-24-MP24F-MP24F-B-0030F	30
MT-S7-R3R-24-MP24F-MP24F-B-0045F	45
MT-S7-R3R-24-MP24F-MP24F-B-0060F	60
MT-S7-R3R-24-MP24F-MP24F-B-0075F	75
MT-S7-R3R-24-MP24F-MP24F-B-0090F	90
MT-S7-R3R-24-MP24F-MP24F-B-0105F	105
MT-S7-R3R-24-MP24F-MP24F-B-0120F	120
MT-S7-R3R-24-MP24F-MP24F-B-0135F	135
MT-S7-R3R-24-MP24F-MP24F-B-0150F	150

Fiber Optic Assembly, Single-mode (G.657.A1), 24F, MPO-24 to MPO-24, Polarity C, OFNR
Part Number	Length (m)
MT-S7-R3R-24-MP24F-MP24F-C-0003M	3
MT-S7-R3R-24-MP24F-MP24F-C-0005M	5
MT-S7-R3R-24-MP24F-MP24F-C-0010M	10
MT-S7-R3R-24-MP24F-MP24F-C-0015M	15
MT-S7-R3R-24-MP24F-MP24F-C-0020M	20
MT-S7-R3R-24-MP24F-MP24F-C-0025M	25
MT-S7-R3R-24-MP24F-MP24F-C-0030M	30
MT-S7-R3R-24-MP24F-MP24F-C-0035M	35
MT-S7-R3R-24-MP24F-MP24F-C-0040M	40
MT-S7-R3R-24-MP24F-MP24F-C-0045M	45
MT-S7-R3R-24-MP24F-MP24F-C-0050M	50
Part Number	Length (ft)
MT-S7-R3R-24-MP24F-MP24F-C-0010F	10
MT-S7-R3R-24-MP24F-MP24F-C-0015F	15
MT-S7-R3R-24-MP24F-MP24F-C-0030F	30
MT-S7-R3R-24-MP24F-MP24F-C-0045F	45
MT-S7-R3R-24-MP24F-MP24F-C-0060F	60
MT-S7-R3R-24-MP24F-MP24F-C-0075F	75
MT-S7-R3R-24-MP24F-MP24F-C-0090F	90
MT-S7-R3R-24-MP24F-MP24F-C-0105F	105
MT-S7-R3R-24-MP24F-MP24F-C-0120F	120
MT-S7-R3R-24-MP24F-MP24F-C-0135F	135
MT-S7-R3R-24-MP24F-MP24F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity A, OFNR
Part Number	Length (m)
MT-M3-R3R-8-MP8F-MP8F-A-0003M	3
MT-M3-R3R-8-MP8F-MP8F-A-0005M	5
MT-M3-R3R-8-MP8F-MP8F-A-0010M	10
MT-M3-R3R-8-MP8F-MP8F-A-0015M	15
MT-M3-R3R-8-MP8F-MP8F-A-0020M	20
MT-M3-R3R-8-MP8F-MP8F-A-0025M	25
MT-M3-R3R-8-MP8F-MP8F-A-0030M	30
MT-M3-R3R-8-MP8F-MP8F-A-0035M	35
MT-M3-R3R-8-MP8F-MP8F-A-0040M	40
MT-M3-R3R-8-MP8F-MP8F-A-0045M	45
MT-M3-R3R-8-MP8F-MP8F-A-0050M	50
Part Number	Length (ft)
MT-M3-R3R-8-MP8F-MP8F-A-0010F	10
MT-M3-R3R-8-MP8F-MP8F-A-0015F	15
MT-M3-R3R-8-MP8F-MP8F-A-0030F	30
MT-M3-R3R-8-MP8F-MP8F-A-0045F	45
MT-M3-R3R-8-MP8F-MP8F-A-0060F	60
MT-M3-R3R-8-MP8F-MP8F-A-0075F	75
MT-M3-R3R-8-MP8F-MP8F-A-0090F	90
MT-M3-R3R-8-MP8F-MP8F-A-0105F	105
MT-M3-R3R-8-MP8F-MP8F-A-0120F	120
MT-M3-R3R-8-MP8F-MP8F-A-0135F	135
MT-M3-R3R-8-MP8F-MP8F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity B, OFNR
Part Number	Length (m)
MT-M3-R3R-8-MP8F-MP8F-B-0003M	3
MT-M3-R3R-8-MP8F-MP8F-B-0005M	5
MT-M3-R3R-8-MP8F-MP8F-B-0010M	10
MT-M3-R3R-8-MP8F-MP8F-B-0015M	15
MT-M3-R3R-8-MP8F-MP8F-B-0020M	20
MT-M3-R3R-8-MP8F-MP8F-B-0025M	25
MT-M3-R3R-8-MP8F-MP8F-B-0030M	30
MT-M3-R3R-8-MP8F-MP8F-B-0035M	35
MT-M3-R3R-8-MP8F-MP8F-B-0040M	40
MT-M3-R3R-8-MP8F-MP8F-B-0045M	45
MT-M3-R3R-8-MP8F-MP8F-B-0050M	50
Part Number	Length (ft)
MT-M3-R3R-8-MP8F-MP8F-B-0010F	10
MT-M3-R3R-8-MP8F-MP8F-B-0015F	15
MT-M3-R3R-8-MP8F-MP8F-B-0030F	30
MT-M3-R3R-8-MP8F-MP8F-B-0045F	45
MT-M3-R3R-8-MP8F-MP8F-B-0060F	60
MT-M3-R3R-8-MP8F-MP8F-B-0075F	75
MT-M3-R3R-8-MP8F-MP8F-B-0090F	90
MT-M3-R3R-8-MP8F-MP8F-B-0105F	105
MT-M3-R3R-8-MP8F-MP8F-B-0120F	120
MT-M3-R3R-8-MP8F-MP8F-B-0135F	135
MT-M3-R3R-8-MP8F-MP8F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 8F, MPO-8 to MPO-8, Polarity C, OFNR
Part Number	Length (m)
MT-M3-R3R-8-MP8F-MP8F-C-0003M	3
MT-M3-R3R-8-MP8F-MP8F-C-0005M	5
MT-M3-R3R-8-MP8F-MP8F-C-0010M	10
MT-M3-R3R-8-MP8F-MP8F-C-0015M	15
MT-M3-R3R-8-MP8F-MP8F-C-0020M	20
MT-M3-R3R-8-MP8F-MP8F-C-0025M	25
MT-M3-R3R-8-MP8F-MP8F-C-0030M	30
MT-M3-R3R-8-MP8F-MP8F-C-0035M	35
MT-M3-R3R-8-MP8F-MP8F-C-0040M	40
MT-M3-R3R-8-MP8F-MP8F-C-0045M	45
MT-M3-R3R-8-MP8F-MP8F-C-0050M	50
Part Number	Length (ft)
MT-M3-R3R-8-MP8F-MP8F-C-0010F	10
MT-M3-R3R-8-MP8F-MP8F-C-0015F	15
MT-M3-R3R-8-MP8F-MP8F-C-0030F	30
MT-M3-R3R-8-MP8F-MP8F-C-0045F	45
MT-M3-R3R-8-MP8F-MP8F-C-0060F	60
MT-M3-R3R-8-MP8F-MP8F-C-0075F	75
MT-M3-R3R-8-MP8F-MP8F-C-0090F	90
MT-M3-R3R-8-MP8F-MP8F-C-0105F	105
MT-M3-R3R-8-MP8F-MP8F-C-0120F	120
MT-M3-R3R-8-MP8F-MP8F-C-0135F	135
MT-M3-R3R-8-MP8F-MP8F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity A, OFNR
Part Number	Length (m)
MT-M3-R3R-12-MPOF-MPOF-A-0003M	3
MT-M3-R3R-12-MPOF-MPOF-A-0005M	5
MT-M3-R3R-12-MPOF-MPOF-A-0010M	10
MT-M3-R3R-12-MPOF-MPOF-A-0015M	15
MT-M3-R3R-12-MPOF-MPOF-A-0020M	20
MT-M3-R3R-12-MPOF-MPOF-A-0025M	25
MT-M3-R3R-12-MPOF-MPOF-A-0030M	30
MT-M3-R3R-12-MPOF-MPOF-A-0035M	35
MT-M3-R3R-12-MPOF-MPOF-A-0040M	40
MT-M3-R3R-12-MPOF-MPOF-A-0045M	45
MT-M3-R3R-12-MPOF-MPOF-A-0050M	50
Part Number	Length (ft)
MT-M3-R3R-12-MPOF-MPOF-A-0010F	10
MT-M3-R3R-12-MPOF-MPOF-A-0015F	15
MT-M3-R3R-12-MPOF-MPOF-A-0030F	30
MT-M3-R3R-12-MPOF-MPOF-A-0045F	45
MT-M3-R3R-12-MPOF-MPOF-A-0060F	60
MT-M3-R3R-12-MPOF-MPOF-A-0075F	75
MT-M3-R3R-12-MPOF-MPOF-A-0090F	90
MT-M3-R3R-12-MPOF-MPOF-A-0105F	105
MT-M3-R3R-12-MPOF-MPOF-A-0120F	120
MT-M3-R3R-12-MPOF-MPOF-A-0135F	135
MT-M3-R3R-12-MPOF-MPOF-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity B, OFNR
Part Number	Length (m)
MT-M3-R3R-12-MPOF-MPOF-B-0003M	3
MT-M3-R3R-12-MPOF-MPOF-B-0005M	5
MT-M3-R3R-12-MPOF-MPOF-B-0010M	10
MT-M3-R3R-12-MPOF-MPOF-B-0015M	15
MT-M3-R3R-12-MPOF-MPOF-B-0020M	20
MT-M3-R3R-12-MPOF-MPOF-B-0025M	25
MT-M3-R3R-12-MPOF-MPOF-B-0030M	30
MT-M3-R3R-12-MPOF-MPOF-B-0035M	35
MT-M3-R3R-12-MPOF-MPOF-B-0040M	40
MT-M3-R3R-12-MPOF-MPOF-B-0045M	45
MT-M3-R3R-12-MPOF-MPOF-B-0050M	50
Part Number	Length (ft)
MT-M3-R3R-12-MPOF-MPOF-B-0010F	10
MT-M3-R3R-12-MPOF-MPOF-B-0015F	15
MT-M3-R3R-12-MPOF-MPOF-B-0030F	30
MT-M3-R3R-12-MPOF-MPOF-B-0045F	45
MT-M3-R3R-12-MPOF-MPOF-B-0060F	60
MT-M3-R3R-12-MPOF-MPOF-B-0075F	75
MT-M3-R3R-12-MPOF-MPOF-B-0090F	90
MT-M3-R3R-12-MPOF-MPOF-B-0105F	105
MT-M3-R3R-12-MPOF-MPOF-B-0120F	120
MT-M3-R3R-12-MPOF-MPOF-B-0135F	135
MT-M3-R3R-12-MPOF-MPOF-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 12F, MPO-12 to MPO-12, Polarity C, OFNR
Part Number	Length (m)
MT-M3-R3R-12-MPOF-MPOF-C-0003M	3
MT-M3-R3R-12-MPOF-MPOF-C-0005M	5
MT-M3-R3R-12-MPOF-MPOF-C-0010M	10
MT-M3-R3R-12-MPOF-MPOF-C-0015M	15
MT-M3-R3R-12-MPOF-MPOF-C-0020M	20
MT-M3-R3R-12-MPOF-MPOF-C-0025M	25
MT-M3-R3R-12-MPOF-MPOF-C-0030M	30
MT-M3-R3R-12-MPOF-MPOF-C-0035M	35
MT-M3-R3R-12-MPOF-MPOF-C-0040M	40
MT-M3-R3R-12-MPOF-MPOF-C-0045M	45
MT-M3-R3R-12-MPOF-MPOF-C-0050M	50
Part Number	Length (ft)
MT-M3-R3R-12-MPOF-MPOF-C-0010F	10
MT-M3-R3R-12-MPOF-MPOF-C-0015F	15
MT-M3-R3R-12-MPOF-MPOF-C-0030F	30
MT-M3-R3R-12-MPOF-MPOF-C-0045F	45
MT-M3-R3R-12-MPOF-MPOF-C-0060F	60
MT-M3-R3R-12-MPOF-MPOF-C-0075F	75
MT-M3-R3R-12-MPOF-MPOF-C-0090F	90
MT-M3-R3R-12-MPOF-MPOF-C-0105F	105
MT-M3-R3R-12-MPOF-MPOF-C-0120F	120
MT-M3-R3R-12-MPOF-MPOF-C-0135F	135
MT-M3-R3R-12-MPOF-MPOF-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 16F, MPO-16 to MPO-16, Polarity A, OFNR
Part Number	Length (m)
MT-M3-R3R-16-MP16F-MP16F-A-0003M	3
MT-M3-R3R-16-MP16F-MP16F-A-0005M	5
MT-M3-R3R-16-MP16F-MP16F-A-0010M	10
MT-M3-R3R-16-MP16F-MP16F-A-0015M	15
MT-M3-R3R-16-MP16F-MP16F-A-0020M	20
MT-M3-R3R-16-MP16F-MP16F-A-0025M	25
MT-M3-R3R-16-MP16F-MP16F-A-0030M	30
MT-M3-R3R-16-MP16F-MP16F-A-0035M	35
MT-M3-R3R-16-MP16F-MP16F-A-0040M	40
MT-M3-R3R-16-MP16F-MP16F-A-0045M	45
MT-M3-R3R-16-MP16F-MP16F-A-0050M	50
Part Number	Length (ft)
MT-M3-R3R-16-MP16F-MP16F-A-0010F	10
MT-M3-R3R-16-MP16F-MP16F-A-0015F	15
MT-M3-R3R-16-MP16F-MP16F-A-0030F	30
MT-M3-R3R-16-MP16F-MP16F-A-0045F	45
MT-M3-R3R-16-MP16F-MP16F-A-0060F	60
MT-M3-R3R-16-MP16F-MP16F-A-0075F	75
MT-M3-R3R-16-MP16F-MP16F-A-0090F	90
MT-M3-R3R-16-MP16F-MP16F-A-0105F	105
MT-M3-R3R-16-MP16F-MP16F-A-0120F	120
MT-M3-R3R-16-MP16F-MP16F-A-0135F	135
MT-M3-R3R-16-MP16F-MP16F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 16F, MPO-16 to MPO-16, Polarity B, OFNR
Part Number	Length (m)
MT-M3-R3R-16-MP16F-MP16F-B-0003M	3
MT-M3-R3R-16-MP16F-MP16F-B-0005M	5
MT-M3-R3R-16-MP16F-MP16F-B-0010M	10
MT-M3-R3R-16-MP16F-MP16F-B-0015M	15
MT-M3-R3R-16-MP16F-MP16F-B-0020M	20
MT-M3-R3R-16-MP16F-MP16F-B-0025M	25
MT-M3-R3R-16-MP16F-MP16F-B-0030M	30
MT-M3-R3R-16-MP16F-MP16F-B-0035M	35
MT-M3-R3R-16-MP16F-MP16F-B-0040M	40
MT-M3-R3R-16-MP16F-MP16F-B-0045M	45
MT-M3-R3R-16-MP16F-MP16F-B-0050M	50
Part Number	Length (ft)
MT-M3-R3R-16-MP16F-MP16F-B-0010F	10
MT-M3-R3R-16-MP16F-MP16F-B-0015F	15
MT-M3-R3R-16-MP16F-MP16F-B-0030F	30
MT-M3-R3R-16-MP16F-MP16F-B-0045F	45
MT-M3-R3R-16-MP16F-MP16F-B-0060F	60
MT-M3-R3R-16-MP16F-MP16F-B-0075F	75
MT-M3-R3R-16-MP16F-MP16F-B-0090F	90
MT-M3-R3R-16-MP16F-MP16F-B-0105F	105
MT-M3-R3R-16-MP16F-MP16F-B-0120F	120
MT-M3-R3R-16-MP16F-MP16F-B-0135F	135
MT-M3-R3R-16-MP16F-MP16F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 16F, MPO-16 to MPO-16, Polarity C, OFNR
Part Number	Length (m)
MT-M3-R3R-16-MP16F-MP16F-C-0003M	3
MT-M3-R3R-16-MP16F-MP16F-C-0005M	5
MT-M3-R3R-16-MP16F-MP16F-C-0010M	10
MT-M3-R3R-16-MP16F-MP16F-C-0015M	15
MT-M3-R3R-16-MP16F-MP16F-C-0020M	20
MT-M3-R3R-16-MP16F-MP16F-C-0025M	25
MT-M3-R3R-16-MP16F-MP16F-C-0030M	30
MT-M3-R3R-16-MP16F-MP16F-C-0035M	35
MT-M3-R3R-16-MP16F-MP16F-C-0040M	40
MT-M3-R3R-16-MP16F-MP16F-C-0045M	45
MT-M3-R3R-16-MP16F-MP16F-C-0050M	50
Part Number	Length (ft)
MT-M3-R3R-16-MP16F-MP16F-C-0010F	10
MT-M3-R3R-16-MP16F-MP16F-C-0015F	15
MT-M3-R3R-16-MP16F-MP16F-C-0030F	30
MT-M3-R3R-16-MP16F-MP16F-C-0045F	45
MT-M3-R3R-16-MP16F-MP16F-C-0060F	60
MT-M3-R3R-16-MP16F-MP16F-C-0075F	75
MT-M3-R3R-16-MP16F-MP16F-C-0090F	90
MT-M3-R3R-16-MP16F-MP16F-C-0105F	105
MT-M3-R3R-16-MP16F-MP16F-C-0120F	120
MT-M3-R3R-16-MP16F-MP16F-C-0135F	135
MT-M3-R3R-16-MP16F-MP16F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity A, OFNR
Part Number	Length (m)
MT-M3-R3R-24-MP24F-MP24F-A-0003M	3
MT-M3-R3R-24-MP24F-MP24F-A-0005M	5
MT-M3-R3R-24-MP24F-MP24F-A-0010M	10
MT-M3-R3R-24-MP24F-MP24F-A-0015M	15
MT-M3-R3R-24-MP24F-MP24F-A-0020M	20
MT-M3-R3R-24-MP24F-MP24F-A-0025M	25
MT-M3-R3R-24-MP24F-MP24F-A-0030M	30
MT-M3-R3R-24-MP24F-MP24F-A-0035M	35
MT-M3-R3R-24-MP24F-MP24F-A-0040M	40
MT-M3-R3R-24-MP24F-MP24F-A-0045M	45
MT-M3-R3R-24-MP24F-MP24F-A-0050M	50
Part Number	Length (ft)
MT-M3-R3R-24-MP24F-MP24F-A-0010F	10
MT-M3-R3R-24-MP24F-MP24F-A-0015F	15
MT-M3-R3R-24-MP24F-MP24F-A-0030F	30
MT-M3-R3R-24-MP24F-MP24F-A-0045F	45
MT-M3-R3R-24-MP24F-MP24F-A-0060F	60
MT-M3-R3R-24-MP24F-MP24F-A-0075F	75
MT-M3-R3R-24-MP24F-MP24F-A-0090F	90
MT-M3-R3R-24-MP24F-MP24F-A-0105F	105
MT-M3-R3R-24-MP24F-MP24F-A-0120F	120
MT-M3-R3R-24-MP24F-MP24F-A-0135F	135
MT-M3-R3R-24-MP24F-MP24F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity B, OFNR
Part Number	Length (m)
MT-M3-R3R-24-MP24F-MP24F-B-0003M	3
MT-M3-R3R-24-MP24F-MP24F-B-0005M	5
MT-M3-R3R-24-MP24F-MP24F-B-0010M	10
MT-M3-R3R-24-MP24F-MP24F-B-0015M	15
MT-M3-R3R-24-MP24F-MP24F-B-0020M	20
MT-M3-R3R-24-MP24F-MP24F-B-0025M	25
MT-M3-R3R-24-MP24F-MP24F-B-0030M	30
MT-M3-R3R-24-MP24F-MP24F-B-0035M	35
MT-M3-R3R-24-MP24F-MP24F-B-0040M	40
MT-M3-R3R-24-MP24F-MP24F-B-0045M	45
MT-M3-R3R-24-MP24F-MP24F-B-0050M	50
Part Number	Length (ft)
MT-M3-R3R-24-MP24F-MP24F-B-0010F	10
MT-M3-R3R-24-MP24F-MP24F-B-0015F	15
MT-M3-R3R-24-MP24F-MP24F-B-0030F	30
MT-M3-R3R-24-MP24F-MP24F-B-0045F	45
MT-M3-R3R-24-MP24F-MP24F-B-0060F	60
MT-M3-R3R-24-MP24F-MP24F-B-0075F	75
MT-M3-R3R-24-MP24F-MP24F-B-0090F	90
MT-M3-R3R-24-MP24F-MP24F-B-0105F	105
MT-M3-R3R-24-MP24F-MP24F-B-0120F	120
MT-M3-R3R-24-MP24F-MP24F-B-0135F	135
MT-M3-R3R-24-MP24F-MP24F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM3), 24F, MPO-24 to MPO-24, Polarity C, OFNR
Part Number	Length (m)
MT-M3-R3R-24-MP24F-MP24F-C-0003M	3
MT-M3-R3R-24-MP24F-MP24F-C-0005M	5
MT-M3-R3R-24-MP24F-MP24F-C-0010M	10
MT-M3-R3R-24-MP24F-MP24F-C-0015M	15
MT-M3-R3R-24-MP24F-MP24F-C-0020M	20
MT-M3-R3R-24-MP24F-MP24F-C-0025M	25
MT-M3-R3R-24-MP24F-MP24F-C-0030M	30
MT-M3-R3R-24-MP24F-MP24F-C-0035M	35
MT-M3-R3R-24-MP24F-MP24F-C-0040M	40
MT-M3-R3R-24-MP24F-MP24F-C-0045M	45
MT-M3-R3R-24-MP24F-MP24F-C-0050M	50
Part Number	Length (ft)
MT-M3-R3R-24-MP24F-MP24F-C-0010F	10
MT-M3-R3R-24-MP24F-MP24F-C-0015F	15
MT-M3-R3R-24-MP24F-MP24F-C-0030F	30
MT-M3-R3R-24-MP24F-MP24F-C-0045F	45
MT-M3-R3R-24-MP24F-MP24F-C-0060F	60
MT-M3-R3R-24-MP24F-MP24F-C-0075F	75
MT-M3-R3R-24-MP24F-MP24F-C-0090F	90
MT-M3-R3R-24-MP24F-MP24F-C-0105F	105
MT-M3-R3R-24-MP24F-MP24F-C-0120F	120
MT-M3-R3R-24-MP24F-MP24F-C-0135F	135
MT-M3-R3R-24-MP24F-MP24F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity A, OFNR
Part Number	Length (m)
MT-M4-R3R-8-MP8F-MP8F-A-0003M	3
MT-M4-R3R-8-MP8F-MP8F-A-0005M	5
MT-M4-R3R-8-MP8F-MP8F-A-0010M	10
MT-M4-R3R-8-MP8F-MP8F-A-0015M	15
MT-M4-R3R-8-MP8F-MP8F-A-0020M	20
MT-M4-R3R-8-MP8F-MP8F-A-0025M	25
MT-M4-R3R-8-MP8F-MP8F-A-0030M	30
MT-M4-R3R-8-MP8F-MP8F-A-0035M	35
MT-M4-R3R-8-MP8F-MP8F-A-0040M	40
MT-M4-R3R-8-MP8F-MP8F-A-0045M	45
MT-M4-R3R-8-MP8F-MP8F-A-0050M	50
Part Number	Length (ft)
MT-M4-R3R-8-MP8F-MP8F-A-0010F	10
MT-M4-R3R-8-MP8F-MP8F-A-0015F	15
MT-M4-R3R-8-MP8F-MP8F-A-0030F	30
MT-M4-R3R-8-MP8F-MP8F-A-0045F	45
MT-M4-R3R-8-MP8F-MP8F-A-0060F	60
MT-M4-R3R-8-MP8F-MP8F-A-0075F	75
MT-M4-R3R-8-MP8F-MP8F-A-0090F	90
MT-M4-R3R-8-MP8F-MP8F-A-0105F	105
MT-M4-R3R-8-MP8F-MP8F-A-0120F	120
MT-M4-R3R-8-MP8F-MP8F-A-0135F	135
MT-M4-R3R-8-MP8F-MP8F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity B, OFNR
Part Number	Length (m)
MT-M4-R3R-8-MP8F-MP8F-B-0003M	3
MT-M4-R3R-8-MP8F-MP8F-B-0005M	5
MT-M4-R3R-8-MP8F-MP8F-B-0010M	10
MT-M4-R3R-8-MP8F-MP8F-B-0015M	15
MT-M4-R3R-8-MP8F-MP8F-B-0020M	20
MT-M4-R3R-8-MP8F-MP8F-B-0025M	25
MT-M4-R3R-8-MP8F-MP8F-B-0030M	30
MT-M4-R3R-8-MP8F-MP8F-B-0035M	35
MT-M4-R3R-8-MP8F-MP8F-B-0040M	40
MT-M4-R3R-8-MP8F-MP8F-B-0045M	45
MT-M4-R3R-8-MP8F-MP8F-B-0050M	50
Part Number	Length (ft)
MT-M4-R3R-8-MP8F-MP8F-B-0010F	10
MT-M4-R3R-8-MP8F-MP8F-B-0015F	15
MT-M4-R3R-8-MP8F-MP8F-B-0030F	30
MT-M4-R3R-8-MP8F-MP8F-B-0045F	45
MT-M4-R3R-8-MP8F-MP8F-B-0060F	60
MT-M4-R3R-8-MP8F-MP8F-B-0075F	75
MT-M4-R3R-8-MP8F-MP8F-B-0090F	90
MT-M4-R3R-8-MP8F-MP8F-B-0105F	105
MT-M4-R3R-8-MP8F-MP8F-B-0120F	120
MT-M4-R3R-8-MP8F-MP8F-B-0135F	135
MT-M4-R3R-8-MP8F-MP8F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 8F, MPO-8 to MPO-8, Polarity C, OFNR
Part Number	Length (m)
MT-M4-R3R-8-MP8F-MP8F-C-0003M	3
MT-M4-R3R-8-MP8F-MP8F-C-0005M	5
MT-M4-R3R-8-MP8F-MP8F-C-0010M	10
MT-M4-R3R-8-MP8F-MP8F-C-0015M	15
MT-M4-R3R-8-MP8F-MP8F-C-0020M	20
MT-M4-R3R-8-MP8F-MP8F-C-0025M	25
MT-M4-R3R-8-MP8F-MP8F-C-0030M	30
MT-M4-R3R-8-MP8F-MP8F-C-0035M	35
MT-M4-R3R-8-MP8F-MP8F-C-0040M	40
MT-M4-R3R-8-MP8F-MP8F-C-0045M	45
MT-M4-R3R-8-MP8F-MP8F-C-0050M	50
Part Number	Length (ft)
MT-M4-R3R-8-MP8F-MP8F-C-0010F	10
MT-M4-R3R-8-MP8F-MP8F-C-0015F	15
MT-M4-R3R-8-MP8F-MP8F-C-0030F	30
MT-M4-R3R-8-MP8F-MP8F-C-0045F	45
MT-M4-R3R-8-MP8F-MP8F-C-0060F	60
MT-M4-R3R-8-MP8F-MP8F-C-0075F	75
MT-M4-R3R-8-MP8F-MP8F-C-0090F	90
MT-M4-R3R-8-MP8F-MP8F-C-0105F	105
MT-M4-R3R-8-MP8F-MP8F-C-0120F	120
MT-M4-R3R-8-MP8F-MP8F-C-0135F	135
MT-M4-R3R-8-MP8F-MP8F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity A, OFNR
Part Number	Length (m)
MT-M4-R3R-12-MPOF-MPOF-A-0003M	3
MT-M4-R3R-12-MPOF-MPOF-A-0005M	5
MT-M4-R3R-12-MPOF-MPOF-A-0010M	10
MT-M4-R3R-12-MPOF-MPOF-A-0015M	15
MT-M4-R3R-12-MPOF-MPOF-A-0020M	20
MT-M4-R3R-12-MPOF-MPOF-A-0025M	25
MT-M4-R3R-12-MPOF-MPOF-A-0030M	30
MT-M4-R3R-12-MPOF-MPOF-A-0035M	35
MT-M4-R3R-12-MPOF-MPOF-A-0040M	40
MT-M4-R3R-12-MPOF-MPOF-A-0045M	45
MT-M4-R3R-12-MPOF-MPOF-A-0050M	50
Part Number	Length (ft)
MT-M4-R3R-12-MPOF-MPOF-A-0010F	10
MT-M4-R3R-12-MPOF-MPOF-A-0015F	15
MT-M4-R3R-12-MPOF-MPOF-A-0030F	30
MT-M4-R3R-12-MPOF-MPOF-A-0045F	45
MT-M4-R3R-12-MPOF-MPOF-A-0060F	60
MT-M4-R3R-12-MPOF-MPOF-A-0075F	75
MT-M4-R3R-12-MPOF-MPOF-A-0090F	90
MT-M4-R3R-12-MPOF-MPOF-A-0105F	105
MT-M4-R3R-12-MPOF-MPOF-A-0120F	120
MT-M4-R3R-12-MPOF-MPOF-A-0135F	135
MT-M4-R3R-12-MPOF-MPOF-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity B, OFNR
Part Number	Length (m)
MT-M4-R3R-12-MPOF-MPOF-B-0003M	3
MT-M4-R3R-12-MPOF-MPOF-B-0005M	5
MT-M4-R3R-12-MPOF-MPOF-B-0010M	10
MT-M4-R3R-12-MPOF-MPOF-B-0015M	15
MT-M4-R3R-12-MPOF-MPOF-B-0020M	20
MT-M4-R3R-12-MPOF-MPOF-B-0025M	25
MT-M4-R3R-12-MPOF-MPOF-B-0030M	30
MT-M4-R3R-12-MPOF-MPOF-B-0035M	35
MT-M4-R3R-12-MPOF-MPOF-B-0040M	40
MT-M4-R3R-12-MPOF-MPOF-B-0045M	45
MT-M4-R3R-12-MPOF-MPOF-B-0050M	50
Part Number	Length (ft)
MT-M4-R3R-12-MPOF-MPOF-B-0010F	10
MT-M4-R3R-12-MPOF-MPOF-B-0015F	15
MT-M4-R3R-12-MPOF-MPOF-B-0030F	30
MT-M4-R3R-12-MPOF-MPOF-B-0045F	45
MT-M4-R3R-12-MPOF-MPOF-B-0060F	60
MT-M4-R3R-12-MPOF-MPOF-B-0075F	75
MT-M4-R3R-12-MPOF-MPOF-B-0090F	90
MT-M4-R3R-12-MPOF-MPOF-B-0105F	105
MT-M4-R3R-12-MPOF-MPOF-B-0120F	120
MT-M4-R3R-12-MPOF-MPOF-B-0135F	135
MT-M4-R3R-12-MPOF-MPOF-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 12F, MPO-12 to MPO-12, Polarity C, OFNR
Part Number	Length (m)
MT-M4-R3R-12-MPOF-MPOF-C-0003M	3
MT-M4-R3R-12-MPOF-MPOF-C-0005M	5
MT-M4-R3R-12-MPOF-MPOF-C-0010M	10
MT-M4-R3R-12-MPOF-MPOF-C-0015M	15
MT-M4-R3R-12-MPOF-MPOF-C-0020M	20
MT-M4-R3R-12-MPOF-MPOF-C-0025M	25
MT-M4-R3R-12-MPOF-MPOF-C-0030M	30
MT-M4-R3R-12-MPOF-MPOF-C-0035M	35
MT-M4-R3R-12-MPOF-MPOF-C-0040M	40
MT-M4-R3R-12-MPOF-MPOF-C-0045M	45
MT-M4-R3R-12-MPOF-MPOF-C-0050M	50
Part Number	Length (ft)
MT-M4-R3R-12-MPOF-MPOF-C-0010F	10
MT-M4-R3R-12-MPOF-MPOF-C-0015F	15
MT-M4-R3R-12-MPOF-MPOF-C-0030F	30
MT-M4-R3R-12-MPOF-MPOF-C-0045F	45
MT-M4-R3R-12-MPOF-MPOF-C-0060F	60
MT-M4-R3R-12-MPOF-MPOF-C-0075F	75
MT-M4-R3R-12-MPOF-MPOF-C-0090F	90
MT-M4-R3R-12-MPOF-MPOF-C-0105F	105
MT-M4-R3R-12-MPOF-MPOF-C-0120F	120
MT-M4-R3R-12-MPOF-MPOF-C-0135F	135
MT-M4-R3R-12-MPOF-MPOF-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 16F, MPO-16 to MPO-16, Polarity A, OFNR
Part Number	Length (m)
MT-M4-R3R-16-MP16F-MP16F-A-0003M	3
MT-M4-R3R-16-MP16F-MP16F-A-0005M	5
MT-M4-R3R-16-MP16F-MP16F-A-0010M	10
MT-M4-R3R-16-MP16F-MP16F-A-0015M	15
MT-M4-R3R-16-MP16F-MP16F-A-0020M	20
MT-M4-R3R-16-MP16F-MP16F-A-0025M	25
MT-M4-R3R-16-MP16F-MP16F-A-0030M	30
MT-M4-R3R-16-MP16F-MP16F-A-0035M	35
MT-M4-R3R-16-MP16F-MP16F-A-0040M	40
MT-M4-R3R-16-MP16F-MP16F-A-0045M	45
MT-M4-R3R-16-MP16F-MP16F-A-0050M	50
Part Number	Length (ft)
MT-M4-R3R-16-MP16F-MP16F-A-0010F	10
MT-M4-R3R-16-MP16F-MP16F-A-0015F	15
MT-M4-R3R-16-MP16F-MP16F-A-0030F	30
MT-M4-R3R-16-MP16F-MP16F-A-0045F	45
MT-M4-R3R-16-MP16F-MP16F-A-0060F	60
MT-M4-R3R-16-MP16F-MP16F-A-0075F	75
MT-M4-R3R-16-MP16F-MP16F-A-0090F	90
MT-M4-R3R-16-MP16F-MP16F-A-0105F	105
MT-M4-R3R-16-MP16F-MP16F-A-0120F	120
MT-M4-R3R-16-MP16F-MP16F-A-0135F	135
MT-M4-R3R-16-MP16F-MP16F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 16F, MPO-16 to MPO-16, Polarity B, OFNR
Part Number	Length (m)
MT-M4-R3R-16-MP16F-MP16F-B-0003M	3
MT-M4-R3R-16-MP16F-MP16F-B-0005M	5
MT-M4-R3R-16-MP16F-MP16F-B-0010M	10
MT-M4-R3R-16-MP16F-MP16F-B-0015M	15
MT-M4-R3R-16-MP16F-MP16F-B-0020M	20
MT-M4-R3R-16-MP16F-MP16F-B-0025M	25
MT-M4-R3R-16-MP16F-MP16F-B-0030M	30
MT-M4-R3R-16-MP16F-MP16F-B-0035M	35
MT-M4-R3R-16-MP16F-MP16F-B-0040M	40
MT-M4-R3R-16-MP16F-MP16F-B-0045M	45
MT-M4-R3R-16-MP16F-MP16F-B-0050M	50
Part Number	Length (ft)
MT-M4-R3R-16-MP16F-MP16F-B-0010F	10
MT-M4-R3R-16-MP16F-MP16F-B-0015F	15
MT-M4-R3R-16-MP16F-MP16F-B-0030F	30
MT-M4-R3R-16-MP16F-MP16F-B-0045F	45
MT-M4-R3R-16-MP16F-MP16F-B-0060F	60
MT-M4-R3R-16-MP16F-MP16F-B-0075F	75
MT-M4-R3R-16-MP16F-MP16F-B-0090F	90
MT-M4-R3R-16-MP16F-MP16F-B-0105F	105
MT-M4-R3R-16-MP16F-MP16F-B-0120F	120
MT-M4-R3R-16-MP16F-MP16F-B-0135F	135
MT-M4-R3R-16-MP16F-MP16F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 16F, MPO-16 to MPO-16, Polarity C, OFNR
Part Number	Length (m)
MT-M4-R3R-16-MP16F-MP16F-C-0003M	3
MT-M4-R3R-16-MP16F-MP16F-C-0005M	5
MT-M4-R3R-16-MP16F-MP16F-C-0010M	10
MT-M4-R3R-16-MP16F-MP16F-C-0015M	15
MT-M4-R3R-16-MP16F-MP16F-C-0020M	20
MT-M4-R3R-16-MP16F-MP16F-C-0025M	25
MT-M4-R3R-16-MP16F-MP16F-C-0030M	30
MT-M4-R3R-16-MP16F-MP16F-C-0035M	35
MT-M4-R3R-16-MP16F-MP16F-C-0040M	40
MT-M4-R3R-16-MP16F-MP16F-C-0045M	45
MT-M4-R3R-16-MP16F-MP16F-C-0050M	50
Part Number	Length (ft)
MT-M4-R3R-16-MP16F-MP16F-C-0010F	10
MT-M4-R3R-16-MP16F-MP16F-C-0015F	15
MT-M4-R3R-16-MP16F-MP16F-C-0030F	30
MT-M4-R3R-16-MP16F-MP16F-C-0045F	45
MT-M4-R3R-16-MP16F-MP16F-C-0060F	60
MT-M4-R3R-16-MP16F-MP16F-C-0075F	75
MT-M4-R3R-16-MP16F-MP16F-C-0090F	90
MT-M4-R3R-16-MP16F-MP16F-C-0105F	105
MT-M4-R3R-16-MP16F-MP16F-C-0120F	120
MT-M4-R3R-16-MP16F-MP16F-C-0135F	135
MT-M4-R3R-16-MP16F-MP16F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity A, OFNR
Part Number	Length (m)
MT-M4-R3R-24-MP24F-MP24F-A-0003M	3
MT-M4-R3R-24-MP24F-MP24F-A-0005M	5
MT-M4-R3R-24-MP24F-MP24F-A-0010M	10
MT-M4-R3R-24-MP24F-MP24F-A-0015M	15
MT-M4-R3R-24-MP24F-MP24F-A-0020M	20
MT-M4-R3R-24-MP24F-MP24F-A-0025M	25
MT-M4-R3R-24-MP24F-MP24F-A-0030M	30
MT-M4-R3R-24-MP24F-MP24F-A-0035M	35
MT-M4-R3R-24-MP24F-MP24F-A-0040M	40
MT-M4-R3R-24-MP24F-MP24F-A-0045M	45
MT-M4-R3R-24-MP24F-MP24F-A-0050M	50
Part Number	Length (ft)
MT-M4-R3R-24-MP24F-MP24F-A-0010F	10
MT-M4-R3R-24-MP24F-MP24F-A-0015F	15
MT-M4-R3R-24-MP24F-MP24F-A-0030F	30
MT-M4-R3R-24-MP24F-MP24F-A-0045F	45
MT-M4-R3R-24-MP24F-MP24F-A-0060F	60
MT-M4-R3R-24-MP24F-MP24F-A-0075F	75
MT-M4-R3R-24-MP24F-MP24F-A-0090F	90
MT-M4-R3R-24-MP24F-MP24F-A-0105F	105
MT-M4-R3R-24-MP24F-MP24F-A-0120F	120
MT-M4-R3R-24-MP24F-MP24F-A-0135F	135
MT-M4-R3R-24-MP24F-MP24F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity B, OFNR
Part Number	Length (m)
MT-M4-R3R-24-MP24F-MP24F-B-0003M	3
MT-M4-R3R-24-MP24F-MP24F-B-0005M	5
MT-M4-R3R-24-MP24F-MP24F-B-0010M	10
MT-M4-R3R-24-MP24F-MP24F-B-0015M	15
MT-M4-R3R-24-MP24F-MP24F-B-0020M	20
MT-M4-R3R-24-MP24F-MP24F-B-0025M	25
MT-M4-R3R-24-MP24F-MP24F-B-0030M	30
MT-M4-R3R-24-MP24F-MP24F-B-0035M	35
MT-M4-R3R-24-MP24F-MP24F-B-0040M	40
MT-M4-R3R-24-MP24F-MP24F-B-0045M	45
MT-M4-R3R-24-MP24F-MP24F-B-0050M	50
Part Number	Length (ft)
MT-M4-R3R-24-MP24F-MP24F-B-0010F	10
MT-M4-R3R-24-MP24F-MP24F-B-0015F	15
MT-M4-R3R-24-MP24F-MP24F-B-0030F	30
MT-M4-R3R-24-MP24F-MP24F-B-0045F	45
MT-M4-R3R-24-MP24F-MP24F-B-0060F	60
MT-M4-R3R-24-MP24F-MP24F-B-0075F	75
MT-M4-R3R-24-MP24F-MP24F-B-0090F	90
MT-M4-R3R-24-MP24F-MP24F-B-0105F	105
MT-M4-R3R-24-MP24F-MP24F-B-0120F	120
MT-M4-R3R-24-MP24F-MP24F-B-0135F	135
MT-M4-R3R-24-MP24F-MP24F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM4), 24F, MPO-24 to MPO-24, Polarity C, OFNR
Part Number	Length (m)
MT-M4-R3R-24-MP24F-MP24F-C-0003M	3
MT-M4-R3R-24-MP24F-MP24F-C-0005M	5
MT-M4-R3R-24-MP24F-MP24F-C-0010M	10
MT-M4-R3R-24-MP24F-MP24F-C-0015M	15
MT-M4-R3R-24-MP24F-MP24F-C-0020M	20
MT-M4-R3R-24-MP24F-MP24F-C-0025M	25
MT-M4-R3R-24-MP24F-MP24F-C-0030M	30
MT-M4-R3R-24-MP24F-MP24F-C-0035M	35
MT-M4-R3R-24-MP24F-MP24F-C-0040M	40
MT-M4-R3R-24-MP24F-MP24F-C-0045M	45
MT-M4-R3R-24-MP24F-MP24F-C-0050M	50
Part Number	Length (ft)
MT-M4-R3R-24-MP24F-MP24F-C-0010F	10
MT-M4-R3R-24-MP24F-MP24F-C-0015F	15
MT-M4-R3R-24-MP24F-MP24F-C-0030F	30
MT-M4-R3R-24-MP24F-MP24F-C-0045F	45
MT-M4-R3R-24-MP24F-MP24F-C-0060F	60
MT-M4-R3R-24-MP24F-MP24F-C-0075F	75
MT-M4-R3R-24-MP24F-MP24F-C-0090F	90
MT-M4-R3R-24-MP24F-MP24F-C-0105F	105
MT-M4-R3R-24-MP24F-MP24F-C-0120F	120
MT-M4-R3R-24-MP24F-MP24F-C-0135F	135
MT-M4-R3R-24-MP24F-MP24F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity A, OFNR
Part Number	Length (m)
MT-M5-R3R-8-MP8F-MP8F-A-0003M	3
MT-M5-R3R-8-MP8F-MP8F-A-0005M	5
MT-M5-R3R-8-MP8F-MP8F-A-0010M	10
MT-M5-R3R-8-MP8F-MP8F-A-0015M	15
MT-M5-R3R-8-MP8F-MP8F-A-0020M	20
MT-M5-R3R-8-MP8F-MP8F-A-0025M	25
MT-M5-R3R-8-MP8F-MP8F-A-0030M	30
MT-M5-R3R-8-MP8F-MP8F-A-0035M	35
MT-M5-R3R-8-MP8F-MP8F-A-0040M	40
MT-M5-R3R-8-MP8F-MP8F-A-0045M	45
MT-M5-R3R-8-MP8F-MP8F-A-0050M	50
Part Number	Length (ft)
MT-M5-R3R-8-MP8F-MP8F-A-0010F	10
MT-M5-R3R-8-MP8F-MP8F-A-0015F	15
MT-M5-R3R-8-MP8F-MP8F-A-0030F	30
MT-M5-R3R-8-MP8F-MP8F-A-0045F	45
MT-M5-R3R-8-MP8F-MP8F-A-0060F	60
MT-M5-R3R-8-MP8F-MP8F-A-0075F	75
MT-M5-R3R-8-MP8F-MP8F-A-0090F	90
MT-M5-R3R-8-MP8F-MP8F-A-0105F	105
MT-M5-R3R-8-MP8F-MP8F-A-0120F	120
MT-M5-R3R-8-MP8F-MP8F-A-0135F	135
MT-M5-R3R-8-MP8F-MP8F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity B, OFNR
Part Number	Length (m)
MT-M5-R3R-8-MP8F-MP8F-B-0003M	3
MT-M5-R3R-8-MP8F-MP8F-B-0005M	5
MT-M5-R3R-8-MP8F-MP8F-B-0010M	10
MT-M5-R3R-8-MP8F-MP8F-B-0015M	15
MT-M5-R3R-8-MP8F-MP8F-B-0020M	20
MT-M5-R3R-8-MP8F-MP8F-B-0025M	25
MT-M5-R3R-8-MP8F-MP8F-B-0030M	30
MT-M5-R3R-8-MP8F-MP8F-B-0035M	35
MT-M5-R3R-8-MP8F-MP8F-B-0040M	40
MT-M5-R3R-8-MP8F-MP8F-B-0045M	45
MT-M5-R3R-8-MP8F-MP8F-B-0050M	50
Part Number	Length (ft)
MT-M5-R3R-8-MP8F-MP8F-B-0010F	10
MT-M5-R3R-8-MP8F-MP8F-B-0015F	15
MT-M5-R3R-8-MP8F-MP8F-B-0030F	30
MT-M5-R3R-8-MP8F-MP8F-B-0045F	45
MT-M5-R3R-8-MP8F-MP8F-B-0060F	60
MT-M5-R3R-8-MP8F-MP8F-B-0075F	75
MT-M5-R3R-8-MP8F-MP8F-B-0090F	90
MT-M5-R3R-8-MP8F-MP8F-B-0105F	105
MT-M5-R3R-8-MP8F-MP8F-B-0120F	120
MT-M5-R3R-8-MP8F-MP8F-B-0135F	135
MT-M5-R3R-8-MP8F-MP8F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 8F, MPO-8 to MPO-8, Polarity C, OFNR
Part Number	Length (m)
MT-M5-R3R-8-MP8F-MP8F-C-0003M	3
MT-M5-R3R-8-MP8F-MP8F-C-0005M	5
MT-M5-R3R-8-MP8F-MP8F-C-0010M	10
MT-M5-R3R-8-MP8F-MP8F-C-0015M	15
MT-M5-R3R-8-MP8F-MP8F-C-0020M	20
MT-M5-R3R-8-MP8F-MP8F-C-0025M	25
MT-M5-R3R-8-MP8F-MP8F-C-0030M	30
MT-M5-R3R-8-MP8F-MP8F-C-0035M	35
MT-M5-R3R-8-MP8F-MP8F-C-0040M	40
MT-M5-R3R-8-MP8F-MP8F-C-0045M	45
MT-M5-R3R-8-MP8F-MP8F-C-0050M	50
Part Number	Length (ft)
MT-M5-R3R-8-MP8F-MP8F-C-0010F	10
MT-M5-R3R-8-MP8F-MP8F-C-0015F	15
MT-M5-R3R-8-MP8F-MP8F-C-0030F	30
MT-M5-R3R-8-MP8F-MP8F-C-0045F	45
MT-M5-R3R-8-MP8F-MP8F-C-0060F	60
MT-M5-R3R-8-MP8F-MP8F-C-0075F	75
MT-M5-R3R-8-MP8F-MP8F-C-0090F	90
MT-M5-R3R-8-MP8F-MP8F-C-0105F	105
MT-M5-R3R-8-MP8F-MP8F-C-0120F	120
MT-M5-R3R-8-MP8F-MP8F-C-0135F	135
MT-M5-R3R-8-MP8F-MP8F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity A, OFNR
Part Number	Length (m)
MT-M5-R3R-12-MPOF-MPOF-A-0003M	3
MT-M5-R3R-12-MPOF-MPOF-A-0005M	5
MT-M5-R3R-12-MPOF-MPOF-A-0010M	10
MT-M5-R3R-12-MPOF-MPOF-A-0015M	15
MT-M5-R3R-12-MPOF-MPOF-A-0020M	20
MT-M5-R3R-12-MPOF-MPOF-A-0025M	25
MT-M5-R3R-12-MPOF-MPOF-A-0030M	30
MT-M5-R3R-12-MPOF-MPOF-A-0035M	35
MT-M5-R3R-12-MPOF-MPOF-A-0040M	40
MT-M5-R3R-12-MPOF-MPOF-A-0045M	45
MT-M5-R3R-12-MPOF-MPOF-A-0050M	50
Part Number	Length (ft)
MT-M5-R3R-12-MPOF-MPOF-A-0010F	10
MT-M5-R3R-12-MPOF-MPOF-A-0015F	15
MT-M5-R3R-12-MPOF-MPOF-A-0030F	30
MT-M5-R3R-12-MPOF-MPOF-A-0045F	45
MT-M5-R3R-12-MPOF-MPOF-A-0060F	60
MT-M5-R3R-12-MPOF-MPOF-A-0075F	75
MT-M5-R3R-12-MPOF-MPOF-A-0090F	90
MT-M5-R3R-12-MPOF-MPOF-A-0105F	105
MT-M5-R3R-12-MPOF-MPOF-A-0120F	120
MT-M5-R3R-12-MPOF-MPOF-A-0135F	135
MT-M5-R3R-12-MPOF-MPOF-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity B, OFNR
Part Number	Length (m)
MT-M5-R3R-12-MPOF-MPOF-B-0003M	3
MT-M5-R3R-12-MPOF-MPOF-B-0005M	5
MT-M5-R3R-12-MPOF-MPOF-B-0010M	10
MT-M5-R3R-12-MPOF-MPOF-B-0015M	15
MT-M5-R3R-12-MPOF-MPOF-B-0020M	20
MT-M5-R3R-12-MPOF-MPOF-B-0025M	25
MT-M5-R3R-12-MPOF-MPOF-B-0030M	30
MT-M5-R3R-12-MPOF-MPOF-B-0035M	35
MT-M5-R3R-12-MPOF-MPOF-B-0040M	40
MT-M5-R3R-12-MPOF-MPOF-B-0045M	45
MT-M5-R3R-12-MPOF-MPOF-B-0050M	50
Part Number	Length (ft)
MT-M5-R3R-12-MPOF-MPOF-B-0010F	10
MT-M5-R3R-12-MPOF-MPOF-B-0015F	15
MT-M5-R3R-12-MPOF-MPOF-B-0030F	30
MT-M5-R3R-12-MPOF-MPOF-B-0045F	45
MT-M5-R3R-12-MPOF-MPOF-B-0060F	60
MT-M5-R3R-12-MPOF-MPOF-B-0075F	75
MT-M5-R3R-12-MPOF-MPOF-B-0090F	90
MT-M5-R3R-12-MPOF-MPOF-B-0105F	105
MT-M5-R3R-12-MPOF-MPOF-B-0120F	120
MT-M5-R3R-12-MPOF-MPOF-B-0135F	135
MT-M5-R3R-12-MPOF-MPOF-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 12F, MPO-12 to MPO-12, Polarity C, OFNR
Part Number	Length (m)
MT-M5-R3R-12-MPOF-MPOF-C-0003M	3
MT-M5-R3R-12-MPOF-MPOF-C-0005M	5
MT-M5-R3R-12-MPOF-MPOF-C-0010M	10
MT-M5-R3R-12-MPOF-MPOF-C-0015M	15
MT-M5-R3R-12-MPOF-MPOF-C-0020M	20
MT-M5-R3R-12-MPOF-MPOF-C-0025M	25
MT-M5-R3R-12-MPOF-MPOF-C-0030M	30
MT-M5-R3R-12-MPOF-MPOF-C-0035M	35
MT-M5-R3R-12-MPOF-MPOF-C-0040M	40
MT-M5-R3R-12-MPOF-MPOF-C-0045M	45
MT-M5-R3R-12-MPOF-MPOF-C-0050M	50
Part Number	Length (ft)
MT-M5-R3R-12-MPOF-MPOF-C-0010F	10
MT-M5-R3R-12-MPOF-MPOF-C-0015F	15
MT-M5-R3R-12-MPOF-MPOF-C-0030F	30
MT-M5-R3R-12-MPOF-MPOF-C-0045F	45
MT-M5-R3R-12-MPOF-MPOF-C-0060F	60
MT-M5-R3R-12-MPOF-MPOF-C-0075F	75
MT-M5-R3R-12-MPOF-MPOF-C-0090F	90
MT-M5-R3R-12-MPOF-MPOF-C-0105F	105
MT-M5-R3R-12-MPOF-MPOF-C-0120F	120
MT-M5-R3R-12-MPOF-MPOF-C-0135F	135
MT-M5-R3R-12-MPOF-MPOF-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 16F, MPO-16 to MPO-16, Polarity A, OFNR
Part Number	Length (m)
MT-M5-R3R-16-MP16F-MP16F-A-0003M	3
MT-M5-R3R-16-MP16F-MP16F-A-0005M	5
MT-M5-R3R-16-MP16F-MP16F-A-0010M	10
MT-M5-R3R-16-MP16F-MP16F-A-0015M	15
MT-M5-R3R-16-MP16F-MP16F-A-0020M	20
MT-M5-R3R-16-MP16F-MP16F-A-0025M	25
MT-M5-R3R-16-MP16F-MP16F-A-0030M	30
MT-M5-R3R-16-MP16F-MP16F-A-0035M	35
MT-M5-R3R-16-MP16F-MP16F-A-0040M	40
MT-M5-R3R-16-MP16F-MP16F-A-0045M	45
MT-M5-R3R-16-MP16F-MP16F-A-0050M	50
Part Number	Length (ft)
MT-M5-R3R-16-MP16F-MP16F-A-0010F	10
MT-M5-R3R-16-MP16F-MP16F-A-0015F	15
MT-M5-R3R-16-MP16F-MP16F-A-0030F	30
MT-M5-R3R-16-MP16F-MP16F-A-0045F	45
MT-M5-R3R-16-MP16F-MP16F-A-0060F	60
MT-M5-R3R-16-MP16F-MP16F-A-0075F	75
MT-M5-R3R-16-MP16F-MP16F-A-0090F	90
MT-M5-R3R-16-MP16F-MP16F-A-0105F	105
MT-M5-R3R-16-MP16F-MP16F-A-0120F	120
MT-M5-R3R-16-MP16F-MP16F-A-0135F	135
MT-M5-R3R-16-MP16F-MP16F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 16F, MPO-16 to MPO-16, Polarity B, OFNR
Part Number	Length (m)
MT-M5-R3R-16-MP16F-MP16F-B-0003M	3
MT-M5-R3R-16-MP16F-MP16F-B-0005M	5
MT-M5-R3R-16-MP16F-MP16F-B-0010M	10
MT-M5-R3R-16-MP16F-MP16F-B-0015M	15
MT-M5-R3R-16-MP16F-MP16F-B-0020M	20
MT-M5-R3R-16-MP16F-MP16F-B-0025M	25
MT-M5-R3R-16-MP16F-MP16F-B-0030M	30
MT-M5-R3R-16-MP16F-MP16F-B-0035M	35
MT-M5-R3R-16-MP16F-MP16F-B-0040M	40
MT-M5-R3R-16-MP16F-MP16F-B-0045M	45
MT-M5-R3R-16-MP16F-MP16F-B-0050M	50
Part Number	Length (ft)
MT-M5-R3R-16-MP16F-MP16F-B-0010F	10
MT-M5-R3R-16-MP16F-MP16F-B-0015F	15
MT-M5-R3R-16-MP16F-MP16F-B-0030F	30
MT-M5-R3R-16-MP16F-MP16F-B-0045F	45
MT-M5-R3R-16-MP16F-MP16F-B-0060F	60
MT-M5-R3R-16-MP16F-MP16F-B-0075F	75
MT-M5-R3R-16-MP16F-MP16F-B-0090F	90
MT-M5-R3R-16-MP16F-MP16F-B-0105F	105
MT-M5-R3R-16-MP16F-MP16F-B-0120F	120
MT-M5-R3R-16-MP16F-MP16F-B-0135F	135
MT-M5-R3R-16-MP16F-MP16F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 16F, MPO-16 to MPO-16, Polarity C, OFNR
Part Number	Length (m)
MT-M5-R3R-16-MP16F-MP16F-C-0003M	3
MT-M5-R3R-16-MP16F-MP16F-C-0005M	5
MT-M5-R3R-16-MP16F-MP16F-C-0010M	10
MT-M5-R3R-16-MP16F-MP16F-C-0015M	15
MT-M5-R3R-16-MP16F-MP16F-C-0020M	20
MT-M5-R3R-16-MP16F-MP16F-C-0025M	25
MT-M5-R3R-16-MP16F-MP16F-C-0030M	30
MT-M5-R3R-16-MP16F-MP16F-C-0035M	35
MT-M5-R3R-16-MP16F-MP16F-C-0040M	40
MT-M5-R3R-16-MP16F-MP16F-C-0045M	45
MT-M5-R3R-16-MP16F-MP16F-C-0050M	50
Part Number	Length (ft)
MT-M5-R3R-16-MP16F-MP16F-C-0010F	10
MT-M5-R3R-16-MP16F-MP16F-C-0015F	15
MT-M5-R3R-16-MP16F-MP16F-C-0030F	30
MT-M5-R3R-16-MP16F-MP16F-C-0045F	45
MT-M5-R3R-16-MP16F-MP16F-C-0060F	60
MT-M5-R3R-16-MP16F-MP16F-C-0075F	75
MT-M5-R3R-16-MP16F-MP16F-C-0090F	90
MT-M5-R3R-16-MP16F-MP16F-C-0105F	105
MT-M5-R3R-16-MP16F-MP16F-C-0120F	120
MT-M5-R3R-16-MP16F-MP16F-C-0135F	135
MT-M5-R3R-16-MP16F-MP16F-C-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity A, OFNR
Part Number	Length (m)
MT-M5-R3R-24-MP24F-MP24F-A-0003M	3
MT-M5-R3R-24-MP24F-MP24F-A-0005M	5
MT-M5-R3R-24-MP24F-MP24F-A-0010M	10
MT-M5-R3R-24-MP24F-MP24F-A-0015M	15
MT-M5-R3R-24-MP24F-MP24F-A-0020M	20
MT-M5-R3R-24-MP24F-MP24F-A-0025M	25
MT-M5-R3R-24-MP24F-MP24F-A-0030M	30
MT-M5-R3R-24-MP24F-MP24F-A-0035M	35
MT-M5-R3R-24-MP24F-MP24F-A-0040M	40
MT-M5-R3R-24-MP24F-MP24F-A-0045M	45
MT-M5-R3R-24-MP24F-MP24F-A-0050M	50
Part Number	Length (ft)
MT-M5-R3R-24-MP24F-MP24F-A-0010F	10
MT-M5-R3R-24-MP24F-MP24F-A-0015F	15
MT-M5-R3R-24-MP24F-MP24F-A-0030F	30
MT-M5-R3R-24-MP24F-MP24F-A-0045F	45
MT-M5-R3R-24-MP24F-MP24F-A-0060F	60
MT-M5-R3R-24-MP24F-MP24F-A-0075F	75
MT-M5-R3R-24-MP24F-MP24F-A-0090F	90
MT-M5-R3R-24-MP24F-MP24F-A-0105F	105
MT-M5-R3R-24-MP24F-MP24F-A-0120F	120
MT-M5-R3R-24-MP24F-MP24F-A-0135F	135
MT-M5-R3R-24-MP24F-MP24F-A-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity B, OFNR
Part Number	Length (m)
MT-M5-R3R-24-MP24F-MP24F-B-0003M	3
MT-M5-R3R-24-MP24F-MP24F-B-0005M	5
MT-M5-R3R-24-MP24F-MP24F-B-0010M	10
MT-M5-R3R-24-MP24F-MP24F-B-0015M	15
MT-M5-R3R-24-MP24F-MP24F-B-0020M	20
MT-M5-R3R-24-MP24F-MP24F-B-0025M	25
MT-M5-R3R-24-MP24F-MP24F-B-0030M	30
MT-M5-R3R-24-MP24F-MP24F-B-0035M	35
MT-M5-R3R-24-MP24F-MP24F-B-0040M	40
MT-M5-R3R-24-MP24F-MP24F-B-0045M	45
MT-M5-R3R-24-MP24F-MP24F-B-0050M	50
Part Number	Length (ft)
MT-M5-R3R-24-MP24F-MP24F-B-0010F	10
MT-M5-R3R-24-MP24F-MP24F-B-0015F	15
MT-M5-R3R-24-MP24F-MP24F-B-0030F	30
MT-M5-R3R-24-MP24F-MP24F-B-0045F	45
MT-M5-R3R-24-MP24F-MP24F-B-0060F	60
MT-M5-R3R-24-MP24F-MP24F-B-0075F	75
MT-M5-R3R-24-MP24F-MP24F-B-0090F	90
MT-M5-R3R-24-MP24F-MP24F-B-0105F	105
MT-M5-R3R-24-MP24F-MP24F-B-0120F	120
MT-M5-R3R-24-MP24F-MP24F-B-0135F	135
MT-M5-R3R-24-MP24F-MP24F-B-0150F	150

Fiber Optic Assembly, Multi-mode (OM5), 24F, MPO-24 to MPO-24, Polarity C, OFNR
Part Number	Length (m)
MT-M5-R3R-24-MP24F-MP24F-C-0003M	3
MT-M5-R3R-24-MP24F-MP24F-C-0005M	5
MT-M5-R3R-24-MP24F-MP24F-C-0010M	10
MT-M5-R3R-24-MP24F-MP24F-C-0015M	15
MT-M5-R3R-24-MP24F-MP24F-C-0020M	20
MT-M5-R3R-24-MP24F-MP24F-C-0025M	25
MT-M5-R3R-24-MP24F-MP24F-C-0030M	30
MT-M5-R3R-24-MP24F-MP24F-C-0035M	35
MT-M5-R3R-24-MP24F-MP24F-C-0040M	40
MT-M5-R3R-24-MP24F-MP24F-C-0045M	45
MT-M5-R3R-24-MP24F-MP24F-C-0050M	50
Part Number	Length (ft)
MT-M5-R3R-24-MP24F-MP24F-C-0010F	10
MT-M5-R3R-24-MP24F-MP24F-C-0015F	15
MT-M5-R3R-24-MP24F-MP24F-C-0030F	30
MT-M5-R3R-24-MP24F-MP24F-C-0045F	45
MT-M5-R3R-24-MP24F-MP24F-C-0060F	60
MT-M5-R3R-24-MP24F-MP24F-C-0075F	75
MT-M5-R3R-24-MP24F-MP24F-C-0090F	90
MT-M5-R3R-24-MP24F-MP24F-C-0105F	105
MT-M5-R3R-24-MP24F-MP24F-C-0120F	120
MT-M5-R3R-24-MP24F-MP24F-C-0135F	135
MT-M5-R3R-24-MP24F-MP24F-C-0150F	150
