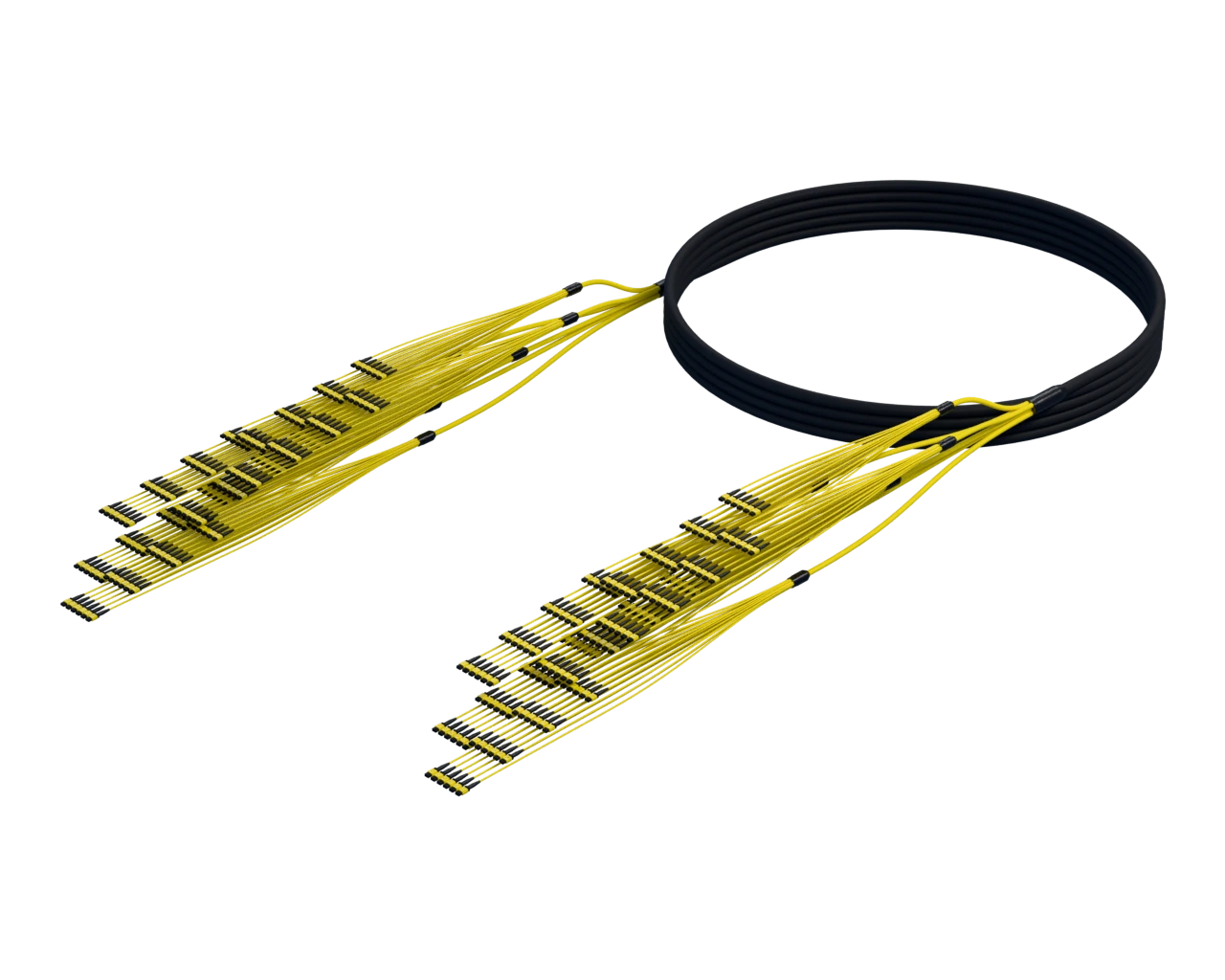

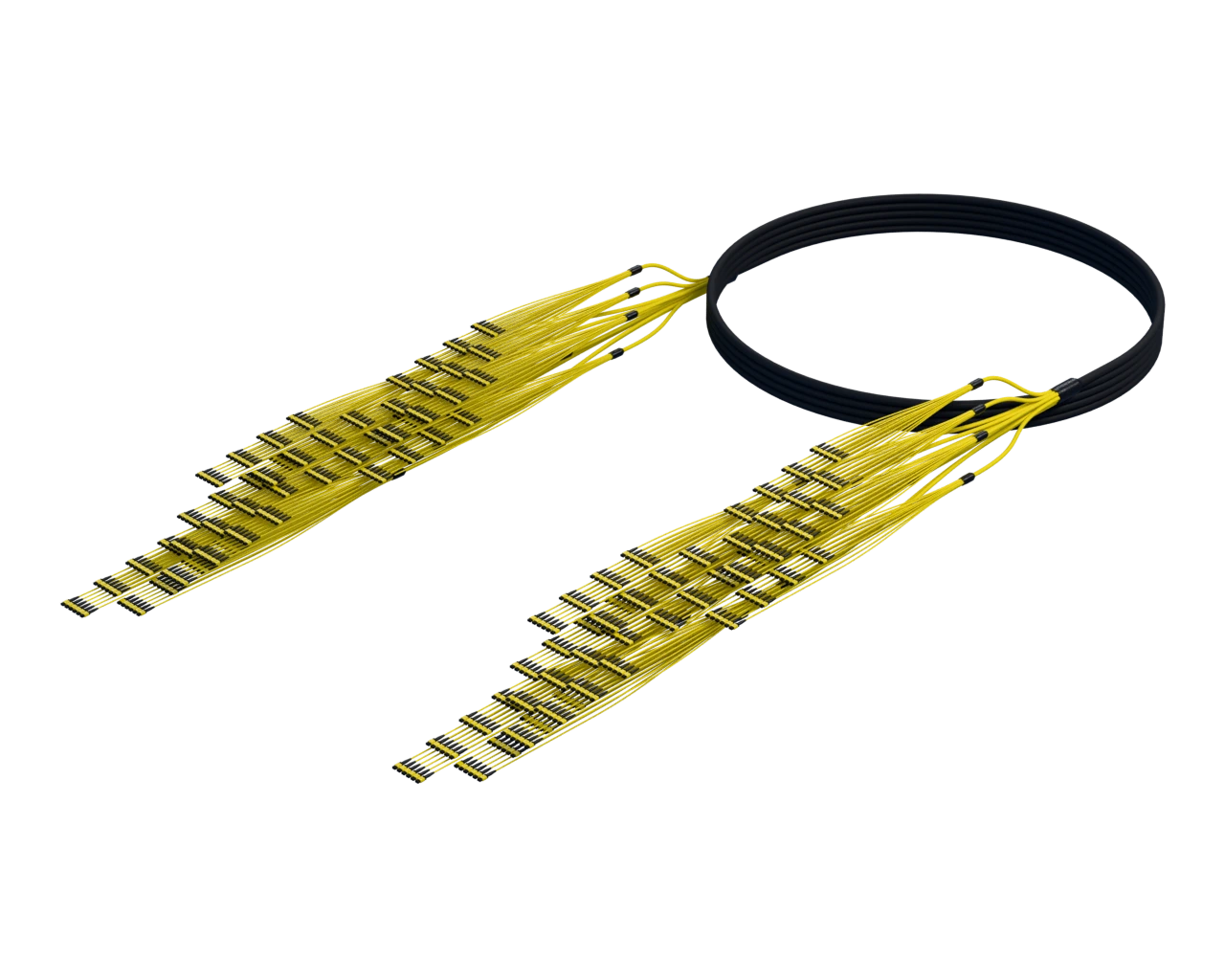

Ultra-High Fiber Count Indoor/Outdoor MPO Trunk Assemblies

SmartRIBBON™ indoor/outdoor MPO trunk assemblies with 864, 1728 or 3456 fibers, available with LSZH or OFNR jackets.

864, 1728 or 3456 fibers per trunk
Indoor/outdoor SmartRIBBON™ cable with no transition splice at the building entrance
LSZH jacket, or OFNR (Riser) jacket that also meets FT4
MPO-12 connectors with Type A, B or C polarity
Factory terminated and 100% IL/RL tested
Compact, gel-free dielectric construction for hyperscale campuses

Category: Optical Cable Assemblies, MPO Trunks and Fanouts

ENQUIRE NOW

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

Ultra-High Fiber Count Indoor/Outdoor MPO trunk assemblies deliver 864, 1728 or 3456 fibers in a single pre-terminated run for hyperscale and AI campus interconnect. Built on SmartRIBBON™ indoor/outdoor cable, one assembly can be routed through outdoor duct between buildings and continue into the building without a transition splice at the entrance.

SmartRIBBON™ uses intermittently bonded 12-fiber ribbons in flexible, gel-free buffer tubes, giving very high fiber density in a compact, dielectric cable with non-metallic FRP strength members and water-blocking yarns. Assemblies are available with a Low Smoke Zero Halogen (LSZH) jacket, or an OFNR (Riser) rated jacket that also meets the FT4 vertical tray flame test.

Each trunk is factory terminated with MPO-12 connectors in polarity Type A, B or C and 100% tested for insertion loss and return loss, removing weeks of on-site splicing from large campus builds.

Intended for AI and hyperscale campus spine links across the North American datacentre clusters (Ashburn, Dallas-Fort Worth, Phoenix), where 864 to 3456 fiber trunks connect buildings in a single pull. The OFNR jacket continues from duct into the riser without a transition splice.

General
Connector Types	MPO-12 (female to female)
Fiber Count Range	864, 1728 or 3456 fibers per trunk
Polarity Options	Type A, B, C
Fiber Type	Single-mode G.657.A1
Cable Specification
Cable	SmartRIBBON™ indoor/outdoor ribbon cable
Ribbon Construction	12F intermittently bonded ribbon
Jacket Options	Low Smoke Zero Halogen (LSZH), or OFNR (Riser) with FT4
Strength Member	Fiber Reinforced Plastic (FRP)
Water Blocking	Water-blocking yarns
Insertion Loss	≤0.35 dB per connector
Return Loss	≥60 dB
Operating Temperature	-20°C to +70°C

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 864 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-864-MPOF-MPOF-A-0010M	10
MUH-S7-SRL-864-MPOF-MPOF-A-0015M	15
MUH-S7-SRL-864-MPOF-MPOF-A-0020M	20
MUH-S7-SRL-864-MPOF-MPOF-A-0025M	25
MUH-S7-SRL-864-MPOF-MPOF-A-0030M	30
MUH-S7-SRL-864-MPOF-MPOF-A-0040M	40
MUH-S7-SRL-864-MPOF-MPOF-A-0050M	50
MUH-S7-SRL-864-MPOF-MPOF-A-0060M	60
MUH-S7-SRL-864-MPOF-MPOF-A-0070M	70
MUH-S7-SRL-864-MPOF-MPOF-A-0080M	80
MUH-S7-SRL-864-MPOF-MPOF-A-0090M	90
MUH-S7-SRL-864-MPOF-MPOF-A-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 864 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-864-MPOF-MPOF-B-0010M	10
MUH-S7-SRL-864-MPOF-MPOF-B-0015M	15
MUH-S7-SRL-864-MPOF-MPOF-B-0020M	20
MUH-S7-SRL-864-MPOF-MPOF-B-0025M	25
MUH-S7-SRL-864-MPOF-MPOF-B-0030M	30
MUH-S7-SRL-864-MPOF-MPOF-B-0040M	40
MUH-S7-SRL-864-MPOF-MPOF-B-0050M	50
MUH-S7-SRL-864-MPOF-MPOF-B-0060M	60
MUH-S7-SRL-864-MPOF-MPOF-B-0070M	70
MUH-S7-SRL-864-MPOF-MPOF-B-0080M	80
MUH-S7-SRL-864-MPOF-MPOF-B-0090M	90
MUH-S7-SRL-864-MPOF-MPOF-B-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 864 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-864-MPOF-MPOF-C-0010M	10
MUH-S7-SRL-864-MPOF-MPOF-C-0015M	15
MUH-S7-SRL-864-MPOF-MPOF-C-0020M	20
MUH-S7-SRL-864-MPOF-MPOF-C-0025M	25
MUH-S7-SRL-864-MPOF-MPOF-C-0030M	30
MUH-S7-SRL-864-MPOF-MPOF-C-0040M	40
MUH-S7-SRL-864-MPOF-MPOF-C-0050M	50
MUH-S7-SRL-864-MPOF-MPOF-C-0060M	60
MUH-S7-SRL-864-MPOF-MPOF-C-0070M	70
MUH-S7-SRL-864-MPOF-MPOF-C-0080M	80
MUH-S7-SRL-864-MPOF-MPOF-C-0090M	90
MUH-S7-SRL-864-MPOF-MPOF-C-0100M	100

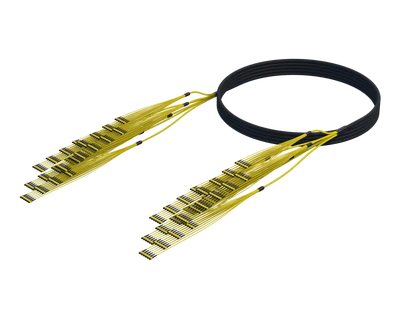

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 1728 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-1728-MPOF-MPOF-A-0010M	10
MUH-S7-SRL-1728-MPOF-MPOF-A-0015M	15
MUH-S7-SRL-1728-MPOF-MPOF-A-0020M	20
MUH-S7-SRL-1728-MPOF-MPOF-A-0025M	25
MUH-S7-SRL-1728-MPOF-MPOF-A-0030M	30
MUH-S7-SRL-1728-MPOF-MPOF-A-0040M	40
MUH-S7-SRL-1728-MPOF-MPOF-A-0050M	50
MUH-S7-SRL-1728-MPOF-MPOF-A-0060M	60
MUH-S7-SRL-1728-MPOF-MPOF-A-0070M	70
MUH-S7-SRL-1728-MPOF-MPOF-A-0080M	80
MUH-S7-SRL-1728-MPOF-MPOF-A-0090M	90
MUH-S7-SRL-1728-MPOF-MPOF-A-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 1728 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-1728-MPOF-MPOF-B-0010M	10
MUH-S7-SRL-1728-MPOF-MPOF-B-0015M	15
MUH-S7-SRL-1728-MPOF-MPOF-B-0020M	20
MUH-S7-SRL-1728-MPOF-MPOF-B-0025M	25
MUH-S7-SRL-1728-MPOF-MPOF-B-0030M	30
MUH-S7-SRL-1728-MPOF-MPOF-B-0040M	40
MUH-S7-SRL-1728-MPOF-MPOF-B-0050M	50
MUH-S7-SRL-1728-MPOF-MPOF-B-0060M	60
MUH-S7-SRL-1728-MPOF-MPOF-B-0070M	70
MUH-S7-SRL-1728-MPOF-MPOF-B-0080M	80
MUH-S7-SRL-1728-MPOF-MPOF-B-0090M	90
MUH-S7-SRL-1728-MPOF-MPOF-B-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 1728 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-1728-MPOF-MPOF-C-0010M	10
MUH-S7-SRL-1728-MPOF-MPOF-C-0015M	15
MUH-S7-SRL-1728-MPOF-MPOF-C-0020M	20
MUH-S7-SRL-1728-MPOF-MPOF-C-0025M	25
MUH-S7-SRL-1728-MPOF-MPOF-C-0030M	30
MUH-S7-SRL-1728-MPOF-MPOF-C-0040M	40
MUH-S7-SRL-1728-MPOF-MPOF-C-0050M	50
MUH-S7-SRL-1728-MPOF-MPOF-C-0060M	60
MUH-S7-SRL-1728-MPOF-MPOF-C-0070M	70
MUH-S7-SRL-1728-MPOF-MPOF-C-0080M	80
MUH-S7-SRL-1728-MPOF-MPOF-C-0090M	90
MUH-S7-SRL-1728-MPOF-MPOF-C-0100M	100

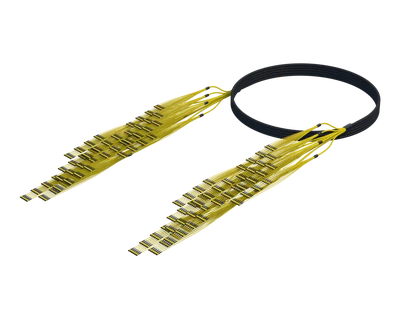

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 3456 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-3456-MPOF-MPOF-A-0010M	10
MUH-S7-SRL-3456-MPOF-MPOF-A-0015M	15
MUH-S7-SRL-3456-MPOF-MPOF-A-0020M	20
MUH-S7-SRL-3456-MPOF-MPOF-A-0025M	25
MUH-S7-SRL-3456-MPOF-MPOF-A-0030M	30
MUH-S7-SRL-3456-MPOF-MPOF-A-0040M	40
MUH-S7-SRL-3456-MPOF-MPOF-A-0050M	50
MUH-S7-SRL-3456-MPOF-MPOF-A-0060M	60
MUH-S7-SRL-3456-MPOF-MPOF-A-0070M	70
MUH-S7-SRL-3456-MPOF-MPOF-A-0080M	80
MUH-S7-SRL-3456-MPOF-MPOF-A-0090M	90
MUH-S7-SRL-3456-MPOF-MPOF-A-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 3456 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-3456-MPOF-MPOF-B-0010M	10
MUH-S7-SRL-3456-MPOF-MPOF-B-0015M	15
MUH-S7-SRL-3456-MPOF-MPOF-B-0020M	20
MUH-S7-SRL-3456-MPOF-MPOF-B-0025M	25
MUH-S7-SRL-3456-MPOF-MPOF-B-0030M	30
MUH-S7-SRL-3456-MPOF-MPOF-B-0040M	40
MUH-S7-SRL-3456-MPOF-MPOF-B-0050M	50
MUH-S7-SRL-3456-MPOF-MPOF-B-0060M	60
MUH-S7-SRL-3456-MPOF-MPOF-B-0070M	70
MUH-S7-SRL-3456-MPOF-MPOF-B-0080M	80
MUH-S7-SRL-3456-MPOF-MPOF-B-0090M	90
MUH-S7-SRL-3456-MPOF-MPOF-B-0100M	100

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 3456 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx metres
Part Number	Length (m)
MUH-S7-SRL-3456-MPOF-MPOF-C-0010M	10
MUH-S7-SRL-3456-MPOF-MPOF-C-0015M	15
MUH-S7-SRL-3456-MPOF-MPOF-C-0020M	20
MUH-S7-SRL-3456-MPOF-MPOF-C-0025M	25
MUH-S7-SRL-3456-MPOF-MPOF-C-0030M	30
MUH-S7-SRL-3456-MPOF-MPOF-C-0040M	40
MUH-S7-SRL-3456-MPOF-MPOF-C-0050M	50
MUH-S7-SRL-3456-MPOF-MPOF-C-0060M	60
MUH-S7-SRL-3456-MPOF-MPOF-C-0070M	70
MUH-S7-SRL-3456-MPOF-MPOF-C-0080M	80
MUH-S7-SRL-3456-MPOF-MPOF-C-0090M	90
MUH-S7-SRL-3456-MPOF-MPOF-C-0100M	100

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 864 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-864-MPOF-MPOF-A-0030F	30
MUH-S7-SRR-864-MPOF-MPOF-A-0050F	50
MUH-S7-SRR-864-MPOF-MPOF-A-0065F	65
MUH-S7-SRR-864-MPOF-MPOF-A-0080F	80
MUH-S7-SRR-864-MPOF-MPOF-A-0100F	100
MUH-S7-SRR-864-MPOF-MPOF-A-0130F	130
MUH-S7-SRR-864-MPOF-MPOF-A-0150F	150
MUH-S7-SRR-864-MPOF-MPOF-A-0165F	165
MUH-S7-SRR-864-MPOF-MPOF-A-0200F	200
MUH-S7-SRR-864-MPOF-MPOF-A-0230F	230
MUH-S7-SRR-864-MPOF-MPOF-A-0250F	250
MUH-S7-SRR-864-MPOF-MPOF-A-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 864 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-864-MPOF-MPOF-B-0030F	30
MUH-S7-SRR-864-MPOF-MPOF-B-0050F	50
MUH-S7-SRR-864-MPOF-MPOF-B-0065F	65
MUH-S7-SRR-864-MPOF-MPOF-B-0080F	80
MUH-S7-SRR-864-MPOF-MPOF-B-0100F	100
MUH-S7-SRR-864-MPOF-MPOF-B-0130F	130
MUH-S7-SRR-864-MPOF-MPOF-B-0150F	150
MUH-S7-SRR-864-MPOF-MPOF-B-0165F	165
MUH-S7-SRR-864-MPOF-MPOF-B-0200F	200
MUH-S7-SRR-864-MPOF-MPOF-B-0230F	230
MUH-S7-SRR-864-MPOF-MPOF-B-0250F	250
MUH-S7-SRR-864-MPOF-MPOF-B-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 864 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-864-MPOF-MPOF-C-0030F	30
MUH-S7-SRR-864-MPOF-MPOF-C-0050F	50
MUH-S7-SRR-864-MPOF-MPOF-C-0065F	65
MUH-S7-SRR-864-MPOF-MPOF-C-0080F	80
MUH-S7-SRR-864-MPOF-MPOF-C-0100F	100
MUH-S7-SRR-864-MPOF-MPOF-C-0130F	130
MUH-S7-SRR-864-MPOF-MPOF-C-0150F	150
MUH-S7-SRR-864-MPOF-MPOF-C-0165F	165
MUH-S7-SRR-864-MPOF-MPOF-C-0200F	200
MUH-S7-SRR-864-MPOF-MPOF-C-0230F	230
MUH-S7-SRR-864-MPOF-MPOF-C-0250F	250
MUH-S7-SRR-864-MPOF-MPOF-C-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 1728 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-1728-MPOF-MPOF-A-0030F	30
MUH-S7-SRR-1728-MPOF-MPOF-A-0050F	50
MUH-S7-SRR-1728-MPOF-MPOF-A-0065F	65
MUH-S7-SRR-1728-MPOF-MPOF-A-0080F	80
MUH-S7-SRR-1728-MPOF-MPOF-A-0100F	100
MUH-S7-SRR-1728-MPOF-MPOF-A-0130F	130
MUH-S7-SRR-1728-MPOF-MPOF-A-0150F	150
MUH-S7-SRR-1728-MPOF-MPOF-A-0165F	165
MUH-S7-SRR-1728-MPOF-MPOF-A-0200F	200
MUH-S7-SRR-1728-MPOF-MPOF-A-0230F	230
MUH-S7-SRR-1728-MPOF-MPOF-A-0250F	250
MUH-S7-SRR-1728-MPOF-MPOF-A-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 1728 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-1728-MPOF-MPOF-B-0030F	30
MUH-S7-SRR-1728-MPOF-MPOF-B-0050F	50
MUH-S7-SRR-1728-MPOF-MPOF-B-0065F	65
MUH-S7-SRR-1728-MPOF-MPOF-B-0080F	80
MUH-S7-SRR-1728-MPOF-MPOF-B-0100F	100
MUH-S7-SRR-1728-MPOF-MPOF-B-0130F	130
MUH-S7-SRR-1728-MPOF-MPOF-B-0150F	150
MUH-S7-SRR-1728-MPOF-MPOF-B-0165F	165
MUH-S7-SRR-1728-MPOF-MPOF-B-0200F	200
MUH-S7-SRR-1728-MPOF-MPOF-B-0230F	230
MUH-S7-SRR-1728-MPOF-MPOF-B-0250F	250
MUH-S7-SRR-1728-MPOF-MPOF-B-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 1728 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-1728-MPOF-MPOF-C-0030F	30
MUH-S7-SRR-1728-MPOF-MPOF-C-0050F	50
MUH-S7-SRR-1728-MPOF-MPOF-C-0065F	65
MUH-S7-SRR-1728-MPOF-MPOF-C-0080F	80
MUH-S7-SRR-1728-MPOF-MPOF-C-0100F	100
MUH-S7-SRR-1728-MPOF-MPOF-C-0130F	130
MUH-S7-SRR-1728-MPOF-MPOF-C-0150F	150
MUH-S7-SRR-1728-MPOF-MPOF-C-0165F	165
MUH-S7-SRR-1728-MPOF-MPOF-C-0200F	200
MUH-S7-SRR-1728-MPOF-MPOF-C-0230F	230
MUH-S7-SRR-1728-MPOF-MPOF-C-0250F	250
MUH-S7-SRR-1728-MPOF-MPOF-C-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 3456 fiber, MPO(Female)-MPO(Female) (Pol. A), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-3456-MPOF-MPOF-A-0030F	30
MUH-S7-SRR-3456-MPOF-MPOF-A-0050F	50
MUH-S7-SRR-3456-MPOF-MPOF-A-0065F	65
MUH-S7-SRR-3456-MPOF-MPOF-A-0080F	80
MUH-S7-SRR-3456-MPOF-MPOF-A-0100F	100
MUH-S7-SRR-3456-MPOF-MPOF-A-0130F	130
MUH-S7-SRR-3456-MPOF-MPOF-A-0150F	150
MUH-S7-SRR-3456-MPOF-MPOF-A-0165F	165
MUH-S7-SRR-3456-MPOF-MPOF-A-0200F	200
MUH-S7-SRR-3456-MPOF-MPOF-A-0230F	230
MUH-S7-SRR-3456-MPOF-MPOF-A-0250F	250
MUH-S7-SRR-3456-MPOF-MPOF-A-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 3456 fiber, MPO(Female)-MPO(Female) (Pol. B), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-3456-MPOF-MPOF-B-0030F	30
MUH-S7-SRR-3456-MPOF-MPOF-B-0050F	50
MUH-S7-SRR-3456-MPOF-MPOF-B-0065F	65
MUH-S7-SRR-3456-MPOF-MPOF-B-0080F	80
MUH-S7-SRR-3456-MPOF-MPOF-B-0100F	100
MUH-S7-SRR-3456-MPOF-MPOF-B-0130F	130
MUH-S7-SRR-3456-MPOF-MPOF-B-0150F	150
MUH-S7-SRR-3456-MPOF-MPOF-B-0165F	165
MUH-S7-SRR-3456-MPOF-MPOF-B-0200F	200
MUH-S7-SRR-3456-MPOF-MPOF-B-0230F	230
MUH-S7-SRR-3456-MPOF-MPOF-B-0250F	250
MUH-S7-SRR-3456-MPOF-MPOF-B-0300F	300

MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 3456 fiber, MPO(Female)-MPO(Female) (Pol. C), xxxx feet
Part Number	Length (ft)
MUH-S7-SRR-3456-MPOF-MPOF-C-0030F	30
MUH-S7-SRR-3456-MPOF-MPOF-C-0050F	50
MUH-S7-SRR-3456-MPOF-MPOF-C-0065F	65
MUH-S7-SRR-3456-MPOF-MPOF-C-0080F	80
MUH-S7-SRR-3456-MPOF-MPOF-C-0100F	100
MUH-S7-SRR-3456-MPOF-MPOF-C-0130F	130
MUH-S7-SRR-3456-MPOF-MPOF-C-0150F	150
MUH-S7-SRR-3456-MPOF-MPOF-C-0165F	165
MUH-S7-SRR-3456-MPOF-MPOF-C-0200F	200
MUH-S7-SRR-3456-MPOF-MPOF-C-0230F	230
MUH-S7-SRR-3456-MPOF-MPOF-C-0250F	250
MUH-S7-SRR-3456-MPOF-MPOF-C-0300F	300
