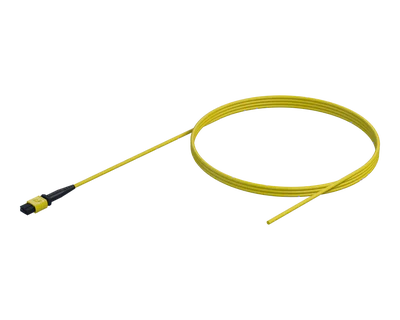

MPO pigtails with 3mm cordage and colour-coded 250 µm fibres for streamlined splicing into patch panels and enclosures.
- MPO or MTP® connectors with precision ferrules
- 3 mm outer jacket over 250 µm coated fibres
- Available in 8, 12, 24 fibre connectors
- Coloured fibres for rapid identification and splice prep
- Single-mode or multimode options
- Fully factory-tested for IL/RL compliance to IEC/TIA standards
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

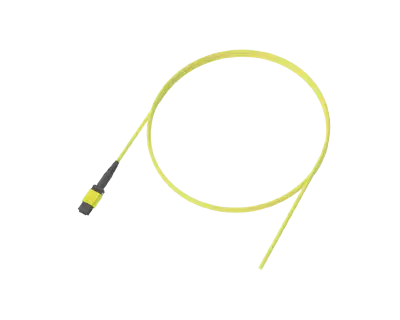

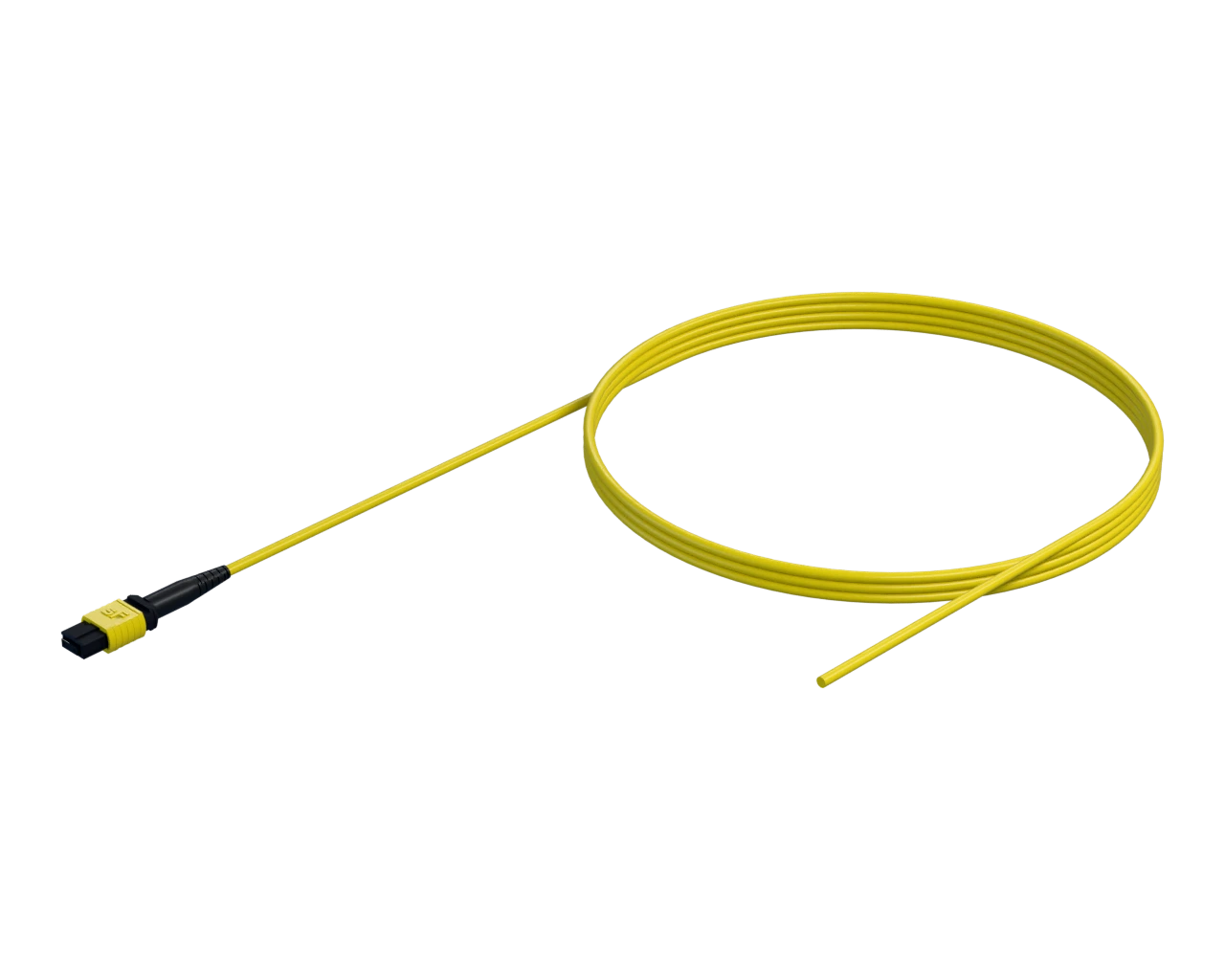

MPO pigtails are factory-terminated assemblies featuring an MPO connector on one end and individually coloured breakout fibres on the other, designed for efficient fusion splicing in high-density environments.
Each pigtail includes a 3 mm round jacket with internal aramid yarn strength members and breakout to individual single-mode or multimode fibres, colour-coded for easy identification. These are ideal for MPO trunk termination into panels or splice trays, especially in data centres, FTTx builds, or telecom exchanges.
Available in 8F, 12F, 24F, and other configurations, with custom lengths available upon request.
| Technical Specifications | |

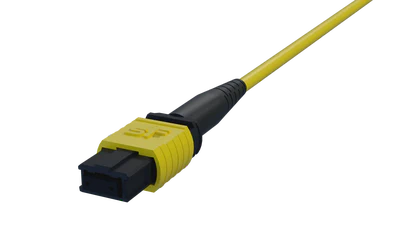

| Connector | ScaleFibre MPO USConec MTP® Available in male or female configuration |
| Fibre Types | Single-mode G.657.A1, Multimode OM3, OM4, OM5 |
| Fibre Coating | 250 µm coloured primary coating |
| Jacket Type | 3 mm LSZH |
| Fibre Count (Per connector) | 8F, 12F, 24F |
| Cable Length | Standard 2 meters, other lengths available upon request |
| Operating Temperature | -20°C to +70°C |
| Compliance | IEC 61754-7, TIA/EIA-604-5, RoHS, REACH |

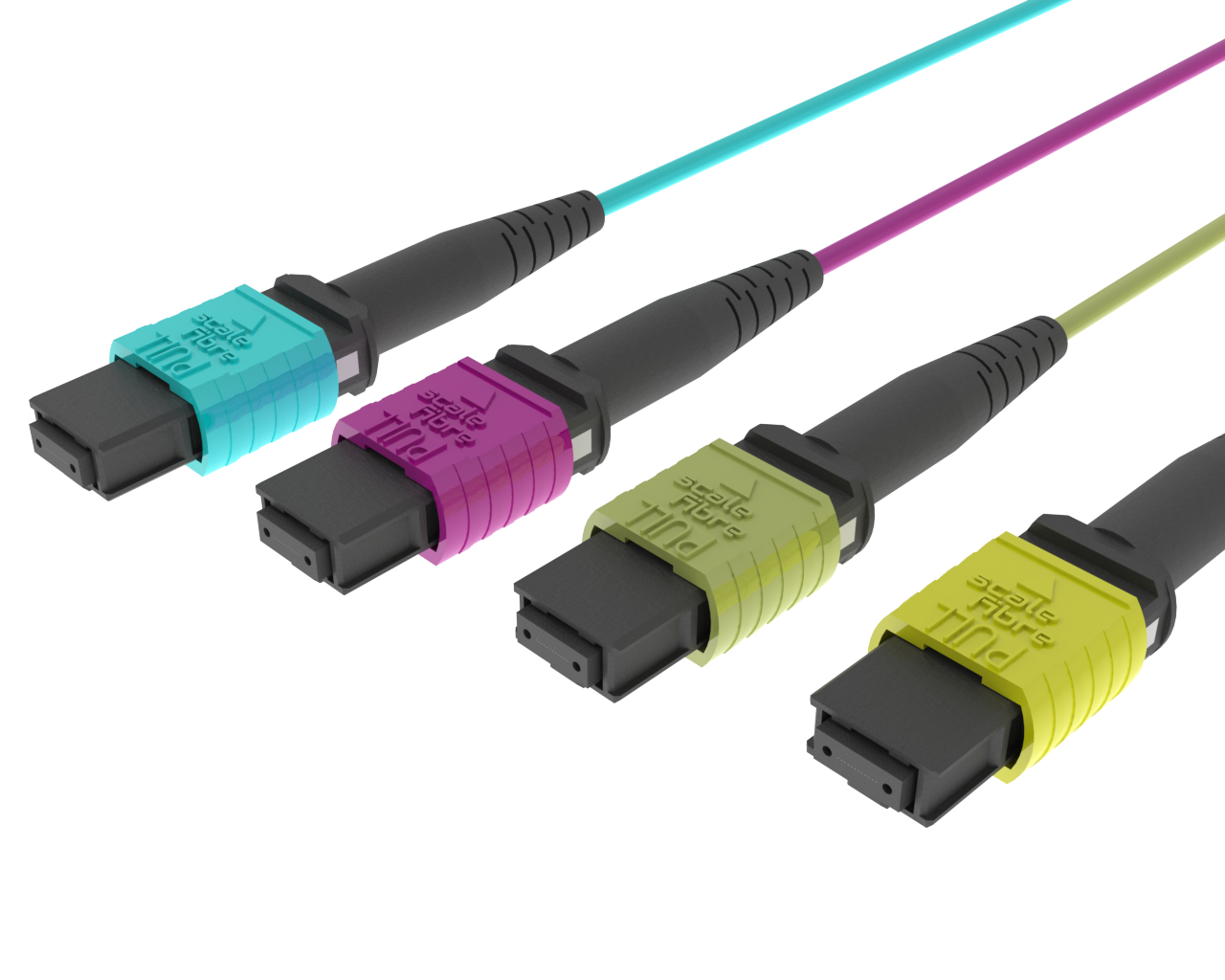

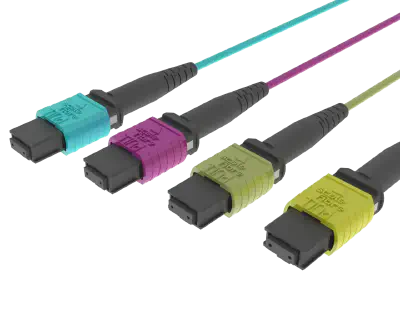

| Standard MPO Pigtails | |
| Pigtail, Single Mode (G.657.A1), Round 3mm, MPO(12F)-Male, 2 metres, 1PK, Yellow | PT-S7-R3-MPOM-2M-1 |
| Pigtail, OM3, Round 3mm, MPO(12F)-Male, 2 metres, 1PK, Aqua | PT-M3-R3-MPOM-2M-1 |
| Pigtail, OM4, Round 3mm, MPO(12F)-Male, 2 metres, 1PK, Aqua | PT-M4-R3-MPOM-2M-1 |
| Pigtail, OM4, Round 3mm, MPO(12F)-Male, 2 metres, 1PK, Erika Violet | PT-M4-R3-MPOM-2M-1-EV |
| Pigtail, OM5, Round 3mm, MPO(12F)-Male, 2 metres, 1PK, Lime Green | PT-M5-R3-MPOM-2M-1 |
