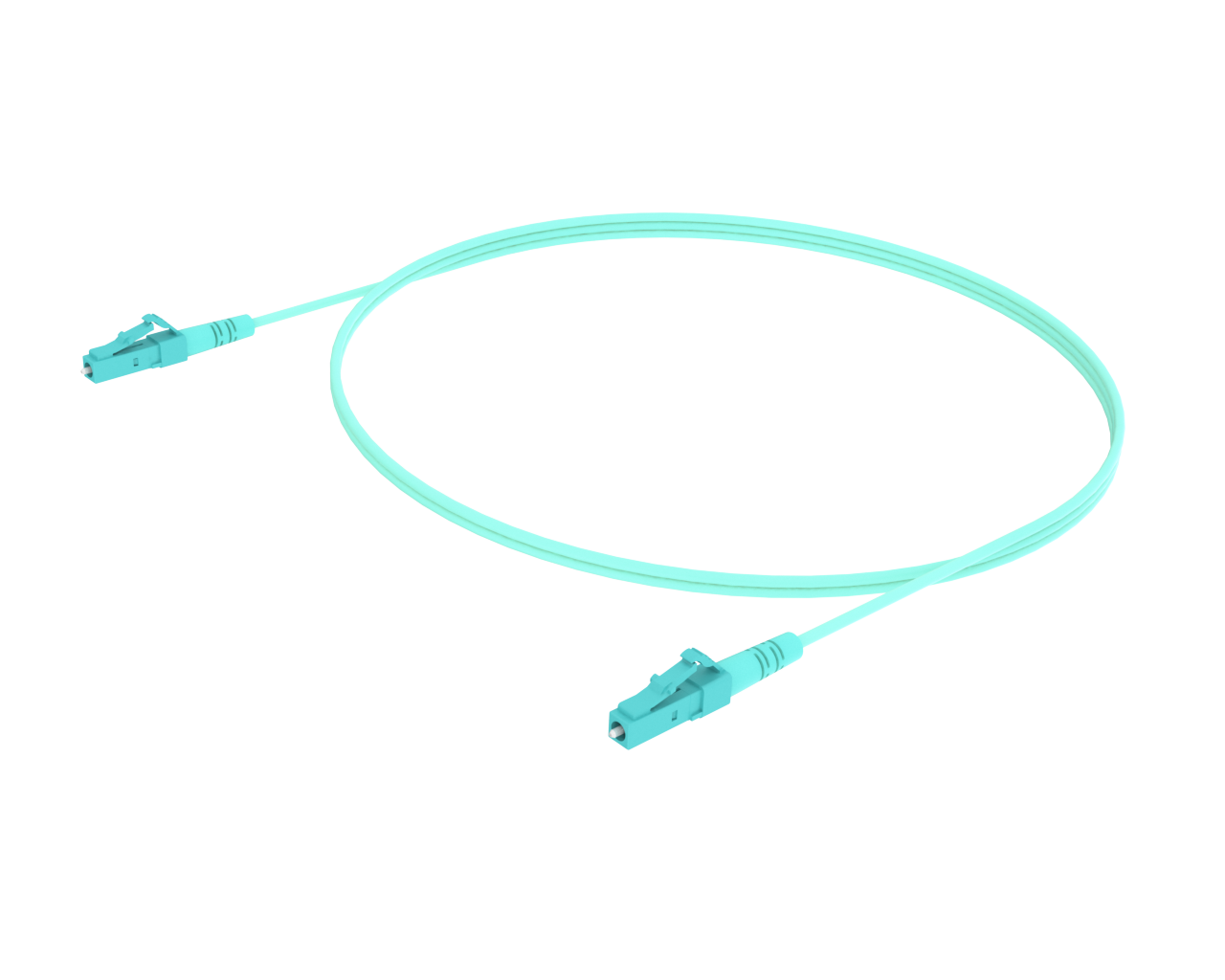

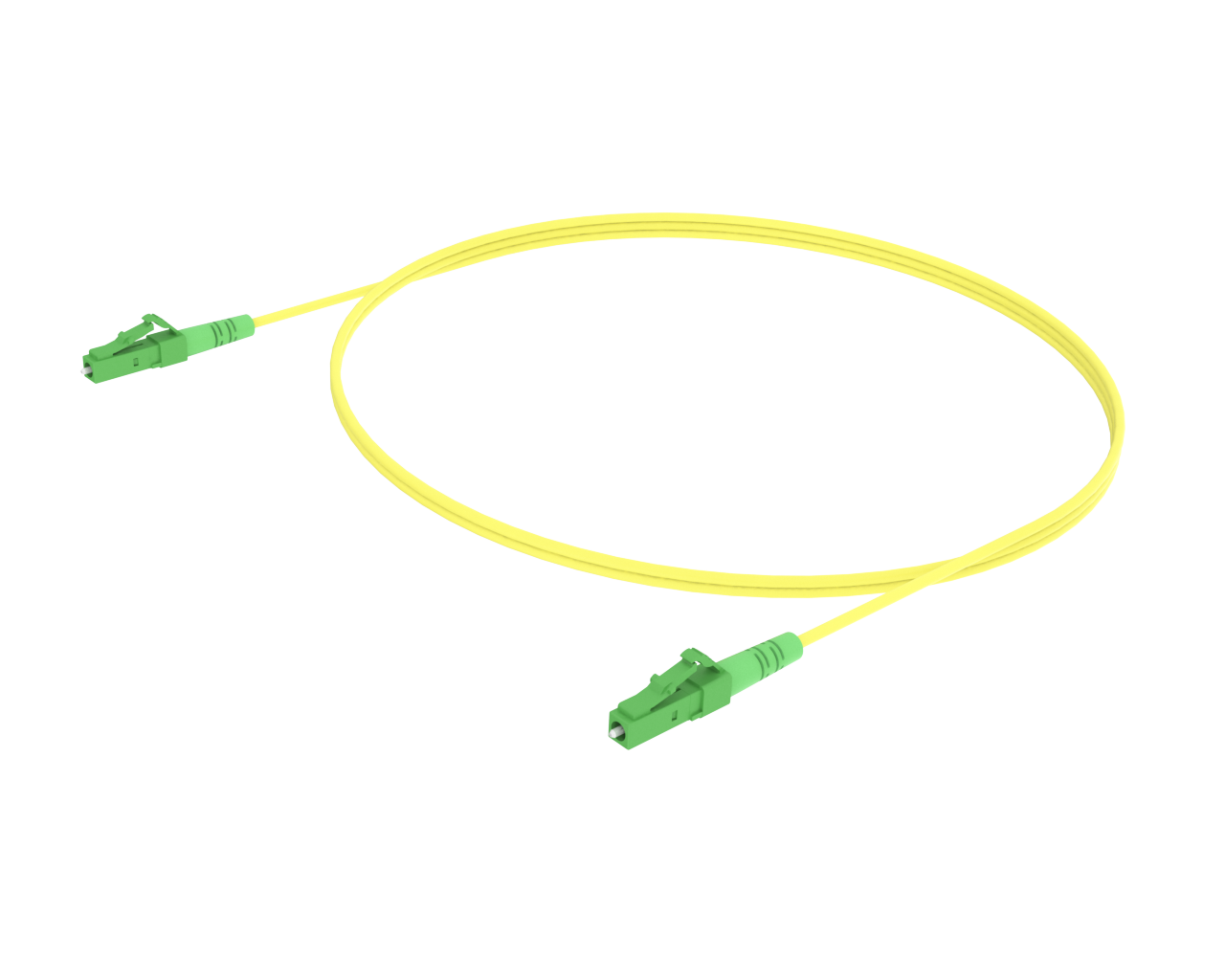

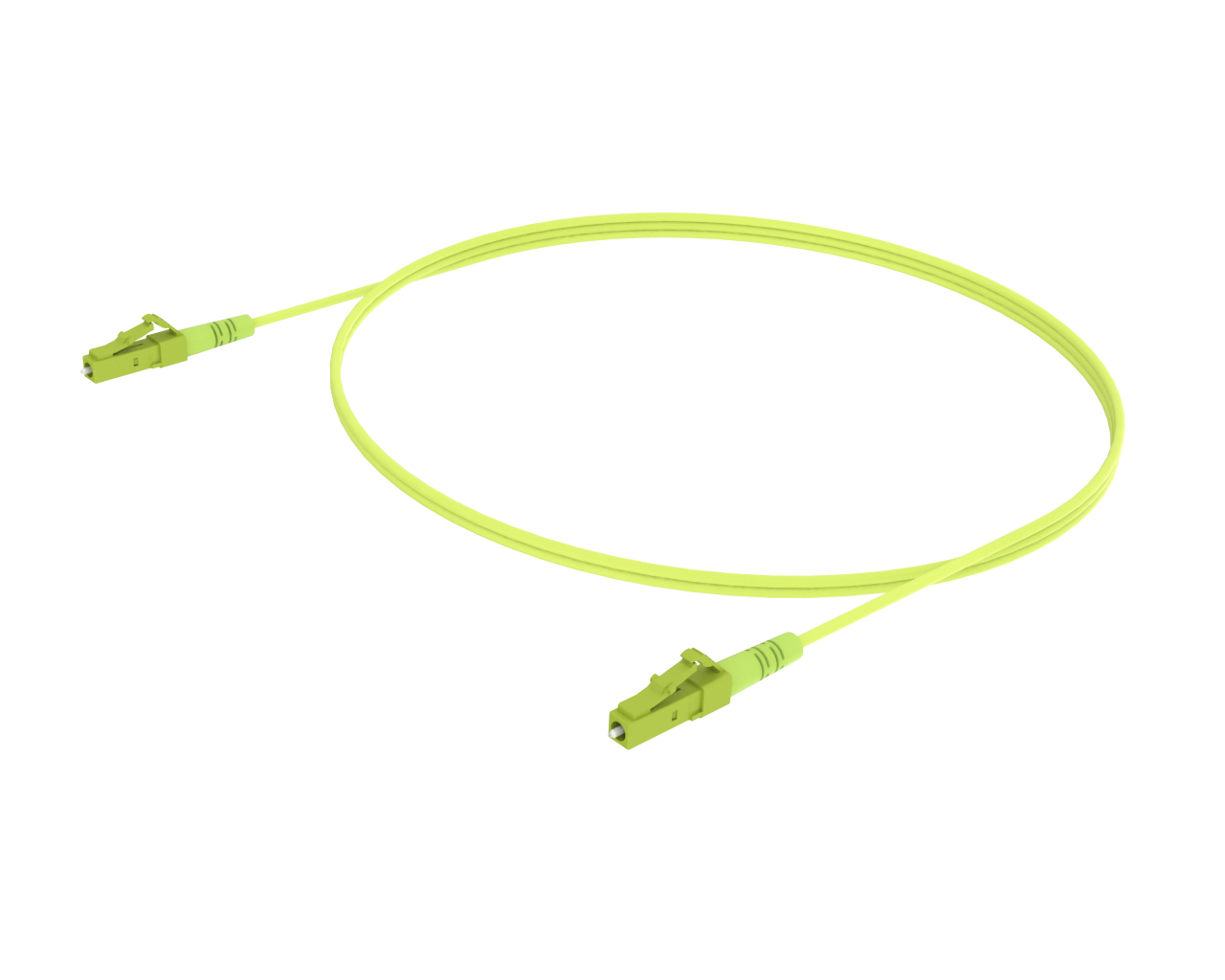

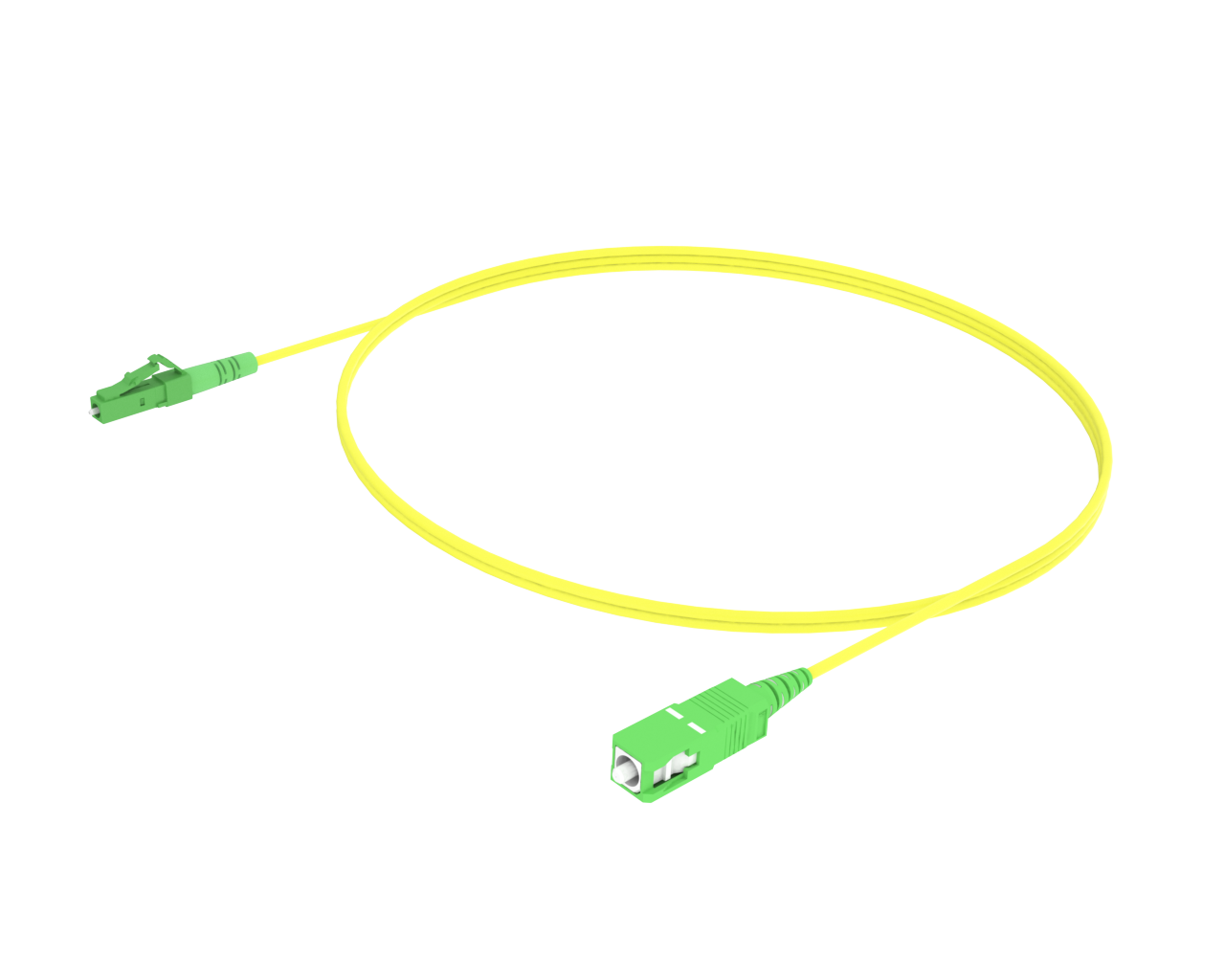

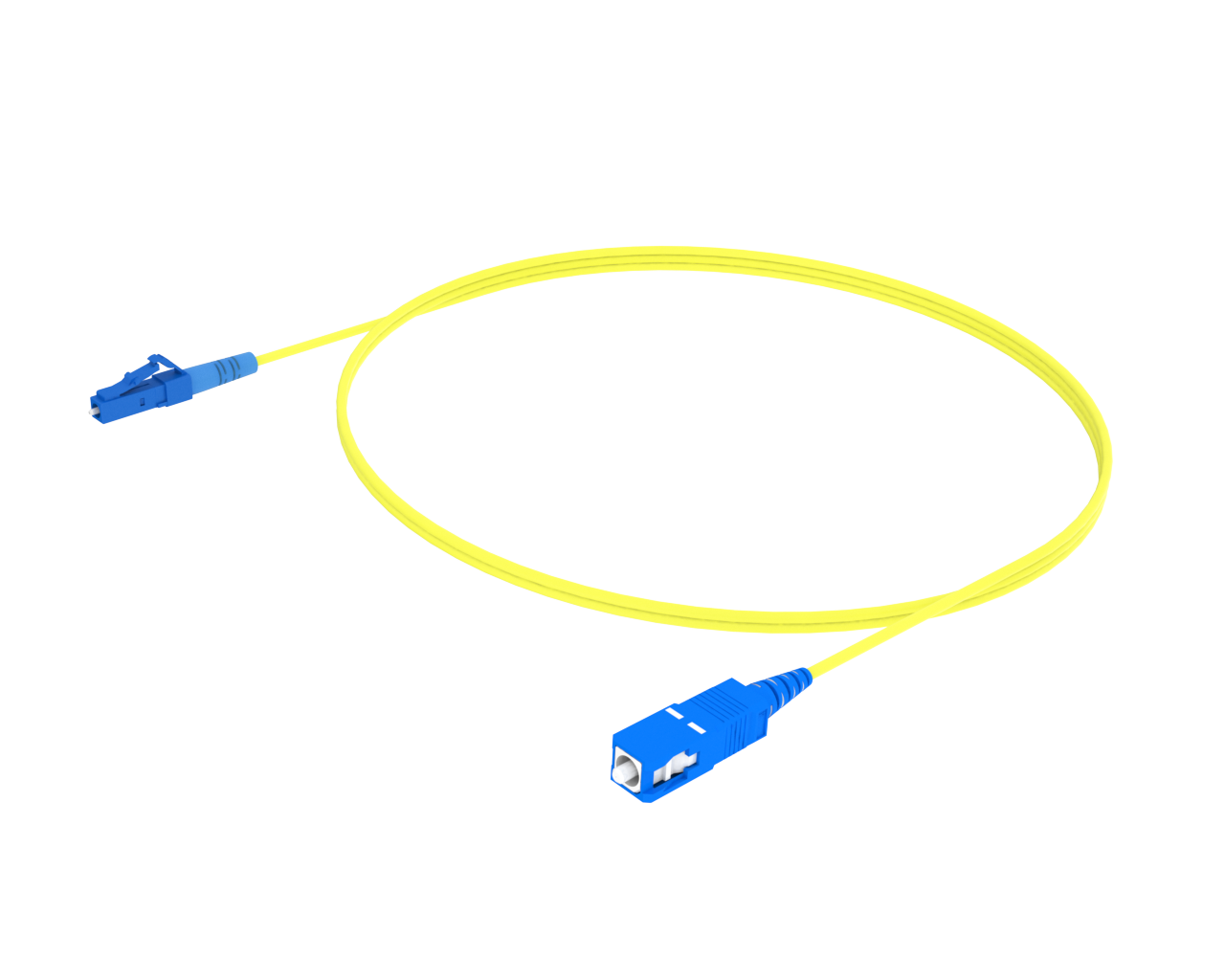

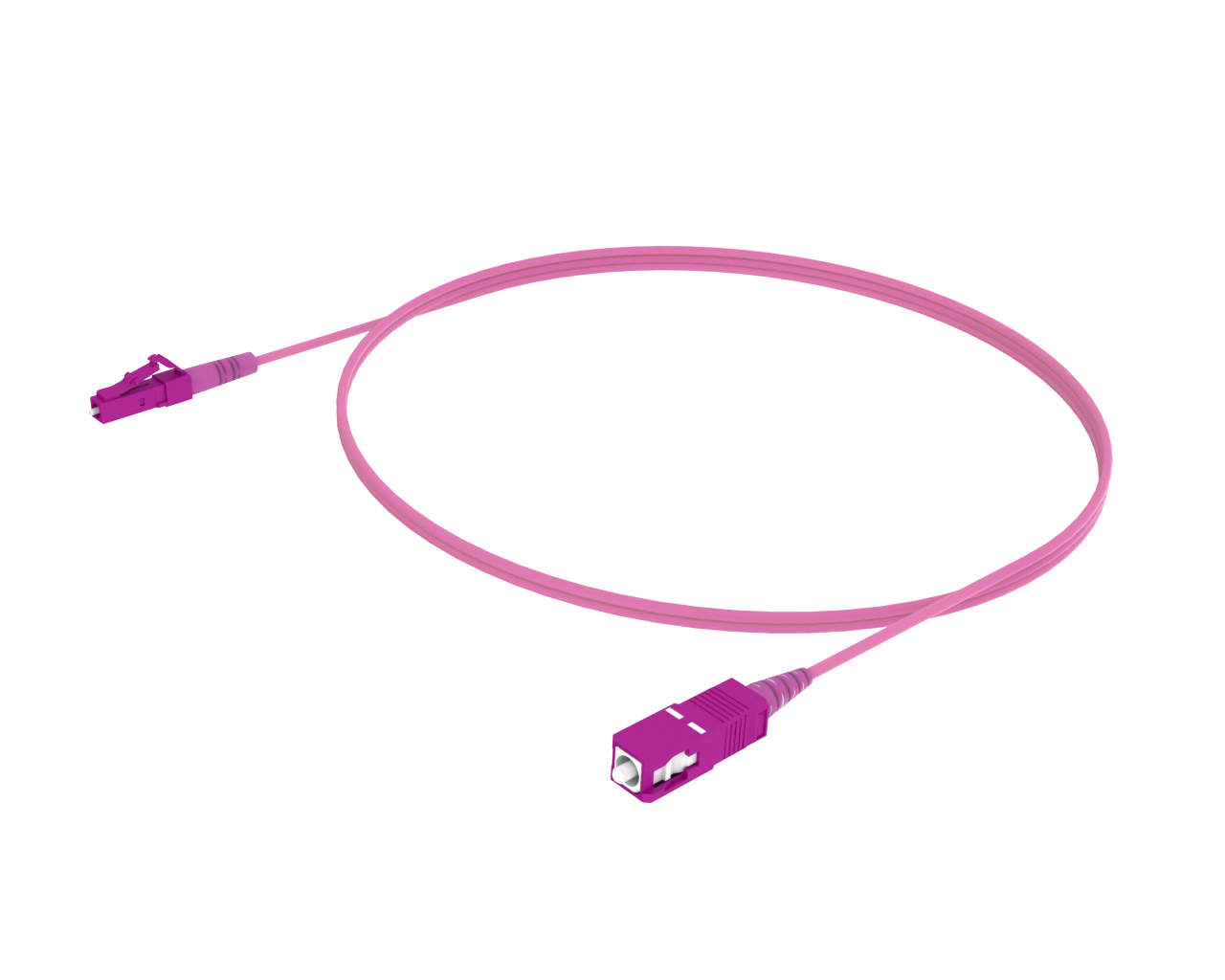

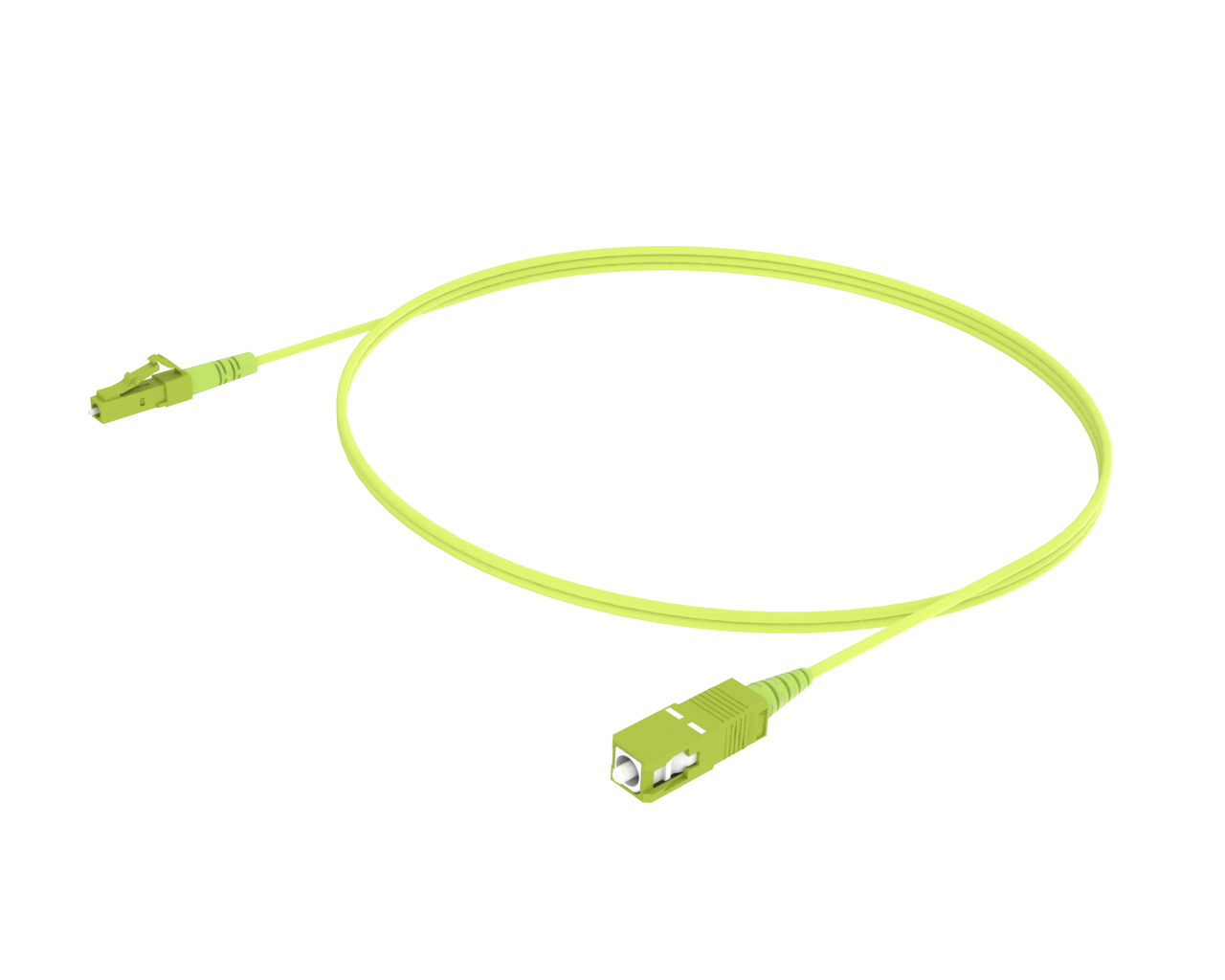

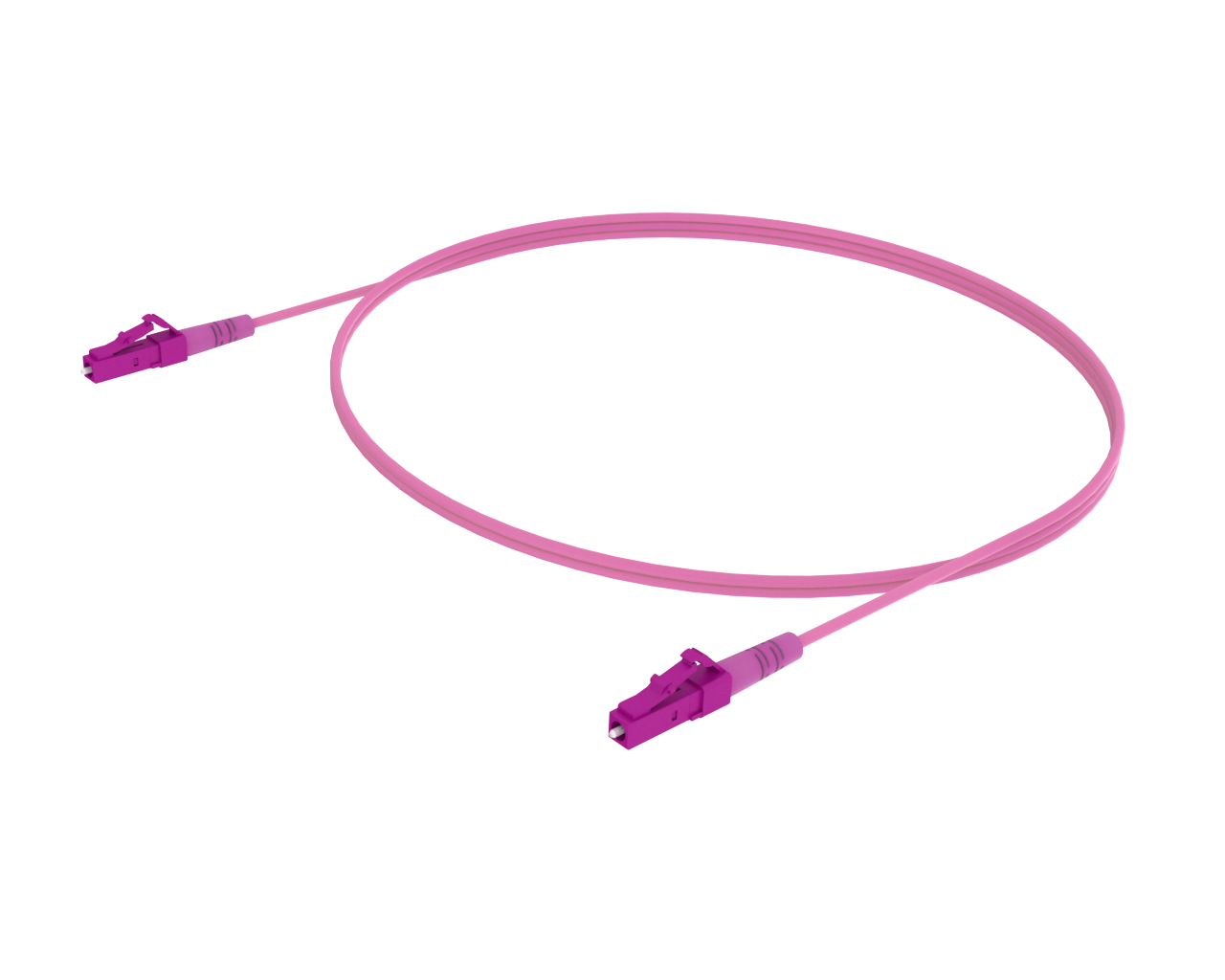

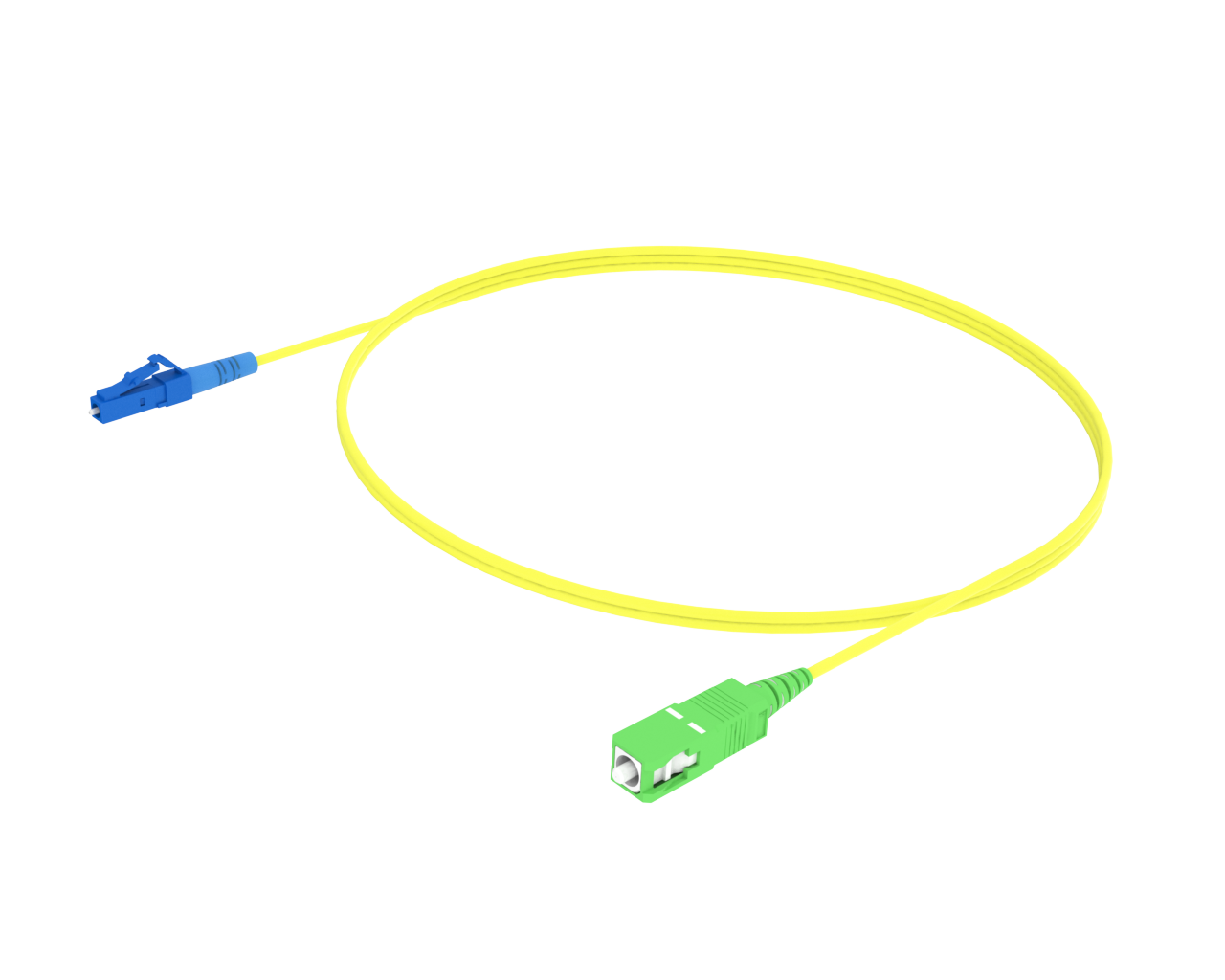

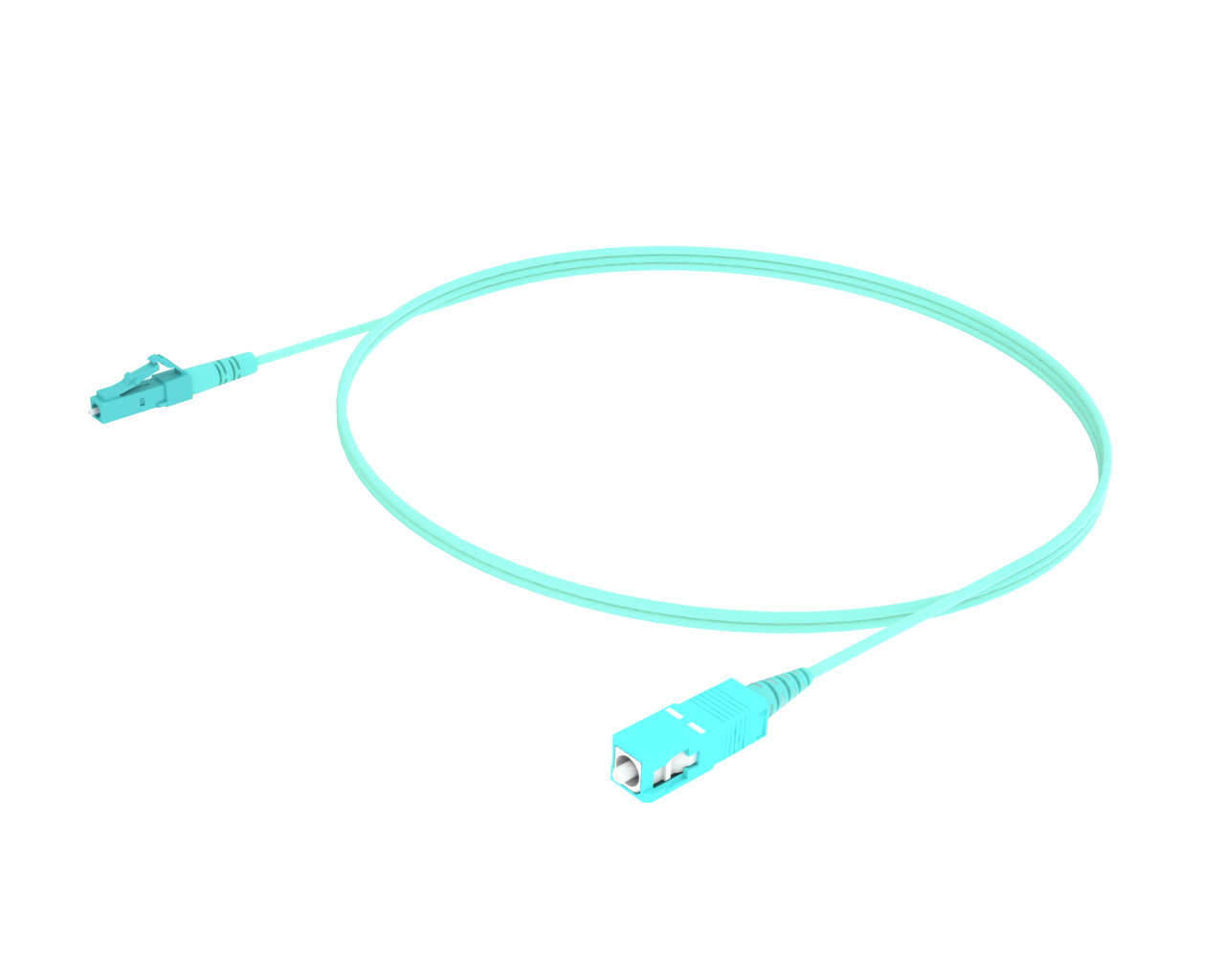

2mm simplex patch cords, available in multi-mode and single-mode optical fiber types, supporting everything from legacy networks to modern 800G infrastructure.
2mm simplex construction with LSZH jacket
Short‑boot for high‑density spaces
Support for various fiber types
Available with LC, SC, FC, and ST connectors
Low insertion loss and high return loss
Color-coded LSZH jackets for easy fiber type identification
These 2mm simplex patch leads feature a single optical fiber in a compact round LSZH jacket, delivering flexibility, durability, and low-loss performance. Engineered to perform across multimode (OM1, OM4, OM5) and single-mode (OS2) systems, they suit applications ranging from enterprise networks to large-scale data centers.
Each assembly is terminated with factory-polished connectors (LC, SC, FC, ST) and tested for insertion loss and return loss to meet or exceed industry standards.
Compact, industry-leading short boot on LC and SC connectors for controlled bend radius in tight spaces. Ideal for point-to-point links between panels and equipment in enterprise, carrier, and hyperscale environments.
Intended for single-fiber patching across the North American hyperscale data center clusters (Ashburn, Dallas, Phoenix), with applications in monitoring loops, OTDR launch leads, and single-channel switch port feeds in colocation halls.
Technical Specifications
Fiber Type
Single-mode (OS2), Multimode (OM1, OM4, OM5)
Configuration
Simplex – 1 fiber in 2mm LSZH jacket
Connector Types
LC, SC, FC, ST (others on request)
Polish Options
UPC or APC (SM); UPC standard (MM)
Insertion Loss
≤0.12dB Mean, ≤ 0.25dB for 97% (IEC 61755-1 Grade B)
