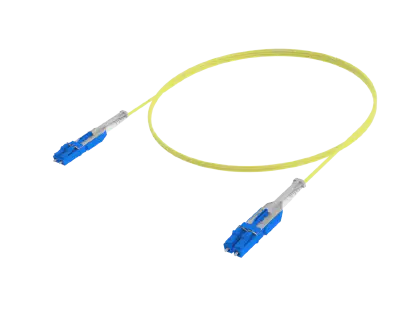

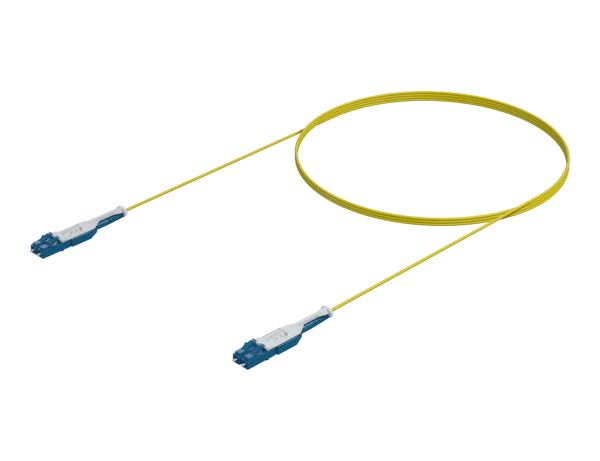

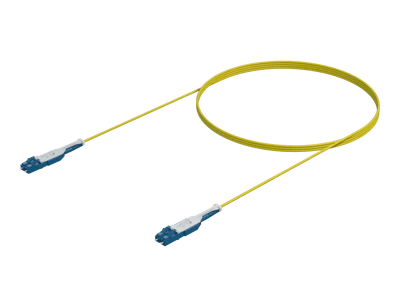

Designed for modern high-density fiber networks, these 2mm round duplex
patch leads combine durability with flexibility, using premium fiber for
low-loss performance across a wide range of applications. Each assembly

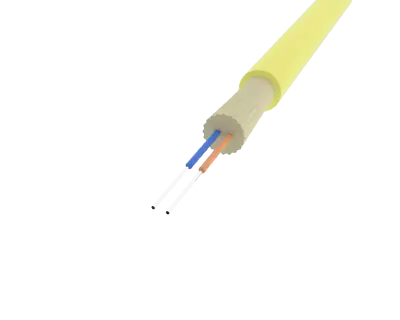

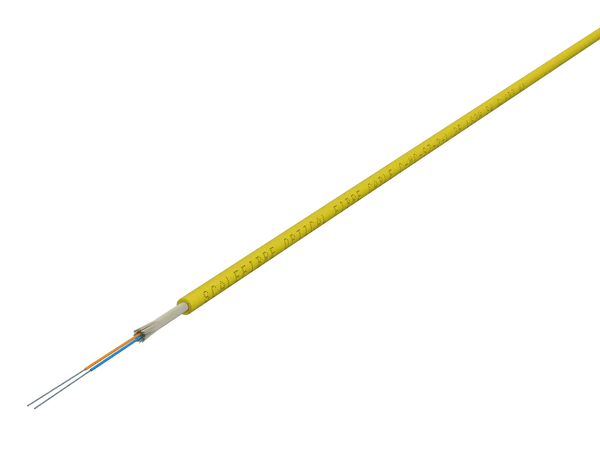

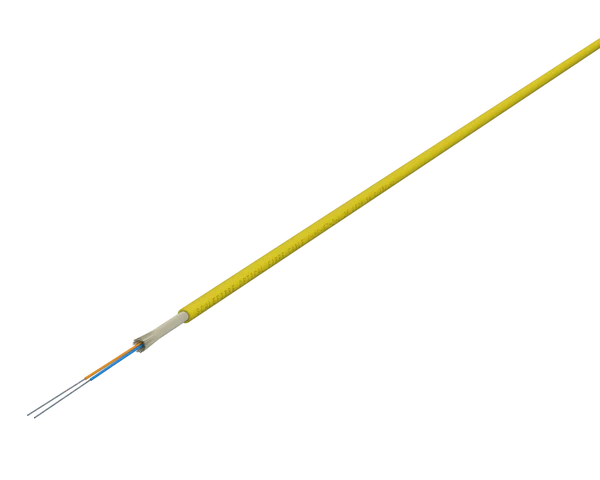

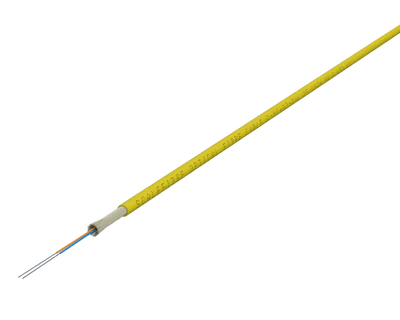

consists of two optical fibers enclosed in a single 2mm round LSZH jacket —
ideal for patch panels, cross-connects, and active equipment
interconnects.

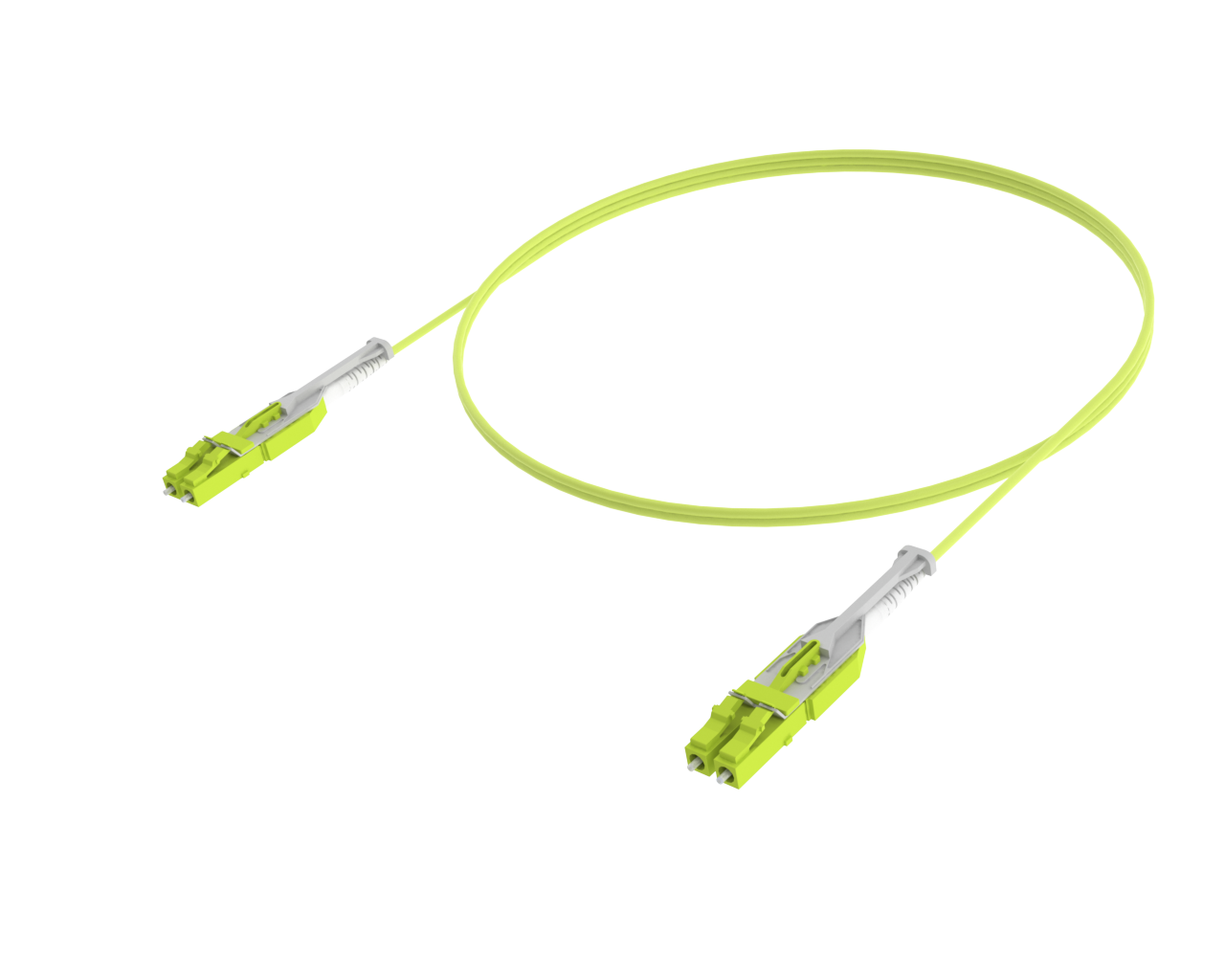

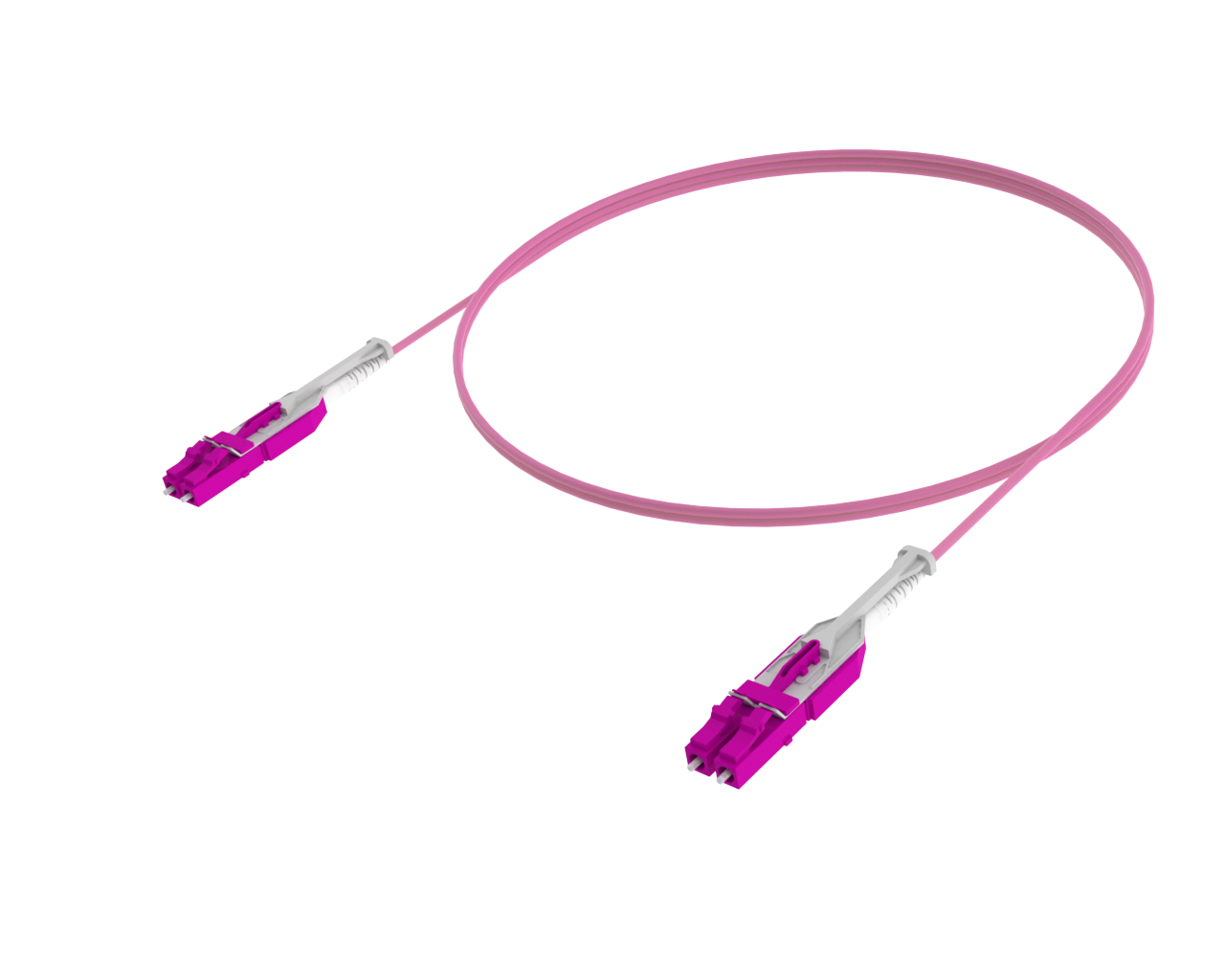

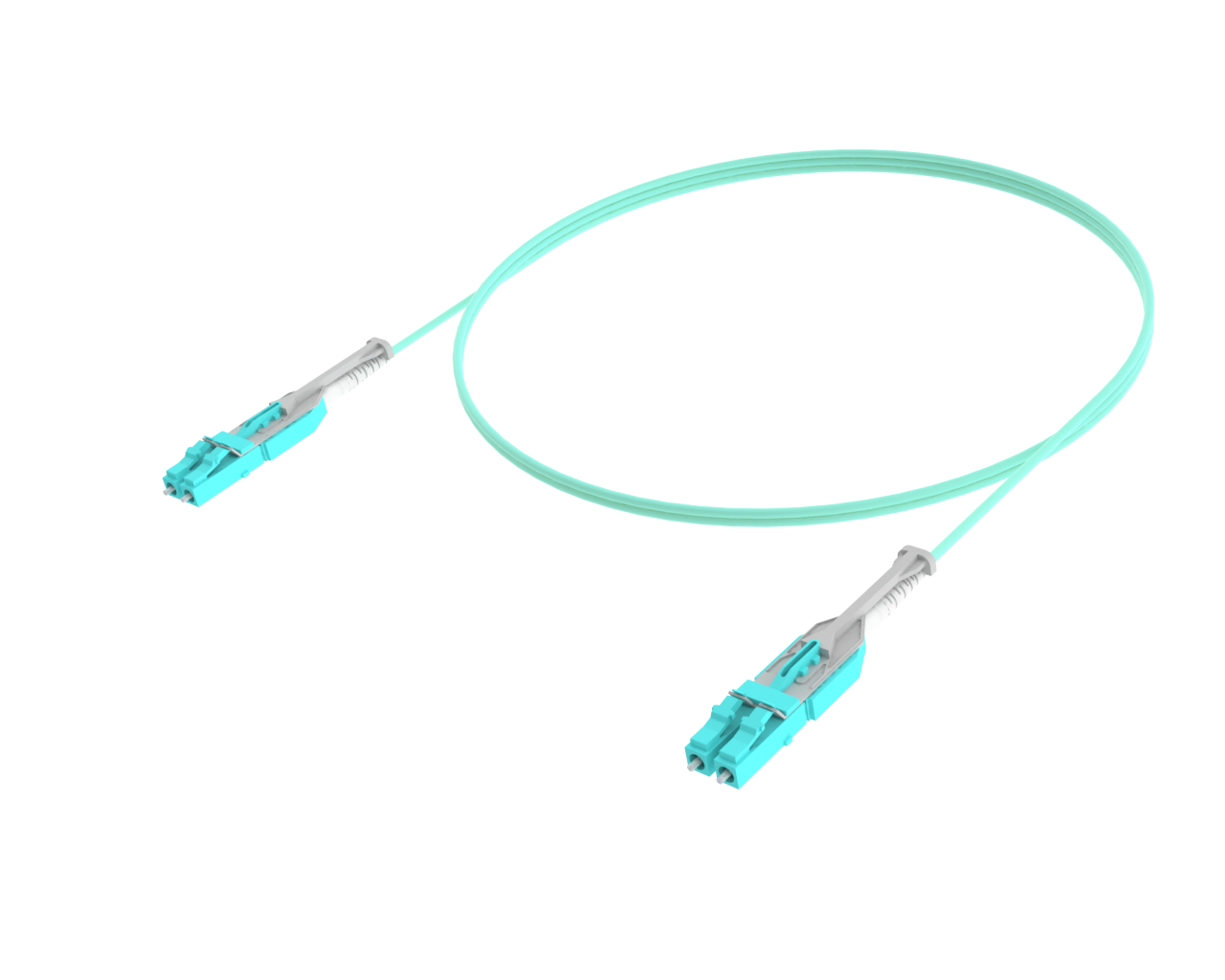

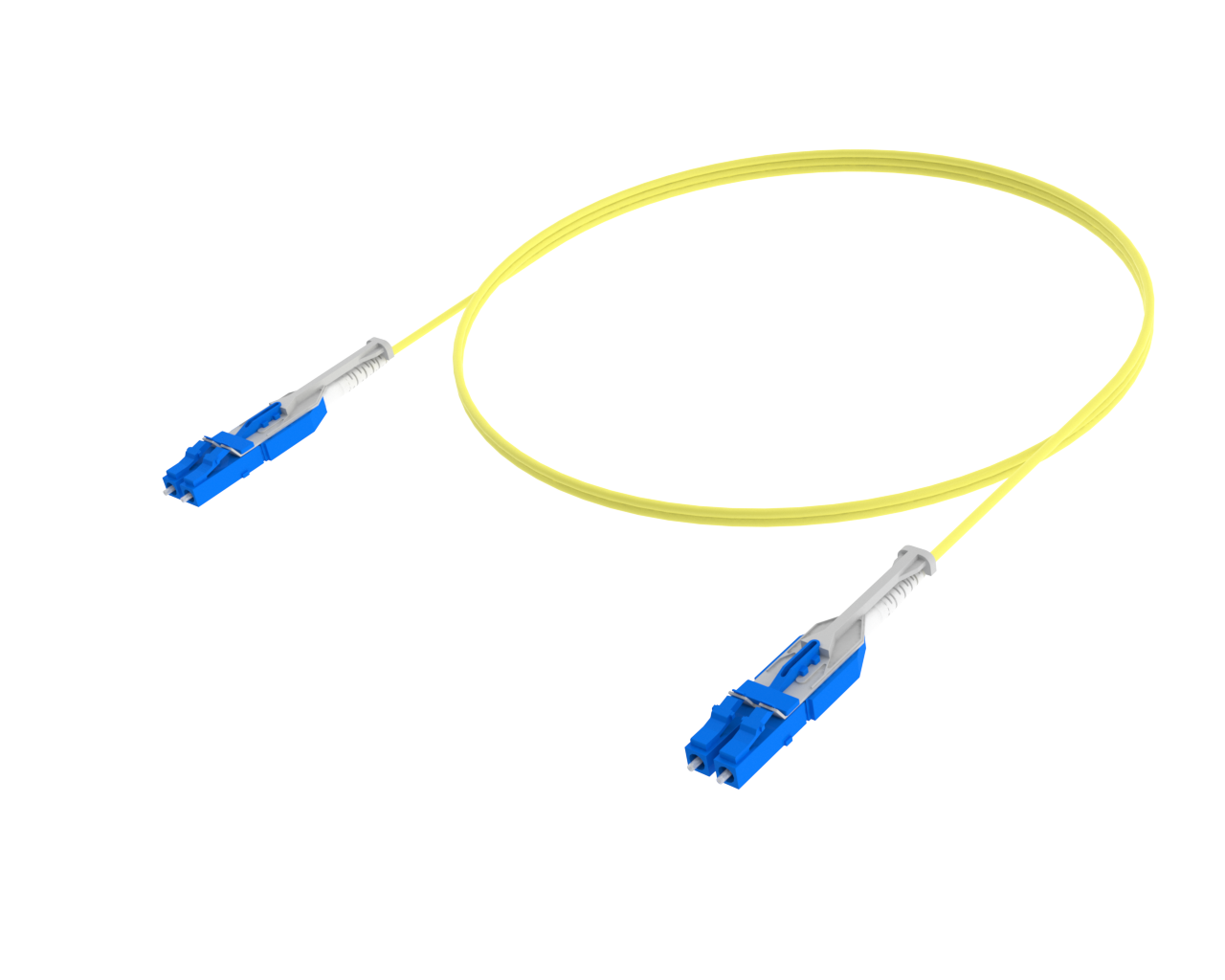

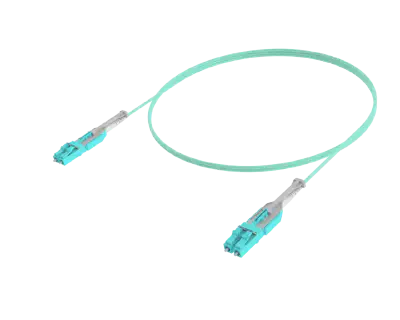

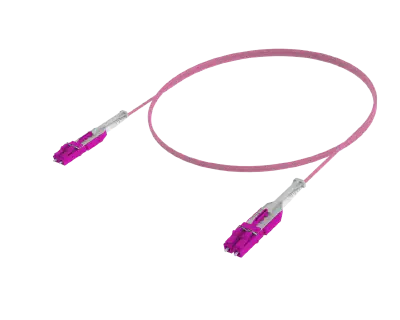

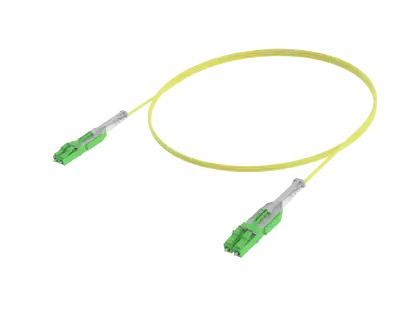

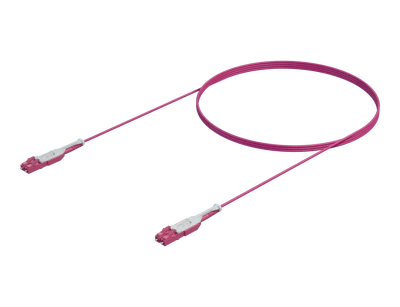

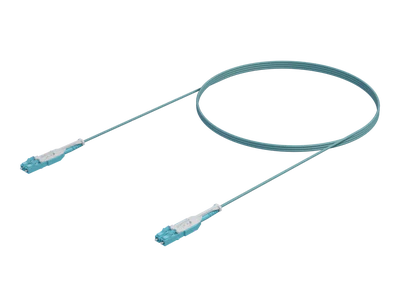

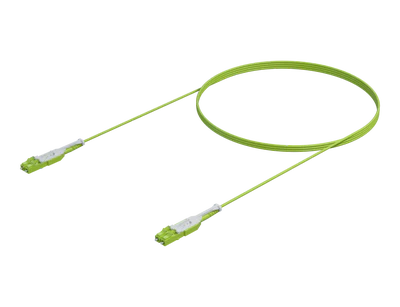

Available in single-mode (OS2) and multimode (OM4, OM5)
with reversible LC pull-tab connector for easy access. Assemblies are
terminated and tested to international standards, ensuring consistent
performance and reliability.
Technical Specifications
Fiber Type
Single-mode (OS2), Multimode (OM4, OM5)
Configuration
Duplex (2 fibers within a single 2mm round cord)
Connector Types
LC pull-tab connector for easy insertion and removal
Polish Options

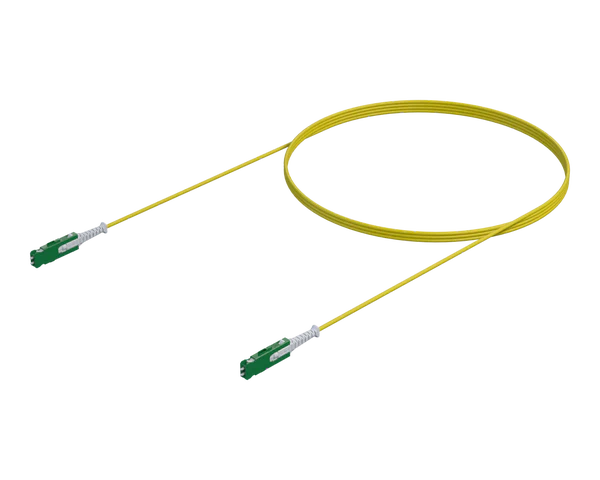

UPC or APC (where applicable)
Insertion Loss
≤0.25dB typical
Return Loss
≥50dB (UPC), ≥60dB (APC) for single-mode ≥35dB for multi-mode
