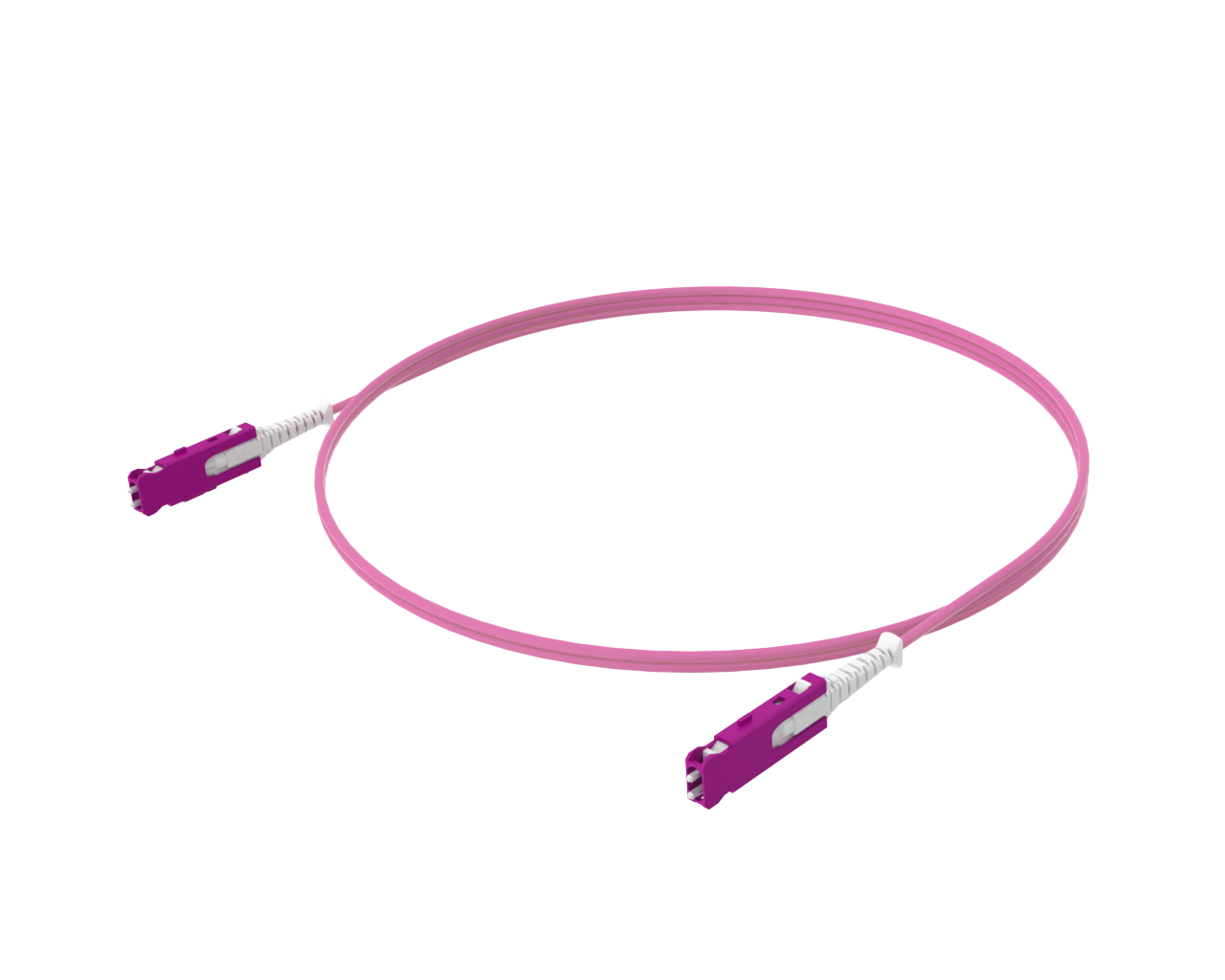

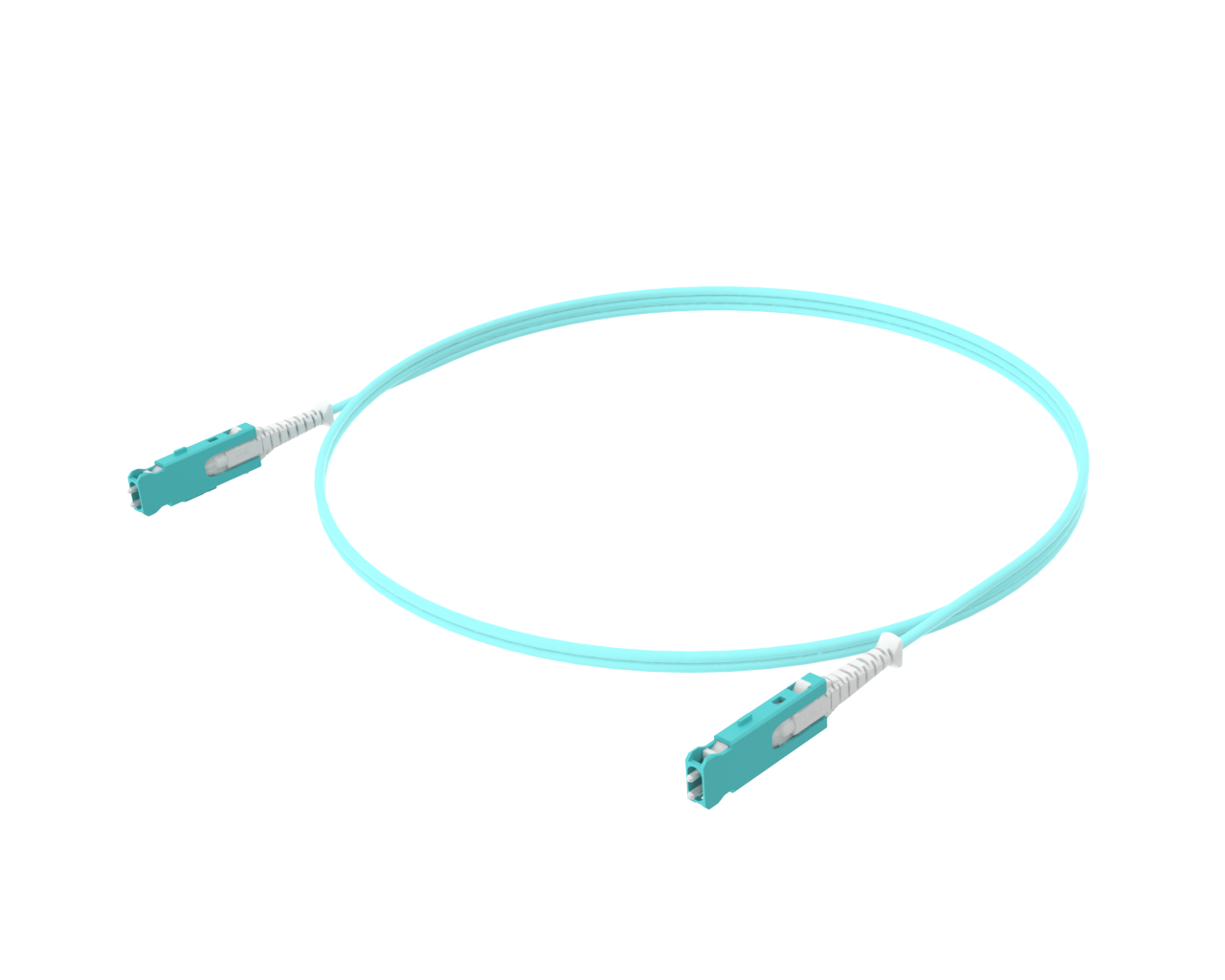

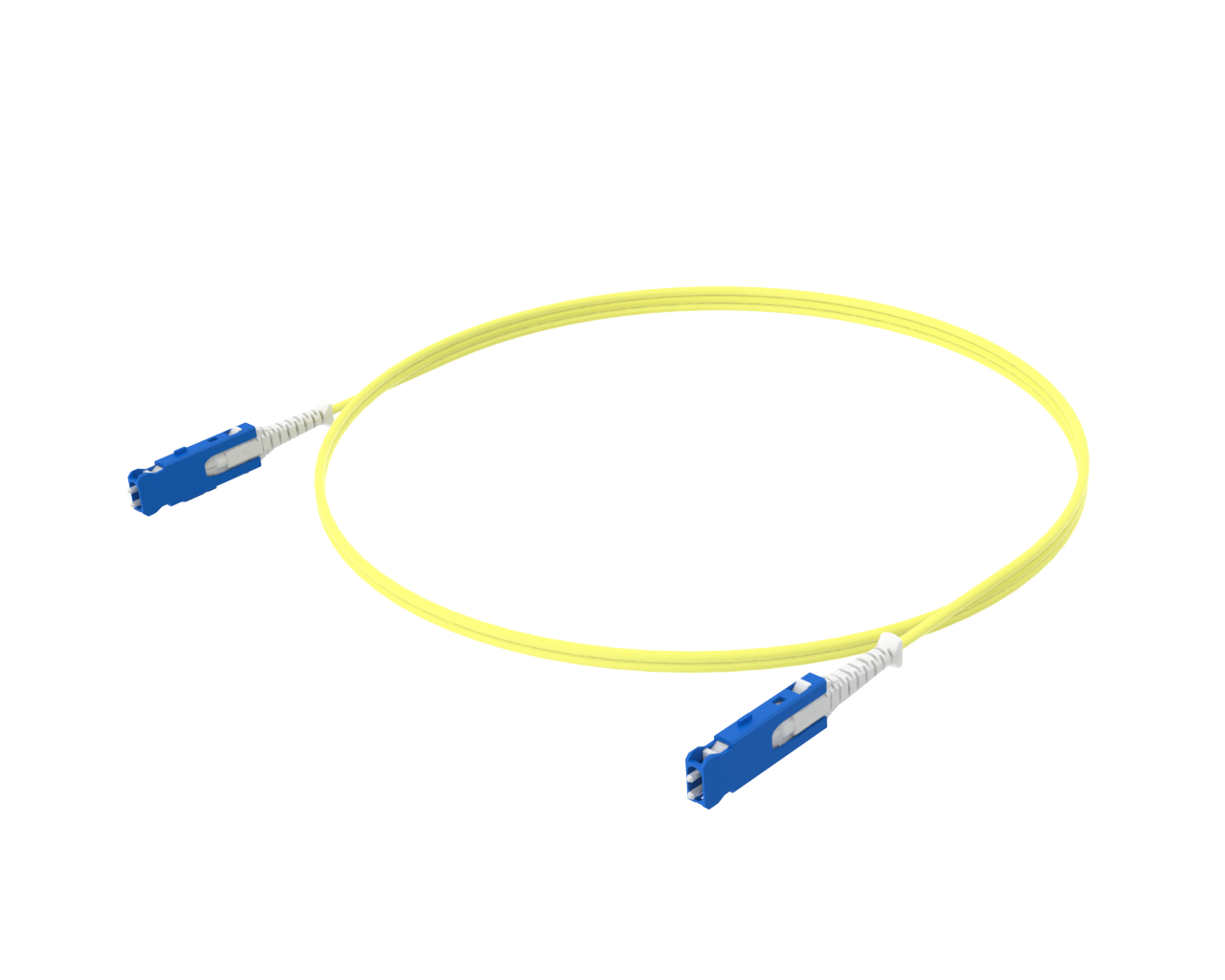

Optimised for ultra-high-density fiber networks, these 2mm round SN® duplex patch leads combine robustness and flexibility, with superior optical performance across a wide range of deployment environments. Each assembly utilises two optical fibers enclosed in a single 2mm round LSZH jacket, ideal for backbone links, patch panels, cross-connects, and direct equipment terminations.
Available in single-mode (OS2) and multimode (OM4, OM5) fiber types, all assemblies are precision-terminated with SN® connectors and factory-tested to rigorous international standards including GR-326, TIA/EIA, and IEC — delivering proven low-loss, high-reliability performance.
SN® and Senko® are registered trademarks of SENKO Advanced Components, Inc. All other trademarks are the property of their respective owners.Intended for next-generation 400G and 800G transceiver fanout across the North American hyperscale data center clusters (Ashburn Northern Virginia, Dallas-Fort Worth, Quincy Washington), with applications in QSFP-DD and OSFP breakout patching in AI training and cloud-region halls.
Technical Specifications
Fiber Type
Single-mode (OS2), Multimode (OM4, OM5)
Configuration
Duplex (2 fibers within a single 2mm round cord)
Connector Types

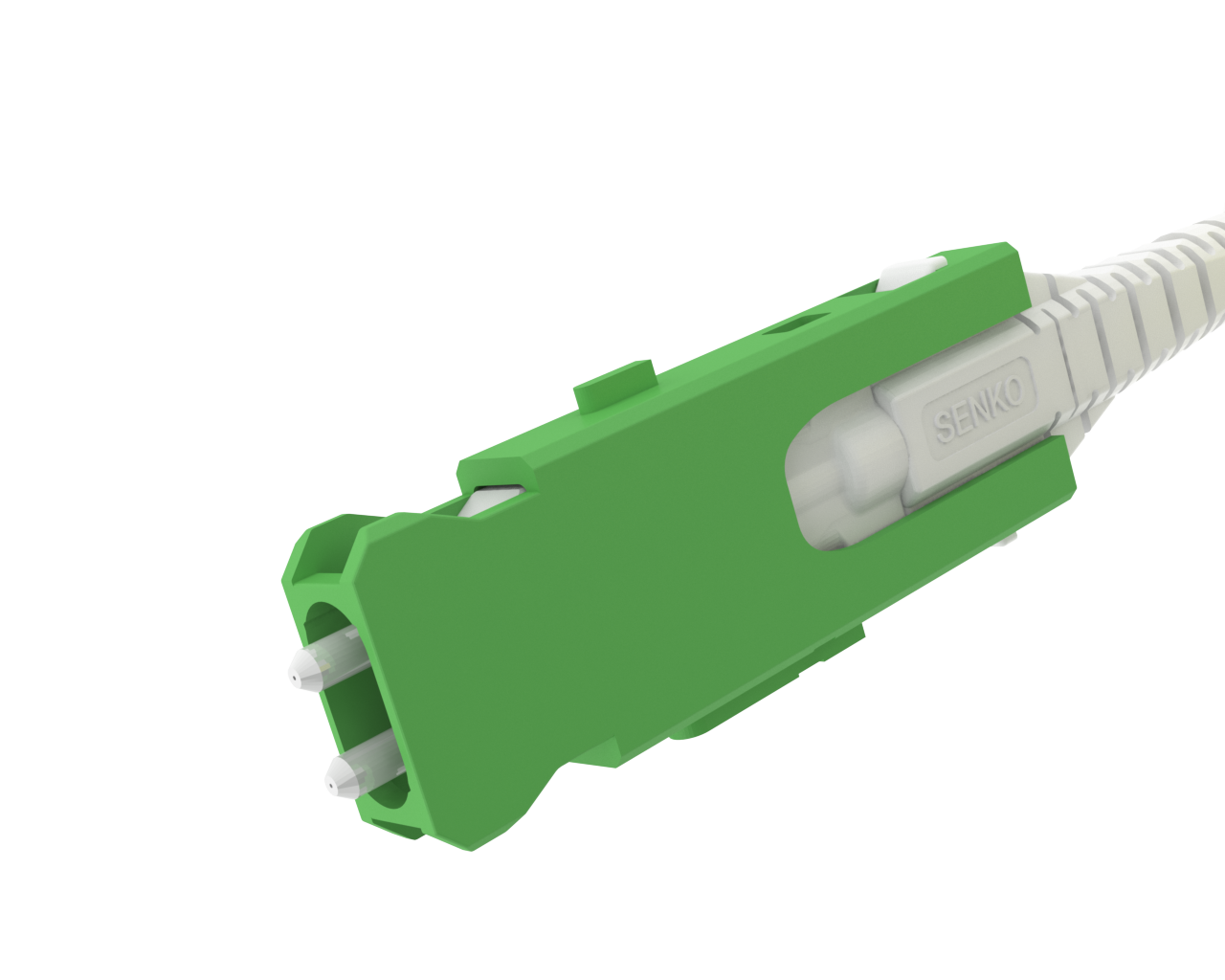

SN® (Senko®)
Polish Options
UPC or APC (single-mode only)
Insertion Loss
≤0.12dB Mean, ≤ 0.25dB for 97% (IEC 61755-1 Grade B)
