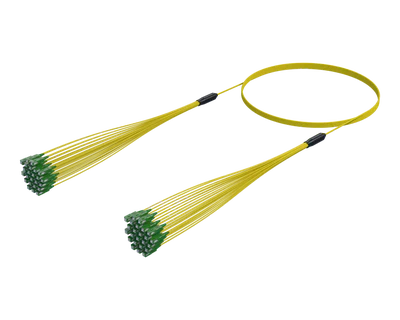

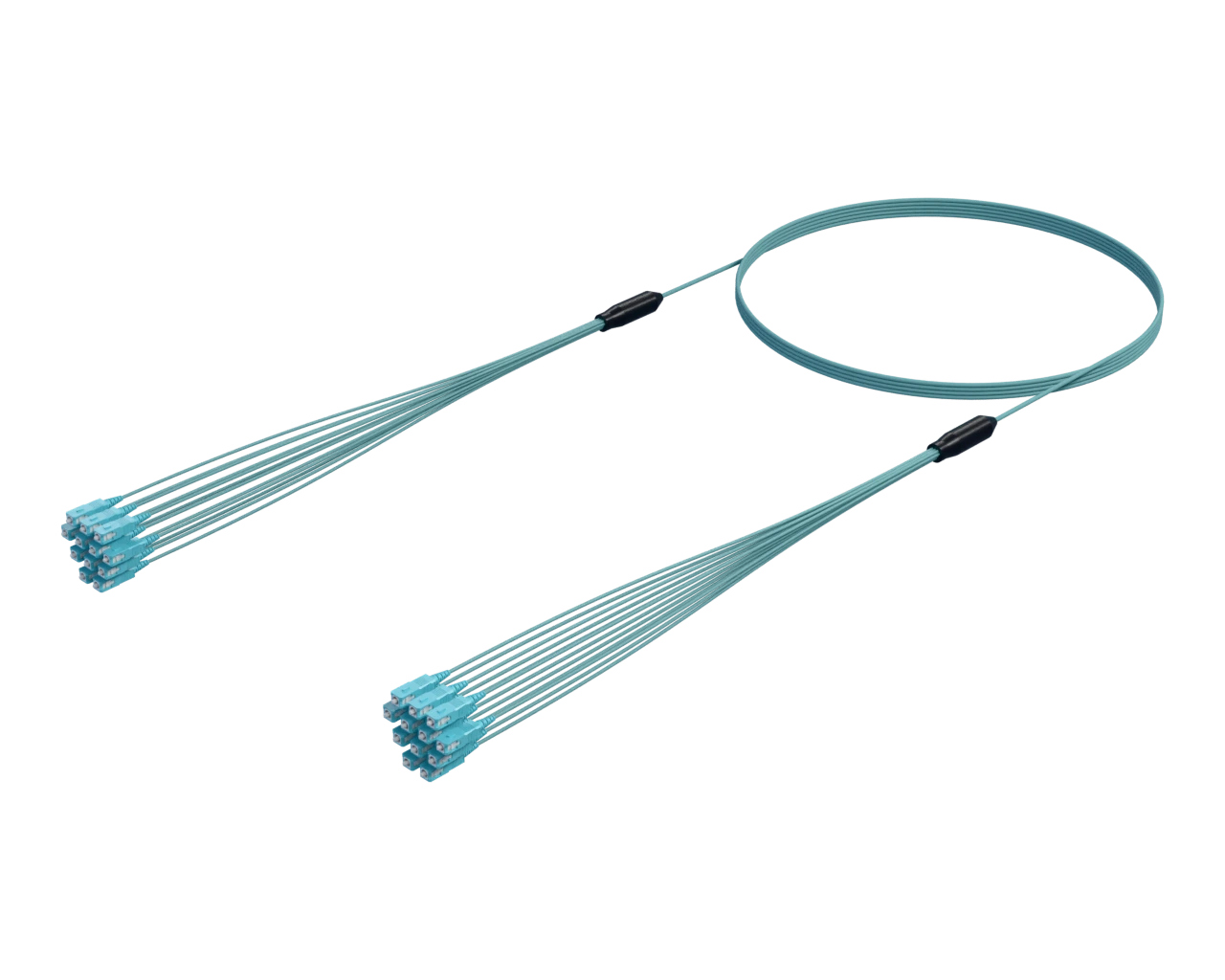

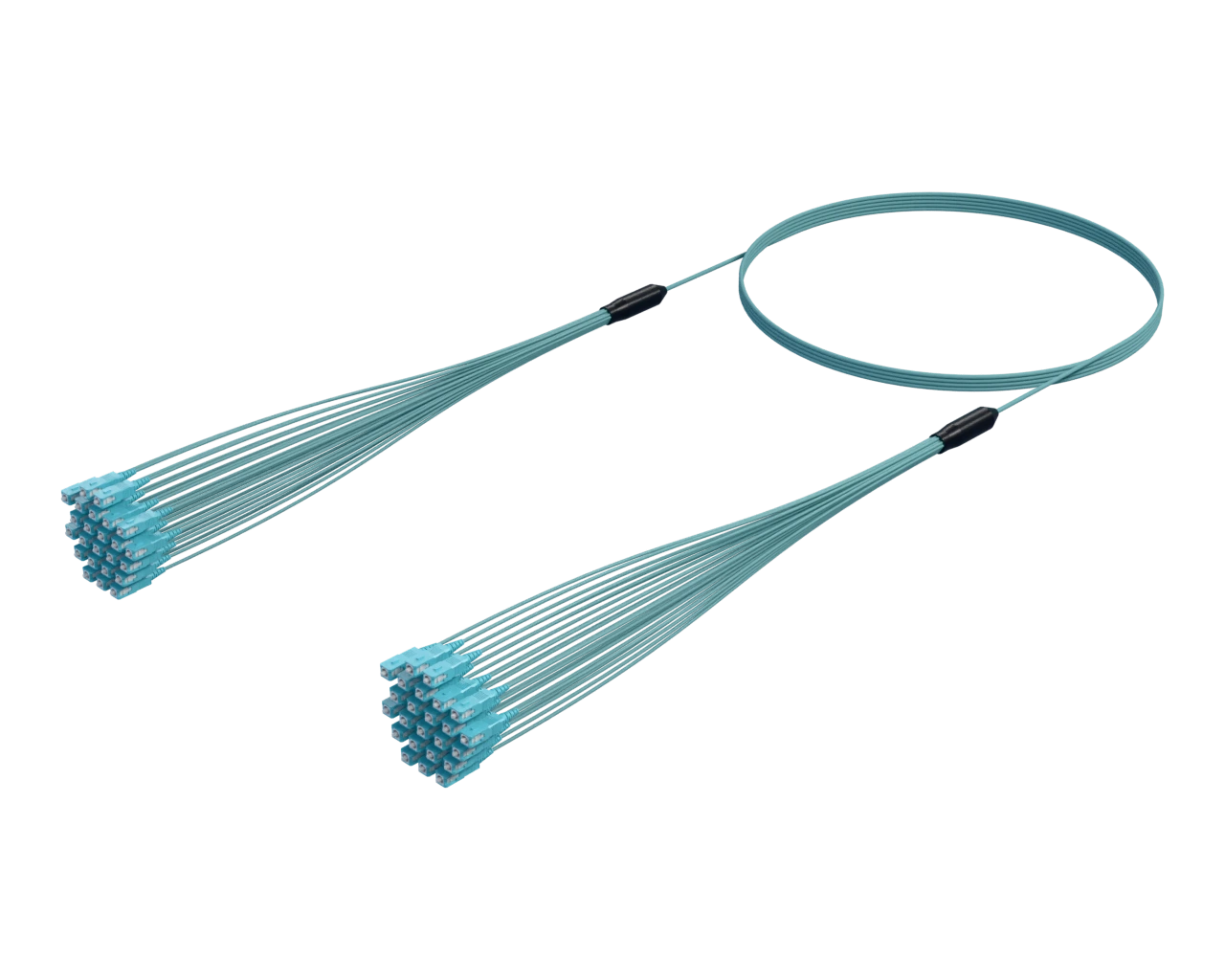

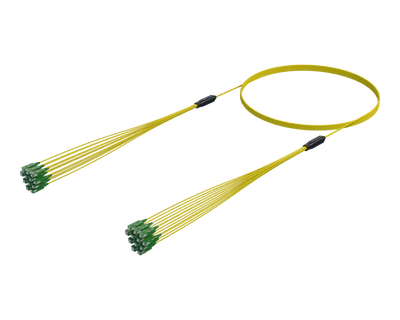

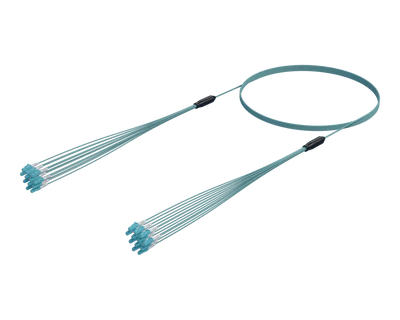

Pre-terminated micro cable optical fibre assemblies offer an ultra-compact, high-performance solution for high-density fibre deployments in North American enterprise and data centre environments. Built on a space-saving SlimCORE™ 3mm outer diameter cable, these assemblies are specifically engineered for 12 and 24 fibre applications where pathway congestion and airflow are critical concerns.
Each assembly is factory-terminated with ScaleFibre quality connectors and precision-polished to deliver low insertion loss and high return loss. Available in both OFNR (Riser) and OFNP (Plenum) ratings, these assemblies meet strict NEC flame safety requirements for installation in vertical shafts and environmental air-handling spaces.

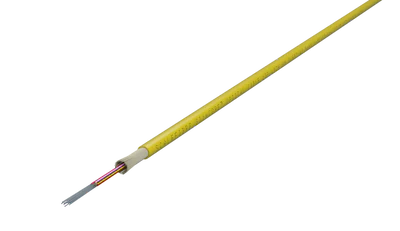

The 3mm micro cable construction provides superior flexibility and a drastically reduced footprint compared to traditional cables. Available in Single-mode and Multi-mode variants, these assemblies simplify compliance and accelerate deployment in high-density patching zones.
General
Connector Types
LC/UPC, LC/APC, SC/UPC, SC/APC
Fibre Count
12 or 24 fibres
Cable Diameter
3.0 mm
Cable Specification
Flame Rating
OFNP (Plenum) / OFNR (Riser)
Relevant Standards
NEC, TIA/EIA-568
Insertion Loss
≤0.25 dB
Operating Temperature
-20°C to +70°C

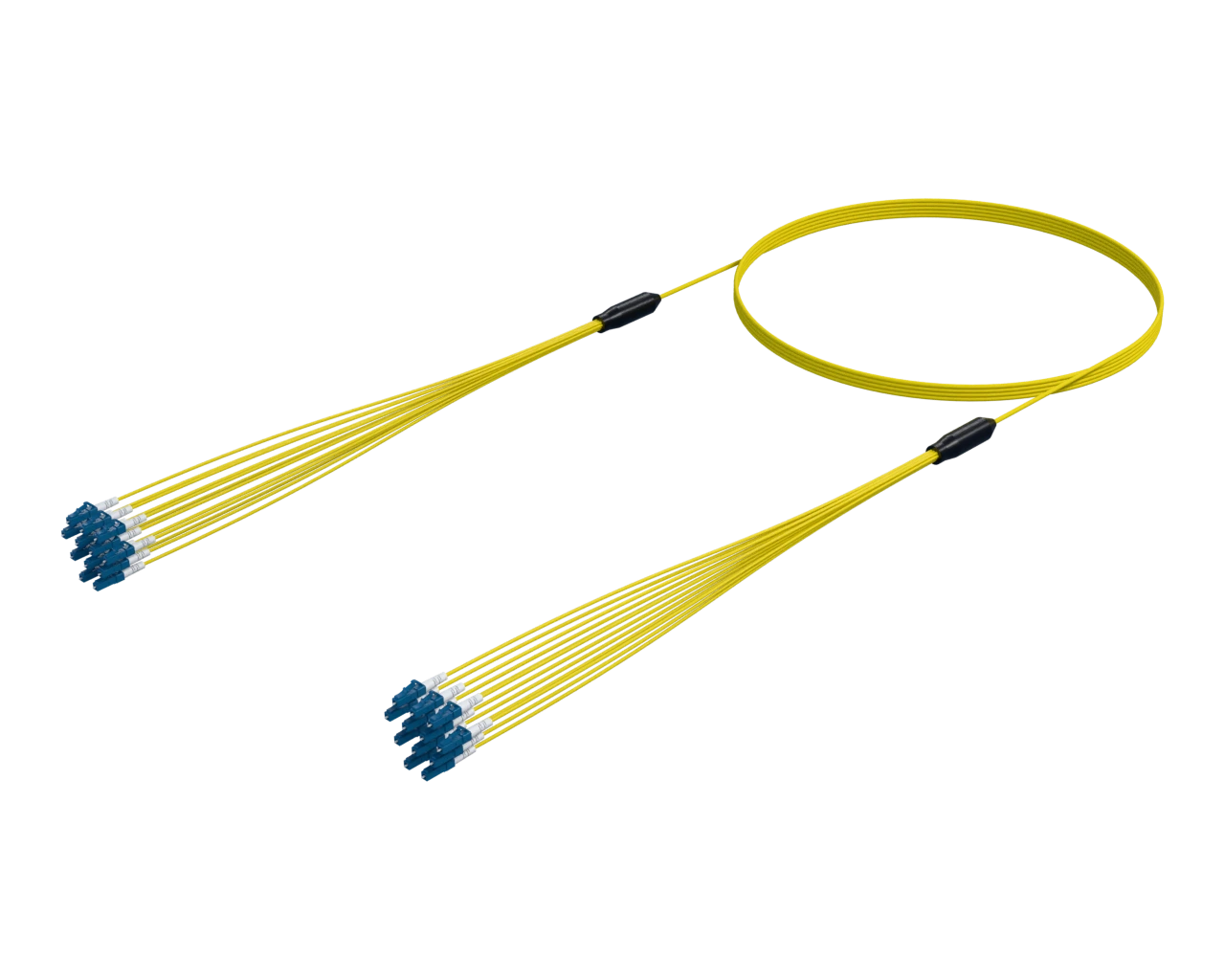

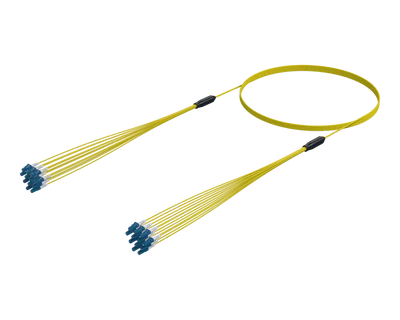

Micro Cable Assembly, SM (OS2), 12F, 3mm, LC/UPC to LC/UPC - Riser
Part Number
Length (ft)
MCR-S2-12-LC-LC-30F
30
MCR-S2-12-LC-LC-50F
50
MCR-S2-12-LC-LC-65F
65
MCR-S2-12-LC-LC-80F
80
MCR-S2-12-LC-LC-100F
100
MCR-S2-12-LC-LC-130F
130
MCR-S2-12-LC-LC-150F
150
MCR-S2-12-LC-LC-165F
165
MCR-S2-12-LC-LC-200F
200
MCR-S2-12-LC-LC-230F
230
MCR-S2-12-LC-LC-250F
250
MCR-S2-12-LC-LC-300F
300

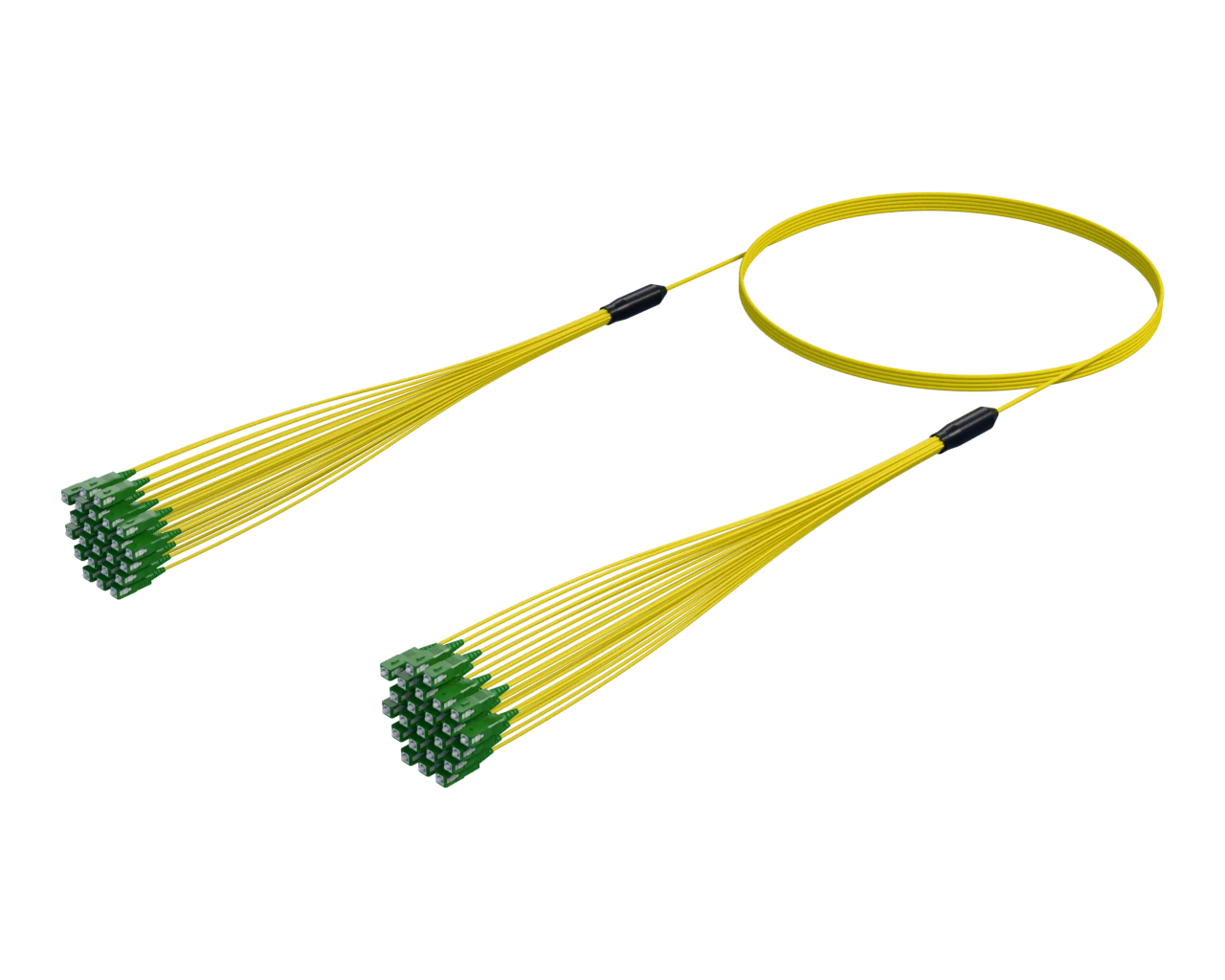

Micro Cable Assembly, SM (OS2), 24F, 3mm, LC/UPC to LC/UPC - Riser
Part Number
Length (ft)
MCR-S2-24-LC-LC-30F
30
MCR-S2-24-LC-LC-50F
50
MCR-S2-24-LC-LC-65F
65
MCR-S2-24-LC-LC-80F
80
MCR-S2-24-LC-LC-100F
100
MCR-S2-24-LC-LC-130F
130
MCR-S2-24-LC-LC-150F
150
MCR-S2-24-LC-LC-165F
165
MCR-S2-24-LC-LC-200F
200
MCR-S2-24-LC-LC-230F
230
MCR-S2-24-LC-LC-250F
250
MCR-S2-24-LC-LC-300F
300
Micro Cable Assembly, SM (OS2), 12F, 3mm, LC/UPC to LC/UPC - Plenum
Part Number
Length (ft)
MCP-S2-12-LC-LC-30F
30
MCP-S2-12-LC-LC-50F
50
MCP-S2-12-LC-LC-65F
65
MCP-S2-12-LC-LC-80F
80
MCP-S2-12-LC-LC-100F
100
MCP-S2-12-LC-LC-130F
130
MCP-S2-12-LC-LC-150F
150
MCP-S2-12-LC-LC-165F
165
MCP-S2-12-LC-LC-200F
200
MCP-S2-12-LC-LC-230F
230
MCP-S2-12-LC-LC-250F
250
MCP-S2-12-LC-LC-300F
300
Micro Cable Assembly, SM (OS2), 24F, 3mm, LC/UPC to LC/UPC - Plenum
