Rugged pre‑terminated tight-buffered cables with 2 to 24 fibers. Streamlined for fast, high‑density deployment with minimal space and installation effort.
Supports 2 to 24 fibers per trunk
Available with a variety of connectors
Factory terminated and 100% IL/RL tested
LSZH outer jacket with CPR option
Ideal for zone distribution, and backbone extensions

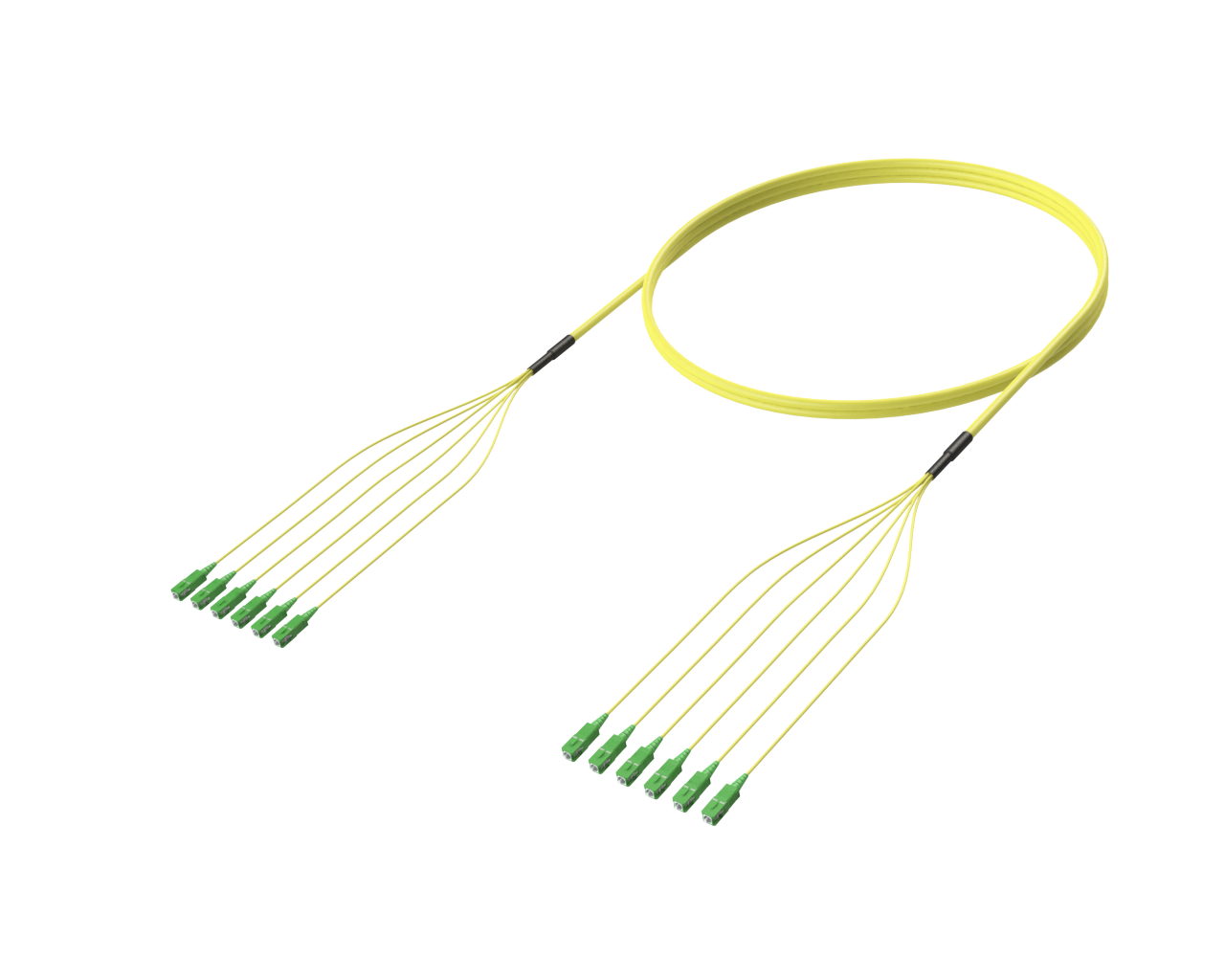

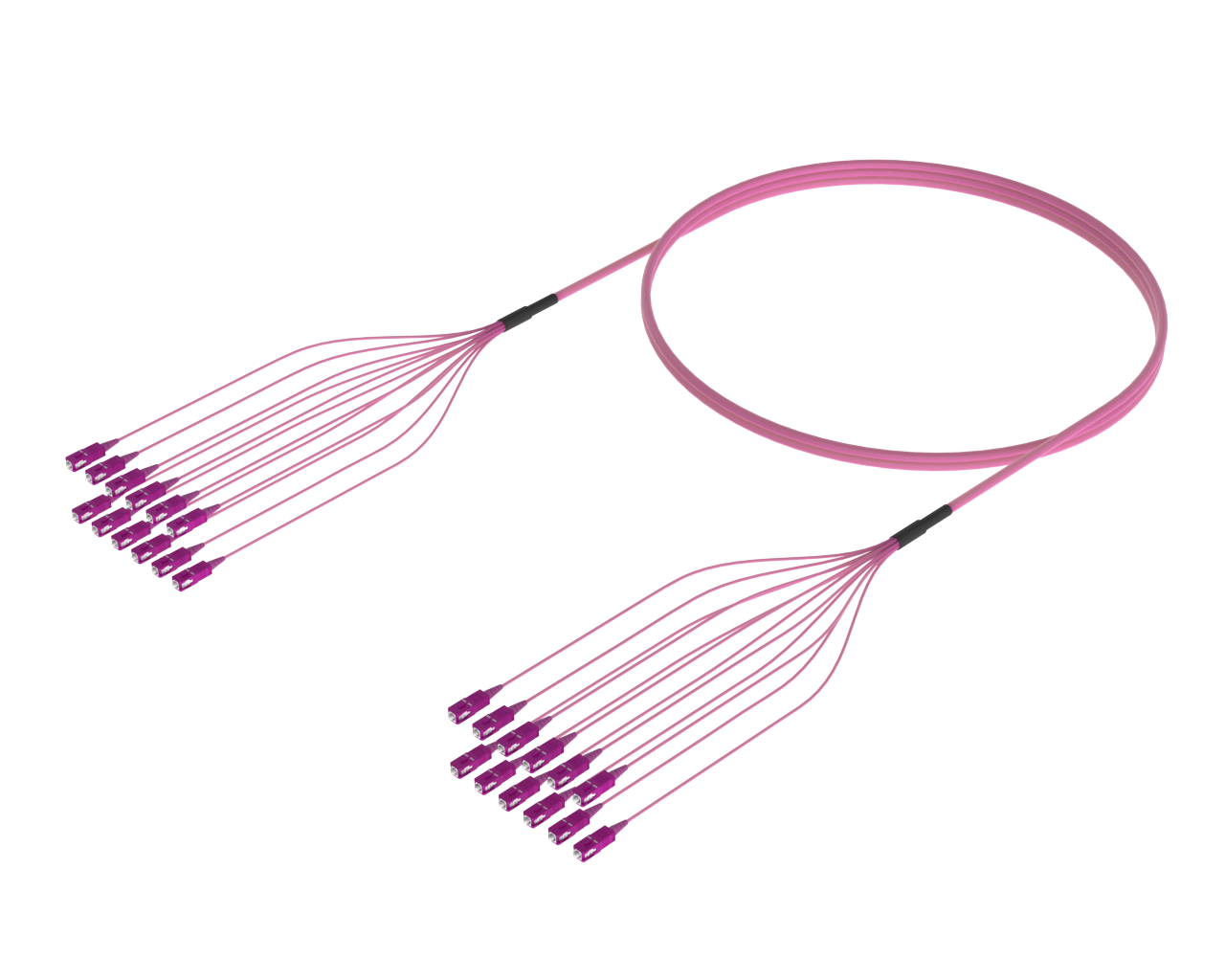

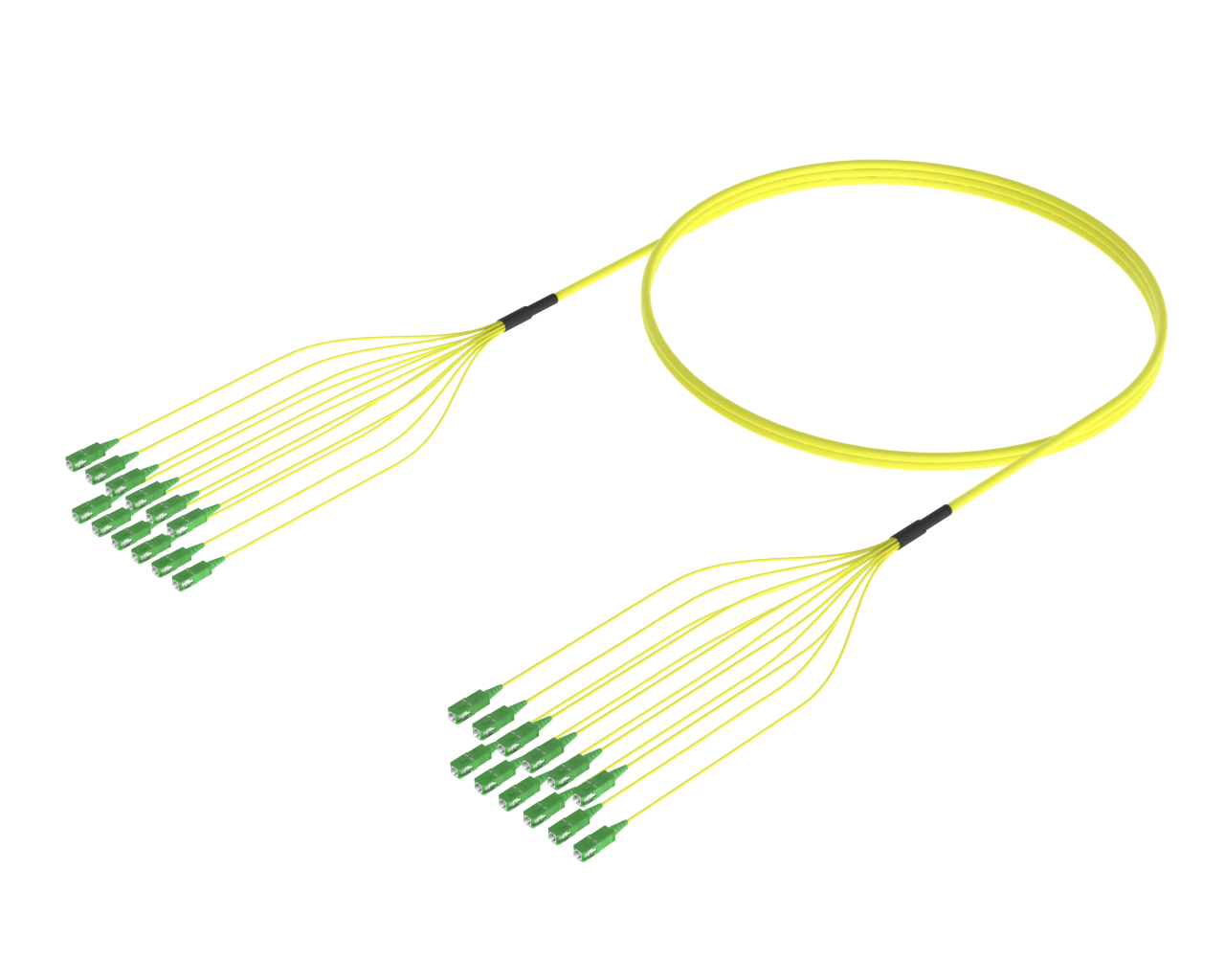

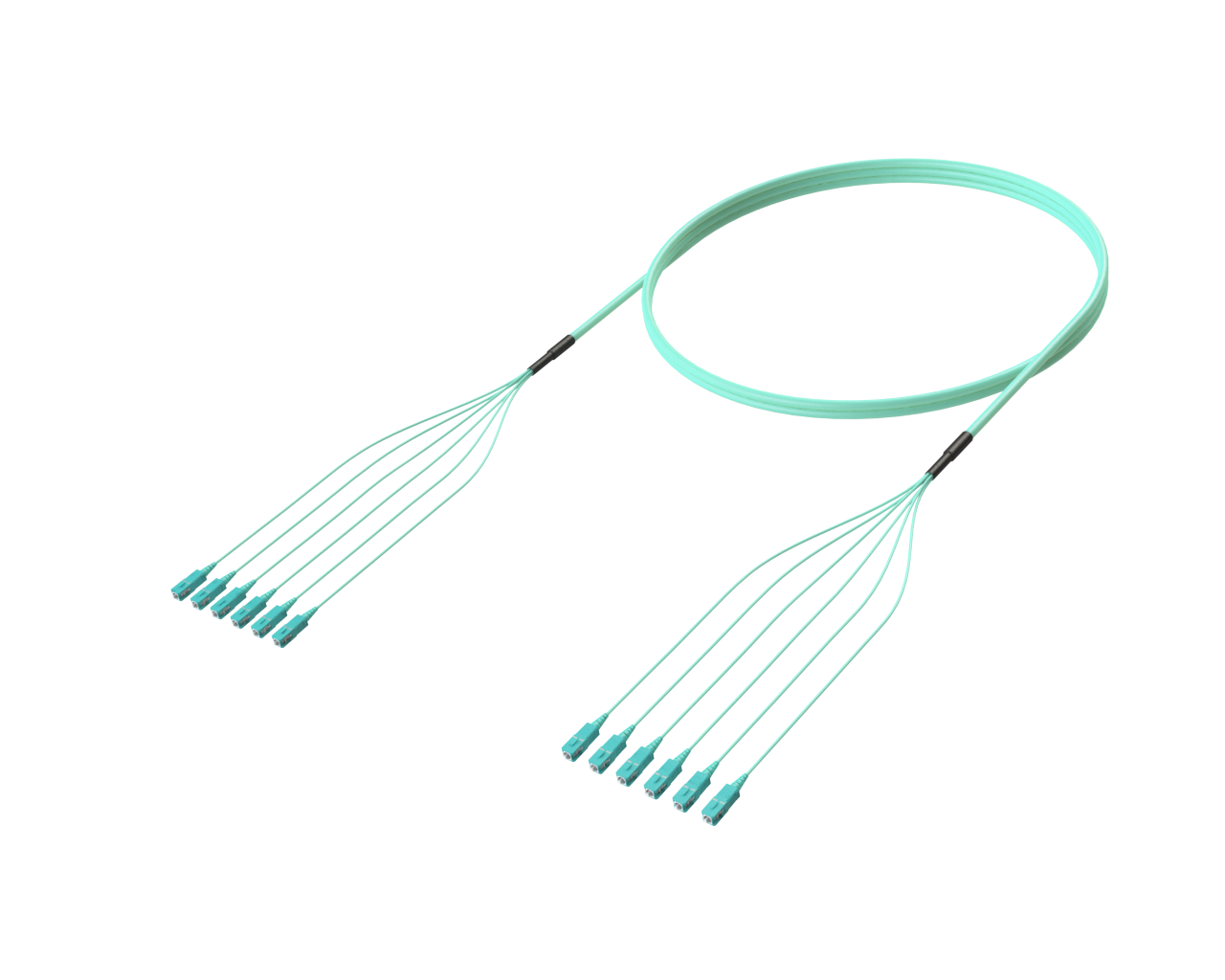

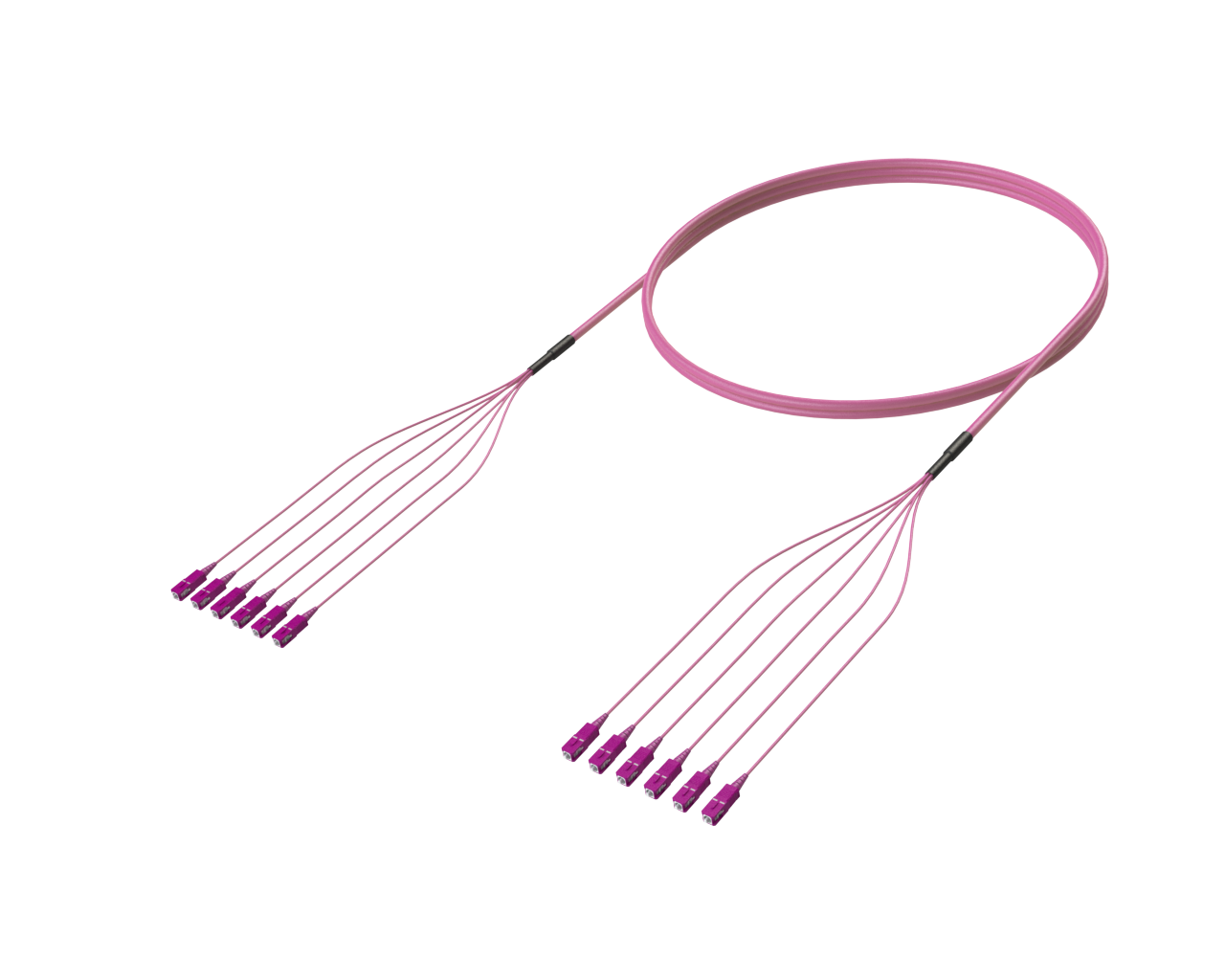

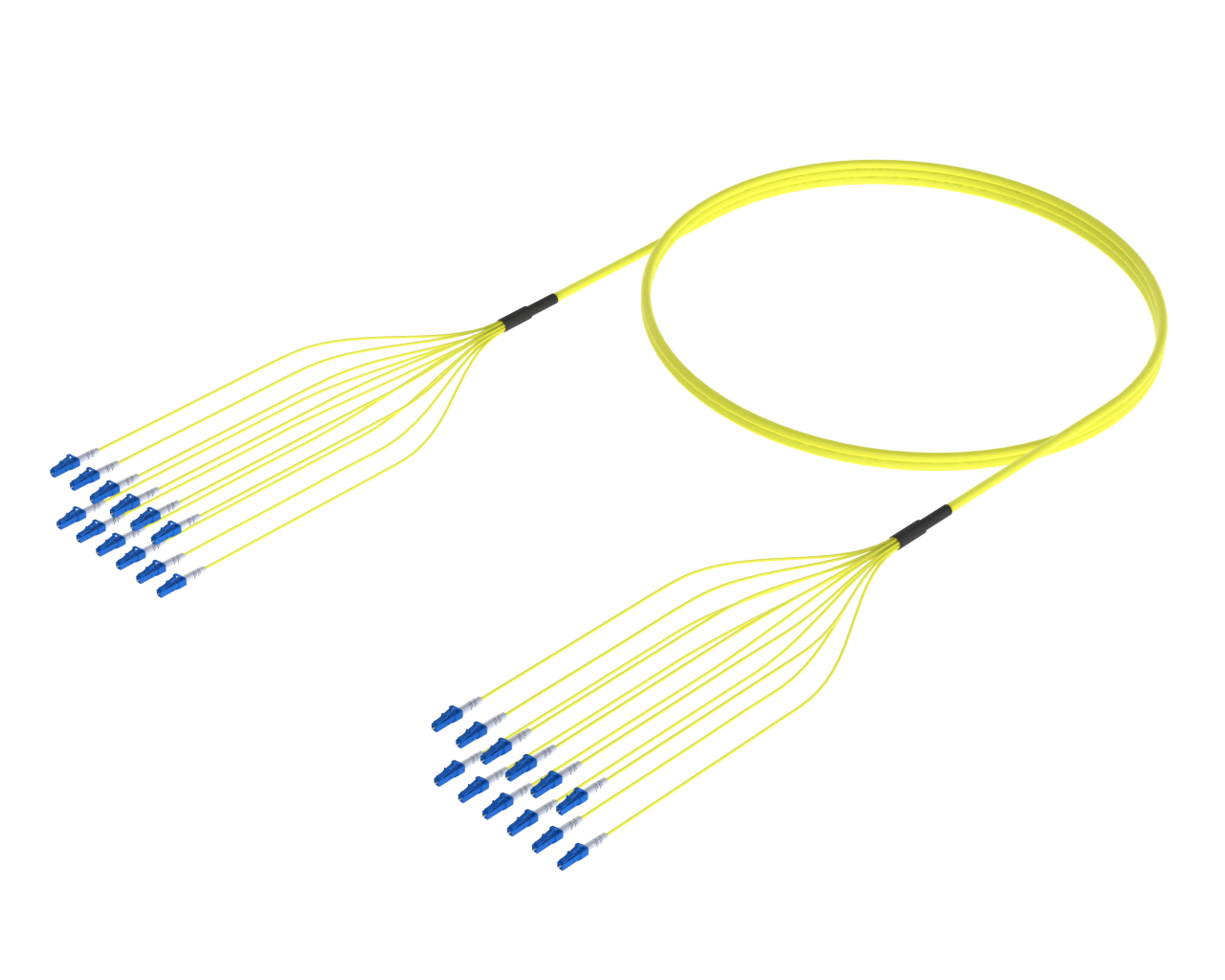

Pre‑terminated tight-buffered optical fiber cable assemblies offer a compact, high‑performance solution for fiber deployments across data centers, campus networks, and access-layer environments. Designed for applications requiring 2 to 24 fibers, they combine the convenience of pre-termination with a protective tight-buffered construction. zones.
Each assembly is factory‑terminated with ScaleFibre quality connectors and precision‑polished to deliver low insertion loss and high return loss out of the box. This minimises testing and splicing in the field, accelerating rollouts while maintaining consistent optical performance.
The tight-buffered cable construction provides a resilient and easily managed cable, suitable for use in cable trays and ducts. Available in LSZH and CPR-rated sheaths, these assemblies are suited to regulated environments where space, safety, and speed of deployment are critical.
Intended for high-density pre-terminated tight-buffered backbone
delivery across the North American hyperscale datacentre clusters
(Ashburn, Dallas, Phoenix), with applications in factory-tested
single-pull distribution in colocation halls.
General
Connector Types
SC/UPC SC/APC LC/UPC LC/APC ST/UPC FC/UPC FC/APC SN MDC
Fiber Count Range
2 to 24 fibers per trunk
Cable Specification
Jacket Material
Low Smoke Zero Halogen (LSZH)
Fiber Type
Single-mode OS2 Multimode OM3/OM4/OM5
Connector Insertion Loss
≤0.12dB Mean, ≤ 0.25dB for 97% (IEC 61755-1 Grade B)
